Note:
THERE ARE A FEW THINGS TO CONSIDER BEFORE INSTALLATION
• Cavity Dimensions and Clearances
• MUST be installed a 100mm minimum off the floor or nearest horizontal surface.
• Coupling of flue to fire
• Coupling of gas lines to fire
• Fixing the fire to cavity

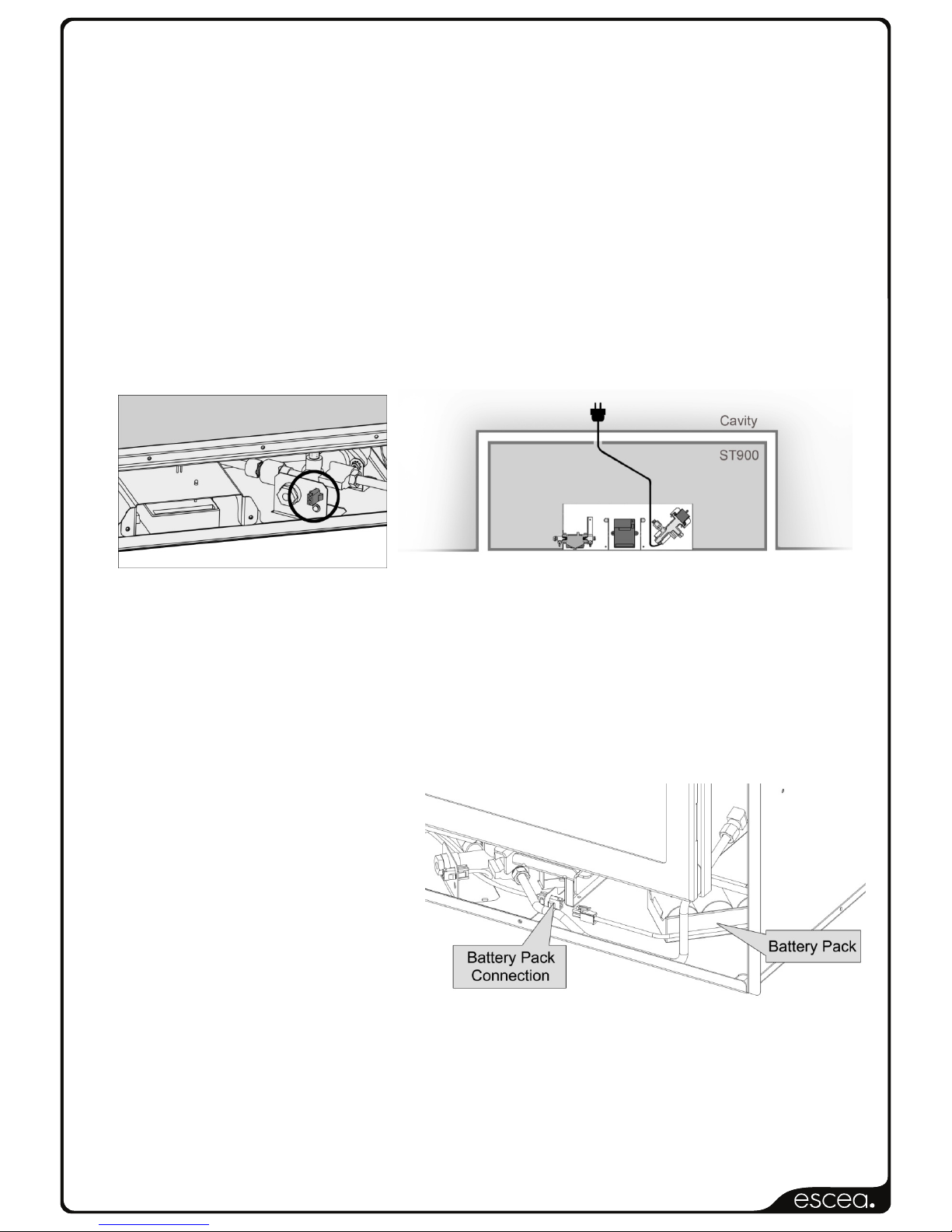

• Electrical mains socket at rear left corner of the cavity, to accommodate the power
transformer
• Isolation switch for electrical transformer.
• Gas pipe placement to the front left of the cavity.
• The ST900 electronic control system is designed to work within the temperature range of
0°C to 60°C, with a humidity level that is non condensing. This is to ensure safe
operation of the electronic and gas control system.
If the fireplace is subjected to an environment with temperatures very close to or
exceeding these temperature limits (irrespective of if the fireplace is on or off at the time)
the fireplace may not start up until the temperature returns back to within the operating
range.
To remedy this the environmental temperature should be addressed and the fireplace
control system given time to adjust accordingly. The fireplace should then function
correctly.
It would be prudent to consider these operational limits during the installation planning
stage. Protecting the installed fireplace from low external ambient temperatures and cold
drafts through the use of approved modern building methods and materials will help
ensure that the required operating environment is maintained.
WARNING:
Failure to follow these instructions could cause a malfunction of the fire, which,
could result in death, serious bodily injury, and/or property damage. Failure to follow
these instructions may also void insurance cover and/or product warranty.
Installation:
Installation must be carried out by a registered installer who, on completion of the
installation, must issue a certificate of compliance, in accordance with national and/or local
codes. If a certificate of compliance is not issued then the Escea warranty may be void.
Warranty Repair and Annual Servicing:
Warranty repair work must be carried out by a recognised Escea gas fire technician. It is
recommended that recognised Escea Gas fire technicians are also used to carry out annual
servicing requirements (particularly during the warranty period). For contact details of
authorised Escea technicians in your area, please contact the retailer from whom the
appliance was purchased.
This product must be installed according to these instructions and in compliance with all
relevant building, gas fitting, electrical and other statutory regulations (eg. NZS 5261). Any
shortcomings in the appliance and flue installation will be the responsibility of the installer,
and Escea will not be accountable for any such failings or their consequences.
