Escea IB600 Manuel utilisateur

IB600

IB850

IB1100

GAS FIRE USER GUIDE

www.escea.co.nz www.escea.com.au

G8861_9 Userguide NZ/AUS

NZ LTD

17 Carnforth St, PO Box 5277

Dunedin, New Zealand

E-mail: [email protected]

Web: www.escea.co.nz

Phone: +64 3 4788220

DO NOT PLACE ARTICLES ON OR AGAINST THIS APPLIANCE.

DO NOT USE OR STORE FLAMMABLE MATERIALS NEAR THIS APPLIANCE.

DO NOT SPRAY AEROSOLS IN THE VICINITY OF THIS APPLIANCE WHILST IN

OPERATION.

NEVER OPERATE THE FIRE WITH THE FRONT GLASS REMOVED.

IT IS NOT RECOMMENDED TO OPERATE THE FIRE WITH THE FASCIA PANELS

REMOVED.

THIS APPLIANCE IS NOT INTENDED FOR USE BY YOUNG CHILDREN OR INFIRM

PERSONS UNLESS THEY HAVE BEEN ADEQUATELY SUPERVISED BY A

RESPONSIBLE PERSON TO ENSURE THAT THEY CAN USE THE APPLIANCE

SAFELY.

YOUNG CHILDREN SHOULD BE SUPERVISED TO ENSURE THAT THEY DO NOT

PLAY WITH THE APPLIANCE.

THE APPLIANCE MUST BE INSPECTED BEFORE USE AND SERVICED AT LEAST

ANNUALLY BY AN AUTHORISED TECHNICIAN.

THIS APPLIANCE MUST BE INSTALLED IN ACCORDANCE WITH THE

MANUFACTURERS WRITTEN INSTRUCTIONS.

DO NOT MODIFY THIS APPLIANCE

The data label for this appliance, containing technical

information and specifications, can be found adhered to the

metal work under the burners.

If the electrical cord is damaged, it must be replaced by the

manufacturer, its service agent or similarly qualified persons in

order to avoid a hazard.

Distributed in Australia by

Glen Dimplex

Unit 2, 205 Abbotts Road

Dandenong, Melbourne

web: www.escea.com.au

Phone: +61 3 87873567

Distributed in Western Australia by

Australian Heating Distributors

31 Clune Street

Bayswater, Perth, Western Australia

web: www.escea.com.au

Phone: +61 8 93737000

Contents

Remote control Layout 2

Basic Operation 3

Remote Keylock 5

Setting The Remote Time 5

Timer Operation 6

Auxiliary On / Off 8

Overtemp shut off mode 9

Sound & Smell 11

Fascia, Fuel Bed & Glass Care 13

Trouble shooting 15

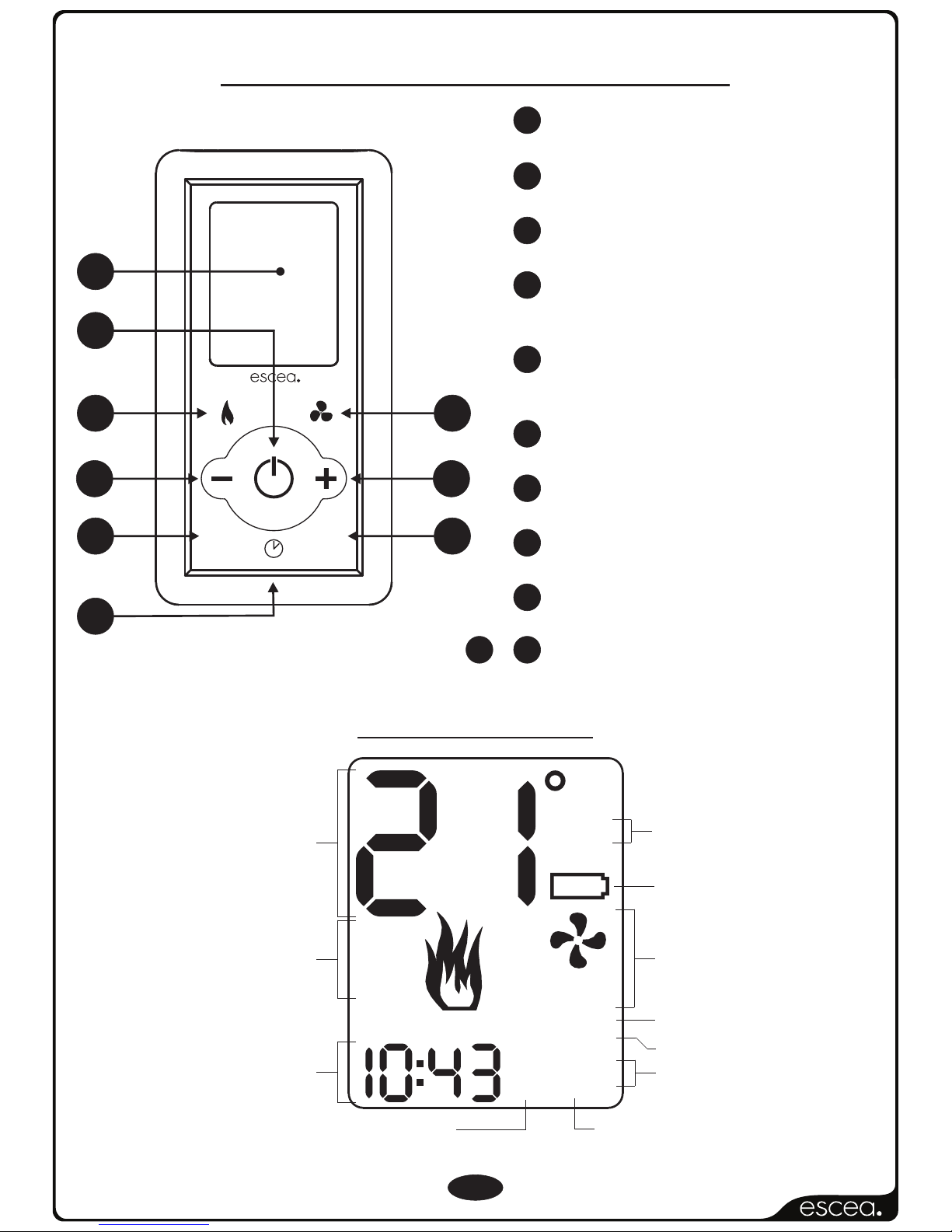

SET TIME

Display Shows Temperature settings

and status of timers and other functions.

On/Off Switches the appliance on

and off.

Flame effect Places the fire in a

constant low output mode.

Minus Adjusts the temperature and

time settings down. NOTE: The fan will operate

at its lowest setting.

Timer Select Allows you to program

in advance the times you wish to automatically

turn the fire on and off.

Set Time Allows you to set the clock.

Fan Boost Puts the fan into a high output

mode.

Plus Adjusts the Temperature and time

settings up.

Activate Timer Enables the

timers.

Key Lock Enables and disables the

remotes key lock

Remote Control Layout

Display Layout

LOW

ROOM

SET

FAN

BOOST

TIMER SET

SET CLOCK

AM ON 1

OFF

FLAME

EFFECT

ONLY

Room and Set

temperature

display

Room or Set

temperature indicator

Low battery

indicator

Flame Effect

indicator Fan Boost indicator

Timer Indicator

Clock adjust indicator

Active timer indicator

Timer On / Off time indicator

Hour and minute

display

Time & timer AM/PM indicator

73 +

Basic Operation

SET TIME

SET

SET TIME

Remove the battery cover on the rear of the remote. Insert

the new “AA” size batteries, being careful of the polarity.

You should now see on the display of the remote the time

showing “0:00”.

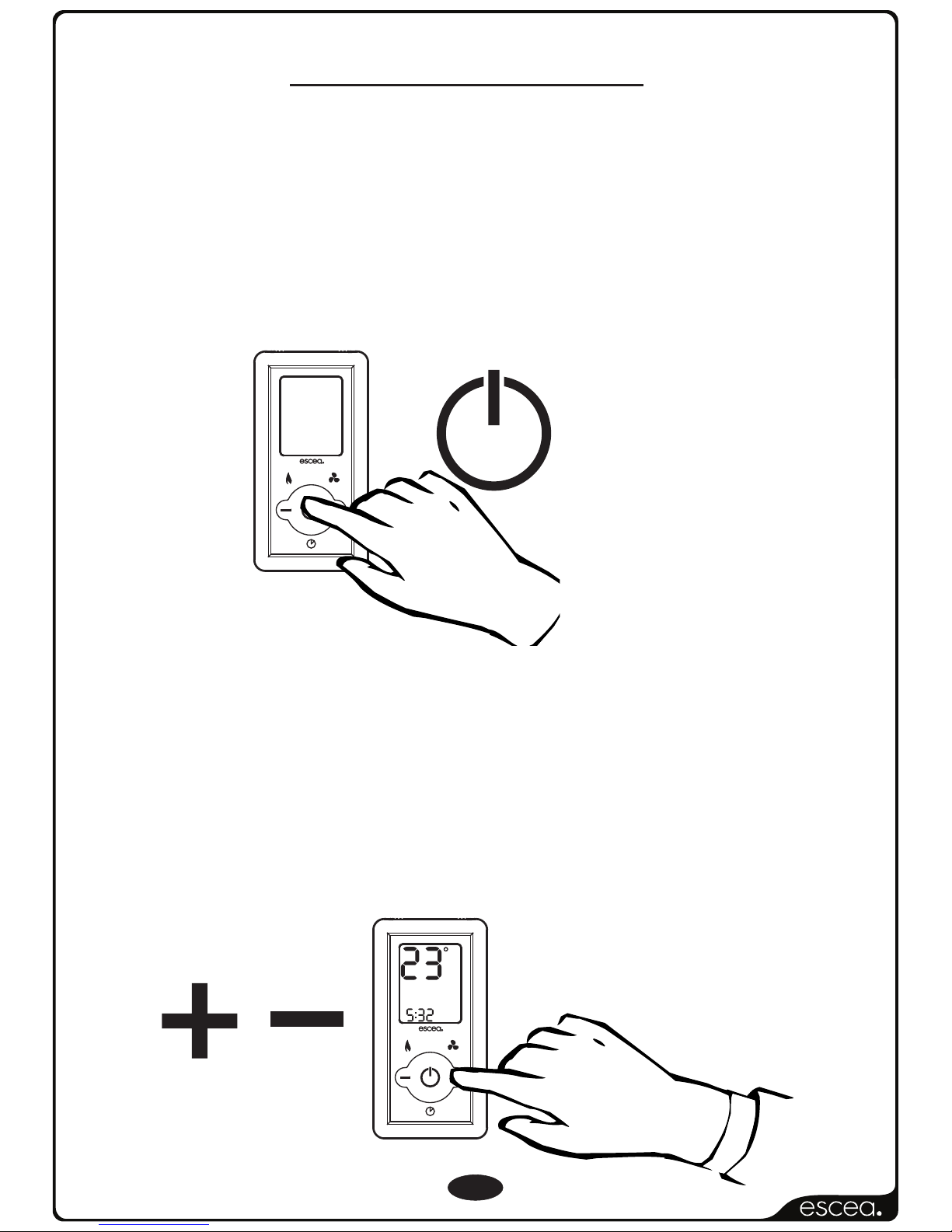

To turn the fire on, press the “POWER” button

once, and within a few seconds the fire will light.

To set the room temperature, press the ‘plus’ or ‘minus’

buttons repeatedly until the display is showing the desired

temperature. The remote will then revert back to the ‘current’

room temperature after 30 seconds. The front burner will run

continuously whilst the middle and rear burner

will operate according to the temperature set by the

remote.

(where fitted)

Initial Start/Battery Placement.

Adjusting the Room Temp

NOTE: Between ignition

attempts the remote will

alternately show the

remote’s “Set” temperature

and a rotating segment

indicator to show that the

fire is in start up mode and

will try to ignite again.

NOTE: In Australian fires

only there is a statutory 5

minute delay between

ignition retries.

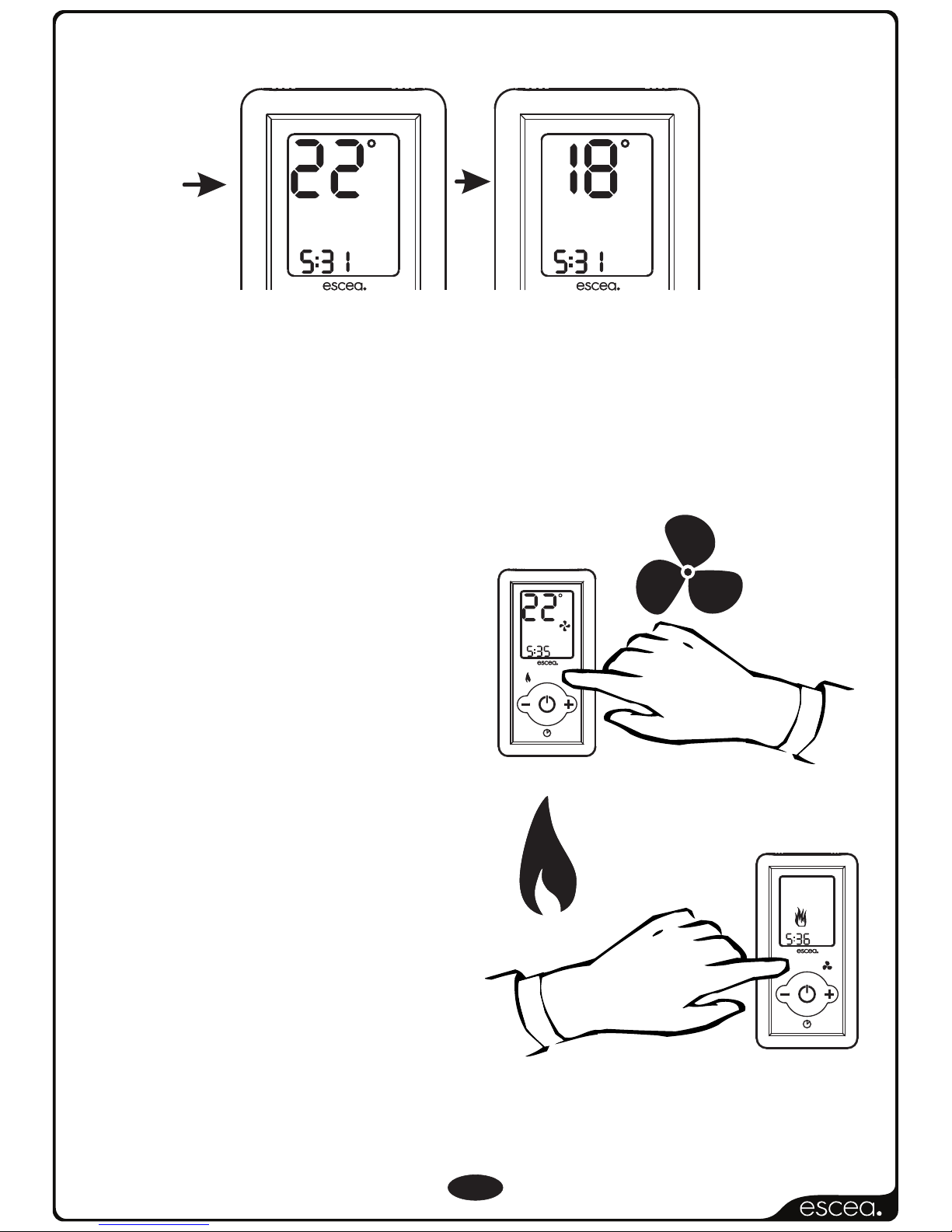

The fire has three FAN SPEED settings. The first low fan speed

will run automatically on start-up. The second fan speed

will automatically switch on or off with the increase or

decrease of the set temperature, and the third fan speed

is an optional FAN BOOST speed, which can

be accessed on your remote.

Pressing the FAN BOOST button

will increase the fan speed to

its maximum. This mode will

increase the circulation of heat

from the fire. When this mode is

not on, the fire will still use fan

speeds one and two.

Basic Operation Continued...

SET TIME

FLAME

EFFECT

ONLY

SET

FAN

BOOST

SET TIME

SET

ROOM

Room Temperature

Set temperature

Fan Boost

Pressing the EFFECT ONLY button

will only turn on the front “Flame

Effect” burner. This mode is

intended as an ambient effect,

though some heat will still be

produced and the fan will

operate at its lowest setting in this

mode.

Effect Only

NOTE: The fan may continue to operate for a few minutes after the fire has

been switched off to remove any excess heat.

LOW

ROOM

SET

FAN

BOOST

TIMER SET

SET CLOCK

AM ON 1

OFF

SET TIME

FLAME

EFFECT

ONLY

LOW

ROOM

SET

FAN

BOOST

TIMER SET

SET CLOCK

AM ON 1

OFF

SET TIME

FLAME

EFFECT

ONLY

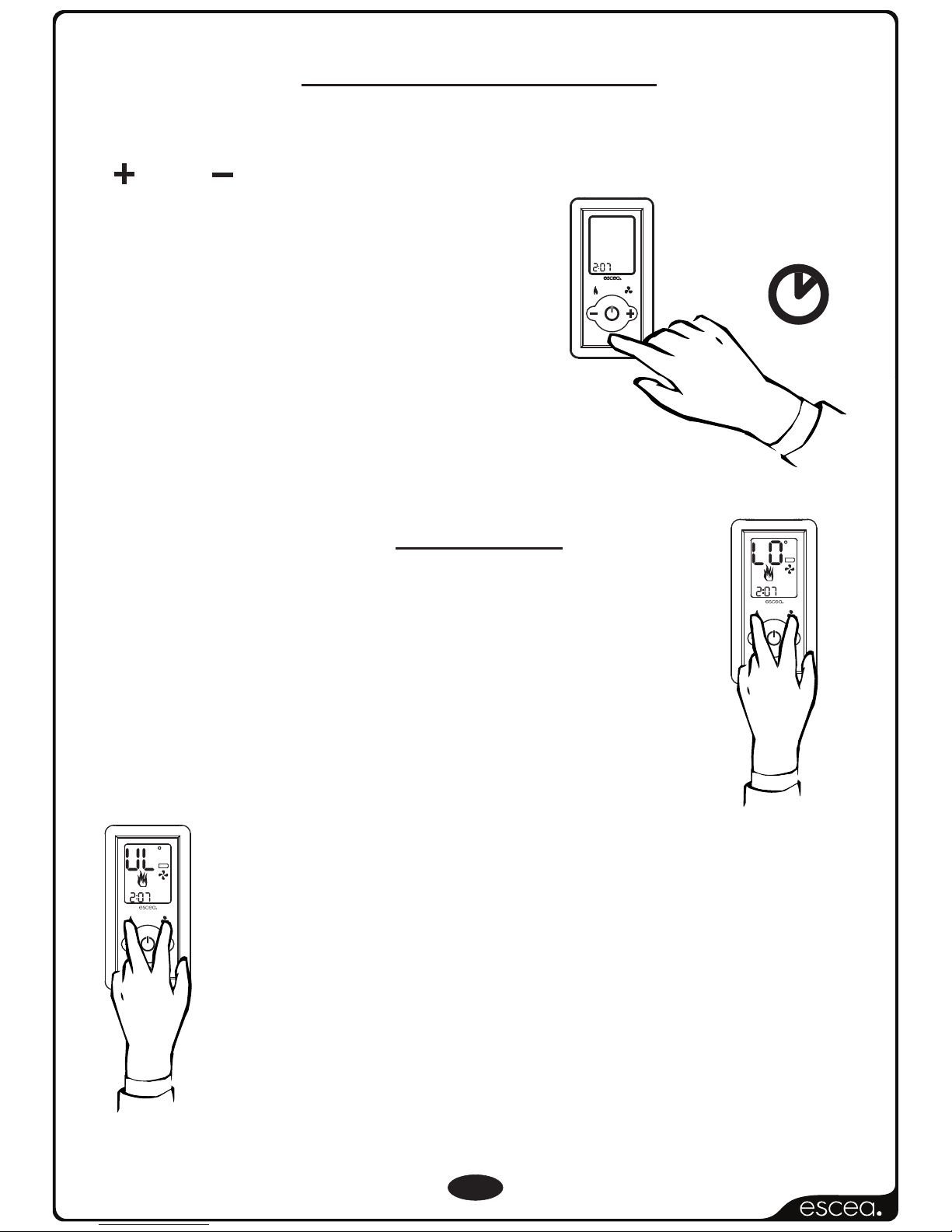

Keylock (Optional)

Should you wish to keep the fire from being tampered

with by children or to discourage people from altering

the temperature you can engage a keylock function

which stops the remote buttons from changing any

settings. To engage the keylock simply press the

“Flame Effect” and “Fan Boost” buttons simultaneously

until the main temperature digits display “LO”.

To disengage the keylock again press and hold the

“Flame Effect” and “Fan Boost” buttons simultaneously

until the main temperature digits display “UL” and

normal access to the remote functions will be

available.

NOTE: The “power” button will still be able to turn the fire

off. But once turned off no functions will be available

until the keylock has been removed.

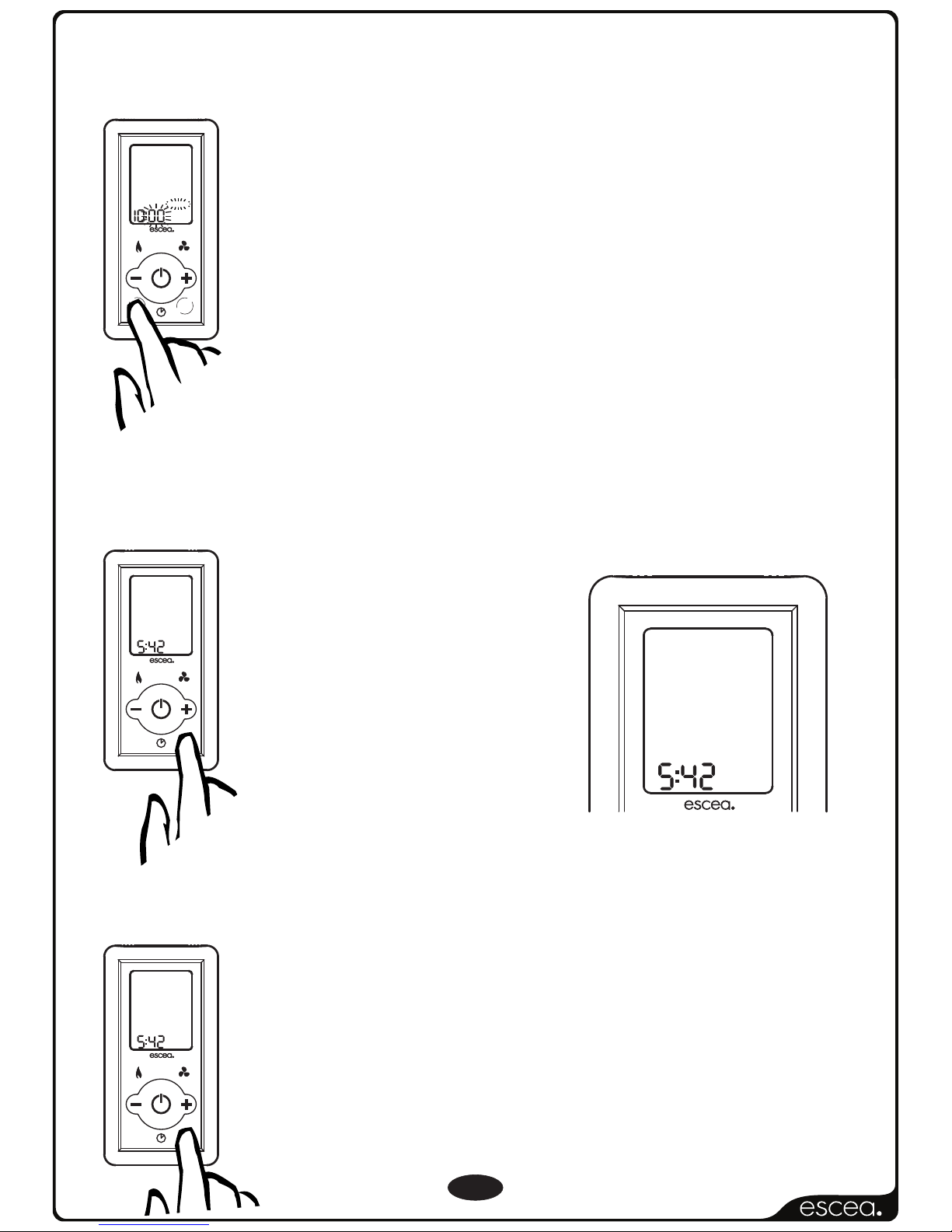

SET TIME

Press and hold the “SET TIME” button for more than two seconds and

this will allow you to set the hour including “AM” or “PM” using the

PLUS or MINUS buttons.

Pressing the “TIME SET” button again will

allow you to set the minutes.

Press the button one more time to exit

the “SET TIME” mode.

Setting The Time

Timer Operation

TIMER SET

ON 1

SET TIME

TIMER SET

ON 1

SET TIME

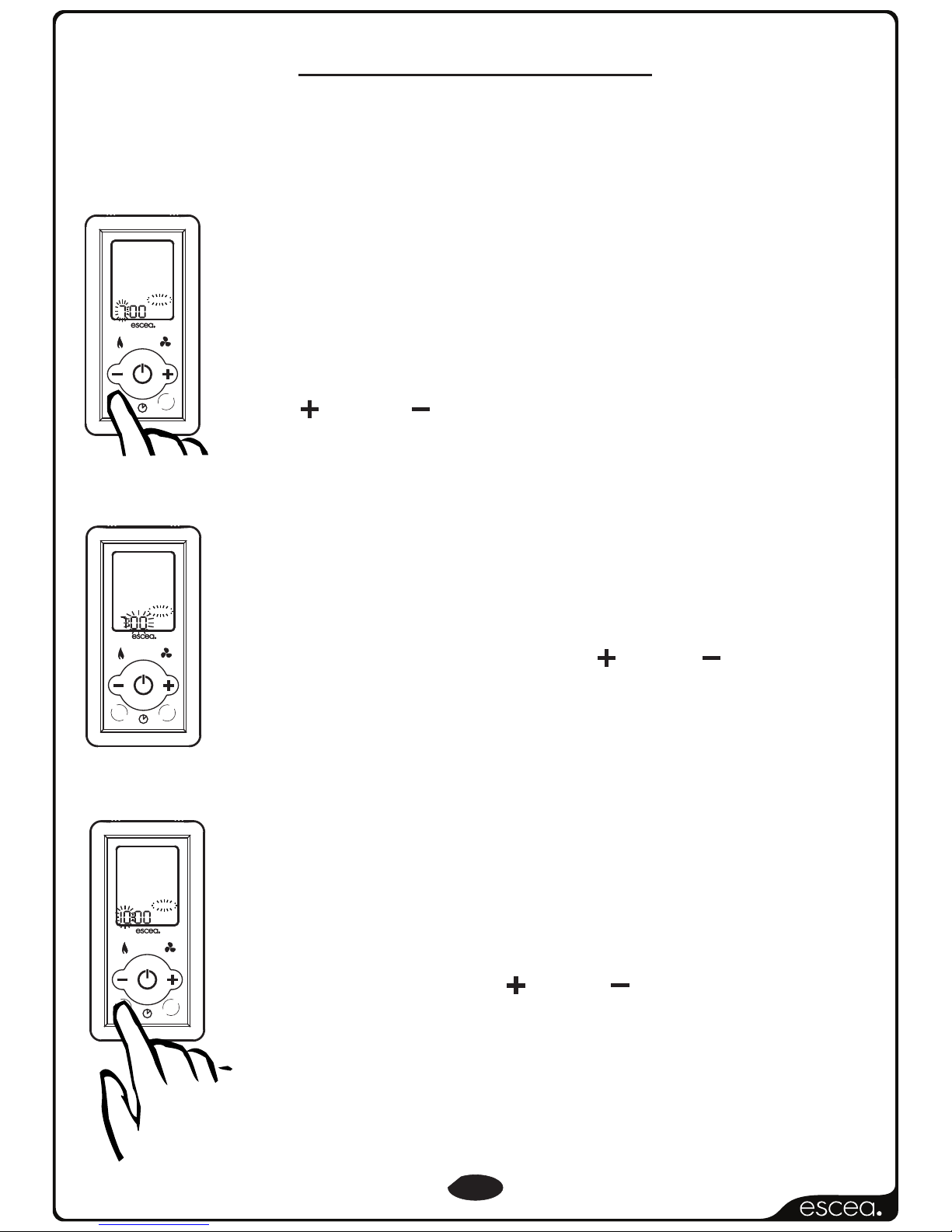

Pressing the TIMER SELECT button again will make the

minute figures start flashing. You will continue to see

the “ON” and the number “1”. This indicates that you

are currently editing the minute that the fire will turn

“ON” for timer “1”. Pressing the PLUS or MINUS

button will change the minute.

After pressing the TIMER SELECT button the TIMER SET

indicator and the hour figure on the clock will start

flashing. On the bottom right of the display you will

also see the word “ON” and the number “1”. This

indicates that you are currently editing the hour that

the fire will turn “ON” for timer “1”. Pressing

the PLUS or MINUS buttonwill change the hour.

TIMER SET

SET TIME

OFF

Timers are a great way of starting the fire when you are not around to

turn it on. The timers can be set so you can wake up or come home to

a warm environment.

Pressing the TIMER SELECT button again will make

the hour figure start flashing once again. Though

now you will see the “OFF” indicator as well as the

number “1”. This indicates that you are currently

editing the hour that the fire will now turn “OFF” for

timer “1”. Pressing the PLUS or MINUS button will

change the hour.

Timer Operation Continued Next Page...

TIMER SET

SET TIME

OFF

Timer Operation Continued...

TIMER SET

SET TIME

Activate Timer

To de-activate the timer, press “Activate Timer” until

“TIMER SET” no longer shows on the screen (will require

between 1 to 3 pushes)

NOTE: If you do not wish to set timer ‘2’, using the

plus or minus keys, navigate to ‘0:FF’ which you will

find between ‘11:00’ and ‘0:00’. Press ‘Timer Select’

again to exit.

Again pressing the TIMER SELECT button will start the

minutes flashing for you to finish editing the “OFF”

time for timer 1.

Pressing the TIMER SELECT button will begin the

cycle all over again for timer “2”.

De-activate Timer

This option allows you to

activate your selected

times. Pressing once will

activate ‘Timer 1’. Press

twice will activate ‘Timer 2’

and by pressing again

you will activate them both.

TIMER SET

SET TIME

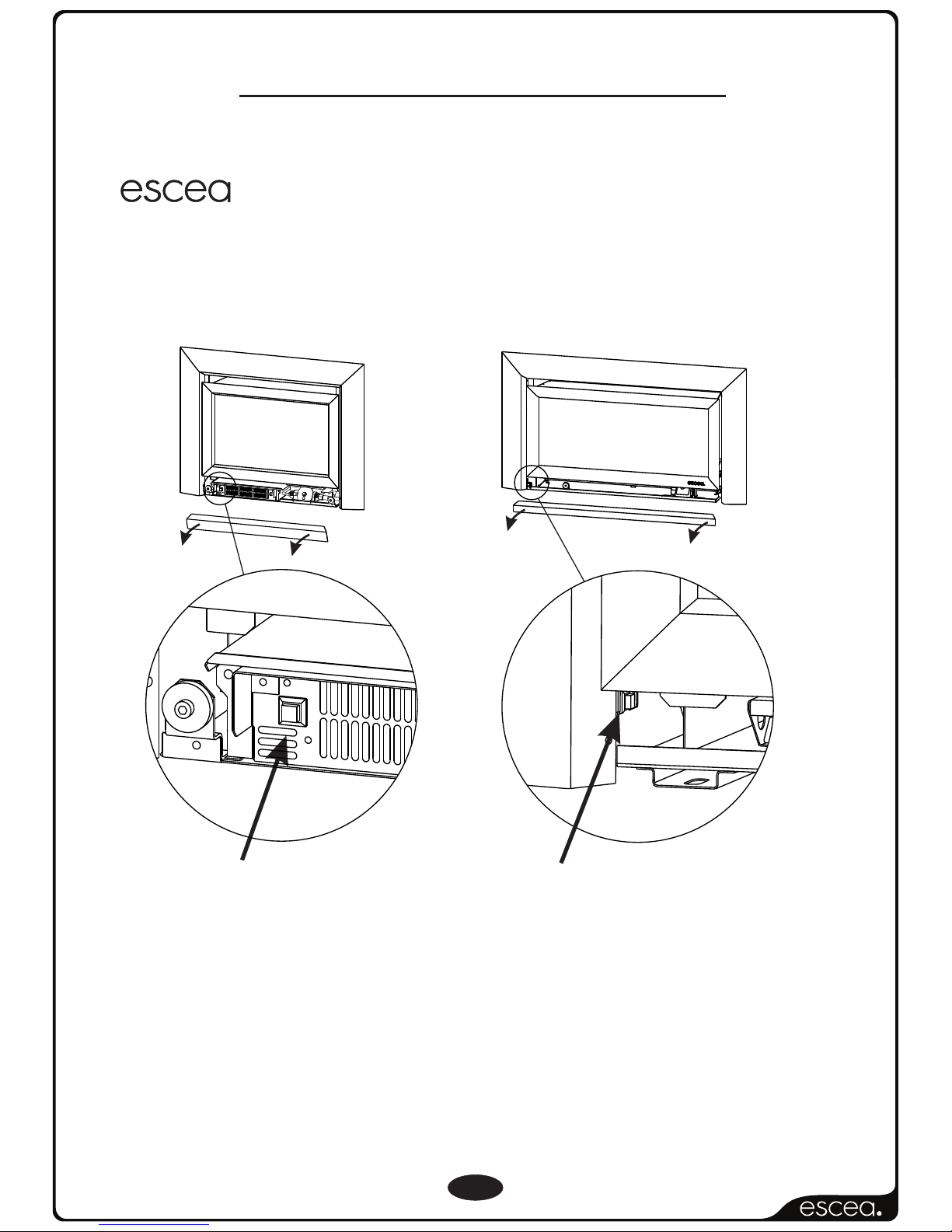

Auxiliary On/Off Button

IB600 IB850 & IB1100

gas fires also have a manual On/Off button

located under the bottom fascia panel as shown below.

This button should be used if the wireless control becomes lost,

damaged or its batteries are flat. Pushing “AUX on/off” button

once will start the heater and it will run at a medium heat

output setting until “AUX on/off” is pushed again to shut the

heater down.
