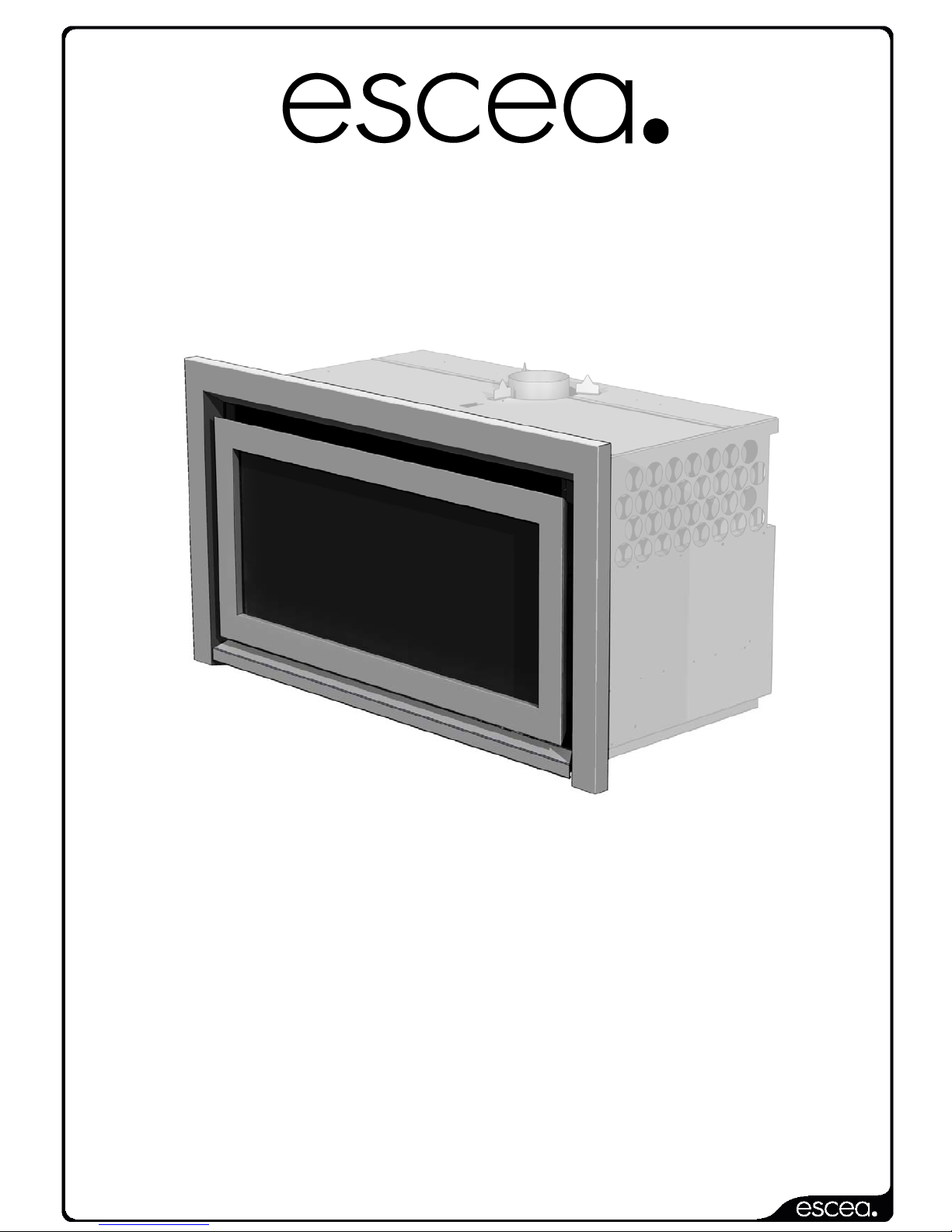

Escea IB850 Manuel utilisateur
630097_5 Inset Fascia Installation Manual AUS.doc
IB850, IB1100
Inset Fascia Installation Manual
Australian Edition
Important:
The appliance shall be installed in accordance with;
•This installation instruction booklet
•Must be installed by a qualified person
•This Manual replaces section 21.0 of the IB850/1100 Installation Manual
This appliance is not intended for use by young children or infirm persons unless they have been
adequately supervised by a responsible person to ensure that they can use the appliance safely.
Young children should be supervised to ensure that they do not play with the appliance.
For contact details of your local escea distributor or dealer please visit www.escea.com.au
630097_5 Inset Fascia Installation Manual AUS.doc
2
Gas Specifications:
Heat output IB850 = 7.5kW
Heat output IB1100= 7.9kW
Gas Input = 40MJ/h
Gas Connection = Front RH corner of heater
Electrical Connection = 240V 3 Pin plug within 1.2m
of the rear LH corner of heate
r
Flueing the heater:
This heater is to be conventionally flued with a
100mm dia flue system, in accordance with the
requirements of A55601/AGG01

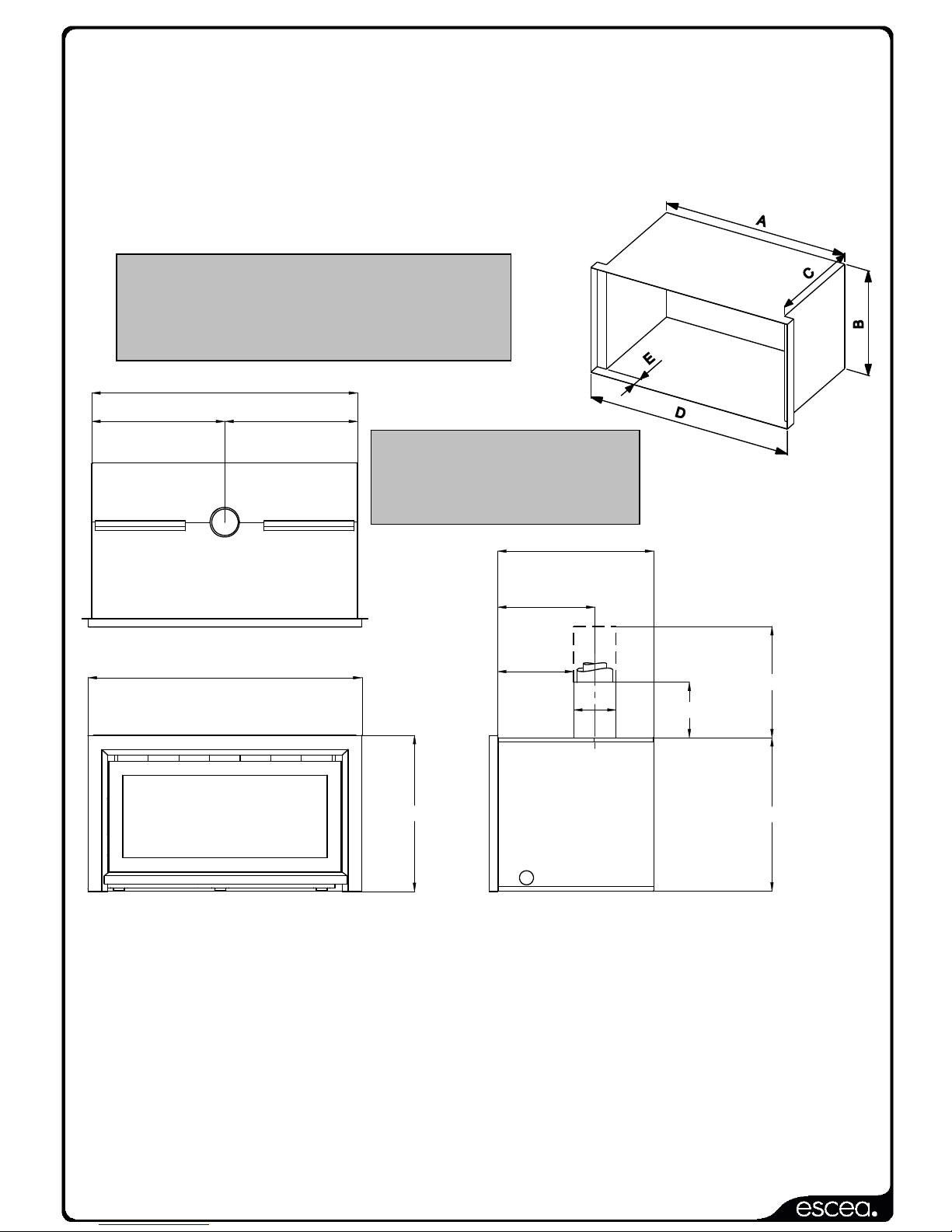

Creating the Cavity:
The dimensioned drawing below shows the minimum size of opening that must be created to keep
combustible materials the required distance from the heater.
The wall board that lines the outside of this opening can be normal dry wall (Gib Board) and does not need
to be non-combustible providing that it does not come any closer to the fire than the dimensions below
show.
Product Dimensions: (mm)
F G H
IB850 960 480 985
IB1100 1260 630 1285
Internal Cavity & Product Dimensions: (mm)
A B C D E
min
IB850 965 565 565 995 36
IB1100 1265 565 565 1295 36
F
GG
H
560
200
400
345
270
Ø
180
560
565
630097_5 Inset Fascia Installation Manual AUS.doc
3

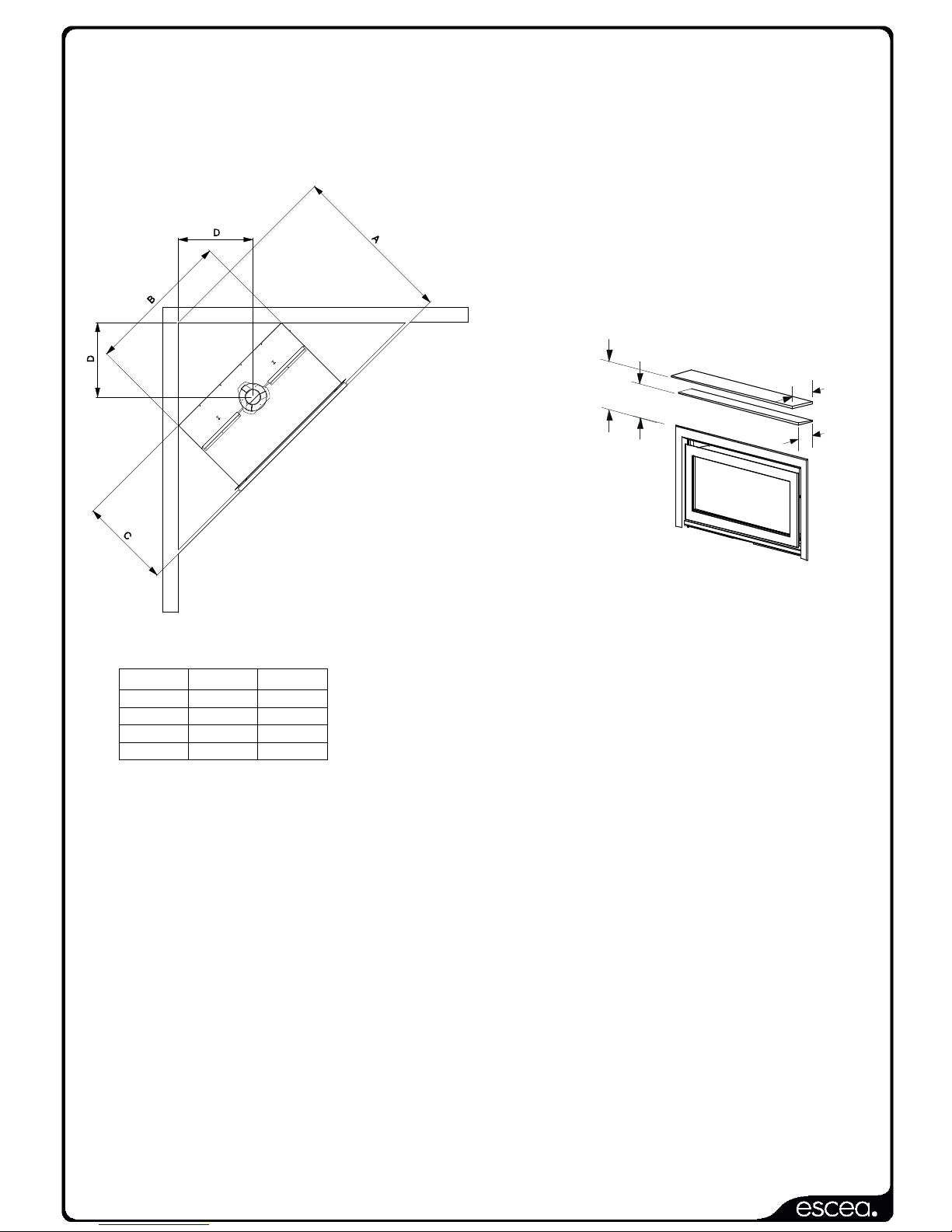

Mantle Clearance:
Please refer to diagram below.
Mantles or protruding ledges mounted
above the heater that are made from
combustible materials, must not extend
out side of the dimensions shown.
Hearth:
This fire must be installed a minimum of 100mm off the floor. A raised hearth can be of any size, but must
be constructed from non-combustible materials.
NOTE: If the hearth is to be covered with tiles or some other veneer then the fire must be installed so that
the base of the ‘Outer Skin Kit’ is level with the finished top surface of the hearth.
Fire Installation:
Please refer to the separate install instructions that come with the fire.
Corner Installations:
If a cavity is to be created in a
corner the picture to the left
gives the approximate minimum
sized interior wall and resultant
flue position.
IB1100 IB850
A 1235 1075
B 1265 965
C 601 601
D 605 490
200
10
0
15
0
300
630097_5 Inset Fascia Installation Manual AUS.doc
4

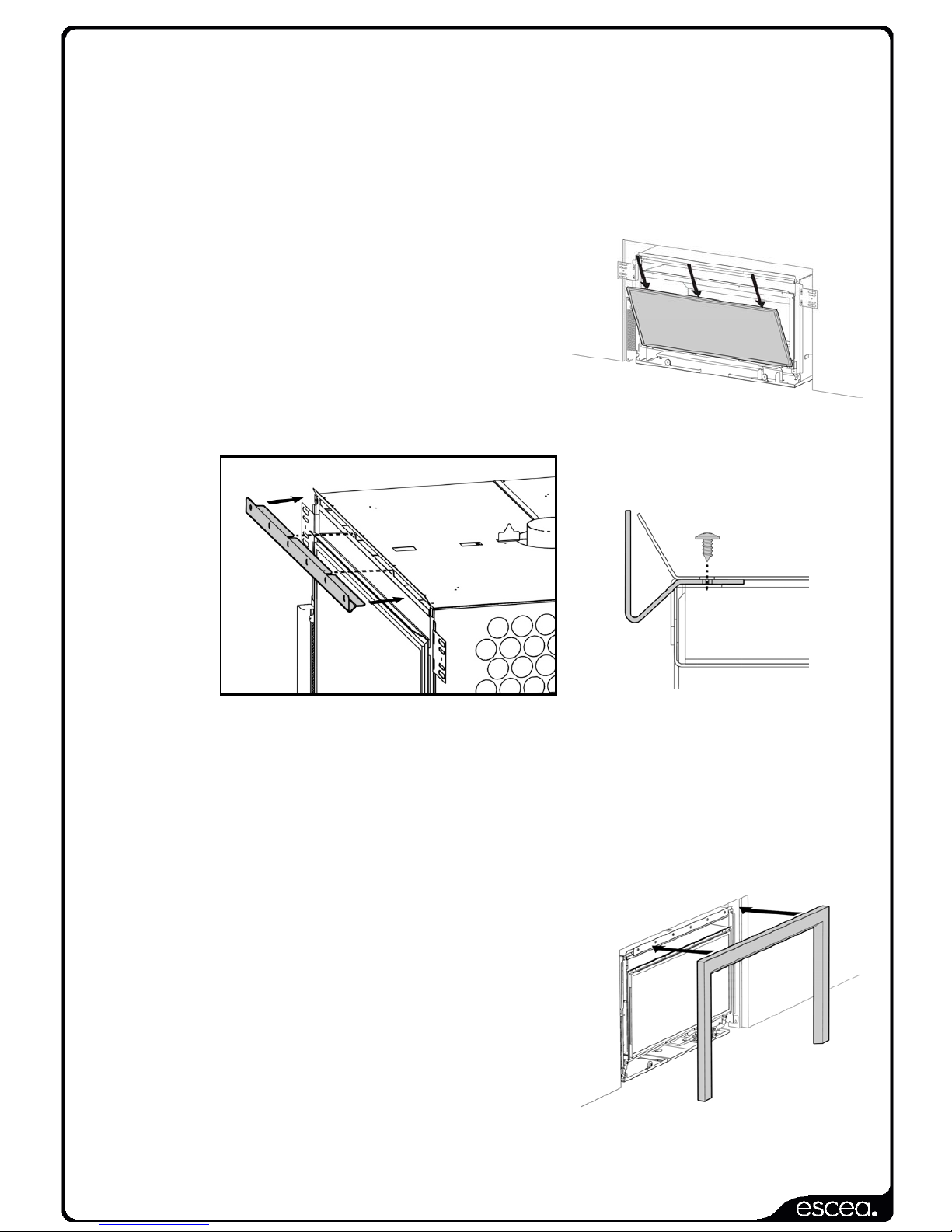

Fitting the Fascia Panels:
To avoid scratches or knocks to the fascia panels of this gas fireplace they must be fitted at
the complete conclusion of the installation process. It may be necessary to use the Outer
Fascia to initially locate the gas fireplace but then remove it again so that there is no chance
of damage.
Note; Never Ever Rub the Fascia Panels.
Step 1: Replace the glass
Note: If the glass gasket requires
a replacement, call your nearest
Escea agent who will ensure the part is
replaced with the correct type. In the
event that the glass is broken by
impact, purchase the replacement from
an authorised Escea agent only.
Step 2:
To attach the Inset Fascia a magnet bracket must be fixed to the firebox. This bracket slides
in to sit flush with the underside of the top firebox panel. To secure it in place screw the
provided pozi-drive screws into the four holes, positioned behind the 45 degree flange at the
top edge of the firebox.
Note: Ensure the correct orientation of the bracket. If the bracket is installed upside down,
the fascia will not fit.
Step 3: Hang the Outer Fascia (larger one)
from the magnet bracket attached to the
top of the firebox. Insert the fascia so
that it is parallel with the front of the gas
fireplace. The Hex-nuts attaching the
magnets to the fascia will locate in the
holes on the magnet bracket, securing
the Outer Fascia in the correct position.
If this fascia does not fit, check to make
sure the magnet bracket installed above
is in the correct orientation.
Cross Section
630097_5 Inset Fascia Installation Manual AUS.doc
5

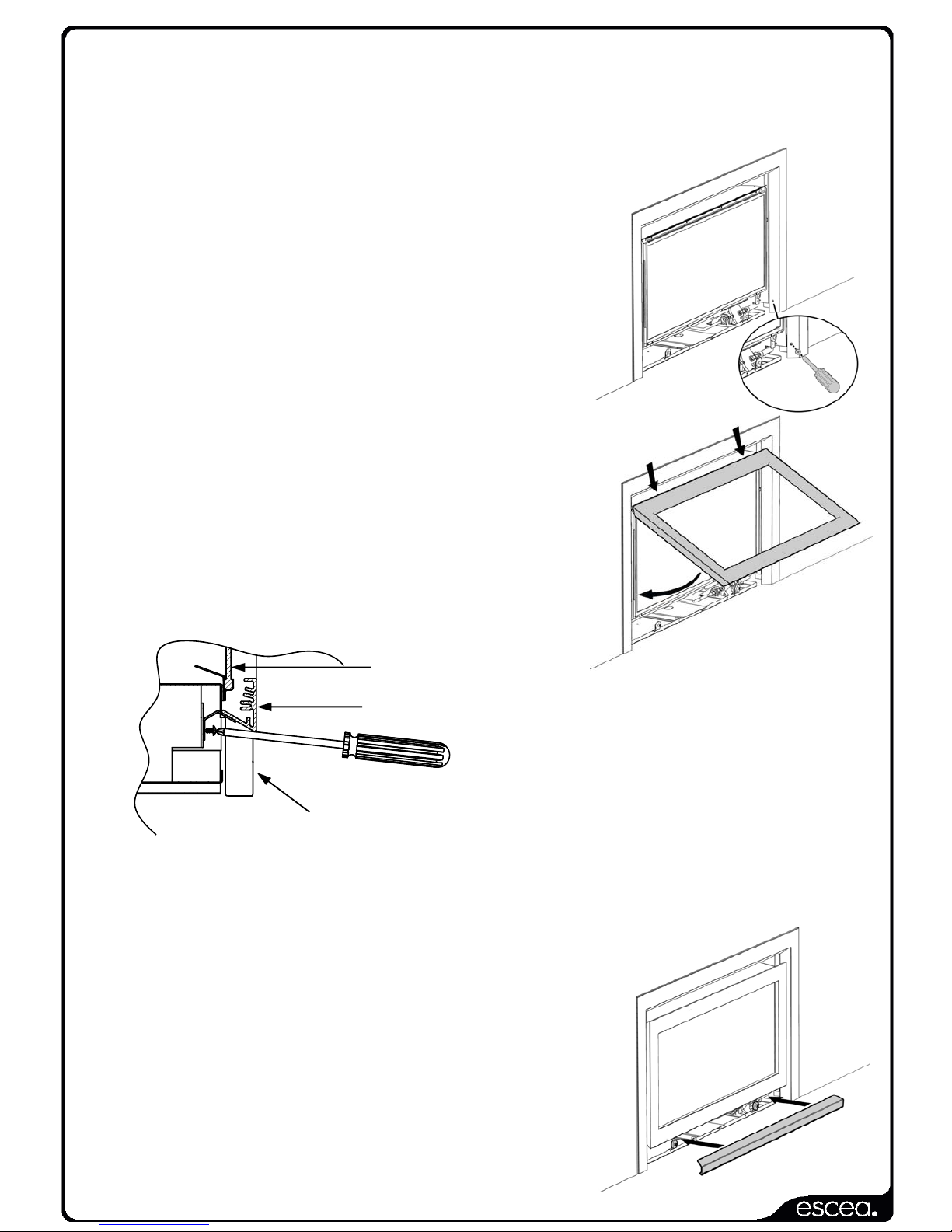

Step 4: Fit the two screws at the base of
each side of this fascia. The heater may
have to be adjusted in or out of the
cavity to ensure fascia fits correctly.
Step 5: Attach the inner fascia brackets to the
Inner Fascia as per the instruction page
supplied with the fascia. Hang the top
edge of the Inner Fascia (smaller one)
from the lip that extends at 45 degrees
from the top of the firebox. This fascia is
attached to the fire at its base by two
screws. Leave the screws loose enough
to be able to adjust the Inner Fascia.
Diagram illustrates a cut through section of fire
Step 6: Check that the Inner Fascia is centered. If
this panel is not centered, adjust the Inner
Fascia side to side until the spaces on
either side are even. Tighten the screws to
fix the Inner Fascia in place.
Step 7: Place the Bottom Fascia Trim into
position. This panel is held on
with magnets. If this panel does not fit,
adjust the Outer Fascia side to side or
the gas fireplace in/out until the trim fits
well.
Inner Fascia
Outer Fascia
Glass
