Escea EF5000 - AUS Manuel utilisateur

630051_6 Installation Manual EF5000 AUS

Installation Manual

EF5000 –AUS

Important:

The appliance shall be installed in accordance with;

Local gas fitting regulations

Municipal building codes

AS 5601 / AG 601—2000, Gas installations

Any other relevant statutory regulations.

TO BE INSTALLED ONLY BY AN AUTHORIZED PERSON

THIS APPLIANCE MUST NOT BE INSTALLED OR USED INDOORS

INSTRUCTIONS MUST BE LEFT WITH THE CONSUMER AND THE CONSUMER

TO RETEAIN THEM FOR FUTURE REFERENCE.

Manufactured by: Escea Ltd, PO Box 5277 Dunedin NZ, Ph: +64 3 4788220, email: [email protected]

For contact details of your local Escea distributor or dealer please visit www.escea.net

630051_6 Installation Manual EF5000 AUS

Warning:

Children and adults should be alerted to the hazards of high surface temperatures,

burns and clothing ignition.

Young Children should be carefully supervised when they are in the area of the ap-

pliance.

Clothing or other flammable materials should not be hung from the appliance, or

placed on or near the appliance.

Any guard or other protective device removed for servicing the appliance must be

replaced prior to operating the appliance.

Installation of appliances fitted to fixed gas supply systems and repair of all appli-

ances must be carried out by a qualified service person.

A qualified service person should inspect and service this product at least annually.

Cleaning may be required in order to keep the control compartment, burners, and

circulating air passageways clean.

The 240/24volt plug pack MUST be installed inside and out of the weather. It

MUST be kept dry and protected from rain and water ingress.

This Gas Fire is for outdoor use only.

630051_6 Installation Manual EF5000 AUS

Contents: Page:

Product description 1.0

Power supply 2.0

Creating the cavity 3.0

Wall cladding around the fire 4.0

Minimum install height off the ground 5.0

Types of installation 6.0

Corner Installations 7.0

Laying gas pipe 8.0

Fixing the fire into the cavity 9.0

Connecting gas pipe 10.0

Connecting the power supply and touch panel 11.0

Testing of touch panel and spark ignition 12.0

Checking operating pressure 13.0

Assembly of stone cartridge 14.0

Fitting the fascia 15.0

Placement of ceramic pebbles 16.0

Operating Instructions 17.0

Maintenance and cleaning 18.0

Electrical Schematic 19.0

Warranty 20.0

630051_6 Installation Manual EF5000 AUS

1.0 Product Description:

The escea EF5000 flame effect gas fire is designed for outdoor use only. This appliance re-

quires no flue and must be permanently installed into a cavity. It may be installed into a tim-

ber cavity.

The fire is controlled by the user from a switch that is situated on the lower right hand side of

the stainless steel fascia.

The Data Label, containing all technical information such as manufacture date, serial num-

ber, gas type, jet size, etc, can be found in the lower right hand side of the fire, below the

firebox, to access this, the fascia must be removed.

1.1 Product dimensions: (mm)

454

630051_6 Installation Manual EF5000 AUS

Minimum Cavity Dimensions

ABC

1010 mm 585 mm 330 mm

2.0 Power Supply:

This appliance requires a constant external 24V AC 1A power supply to mains electricity. A

transformer is supplied with the fire.

3.0 Creating the Cavity:

The dimensioned drawing below shows the size of opening that must be created to install

the unit.

3.1 Cavity Dimensions:

3.2 Where possible, it is recommended that the cavity is made slightly larger than the above di-

mensions to give the installer the maximum amount of space to work in.

3.3 Clearances to combustibles:

Unscrew the battery panel on the

bottom of the fascia to access the batteries

Minimum clearance distance be-

tween a combustible ceiling and

the fascia must be no less than

2000mm.

Warning: Under no circumstances

should any object such as people,

pets, furniture, etc. be closer than

1 metre in front of the escea

EF5000.

630051_6 Installation Manual EF5000 AUS

4.0 Wall cladding around fire:

4.1 The temperature of the wall directly above the heater does get hot and hence may discolour

paint finishes.

4.2 Some dark coloured exhaust stains may also become visible directly above the fire due to

exhaust. In most cases this can be cleaned off with water and a brush.

5.0 Minimum install height:

The fire has ventilation gaps behind the fascia at the top and bottom. These must not be

blocked, so ensure there is a gap of at least 30mm between the bottom of the fascia and

anything below.

6.0 Types of Installation:

This appliance shall only be used in an above ground open-air situation with natural ventila-

tion, without stagnant areas, where gas leakage and products of combustion are rapidly dis-

persed by wind and natural convection.

Certain materials or items, when placed under or near the appliance, will be subjected to ra-

diant heat and could become damaged.

The following installation diagrams are escea recommendations only and may or may not

comply with your local council standards. Please check with your local council for actual

building standards.

Typically an outdoor space is not enclosed but, any enclosure in which the appliance is used

should comply with one of the following:

- An enclosure with walls on all sides, but at least one permanent opening at

ground level and no overhead cover.

630051_6 Installation Manual EF5000 AUS

- Within a partial enclosure that includes an overhead cover and no more than two

walls.

- Within a partial enclosure that includes an overhead cover and more than two

walls, the following should apply:

At least 25% of the total wall area is completely open, and

At least 30% of the remaining wall area is open and unrestricted

Rectangular areas have been used in the above diagrams; the same principles apply to any

other shaped area.

In the case of balconies, at least 20% of the total wall area should be and remain open and

unrestricted.

630051_6 Installation Manual EF5000 AUS

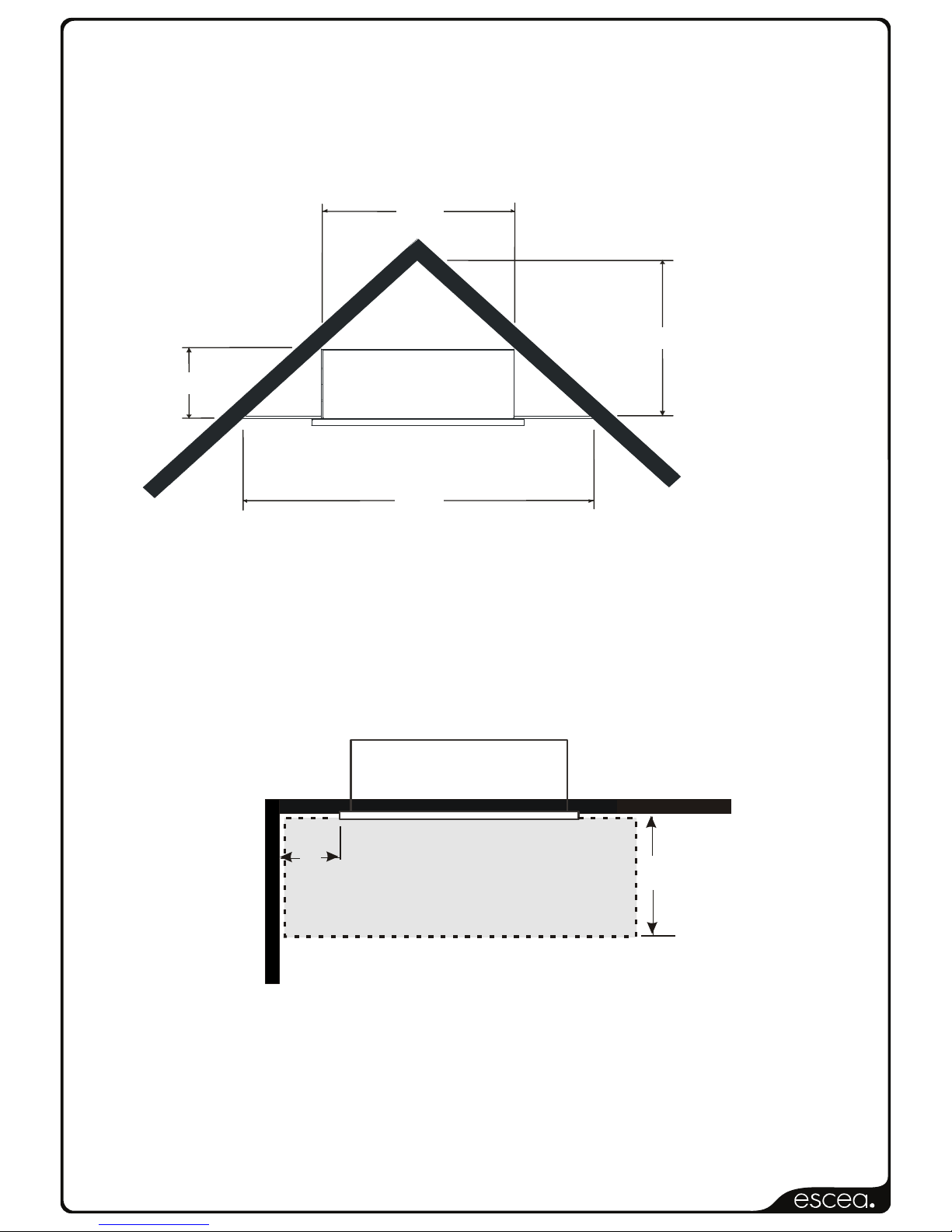

7.0 Corner Installations:

If a cavity is to be created in a corner, the following drawings give the minimum sized interi-

or wall dimensions possible.

Note:

Allowances need to be made for cladding the internal of the cavity.

Dimensions of the cavity in this diagram represent the internal size only.

270

Minimum 1000

Minimum

Minimum clearance distance between adjacent wall and fascia needs to be no less than

270mm.

1010

855

355

1830

630051_6 Installation Manual EF5000 AUS

8.0 Laying Gas Pipe:

Gas pipe should be sized as per the requirements of AS5601/AG601-2000. The pipe sizing

must be sufficient to deliver the following volume of gas to the heater with all other gas ap-

pliances in the home running at the same time;

EF5000 Natural Gas = 52 Mj/hr

EF5000 Propane = 40 Mj/hr

It is highly recommended to install an easily accessible isolating shut off valve (ball valve)

along the gas line to the EF500 unit which should be easily accessible to the user.

8.1 This fire has been supplied with a ½” pipe connected through a short 45° flare nut inlet con-

nection to make the gas supply easy and safe. Solid pipe should be run to the inside lower

left hand side of the fire. Insert the supplied rubber plug and cut it as shown below to allow

the gas pipe and the electrical cable to pass through, keeping the plug as air-tight as possi-

ble.

Gas Pipe Entry Point

8.2 Any flexible pipe should be attached to the copper supply pipe and joint tested to ensure gas

tightness, an isolating valve is recommended for this purpose.

8.3 Before each use of the appliance the hose assembly connecting the appliance to the gas

supply must be inspected. If there is evidence of excessive abrasion or wear, or if the hose

is damaged, then the hose assembly must be replaced before the appliance is operated.

8.4 The gas hose should be properly located away from pathways or areas where the hose may

be subject to accidental damage.

630051_6 Installation Manual EF5000 AUS

9.0 Fixing the fire into the cavity:

To fix the fire to the cavity, first drill 4 to 6 (5mm diameter) holes in the outer flange (as

shaded grey in the picture below) in locations which will give you the most support from the

cavity framework behind and evenly spaced around the flange. Using the supplied Stainless

Steel screws, fasten the fire to the cavity through these drilled holes.

Ensure that the fire is securely located and free from movement.

10.0 Connecting the Gas Pipe:

When the fire unit has been pushed into position and secured the flexible hose can be con-

nected to the inlet side of the appliance regulator at the front center of the fire. The hose and

pipe assembly should have been tested prior to this as per section 8.2

10.1 No matter which connection the installer chooses, the regulator that is supplied in the fire

MUST NOT BE REMOVED. Removal of the regulator, or replacing it with one not intended

for use with an Escea EF5000, will void the limited appliance warranty.

10.2 The EF5000 must be disconnected from the gas supply piping system during any pressure

testing of that system at test pressures in excess of ½ psi (3.5 kPa).
