Epson EMP-821 Manuel utilisateur

Epson®PowerLite®821p

Multimedia Projector

User’sGuide

Important Safety Information

WARNING: Never look into the projector lens when the lamp is turned on; the bright light can damage your eyes.

Never let children look into the lens when it is on. Never open any cover on the projector, except the lamp and

filter covers. Dangerous electrical voltages inside the projector can severely injure you. Except as specifically

explained in this User’s Guide, do not attempt to service this product yourself. Refer all servicing to qualified service

personnel.

WARNING: The projector and its accessories come packaged in plastic bags. Keep plastic bags away from small

children to avoid any risk of suffocation.

Caution: When you replace the lamp, never touch thenew lamp with your bare hands; the invisible residue left by

the oil on your hands may shorten the lamp life. Use a cloth or glove to handle the new lamp.

any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior

written permission of Seiko Epson Corporation. The information contained herein is designed only for use with

this Epson product. Epson is not responsible for any use of this information as applied to other products.

Neither Seiko Epson Corporation nor its affiliates shall be liable to the purchaser of this product or third parties for

damages, losses, costs, or expenses incurred by purchaser or thirdparties as a result of: accident, misuse, or abuse of

this product or unauthorized modifications, repairs, or alterations to this product, or (excluding the U.S.) failure to

strictly comply with Seiko Epson Corporation’s operating and maintenance instructions.

Seiko Epson Corporation shall not be liable for any damages or problems arising from the use of any options or

any consumable products other than those designated as Original Epson Products orEpson Approved Products by

Seiko Epson Corporation.

Trademarks

Epson and 3LCD are registered trademarks of Seiko Epson Corporation.

PowerLite, PrivateLine, and Presenters Club are registered trademarks; SizeWise is a trademark; and Epson

Connection, Epson Store, and Extra Care are service marks of Epson America, Inc.

Pixelworks, DNX, and the DNX logo are trademarks of Pixelworks, Inc.

General Notice: Other product names used herein are for identification purposes only and may be trademarks of

their respective owners. Epson disclaims any and all rights in those marks.

CPD-18615

Contents

Welcome . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Getting the Most from Your Projector . . . . . . . . . . . . . . . . . 8

Using Your Documentation . . . . . . . . . . . . . . . . . . . . . . . . . 9

Getting More Information. . . . . . . . . . . . . . . . . . . . . . . 9

Registration and Warranty . . . . . . . . . . . . . . . . . . . . . . . . . 10

Unpacking the Projector. . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Additional Components. . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Optional Accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

1Setting Up the Projector. . . . . . . . . . . . . . . . . . . . 13

Positioning the Projector . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Other Installations. . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Connecting to a Computer. . . . . . . . . . . . . . . . . . . . . . . . . 16

Connecting with the VGA Cable. . . . . . . . . . . . . . . . . 16

Connecting with a VGA-5BNC Cable. . . . . . . . . . . . . 18

Connecting the USB Cable for

Remote Mouse Control. . . . . . . . . . . . . . . . . . . . . 19

Connecting an External Monitor. . . . . . . . . . . . . . . . . 20

Playing Sound Through the Projector . . . . . . . . . . . . . 21

Connecting to Video Sources . . . . . . . . . . . . . . . . . . . . . . . 22

Connecting a Composite Video Source . . . . . . . . . . . . 23

Connecting an S-video Source . . . . . . . . . . . . . . . . . . . 24

Connecting an RGB Video Source. . . . . . . . . . . . . . . . 25

Connecting a Component Video Source . . . . . . . . . . . 26

Playing Sound Through the Projector . . . . . . . . . . . . . 27

4Contents

2Projecting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Turning On Your Equipment . . . . . . . . . . . . . . . . . . . . . . . 30

Turning On the Projector . . . . . . . . . . . . . . . . . . . . . . . 30

Selecting the Image Source. . . . . . . . . . . . . . . . . . . . . . . 32

What To Do If You See a Blank Screen. . . . . . . . . . . . . 33

Adjusting the Image . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Focusing and Zooming Your Image. . . . . . . . . . . . . . . . 36

Adjusting the Height of Your Image . . . . . . . . . . . . . . . 37

Adjusting the Image Shape. . . . . . . . . . . . . . . . . . . . . . . 38

Adjusting the Brightness . . . . . . . . . . . . . . . . . . . . . . . . 39

Correcting Computer Images. . . . . . . . . . . . . . . . . . . . . 39

Adjusting the Color Mode. . . . . . . . . . . . . . . . . . . . . . . 39

Adjusting the Volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Shutting Down the Projector . . . . . . . . . . . . . . . . . . . . . . . . 41

3Using the Remote Control. . . . . . . . . . . . . . . . . . . 43

Controlling the Picture and Sound. . . . . . . . . . . . . . . . . . . . 44

Switching Between Picture Sources . . . . . . . . . . . . . . . . 44

Turning Off the Picture and Sound. . . . . . . . . . . . . . . . 45

Stopping Action . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Zooming Your Image. . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Changing the Image’s Aspect Ratio . . . . . . . . . . . . . . . . 46

Using the Remote Control as a Wireless Mouse. . . . . . . . . . 47

Replacing the Batteries. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

4Fine-tuning the Projector. . . . . . . . . . . . . . . . . . . . 49

Using the Projector’s Menu System . . . . . . . . . . . . . . . . . . . 50

Changing Menu Settings . . . . . . . . . . . . . . . . . . . . . . . . 51

Adjusting Colors and Clarity . . . . . . . . . . . . . . . . . . . . . . . . 53

Adjusting the Input Signal . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Customizing Projector Features . . . . . . . . . . . . . . . . . . . . . . 57

Selecting Projector Setup Options . . . . . . . . . . . . . . . . . . . . 59

Viewing Lamp Usage and Other Information. . . . . . . . . . . . 61

Contents 5

Using the Projector’s Security Features. . . . . . . . . . . . . . . . 62

Creating Your Own Screen Logo. . . . . . . . . . . . . . . . . 63

Setting a Password . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

Turning On the Password and User’s Logo . . . . . . . . . 65

Starting the Projector with a Password. . . . . . . . . . . . . 66

Disabling the Projector’s Buttons. . . . . . . . . . . . . . . . . 67

Restoring the Default Settings . . . . . . . . . . . . . . . . . . . . . . 68

5Maintaining and Transporting

the Projector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

Cleaning the Lens. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

Cleaning the Projector Case . . . . . . . . . . . . . . . . . . . . . . . . 70

Cleaning and Replacing the Air Filter. . . . . . . . . . . . . . . . . 71

Replacing the Lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

Resetting the Lamp Timer . . . . . . . . . . . . . . . . . . . . . . . . . 75

Transporting the Projector . . . . . . . . . . . . . . . . . . . . . . . . . 76

6Solving Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

Using On-Screen Help. . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

What To Do When the Lights Flash . . . . . . . . . . . . . . . . . 79

Solving Problems with the Image or Sound . . . . . . . . . . . . 81

Solving Password Problems . . . . . . . . . . . . . . . . . . . . . . . . 89

Solving Problems with the Remote Control . . . . . . . . . . . . 89

Solving Problems with the Projector’s Buttons . . . . . . . . . . 90

Where To Get Help. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91

Telephone Support Services. . . . . . . . . . . . . . . . . . . . . 91

ATechnical Specifications . . . . . . . . . . . . . . . . . . . . 93

General. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93

Projection Lamp. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94

Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94

Mouse Compatibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94

Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94

Electrical. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94

Environmental . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95

6Contents

Safety and Approvals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95

Compatible Video Formats . . . . . . . . . . . . . . . . . . . . . . . . . 96

Compatible Computer Display Formats. . . . . . . . . . . . . . . . 97

BNotices. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99

Important Safety Instructions. . . . . . . . . . . . . . . . . . . . . . . . 99

Remote Control Information . . . . . . . . . . . . . . . . . . . . . . . 101

Declaration of Conformity. . . . . . . . . . . . . . . . . . . . . . . . . 102

FCC Compliance Statement. . . . . . . . . . . . . . . . . . . . . . . . 103

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104

Index. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107

Welcome

The Epson® Lite®821p is a portable projector that offers up to 2600

ANSI lumens of brightness. From classrooms to boardrooms, your

full-color presentations and videos will be bright and visible even in

ordinary indoor lighting. With its whisper-quiet operation,

ease-of-use, and quick start up and shut down, the PowerLite 821p

ensures that your presentations come off without a hitch.

Additionally, its built-in speaker delivers powerful 5 watt audio,

making it perfect for presentations in large rooms.

Images are displayed at a native resolution of 1024 ×768 pixels. The

PowerLite 821p delivers accurate color, superior color saturation, and

incredibly vivid images and clear text. Support for S-video contributes

to theater-quality performance.

You can connect the projectorto a wide range of computers, including

IBM®-compatible PCs and notebooks, Apple®Macintosh,

Power

Macintosh®series (including G3, G4, and G5 systems), PowerBook®

computers, and many iMac®and iBook®series systems. With Epson’s

patented SizeWise™technology, the projector supports computer

displays ranging from VGA through UXGA.

You can connect any of the following video sources: HDTV, VCR,

DVD player, gaming console (such as Microsoft®Xbox,™Sony®

PlayStation®2, and Nintendo GameCube™), camcorder, digital

camera, or laser disc player. The PowerLite 821p supports NTSC,

PAL, and SECAM video formats.

You can connect up to four devices to the projector at the same time.

The source buttons let you easily switch among them, and a dedicated

audio port for each source lets you automatically switch sound when

you switch video. With the projector’s Source Search button, you

don’t even have to identify your input source. Just press the button

repeatedly until you see the image you want on the screen.

8Welcome

To prevent unauthorized use of your PowerLite 821p, you can assign

a password, create a user logo which is displayed at startup to identify

the projector, and disable the projector’s buttons through the

OperationLockfeature.Formore information about securityfeatures,

see page 62.

Getting the Most from Your Projector

Depending on your presentation, you can take advantage of any or all

of these options:

■Connecting to a notebook or other computer

If you want to connect the projector to a notebook or desktop

computer, see page 16. For additional presentation control, you

can connect the USB cable to the projector for running slide

shows, and connect an external monitor to view the presentation

on your computer simultaneously.

■Connecting to video sources

You can connect a DVD player, VCR, HDTV, camcorder, laser

disc player, digital camera, and other video sources to your

projector. See page 22 for instructions.

■Using the remote control

The remote control lets you switch from computer to video

sources, zoom in on part of your image, freeze or mute the

presentation, and adjust many other projector features. For

details, see Chapter 3.

By connecting the USB mouse cable included with your

projector, you can also use the remote control as a wireless mouse.

This lets you click through computer-based presentations (such as

PowerPoint®) from up to 20 feet away. For more information, see

page 47.

■Including sound in your presentation

If your presentation includes sound, you can connect the audio

cable that came with your projector to use the projector’s built-in

speaker. See page 21.

Welcome 9

Using Your Documentation

Your documentation includes a Quick Setup sheet, warranty

brochures, and Epson PrivateLine®Support card.

The Quick Setup sheet gives instructions to quickly set up your

projector and connect it to a notebook, iBook, or PowerBook

computer.

This book contains all the information you need to set up and use

your projector. Please follow these guidelines as you read through it:

■Warnings must be followed carefully to avoid bodily injury.

■Cautions must be observed to avoid damage to your equipment.

■Notes contain important information about your projector.

Getting More Information

Need tips on giving presentations? How about quick steps for setting

up your projector? Here’s where you can look for help:

■www.presentersonline.com

Includes a library of articles covering presentation tips, tricks, and

technology. The site provides templates, clip art and sound clips,

as well as Presenters Services to use on the road. Even more

resources and services are available if you register to join the

Presenters Club®—and it’s free.

■built-in help system

Press the Help button on the remote control or projector to get

quick solutions for common problems. See page 77 for details.

■support.epson.com

Download FAQs (frequently-asked questions) and e-mail your

questions to Epson support.

If you still need help after checking this User’s Guide and the sources

listed above, you can use the Epson PrivateLine Support service to get

help fast. Call (800) 637-7661 and enter the PIN on your PrivateLine

Support card. See page 91 for more information.

10 Welcome

Registration and Warranty

Your projector comes with a basic carry-in warranty and an

international warranty that let you project with confidence anywhere

in the world. For details, see page 104 and the warranty brochure that

came with your projector.

In addition, Epson offers free Extra CareSM Road Service. In the

unlikely event of an equipment failure, you won’t have to wait for

your unit to be repaired. Instead, Epson will ship you a replacement

unit anywhere in the United States or Canada, usually via overnight

delivery. See the Extra Care Road Service brochure for details.

To register, complete the registration form that came with your

projector and mail it to Epson. Or register your product online at:

http://www.epson.com/webreg

Registering also lets you receive special updates on new accessories,

products, and services.

Unpacking the Projector

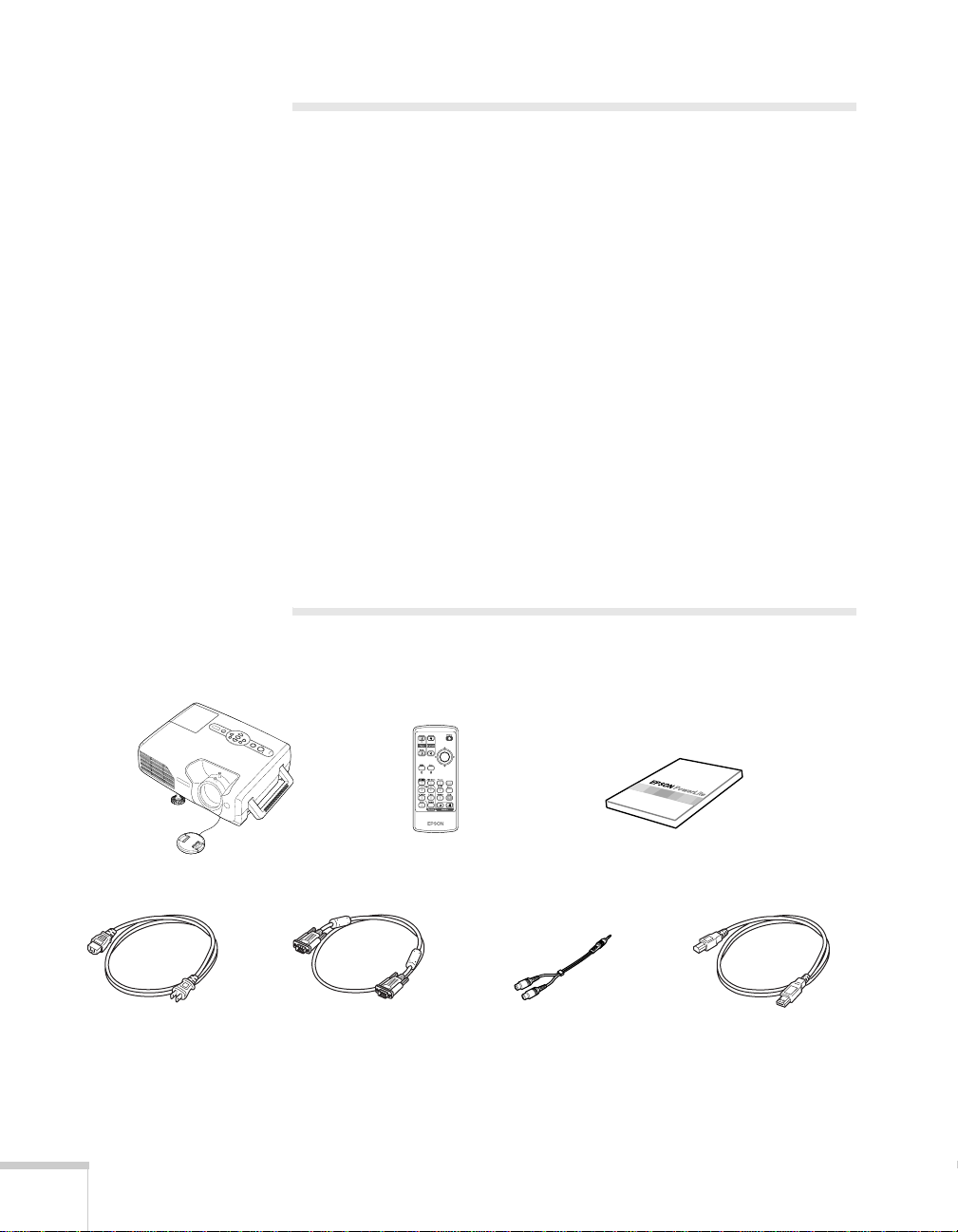

After unpacking the projector, make sure you have all these items:

Projector Remote control and batteries Documentation

Power cord VGA computer cable Audio adapter USB cable

Autres manuels pour EMP-821

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Epson Projecteur

Epson

Epson AP-60 - Projector Sound Solution Dimensions

Epson

Epson PowerLite 570 Manuel du système

Epson

Epson EB-S8 Manuel utilisateur

Epson

Epson EH-TW6600W Manuel utilisateur

Epson

Epson EH-TW5200 Manuel utilisateur

Epson

Epson PowerLite Presenter i Fiche technique

Epson

Epson EB-W28 Manuel utilisateur

Epson

Epson 745c - PowerLite XGA LCD Projector Fiche technique

Epson

Epson 1730W - PowerLite WXGA LCD Projector Manuel utilisateur

Epson

Epson PowerLite Pro Cinema 31000 Manuel utilisateur

Epson

Epson PowerLite 1835 Manuel du système

Epson

Epson 9000i - PowerLite SXGA LCD Projector Manuel utilisateur

Epson

Epson EH-TW6000 Manuel utilisateur

Epson

Epson PowerLite 84+ Manuel utilisateur

Epson

Epson 1735W - PowerLite WXGA LCD Projector Manuel utilisateur

Epson

Epson MegaPlex MG-850HD Manuel utilisateur

Epson

Epson PowerLite Home Cinema 3010 Manuel utilisateur

Epson

Epson EB-L615U Manuel utilisateur

Epson

Epson 410W - PowerLite WXGA LCD Projector Manuel du système

Epson

Epson PowerLite 4770W Manuel utilisateur

Epson

Epson PowerLite W7 Manuel utilisateur

Epson

Epson EH-TW570 Manuel utilisateur

Epson

Epson PowerLite 1770W Manuel utilisateur

Epson

Epson EMP-TW 700 Manuel utilisateur

Manuels Projecteur populaires d'autres marques

iEmmet

iEmmet MP-312 Manuel utilisateur

Sony

Sony VPL-HS10 Marketing Specifications & Features Manuel utilisateur

Sony

Sony VPL-HW65ES Manuel de service

Toshiba

Toshiba TLP-791U Manuel utilisateur

Philips

Philips LC1341 Guide de référence

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Manuel utilisateur

NEC

NEC NP600S EDU Manuel utilisateur

BenQ

BenQ SH753P Manuel utilisateur

Eiki

Eiki EK-623U series Manuel utilisateur

Christie

Christie LHD700 Manuel utilisateur

Navitar

Navitar FX Manuel utilisateur

InFocus

InFocus LitePro 560 Manuel utilisateur

Sony

Sony SRX-R815P Manuel utilisateur

Vivitar

Vivitar DP1500 X Manuel utilisateur

Acer

Acer C20 Series Manuel utilisateur

Asus

Asus ZenBeam Latte Manuel utilisateur

BOXLIGHT

BOXLIGHT CP-322i/CP-634i Manuel utilisateur

JVC

JVC 1108TTH-AO-AO Manuel utilisateur
