QUICK REFERENCE GUIDE

Be sure to read the User's Guide thoroughly before using this projector. WARNING Never look into the lens while

the projector's power is turned on.

Printed on 100% recycled paper.

"Screen Size and Projection

Distance" in User's Guide

Adjust the distance between the projector and

the screen until the desired image size is obtained.

* When installing against a wall, leave a space of about 20cm (7.9 in.) between the projector and

the wall.

Setting Up

(61 46)

(81 61)

(120 90)

(160 120)

100

(200 150)

200

(410 300)

Screen size

300"

(610 460 cm)

45.7 cm

(18.0 in.)

Centre of

lens

10.1

–

11.7 m (33.2

–

38.5 ft.)

4.6

(1.8) 6.1

(2.4) 9.1

(3.6) 30.5

(12.0)

15.2

(6.0)

12.2

(4.8)

1.0

–

1.1 (3.2

–

3.7)

1.3

–

1.5 (4.3

–5.0)

2.0

–

2.3 (6.5

–

7.5)

2.7

–

3.1 (8.7

–

10.1)

3.3

–

3.9 (11.0

–

12.7)

6.7

–

7.8 (22.1

–

25.6)

Distance from centre of lens to bottom edge of screen

20 cm

(7.9 in.)*

: lit : flashing

"When Having SomeTrouble"

in User's Guide

Power indicator

Checking the indicators

You can check the status of the projector using the indicators on the projector's control panel.

Refer to the table below for details on checking and remedying the cause of problems.

Warning indicator

indicator

(Warning) indicator

Standby condition

The power cable should only be disconnected

when the projector is in this condition.

Press on the projector's control panel

or on the remote control to start

projection.

Cool-down in progress

After about 45 seconds, the projector will change

to standby mode (the indicator will light orange).

Warm-up in progress

After warm-up finishes, projection starts when an

image signal is input.

Remove the lamp and check if it is broken.

If the lamp is broken replace by a new lamp, or contact

your local dealer for further advise. *1

High-speed cooling in progress.If the temperature rises too

high again, projection will stop automatically.

Check that the air inlet and air outlet are clear, and that the

internal room temperature is not too high.

Internal problem

Stop using the projector and ask for service.*2

Lamp problem

Problem and remedy

Troubleshooting

*1 Contact your dealer for a spare lamp.

*2 For repairs, contact your dealer or the nearest address

provided at "International Warranty Conditions" in "Safety

Instructions/World-Wide Warranty Terms".

: lit : flashing

Orange

Green

Status

Projection in progress

Problem and remedy

Orange

Red

Status

High temperature inside projector (overheating)

The lamp will turn off automatically and projection will stop.

Wait for about 5 minutes without operating the projector.

After 5 minutes have elapsed, unplug the power cable and

then plug it back in again.The projector will return to its

previous condition.

Then press on the projector's control panel or on

the remote control to turn the power back on

(0.5-second

intervals)

Red

(1-second

intervals)

The values should be used as a guide for setting up the projector.

Stereo mini jack audio cable (commercially-available)

The computer cable that is supplied

with the projector may not match the

shape of the monitor port on some

computers. In such cases, you will need

to purchase a separate adapter to

connect the computer to the projector.

If connecting component video

source (such as a DVD player), you can

use the optional component video cable

to connect the source to the Computer

/Component Video port at the rear of the

projector.

Connections Connecting to a computer

* Turn off the power for both the projector and the other equipment before connecting them.

Computer cable (accessory)

To computer's

monitor port

To audio output

port of video

equipment

Connecting to a video source

RCA video cable (accessory)

To video output port (yellow)

Setting Up /

Connections

Tip

"Connecting to a Computer"

"Connecting to a Video Source"

in User's Guide

The help contents will then be

displayed.

To clear the help display, press

on the projector's control

panel.

Accept the selected item.

Press on the projector's

control panel.

Or press on the remote

control.

Select the item to view.

Press on the

projector's control panel.

Or press on the

remote control.

Press on the projector's

control panel.

"Using the Help"

in User's Guide

Troubleshooting

Projector

Viewing the online help

This projector is provided with an online help function which can be used when you have a

problem using the projector.

Remote Control

Solid black User's logoSolid blue

"A/ V Mute" in User's Guide

"Saving a User's Logo"

in User's Guide

Momentarily turning off images and sound

The picture and sound will be momentarily paused, and a solid black image, a solid blue image

or the user's logo will be projected. It can be used when you do not want to show viewers details

of operations such as selecting different files when computer images are being projected.

First press , select "Setting" and then "A/V Mute".Then select the type of screen to be displayed

when projection is being stopped.The following choices are available.The default setting is the black screen.

The EPSON logo is recorded as the default user's logo. Use the menus to set your own user's logo if desired.

Press .

Press once more.

Projection of the images and sound will be restarted.

If you use this function while projecting moving images, the images and sound will still continue

to be played back, and you cannot return to the point where the A/V Mute function was activated.

Functions for

Enhancing Projection

Press on the projector's

control panel or on the remote

control to turn the power on.

The Power indicator will light orange.

Projecting Remove the lens cover.

Connect the power cable to the projector.

Connect the other end of the power cable to an electrical outlet.

Turn on the power for the input source.

In the case of aVCR, press the PLAY

button.

An image will be projected.

The Power indicator will start

flashing green and projection

will start. (Warm-up in progress)

"Turning On the Projector"

in User's Guide

Power indicator

If connecting the projector to a computer

with a built-in monitor, or to a laptop

computer, you may need to change the

output destination for image signals using

one of the buttons on the computer (such

as a button with a or icon on

it) or setting menus.

The output destination can normally be

changed by holding down the computer's

key and pressing one of the

Function keys.

Once the source has been changed, after

a short wait the projector will start

projecting.

For details, refer to the documentation

provided with your computer.

Examples of changing output

NEC

Panasonic

TOSHIBA

IBM

SONY

FUJITSU

Macintosh

After startup, change the

Control Panel adjustments so

that Mirroring is active

Tip If images do not appear ...

Change the input signal.

Remote Control

If you have other problems ...

Refer to the online

Help information.

* Refer to "Troubleshooting".

Projector

Press on the projector's control

panel and follow the prompts which

appear in order to solve the problem.

Projecting

Each time is pressed, the

image source cycles between

Computer/Component Video,

S-Video, and Video.

Projector

Press

or .

Left Right

Down

After enlarging the image, you can

use , , and to scroll

around the image.

To cancel the enlargement effect,

press .

"E-Zoom" in User's Guide

Enlarging part of projected images

If you press or , the cross will appear at the middle of the image being projected.

Press , , or on the remote control to move the cross to the area of the image

that is to be enlarged.

Enlargement ratio

When is pressed, the

enlarged image is reduced

in size again.

Tip

Functions for

Enhancing Projection

When is pressed, the

image is enlarged with the

cross as its center.

Cross

Remote control

The colour mode changes as follows each time

on the remote control is pressed.

Normal →Meeting →Presentation →Theatre →

Game →sRGB ...

The default setting for the colour mode is

"Normal" when computer images are being input,

and "Theatre" when component video, composite

video and S-Video signals are being input.

Selecting a colour mode

Mode Application

sRGB

Normal Brightness is emphasised. For presentation in bright rooms.

Meeting Images are modulated using their original tints, with no colour enhancement.

Presentation For presentations in dark rooms.

Theatre Movie images are optimised using natural tints.

Game Brightness is emphasised. Ideal for playing video games in bright rooms.

Press .

Images conform to the sRGB colour standard. If the connected source has an

sRGB mode, set both the projector and the connected signal source to sRGB.

"Selecting the Colour Mode"

in User's Guide

Functions for

Enhancing Projection

The following six preset colour modes are available for use depending on the characteristics of

the images that are being projected.You can easily obtain the optimum image quality simply by

selecting the colour mode that corresponds to the projected images. The brightness of the

images will vary depending on which colour mode is selected.

Remote Control

When the projector is tilted, it will cause

keystone distortion to appear in the image,

but this distortion can be corrected using the

automatic keystone correction function as

long as the vertical angle of tilt is within a

range of approximately 15˚. If you would like

to make further minor adjustments to the

effects of automatic keystone correction,

use on the projector's control

panel.

See page 6.

Adjusting the Screen Image

in User's Guide

Tip

Adjustment

If the front adjustable feet have been

extended, they can be retracted again

by pressing and holding the foot adjust

buttons on both sides of the projector

and gently pushing down the front of

the projector.

A keystone correction reduces screen

size.

If the images become uneven in

appearance after keystone correction is

carried out, decrease the "Sharpness"

menu setting.

Adjusting the projection angle

Adjusting the image size and focus

Focus adjustment

Image size adjustment

Use the foot adjust buttons to adjust the projection angle of the projector.

While pressing the foot adjust

buttons, lift up the front of the projector.

Turn to "W" to enlarge

Turn to "T"to reduce

Manually Correcting Keystone

Distortion" in User's Guide

If "Auto Keystone" in the "Setting" menu

is set to "OFF" (the default setting for

this item is "ON"), automatic keystone

adjustment is not carried out. Press

on the projector's control panel

to adjust the keystone at this time.

To make further adjustments after automatic keystone

correction

When the bottom is too wideWhen the top is too wide

To make further adjustments after automatic keystone correction has been carried out, press

on the projector's control panel.

Tip

Adjustment /

Turning Off the Projector

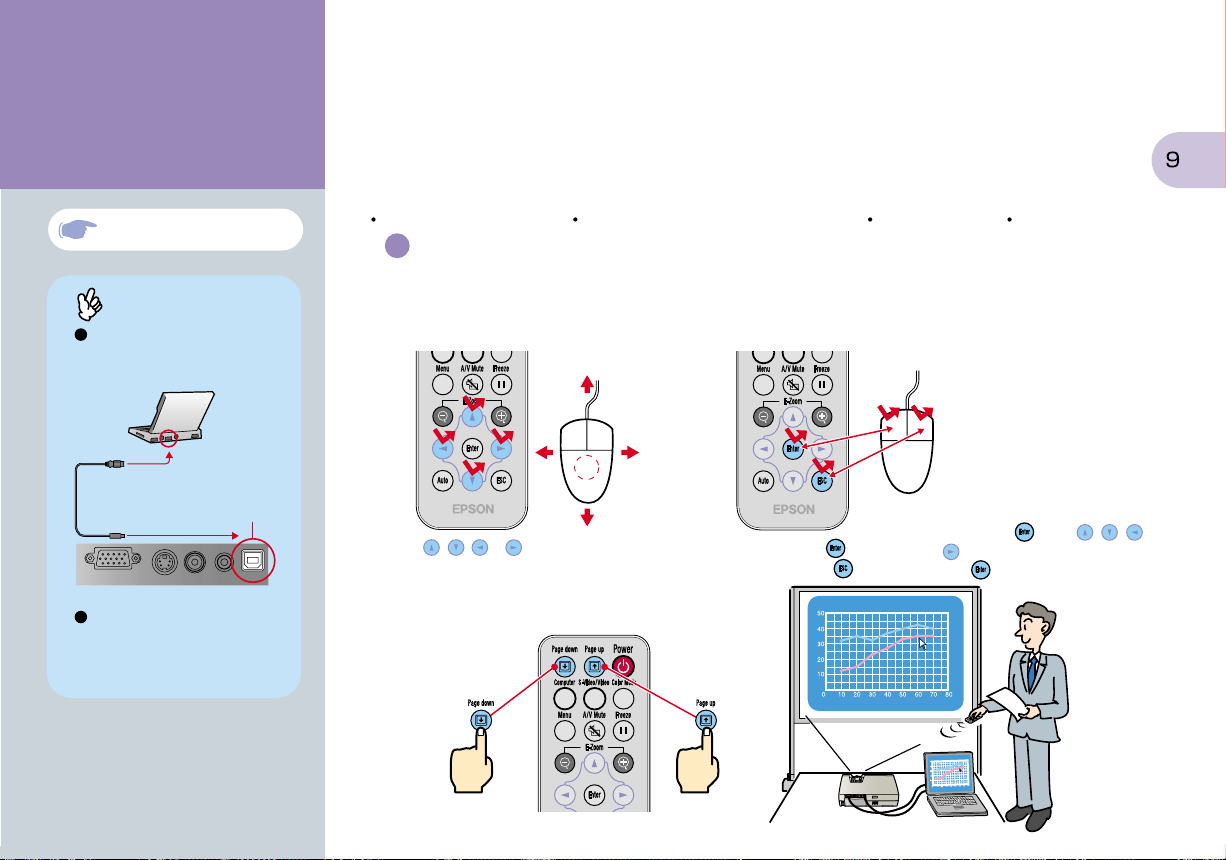

Press , , or

(Each button corresponds to a mouse direction.)

When using the remote control as a

wireless mouse, you need to connect

the projector as follows.

Always use the USB cable that is

supplied with the projector, otherwise

operating problems may occur.

Drag & Drop:

While pressing , press , ,

or to drag.At the desired point,

release to drop.

"Wireless Mouse Function"

in User's Guide

Tip

USB port

USB cable

(accessory)

Using the remote control for one-person presentations

The remote control can be set so that it carries out the same operations as a computer mouse.

You can use the remote control to control the computer's mouse pointer from a distance.

Mouse pointer movement

The following functions for

enhancing the projection are explained here.

Refer to the corresponding pages of the User's Guide for details

on each function.

Wireless mouse Selecting the colour mode E-Zoom A/V Mute

Mouse clicks and drag & drop

For left clicks: Press .

For right clicks:Press .

Functions for

Enhancing Projection

Moving forward or back through pages

in PowerPoint files

To go to the

next page To return to the

Press on the projector's control panel or the on the

remote control twice to turn off the power.

To prevent mis-operation, a confirmation message appears when or is pressed once.

The power turns off when you press the button once more.You can also press or twice

in quick succession to turn off the power.

The Power indicator will flash orange (cool-down in progress/about 45 seconds).

If you press a button other than

on the projector's control panel or

on the remote control while the

confirmation message is displayed, the

message will disappear and the

projector will return to its original

condition.

"Turning Off the Projector"

in User's Guide

Tip

Turn off the power for the equipment connected to the projector.

After the Power indicator lights orange steadily

you can disconnect the power cable.

If the power cable is disconnected while the Power indicator is still flashing orange,

it may cause problems with projector operation.

Adjustment /

Turning Off the Projector

Turning Off

the Projector

Power indicator

Press the on the remote control to display the configuration menu on the screen.You can then adjust

the individual brightness, contrast and sharpness settings.

Other adjustments

Adjustment

Press on the remote

control.

Use and to select the

menu item to be set, and then

press .

To change the setting for

another item, repeat steps

and .

To close the menu, press .

Use and to select an

item, and then use and

to adjust the setting or select

"ON" or "OFF". Press to

accept the setting.

Main menu Sub-menu (Video)

Remote control

Press to return to the previous

menu level.

Tip The configuration menu appears.

The selected sub-menu then appears.

"Using the Configuration

Menu Functions"

in User's Guide

Press on the projector's control panel or the on the

remote control twice to turn off the power.

To prevent mis-operation, a confirmation message appears when or is pressed once.

The power turns off when you press the button once more.You can also press or twice

in quick succession to turn off the power.

The Power indicator will flash orange (cool-down in progress/about 45 seconds).

If you press a button other than

on the projector's control panel or

on the remote control while the

confirmation message is displayed, the

message will disappear and the

projector will return to its original

condition.

"Turning Off the Projector"

in User's Guide

Tip

Turn off the power for the equipment connected to the projector.

After the Power indicator lights orange steadily

you can disconnect the power cable.

If the power cable is disconnected while the Power indicator is still flashing orange,

it may cause problems with projector operation.

Adjustment /

Turning Off the Projector

Turning Off

the Projector

Power indicator

Press the on the remote control to display the configuration menu on the screen.You can then adjust

the individual brightness, contrast and sharpness settings.

Other adjustments

Adjustment

Press on the remote

control.

Use and to select the

menu item to be set, and then

press .

To change the setting for

another item, repeat steps

and .

To close the menu, press .

Use and to select an

item, and then use and

to adjust the setting or select

"ON" or "OFF". Press to

accept the setting.

Main menu Sub-menu (Video)

Remote control

Press to return to the previous

menu level.

Tip The configuration menu appears.

The selected sub-menu then appears.

"Using the Configuration

Menu Functions"

in User's Guide

Manually Correcting Keystone

Distortion" in User's Guide

If "Auto Keystone" in the "Setting" menu

is set to "OFF" (the default setting for

this item is "ON"), automatic keystone

adjustment is not carried out. Press

on the projector's control panel

to adjust the keystone at this time.

To make further adjustments after automatic keystone

correction

When the bottom is too wideWhen the top is too wide

To make further adjustments after automatic keystone correction has been carried out, press

on the projector's control panel.

Tip

Adjustment /

Turning Off the Projector

Press , , or

(Each button corresponds to a mouse direction.)

When using the remote control as a

wireless mouse, you need to connect

the projector as follows.

Always use the USB cable that is

supplied with the projector, otherwise

operating problems may occur.

Drag & Drop:

While pressing , press , ,

or to drag.At the desired point,

release to drop.

"Wireless Mouse Function"

in User's Guide

Tip

USB port

USB cable

(accessory)

Using the remote control for one-person presentations

The remote control can be set so that it carries out the same operations as a computer mouse.

You can use the remote control to control the computer's mouse pointer from a distance.

Mouse pointer movement

The following functions for

enhancing the projection are explained here.

Refer to the corresponding pages of the User's Guide for details

on each function.

Wireless mouse Selecting the colour mode E-Zoom A/V Mute

Mouse clicks and drag & drop

For left clicks: Press .

For right clicks:Press .

Functions for

Enhancing Projection

Moving forward or back through pages

in PowerPoint files

To go to the

next page To return to the

Autres manuels pour EMP 730

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Epson Projecteur

Epson

Epson PowerLite S7 Manuel utilisateur

Epson

Epson Pro L1060W Manuel utilisateur

Epson

Epson PowerLite 1221 Guide de référence

Epson

Epson EB-810E Manuel utilisateur

Epson

Epson PowerLite EB-800F Manuel utilisateur

Epson

Epson AP-60 - Projector Sound Solution Manuel utilisateur

Epson

Epson PowerLite Presenter L Manuel utilisateur

Epson

Epson CO-FH02 Manuel utilisateur

Epson

Epson EMP-703 Manuel utilisateur

Epson

Epson LCD projector Manuel utilisateur

Epson

Epson EH-LS300W Manuel utilisateur

Epson

Epson EX3212 Guide de référence

Epson

Epson EB-S8 Manuel utilisateur

Epson

Epson EF12 Manuel utilisateur

Epson

Epson PowerLite 9300i Manuel utilisateur

Epson

Epson PowerLite Pro Cinema LS9600e Manuel utilisateur

Epson

Epson Dreamio EH-TW3800 Manuel utilisateur

Epson

Epson EB-W22 Manuel utilisateur

Epson

Epson PowerLite 450W Manuel utilisateur

Epson

Epson 1810p - PowerLite XGA LCD Projector Manuel utilisateur

Epson

Epson EMP-503 - SVGA LCD Projector Manuel utilisateur

Epson

Epson PowerLite 811p Manuel utilisateur

Epson

Epson PowerLite 1775W Manuel utilisateur

Epson

Epson EB-585Wi Manuel utilisateur

Manuels Projecteur populaires d'autres marques

iEmmet

iEmmet MP-312 Manuel utilisateur

Sony

Sony VPL-HS10 Marketing Specifications & Features Manuel utilisateur

Sony

Sony VPL-HW65ES Manuel de service

Toshiba

Toshiba TLP-791U Manuel utilisateur

Philips

Philips LC1341 Guide de référence

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Manuel utilisateur

NEC

NEC NP600S EDU Manuel utilisateur

BenQ

BenQ SH753P Manuel utilisateur

Eiki

Eiki EK-623U series Manuel utilisateur

Christie

Christie LHD700 Manuel utilisateur

Navitar

Navitar FX Manuel utilisateur

InFocus

InFocus LitePro 560 Manuel utilisateur

Sony

Sony SRX-R815P Manuel utilisateur

Vivitar

Vivitar DP1500 X Manuel utilisateur

Acer

Acer C20 Series Manuel utilisateur

Asus

Asus ZenBeam Latte Manuel utilisateur

BOXLIGHT

BOXLIGHT CP-322i/CP-634i Manuel utilisateur

JVC

JVC 1108TTH-AO-AO Manuel utilisateur
