Epson S1D13C00 Manuel utilisateur

Rev. 1.0

S1D13C00

S5U13C00P01C100 Customer

Development Board User

Manual

Document Number: XB8A-G-001-01.0

Evaluation board/kit and Development tool important notice

1. This evaluation board/kit or development tool is designed for use for engineering evaluation, demonstration,

or development purposes only. Do not use it for other purposes. It is not intended to meet the requirements of

design for finished products.

2. This evaluation board/kit or development tool is intended for use by an electronics engineer and is not a

consumer product. The user should use it properly and in a safe manner. Seiko Epson dose not assume any

responsibility or liability of any kind of damage and/or fire coursed by the use of it. The user should cease to

use it when any abnormal issue occurs even during proper and safe use.

3. The part used for this evaluation board/kit or development tool may be changed without any notice.

NOTICE

No part of this material may be reproduced or duplicated in any form or by any means without the written

permission of Seiko Epson. Seiko Epson reserves the right to make changes to this material without notice.

Seiko Epson does not assume any liability of any kind arising out of any inaccuracies contained in this material

or due to its application or use in any product or circuit and, further, there is no representation that this material is

applicable to products requiring high level reliability, such as, medical products. Moreover, no license to any

intellectual property rights is granted by implication or otherwise, and there is no representation or warranty that

anything made in accordance with this material will be free from any patent or copyright infringement of a third

party. When exporting the products or technology described in this material, you should comply with the

applicable export control laws and regulations and follow the procedures required by such laws and regulations.

You are requested not to use, to resell, to export and/or to otherwise dispose of the products (and any technical

information furnished, if any) for the development and/or manufacture of weapon of mass destruction or for other

military purposes.

All brands or product names mentioned herein are trademarks and/or registered trademarks of their respective

companies.


S5U13C00P01C100 Board User Manual Seiko Epson Corporation i
(Rev. 1.0)
Table of Contents
Introduction ................................................................................................................ 3
Connecting the ET011TT2 EPD Panel ...................................................................... 5
Connecting to the Host MCU Board ......................................................................... 6
1 EK-TM4C1294XL Board .............................................................................................................6
2 Nucleo-F746ZG or Nucleo-F767ZI Board .................................................................................7
Jumpers Settings....................................................................................................... 8
Push-Buttons and EPD Panel Connectors .............................................................. 9
1 Push-Buttons ..............................................................................................................................9
2 Header for Hulk Power Board Connection (CN1) .................................................................10
3 FPC Connector for ET011TT2 Connection (CN2)..................................................................11
Pre-installed On-board Components ..................................................................... 12
1 16Mbytes QSPI Serial Flash (U2) ............................................................................................12
Host MCU Board Connections................................................................................ 13
1 Tiva C Series EK-TM4C1294XL Launchpad...........................................................................13
2 STM32 Nucleo-144 development board .................................................................................15
Parts List................................................................................................................... 17
S5U13C00P01C100 Schematics.............................................................................. 18
Revision History....................................................................................................... 20



ii Seiko Epson Corporation S5U13C00P01C100 Board User Manual

(Rev. 1.0)

Introduction

S5U13C00P01C100 Board User Manual Seiko Epson Corporation 3

(Rev. 1.0)

1. Introduction

The S5U13C00P01C100 is the S1D13C00 EPD Evaluation Board. It is a BoosterPack board with a connector

for the E Ink ET011TT2 EPD panel intended to be directly connected to the TI Tiva C Series EK-TM4C1294XL

Launchpad evaluation board for evaluating and developing embedded EPD applications using the Epson

S1D13C00 Memory Display Controller IC. It is possible to be controlled by the ST Nucleo-F746ZG or Nucleo-

F767ZI board through the S5U13C00M00C100 (STM32 Nucleo-144 development board) board.

Figure 1 shows the S5U13C00P01C100 EPD Evaluation Board.

Figure 1 – S5U13C00P01C100 EPD Evaluation Board

The S5U13C00P01C100 EPD Evaluation Board consists of:

A S1D13C00 Memory Display Controller (U1)

Four 2x10 connectors for Host Interface connection (J4, J5, J6 and J7) and +5V/+3.3V power

A 16Mbytes QSPI Serial Flash (U2)

A flexible printed circuit (FPC) connector (CN2) for connecting to a ET011TT2 EPD panel

An 18-pin right-angle header connector for connecting to other panels

Figure 1.1 shows the block diagram of S5U13C00P01C100, focused on interfaces. It has a host MCU interface

and three interfaces for displays. CN1 is an interface for E Ink’s HULK power board, CN2 is an interface for the

ET011TT2 panel module, and there are through holes for interface to a memory display panel. You can select

one of these interfaces to connect a panel module. CN2 interface is also possible to connect other E Ink panel

modules. The booster components on the S5U13C00P01C100 are similar circuits to HULK power board

suitable for the ET011TT2 panel module.

Introduction

4Seiko Epson Corporation S5U13C00P01C100 Board User Manual

(Rev. 1.0)

Figure 1.1 – S5U13C00P01C100 Block Diagram for Interface

Regulator

Host

interface

Memory display interface

HULK power board interface

ET011TT2

panel module

interface

S1D13C00

Serial

Flash

Through holes

Booster

Components *

CN1

*Booster components are part of booster circuits of ET011TT2 panel module.

Connecting the ET011TT2 EPD Panel

S5U13C00P01C100 Board User Manual Seiko Epson Corporation 5

(Rev. 1.0)

2. Connecting the ET011TT2 EPD Panel

Figure 2 – Connecting the ET011TT2 EPD Panel

Figure 2.1 – Connecting the HULK Power Board with ET011TT2 EPD Panel

Connecting to the Host MCU Board

6Seiko Epson Corporation S5U13C00P01C100 Board User Manual

(Rev. 1.0)

3. Connecting to the Host MCU Board

3.1 EK-TM4C1294XL Board

Position the S5U13C00P01C100 EPD Evaluation Board on TOP of the EK-TM4C1294XL Launchpad Board,

press the two boards together with J4 connecting to X8, J5 connecting to X9, J6 connecting to X6, and J7

connecting to X7 respectively.

Figure 3 – Connecting the S5U13C00P01C100 to the EK-TM4C1294XL

Connecting to the Host MCU Board

S5U13C00P01C100 Board User Manual Seiko Epson Corporation 7

(Rev. 1.0)

3.2 Nucleo-F746ZG or Nucleo-F767ZI Board

First, connect the S5U13C00M00C100 adapter board to the Nucleo board. Second, connect the

S5U13C00P01C100 board to the S5U13C00M00C100 adapter board.

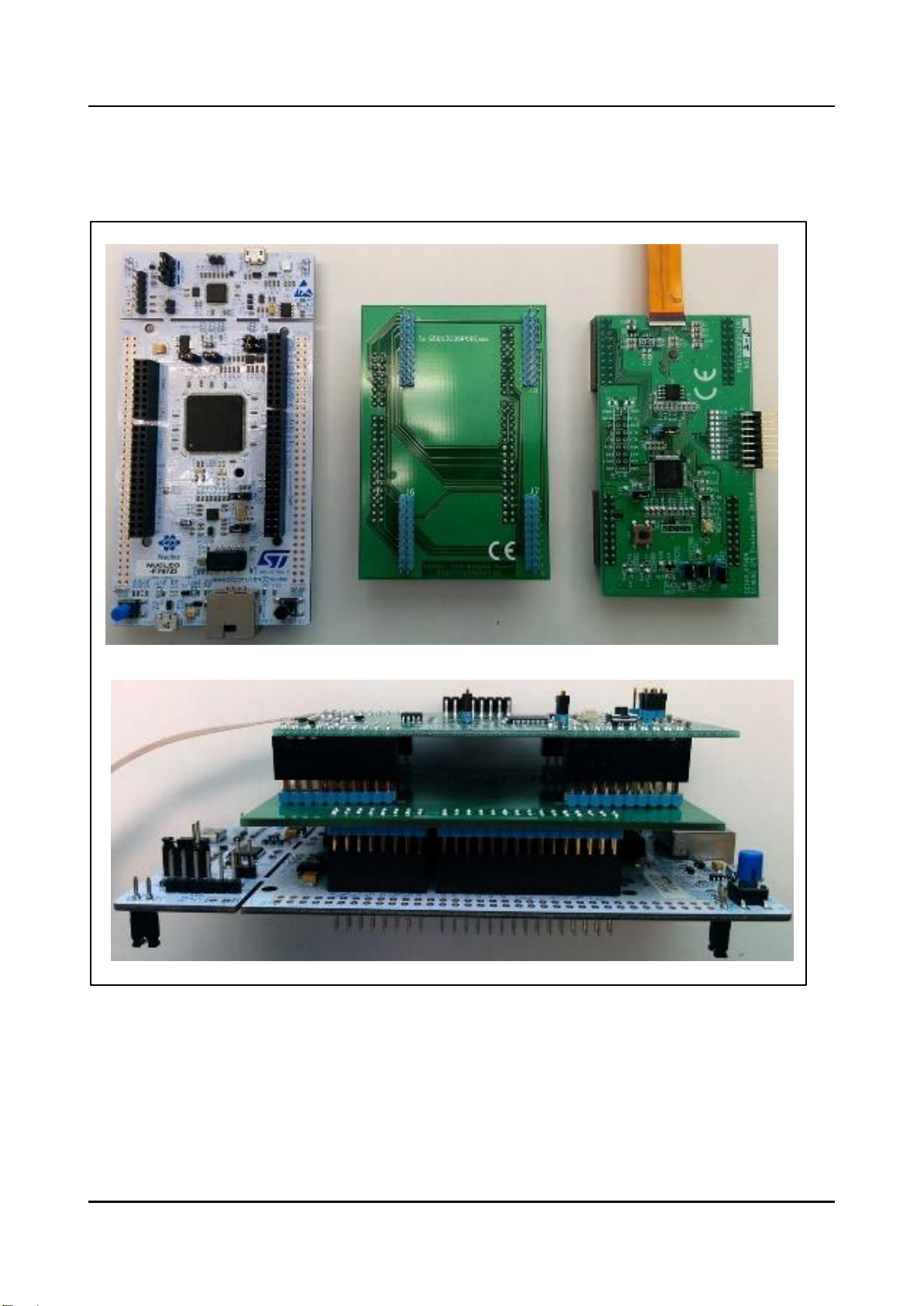

Figure 3.1 – Connecting the S5U13C00P01C100 to the Nucleo-F746ZG or Nucleo-F767ZI

Jumpers Settings

8Seiko Epson Corporation S5U13C00P01C100 Board User Manual

(Rev. 1.0)

4. Jumpers Settings

The following tables show the jumpers settings for the S5U13C00P01C100 EPD Evaluation Board.

Figure 4 – S5U13C00P01C100 Jumpers Locations

Jumpers

Descriptions

Type

Default Position

JP2

External VC3 Connection

2-pin

Not installed

JP3

VDD_IC supply series jumper

2-pin

Installed

JP4

VDD_EPD supply series jumper

2-pin

Installed

JP6

DISPVDD source supply

1-2 = VDD_EPD

2-3 = VMDL

3-pin

1-2 (VDD_EPD)

JP7

HIFCNF (host interface configuration)

1-2 = SPI/QSPI

2-3 = INDIRECT 8-BIT (not used)

3-pin

1-2 (SPI/QSPI)

JP2

JP3

JP4

JP6

JP7
