EPOX EP-6VBA2 Manuel utilisateur

TRADEMARK

All products and company names are trademarks or registered

trademarks of their respective holders.

These specifications are subject to change without notice.

Manual Revision 3.0

September 27, 1999

EP-6VBEP-6VB

EP-6VBA2A2

A2A2

A PA P

A Pentiumentium

entiumentium

entium®®

®®

®II or PII or P

II or PII or P

II or Pentiumentium

entiumentium

entium®®

®®

®IIIIII

IIIIII

III

Slot1 Processor based 4X AGPSlot1 Processor based 4X AGP

Slot1 Processor based 4X AGP

mainboarmainboar

mainboard (100/66MHz)d (100/66MHz)

d (100/66MHz)d (100/66MHz)

d (100/66MHz)

SupporSuppor

Supports PC-133 SDRAM Modulets PC-133 SDRAM Module

ts PC-133 SDRAM Modulets PC-133 SDRAM Module

ts PC-133 SDRAM Module

EP-6VBA2

User Notice

No part of this product, including the product and software may be reproduced,

transmitted, transcribed, stored in a retrieval system, or translated into any language

in any form without the express written permission of EPoX Computer Company

(hereinafter referred to as EPoX) except for documentation kept by the purchaser

for backup purposes.

We provide this manual “as is” without warranty of any kind, either expressed or

implied, including but not limited to the implied warranties or conditions of

merchantability or fitness for a particular purpose. In no event shall EPoX be liable

for any loss of profits, loss of business, loss of use or data, interruption of busi-

ness or for indirect, special incidental, or consequential damages of any kind, even

if EPoX has been advised of the possibility of such damages arising from any

defect or error in the manual or product. EPoX may revise this manual from time

to time without notice. For updated BIOS, drivers, or product release information

you may visit our websites at http://www.epox.com or http://www.epox.com.tw.

Products mentioned in this manual are mentioned for identification purposes only.

Product names appearing in this manual may or may not be registered trademarks

or copyrights of their respective companies. The product name and revision

number are both printed on the mainboard itself.

Handling Procedures

Static electricity can severely damage your equipment. Handle the EP-6VBA2 and

any other device in your system with extreme care and avoid unnecessary contact

with system components on the mainboard. Always work on an antistatic surface to

avoid possible damage to the mainboard from static discharge. Always have the

power supply unplugged and powered off when inserting and removing devices

within the computer chassis. EPoX assumes no responsibility for any damage to

the EP-6VBA2 mainboard that results from failure to follow instruction or failure

to observe safety precautions.

CAUTION

The EP-6VBA2 mainboard is subject to

damage by static electricity. Always

observe the handling procedures.

EP-6VBA2

Technical Support Services

If you need additional information, help during installation or normal use of this

product, please contact your retailer. Your retailer will have the most current

information about your configuration. If your retailer cannot help, you may visit

our online technical support website and/or contact our support technicians at the

locations listed below.

Record your serial number before installing your EP-6VBA2 mainboard. (The

serial number is located near the ISA slots at the edge of the board.)

EP-6VBA2 serial number: _________________________________

Contacting Technical Support

EPoX technical support is working hard to answer all of your questions online.

From our website you can find answers to many common questions, drivers, BIOS

updates, tech notes, and important technical bulletins. If you are still unable to

locate the solution you are seeking, you always have the option to contact our

support technicians directly.

North American website (English language)

http://www.epox.com

[email protected]

European website (Multi-language)

http://www.epox.nl

[email protected]

Taiwan website (Chinese language)

http://www.epox.com.tw

[email protected]

Thank you for using EPoX mainboards!

EP-6VBA2

Table of Contents

Section 1 Introduction

Components Checklist ........................................1-1

Overview

Pentium®II or Pentium®III Processor...............1-2

S.E.C. Cartridge Terminology .............................1-3

Accelerated Graphics Port.................................. 1-4

Hardware Monitoring .......................................... 1-4

EP-6VBA2 Form-Factor .....................................1-5

I/O Shield Connector ..........................................1-6

Power-On/Off (Remote)..................................... 1-6

System Block Diagram........................................1-7

Section 2 Features

EP-6VBA2 Features ............................................2-1

Section 3 Installation

EP-6VBA2 Detailed Layout................................3-2

Easy Installation Procedure

Configure Jumpers .............................................. 3-3

System Memory Configuration ..........................3-4

Installing a Pentium®II/III Processor.................3-6

Device Connectors ..............................................3-8

External Modem Ring-in Power ON and

Keyboard Power ON Function (KBPO) ............. 3-10

Section 4 Award BIOS Setup

BIOS Instructions ................................................ 4-1

Standard CMOS Setup .........................................4-2

BIOS Features Setup ........................................... 4-3

Chipset Features Setup........................................ 4-8

Power Management Setup...................................4-11

PNP/PCI Configuration ...................................... 4-14

Load Setup Defaults ............................................4-16

Integrated Peripherals .........................................4-16

Sensor and CPU Speed Setup..............................4-20

Page

EP-6VBA2

Change Supervisor or User Password.................4-22

IDE HDD Auto Detection ...................................4-23

Save & Exit Setup ................................................ 4-25

Exit Without Saving .............................................4-25

Driver Installation ............................................... 5-1

Appendix

Appendix A

Memory Map ....................................................... A-1

I/O Map ................................................................A-1

Timer & DMA Channels Map .............................A-2

Interrupt Map ....................................................... A-2

RTC & CMOS RAM Map .................................... A-3

Appendix B

POST Codes......................................................... A-5

Unexpected Errors............................................... A-8

Appendix C

Load Setup Defaults ............................................A-9

Appendix D

GHOST 5.1 Quick User’s Guide.........................A-11

EP-6VBA2

Page Left Blank

IntroductionEP-6VBA2

Page 1-1

Section 1

INTRODUCTION

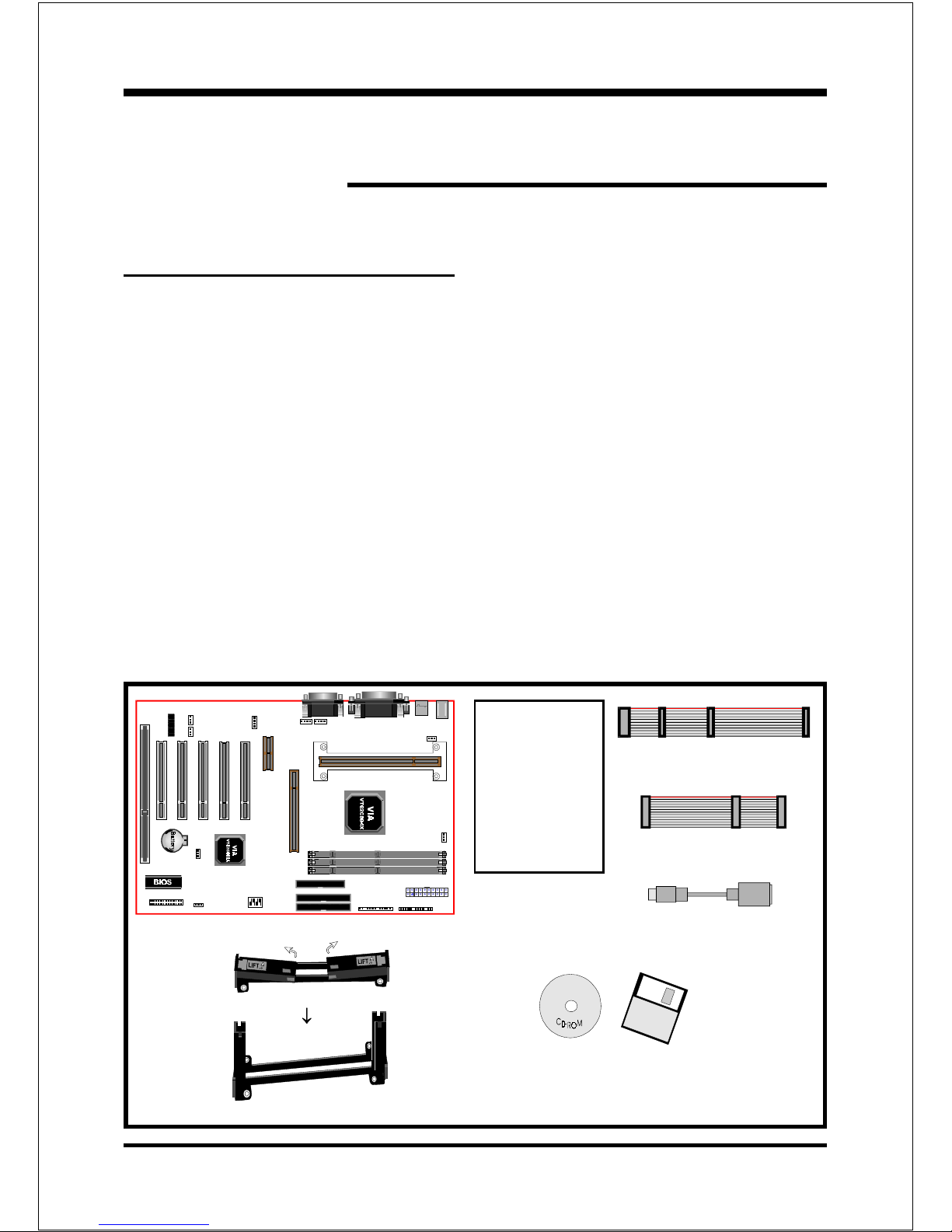

Components Checklist

üü

üA. (1) EP-6VBA2 mainboard

üü

üB. (1) EP-6VBA2 user’s manual

üü

üC. (1) Floppy ribbon cable

üü

üD. (1) ATA-66 Hard drive ribbon cable

üü

üE. (1) Foldable Retention Module

F. (1) PS/2 to AT keyboard connector adapter (optional)

üü

üG. (1) Driver and utility

USER’S

MANUAL

EP-6VBA2

Introduction EP-6VBA2

Page 1-2

Overview

Pentium®II or Pentium®III Processor

The Pentium®II or Pentium®III Processor (The Pentium®III Processor as 400/

100MHz and 450/100MHz speed above with 512K-L2 cache Versions.) is the

follow-on to the Pentium®Processor. The Pentium®II or Pentium®III Processor,

like the Pentium®Pro processor, implements a Dynamic Execution micro-

architecture -- a unique combination of multiple branch prediction, data flow

analysis, and speculative execution. This enables the Pentium®II/III Processor to

deliver higher performance than the Pentium®processor, while maintaining binary

compatibility with all previous Intel architecture processors.

A significant feature of the Pentium®II or Pentium®III Processor, from a system

perspective, is the built-in direct multiprocessing support. In order to achieve

multiprocessing, and maintain the memory and I/O bandwidth to support it, new

system designs are needed. For systems with dual processors, it is important to

consider the additional power burdens and signal integrity issues of supporting

multiple loads on a high speed bus. The Pentium®II or Pentium®III Processor

card supports both uni-processor and dual processor implementations.

The Pentium®II or Pentium®III Processor utilizes Single Edge Contact (S.E.C.)

(Figure 1) cartridge packaging technology. The S.E.C. cartridge allows the L2

cache to remain tightly coupled to the processor, while maintaining flexibility

when implementing high performance processors into OEM systems. The second

level cache is performance optimized and tested at the cartridge level. The S.E.C.

cartridge utilizes surface mounted core components and a printed circuit board

with an edge finger connection. The S.E.C. cartridge package introduced on the

Pentium®II Processor will also be used in future Slot 1 processors.

The S.E.C. cartridge has the following features: a thermal plate, a cover and a PCB

with an edge finger connection. The thermal plate allows standardized heatsink

attachment or customized thermal solutions. The thermal plate enables a reusable

heatsink to minimize fit issues for serviceability, upgradeability and replacement.

The full enclosure also protects the surface mount components. The edge finger

connection maintains socketabilty for system configuration. The edge finger

connector is denoted as ‘Slot 1 connector’ in this and other documentation.

IntroductionEP-6VBA2

Page 1-3

The entire enclosed product is called the Pentium®II or Pentium®III Processor.

The packaging technology and each of the physical elements of the product are

referred to using accurate technical descriptions. This allows clear reference to

the products as just a processor. This is the model used in past packaging tech-

nologies like PGA, TCP, PQFP, DIP, etc.

S.E.C. Cartridge Terminology

• Pentium®II or Pentium®III Processor

The new enclosed card packaging technology is called a “Single Edge

Contact cartridge.” This is similar to previous names for packaging

technology such as PGA or TCP.

• Processor card

The green PCB (with or without components on it)

• Processor core

The silicon on the PLGA package on the PCB

• Cover

The plastic cover on the opposite side from the thermal plate.

• Slot 1

The slot that the S.E.C. cartridge plugs into, just as the Pentium® Pro

processor uses Socket 8.

• Retention mechanism

Formerly ‘retention module’ the dual posts, etc. that holds the cartridge in

place.

• Thermal plate

The heatsink attach-

ment plate.

• Heat sink supports

The support pieces that

are mounted on the

mainboard to provide

added support for

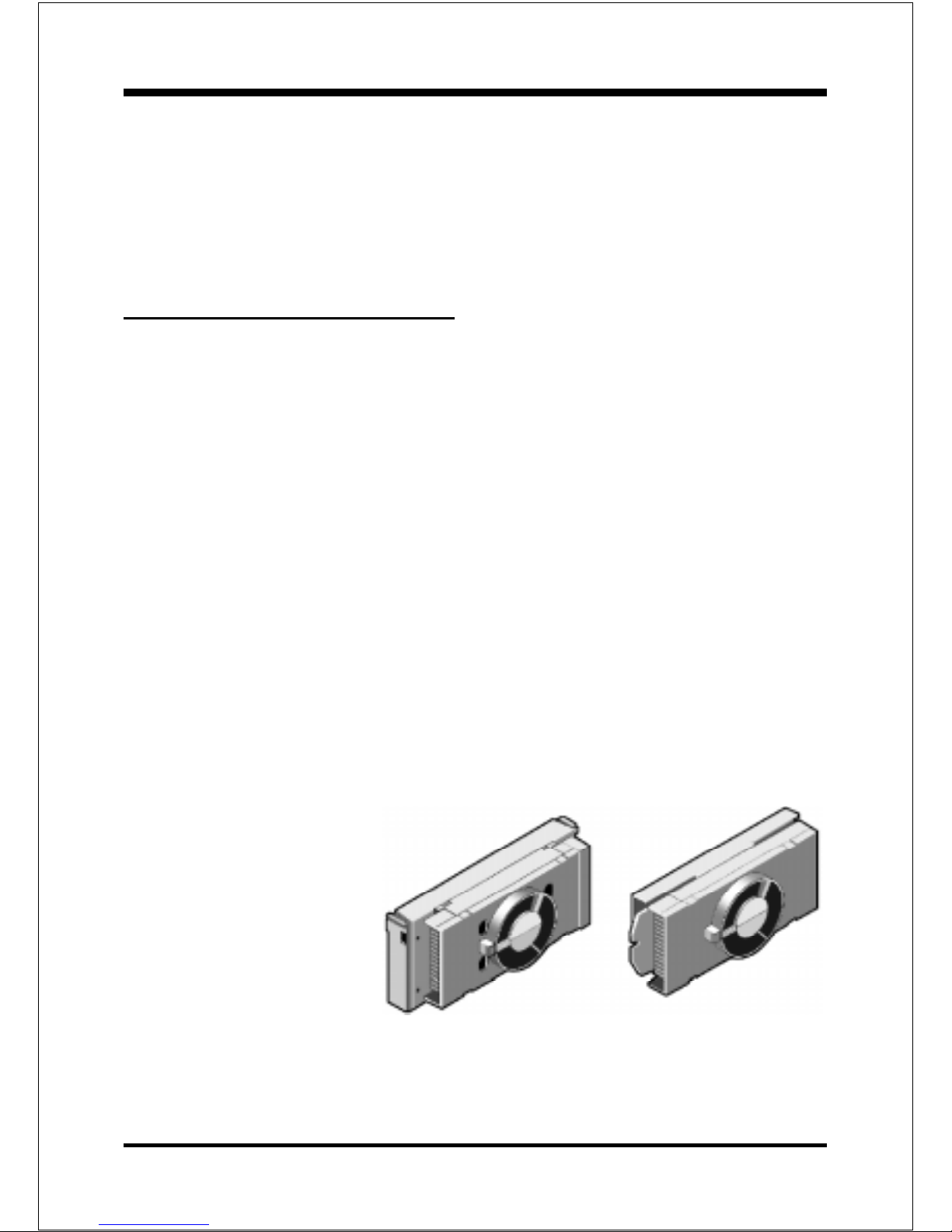

heatsinks. Figure 1: Pentium®II/III Processor CPU

with S.E.C.C. or S.E.C.C.2 Package

Pentium®II Processor

in an S.E.C.C. Package Pentium®III Processor

in an S.E.C.C.2 Package

Introduction EP-6VBA2

Page 1-4

The L2 cache (TagRAM, PBSRAM) components keep standard industry names.

The Pentium®II or Pentium®III Processor is the first product to utilize the S.E.C.

cartridge technology and Slot 1 connector. Unless otherwise noted, any refer-

ences to “Pentium®II Processor,” “Pentium®II or Pentium®III Processor/Slot 1

processor” or “Pentium III Processor” will apply to both the Pentium®II Proces-

sor desktop processors.

Accelerated Graphics Port

(AGP or A.G.P.)

Typically, 3D graphics rendering requires a tremendous amount of memory, and

demands ever increasing throughput speed as well. As 3D products for the

personal computer become more and more popular, these demands will only

increase. This will cause a rise in costs for both end users and manufacturers.

Lowering these costs as well as improving performance is the primary motivation

behind AGP. By providing a massive increase in the bandwidth available between

the video card and the processor, it will assist in relieving some of these pres-

sures for quite sometime.

Hardware Monitoring

Hardware monitoring allows you to monitor various aspects of your systems

operations and status. The features include CPU temperature, voltage and RPM

of fan.

Table des matières

Autres manuels EPOX Carte mère

EPOX

EPOX 6VBA-E Manuel utilisateur

EPOX

EPOX EP-5ATXA-M Manuel utilisateur

EPOX

EPOX 3VCA Manuel utilisateur

EPOX

EPOX KP6-LS Manuel utilisateur

EPOX

EPOX EP-4PEAE 11 Manuel utilisateur

EPOX

EPOX EP-6ZXM Manuel utilisateur

EPOX

EPOX EP-4BDM Manuel utilisateur

EPOX

EPOX 60002MC10 Manuel utilisateur

EPOX

EPOX MVP3E Manuel utilisateur

EPOX

EPOX KP6-FX2 Manuel utilisateur

EPOX

EPOX EP-BX6 Manuel utilisateur

EPOX

EPOX An Intel Socket 478 Processor Based Mainboard... Manuel utilisateur

EPOX

EPOX EP-BX5 Manuel utilisateur

EPOX

EPOX EP-3S1A Manuel utilisateur

EPOX

EPOX EP-3VCA2 Manuel utilisateur

EPOX

EPOX 3XCA2 Manuel utilisateur

EPOX

EPOX EP-7KXA Manuel utilisateur

EPOX

EPOX PP6-NF Manuel utilisateur

EPOX

EPOX P55-TX 2 Manuel utilisateur

EPOX

EPOX EP-8HDA5J Manuel utilisateur

EPOX

EPOX EP-BX7+ Manuel utilisateur

EPOX

EPOX EP-8kem Manuel utilisateur

EPOX

EPOX LX370Y Manuel utilisateur

EPOX

EPOX EP-3VHA Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuel utilisateur
