EPOX EP-3VWM Manuel utilisateur

TRADEMARK

All products and company names are trademarks or registered

trademarks of their respective holders.

These specifications are subject to change without notice.

Manual Revision 1.2

September 22, 2000

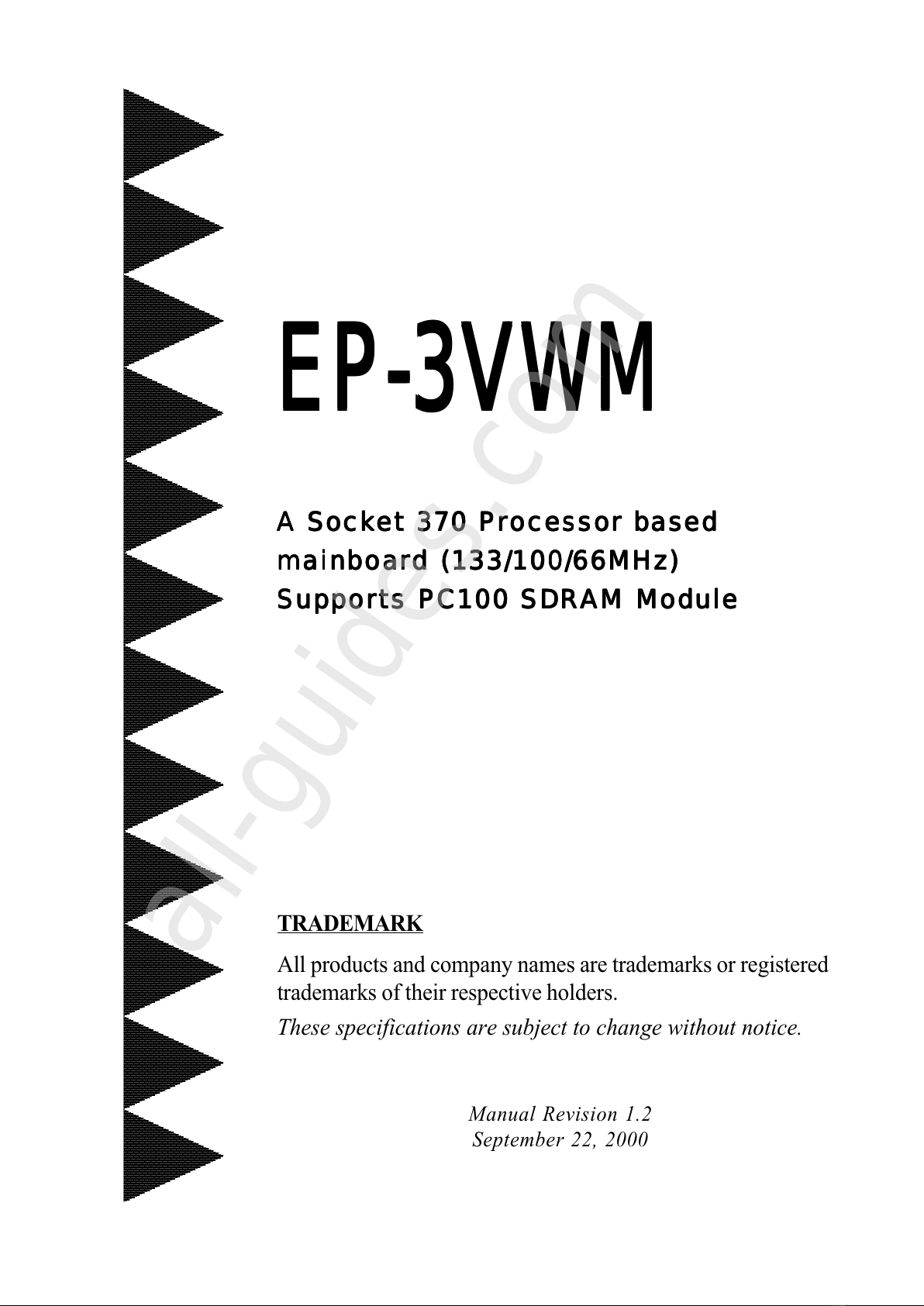

EP-3VWMEP-3VWM

EP-3VWM

A SocA Soc

A Sockk

ket 370 Pret 370 Pr

et 370 Pret 370 Pr

et 370 Processor basedocessor based

ocessor basedocessor based

ocessor based

mainboard (133/100/66MHz)mainboard (133/100/66MHz)

mainboard (133/100/66MHz)

SupporSuppor

Supports PC100 SDRAM Modulets PC100 SDRAM Module

ts PC100 SDRAM Modulets PC100 SDRAM Module

ts PC100 SDRAM Module

All manuals and user guides at all-guides.com

all-guides.com

EP-3VWM

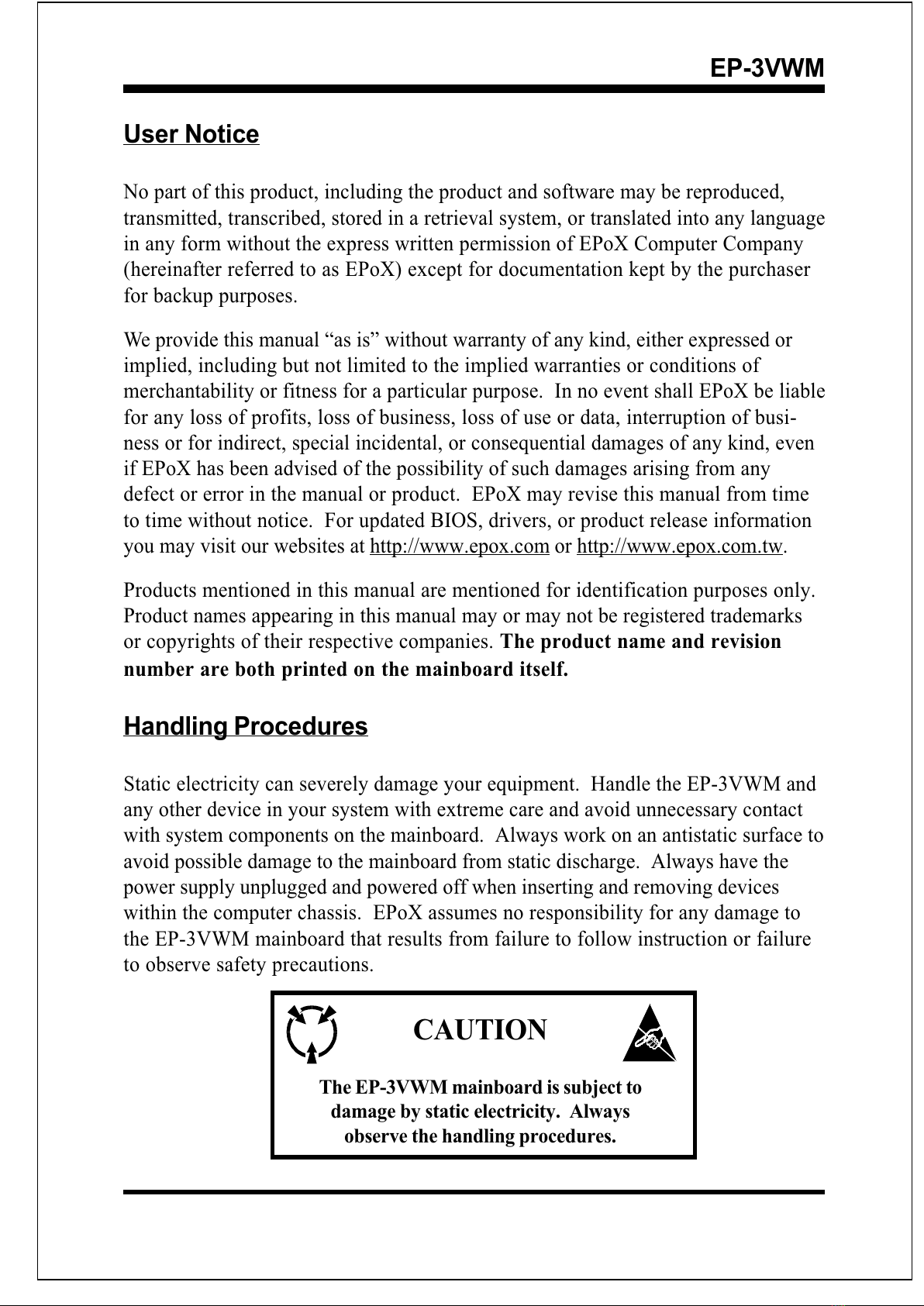

User Notice

No part of this product, including the product and software may be reproduced,

transmitted, transcribed, stored in a retrieval system, or translated into any language

in any form without the express written permission of EPoX Computer Company

(hereinafter referred to as EPoX) except for documentation kept by the purchaser

for backup purposes.

We provide this manual as is without warranty of any kind, either expressed or

implied, including but not limited to the implied warranties or conditions of

merchantability or fitness for a particular purpose. In no event shall EPoX be liable

for any loss of profits, loss of business, loss of use or data, interruption of busi-

ness or for indirect, special incidental, or consequential damages of any kind, even

if EPoX has been advised of the possibility of such damages arising from any

defect or error in the manual or product. EPoX may revise this manual from time

to time without notice. For updated BIOS, drivers, or product release information

you may visit our websites at http://www.epox.com or http://www.epox.com.tw.

Products mentioned in this manual are mentioned for identification purposes only.

Product names appearing in this manual may or may not be registered trademarks

or copyrights of their respective companies. The product name and revision

number are both printed on the mainboard itself.

Handling Procedures

Static electricity can severely damage your equipment. Handle the EP-3VWM and

any other device in your system with extreme care and avoid unnecessary contact

with system components on the mainboard. Always work on an antistatic surface to

avoid possible damage to the mainboard from static discharge. Always have the

power supply unplugged and powered off when inserting and removing devices

within the computer chassis. EPoX assumes no responsibility for any damage to

the EP-3VWM mainboard that results from failure to follow instruction or failure

to observe safety precautions.

CAUTION

The EP-3VWM mainboard is subject to

damage by static electricity. Always

observe the handling procedures.

All manuals and user guides at all-guides.com

EP-3VWM

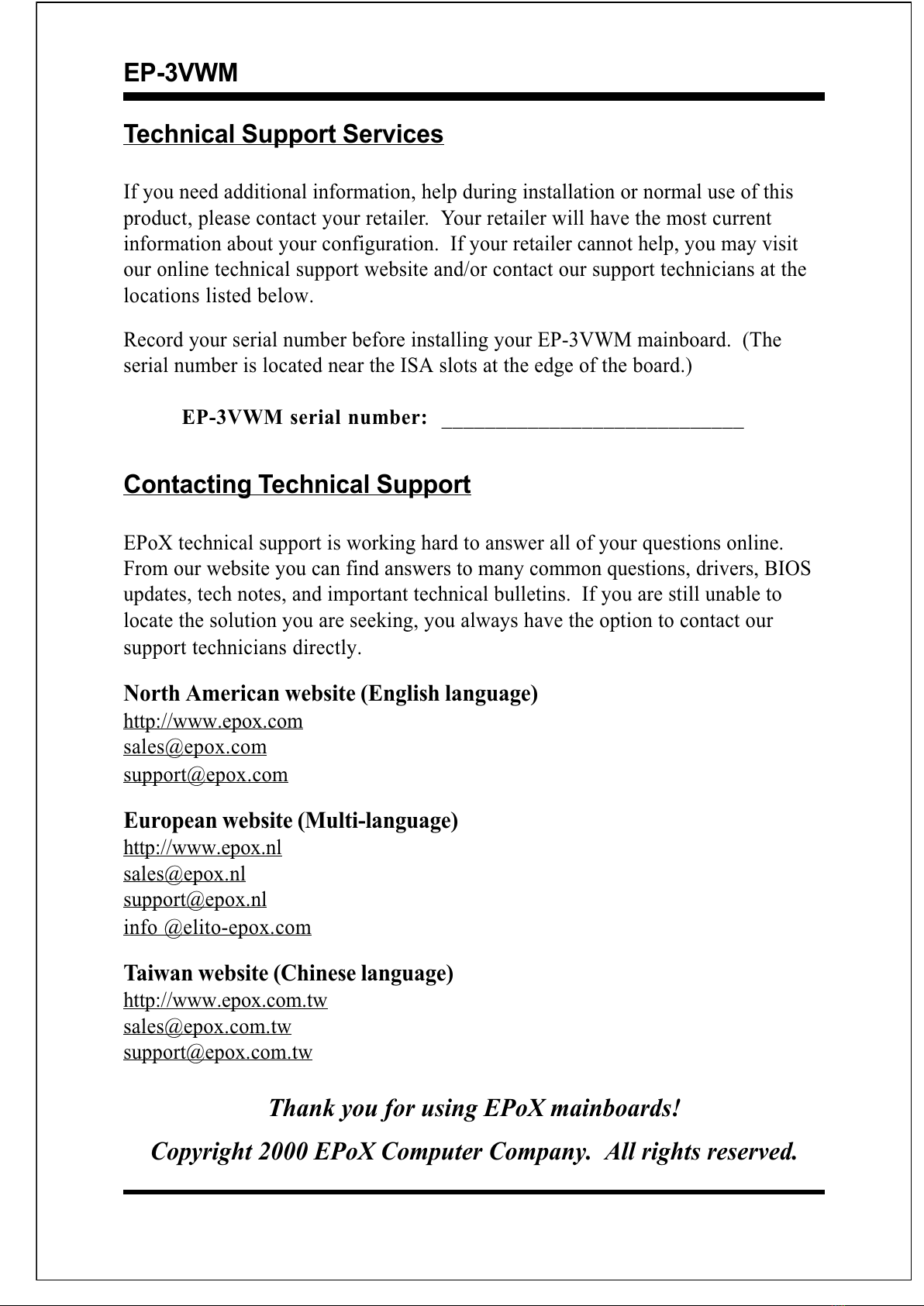

Technical Support Services

If you need additional information, help during installation or normal use of this

product, please contact your retailer. Your retailer will have the most current

information about your configuration. If your retailer cannot help, you may visit

our online technical support website and/or contact our support technicians at the

locations listed below.

Record your serial number before installing your EP-3VWM mainboard. (The

serial number is located near the ISA slots at the edge of the board.)

EP-3VWM serial number: ____________________________

Contacting Technical Support

EPoX technical support is working hard to answer all of your questions online.

From our website you can find answers to many common questions, drivers, BIOS

updates, tech notes, and important technical bulletins. If you are still unable to

locate the solution you are seeking, you always have the option to contact our

support technicians directly.

North American website (English language)

http://www.epox.com

[email protected]

European website (Multi-language)

http://www.epox.nl

[email protected]

info @elito-epox.com

Taiwan website (Chinese language)

http://www.epox.com.tw

[email protected]

Thank you for using EPoX mainboards!

All manuals and user guides at all-guides.com

EP-3VWM

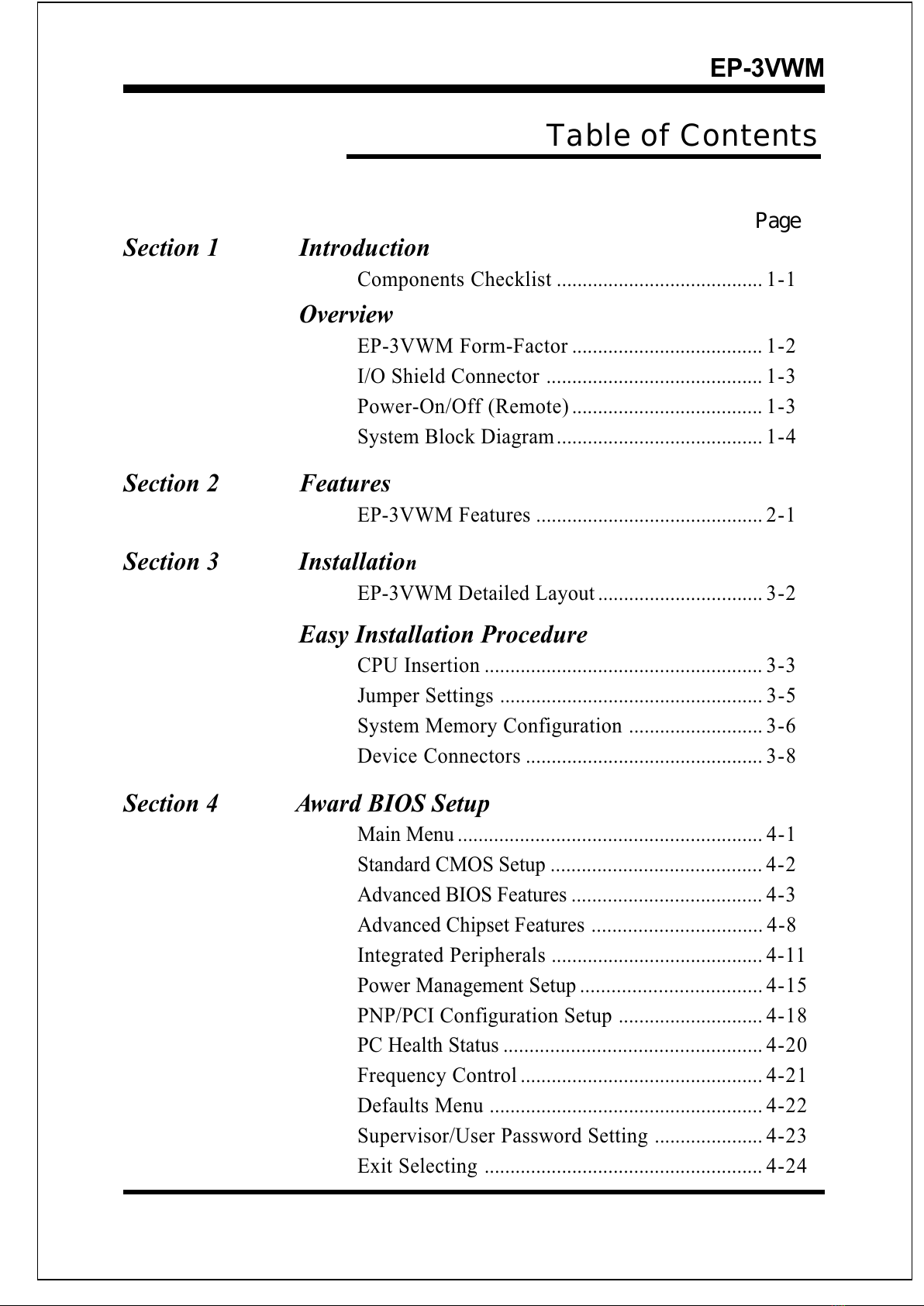

Table of Contents

Section 1 Introduction

Components Checklist ........................................ 1-1

Overview

EP-3VWM Form-Factor ..................................... 1-2

I/O Shield Connector .......................................... 1-3

Power-On/Off (Remote)..................................... 1-3

System Block Diagram........................................ 1-4

Section 2 Features

EP-3VWM Features ............................................ 2-1

Section 3 Installation

EP-3VWM Detailed Layout................................ 3-2

Easy Installation Procedure

CPU Insertion ...................................................... 3-3

Jumper Settings ................................................... 3-5

System Memory Configuration .......................... 3-6

Device Connectors .............................................. 3-8

Section 4 Award BIOS Setup

Main Menu ........................................................... 4-1

Standard CMOS Setup ......................................... 4-2

Advanced BIOS Features ..................................... 4-3

Advanced Chipset Features ................................. 4-8

Integrated Peripherals ......................................... 4-11

Power Management Setup ................................... 4-15

PNP/PCI Configuration Setup ............................ 4-18

PC Health Status .................................................. 4-20

Frequency Control ............................................... 4-21

Defaults Menu ..................................................... 4-22

Supervisor/User Password Setting ..................... 4-23

Exit Selecting ...................................................... 4-24

Page

All manuals and user guides at all-guides.com

EP-3VWM

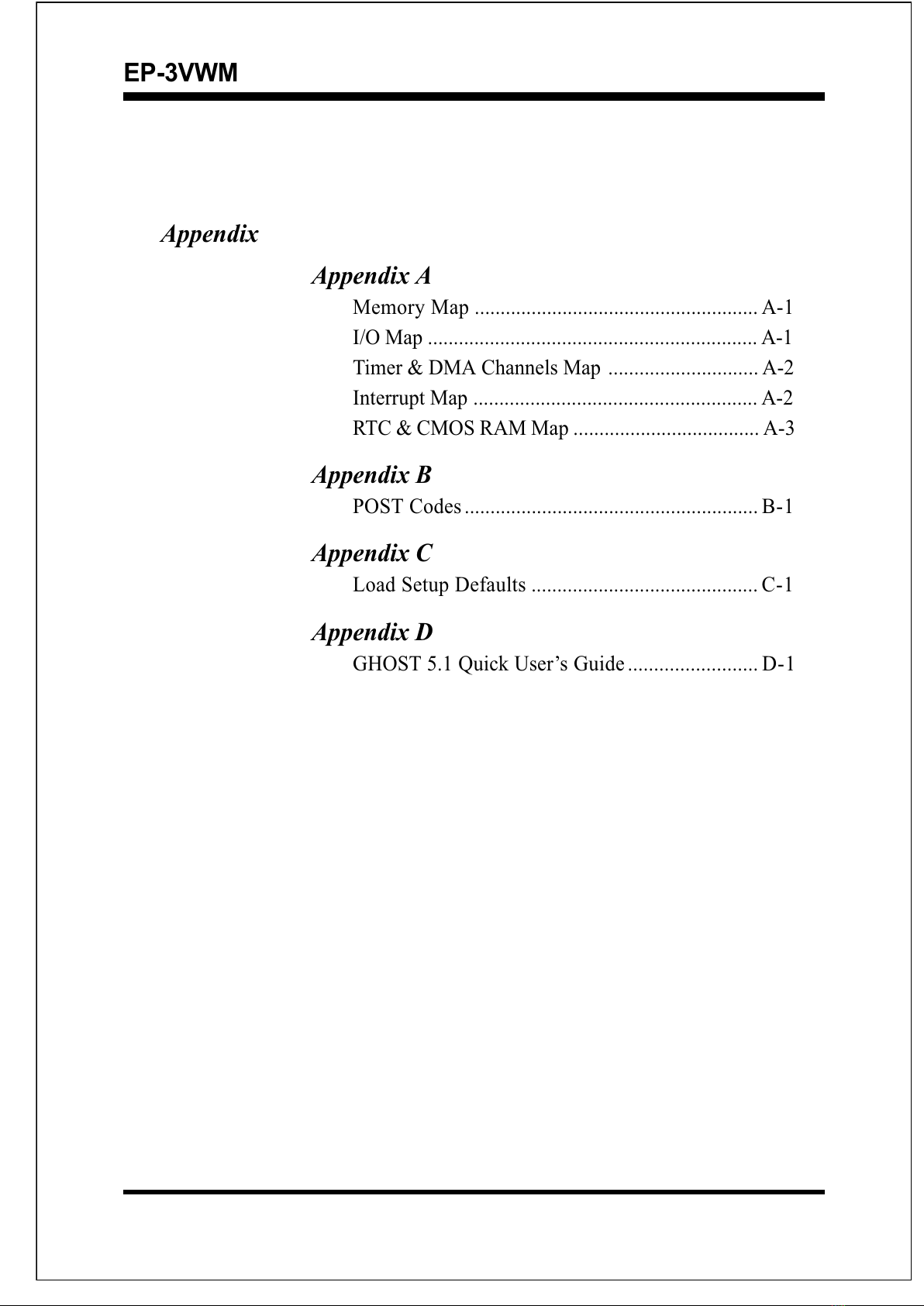

Appendix

Appendix A

Memory Map ....................................................... A-1

I/O Map ................................................................ A-1

Timer & DMA Channels Map ............................. A-2

Interrupt Map ....................................................... A-2

RTC & CMOS RAM Map .................................... A-3

Appendix B

POST Codes......................................................... B-1

Appendix C

Load Setup Defaults ............................................ C-1

Appendix D

GHOST 5.1 Quick Users Guide......................... D-1

All manuals and user guides at all-guides.com

EP-3VWM

Page Left Blank

All manuals and user guides at all-guides.com

all-guides.com

IntroductionEP-3VWM

Page 1-1

Section 1

INTRODUCTION

Components Checklist

üü

üA. (1) EP-3VWM mainboard

üü

üB. (1) EP-3VWM users manual

üü

üC. (1) Floppy ribbon cable

üü

üD. (1) ATA-66 Hard drive ribbon cable

E. (1) USB Cable (Optional)

üü

üF. (1) Driver and utility

USERS

MANUAL

EP-3VWM

All manuals and user guides at all-guides.com

Introduction EP-3VWM

Page 1-2

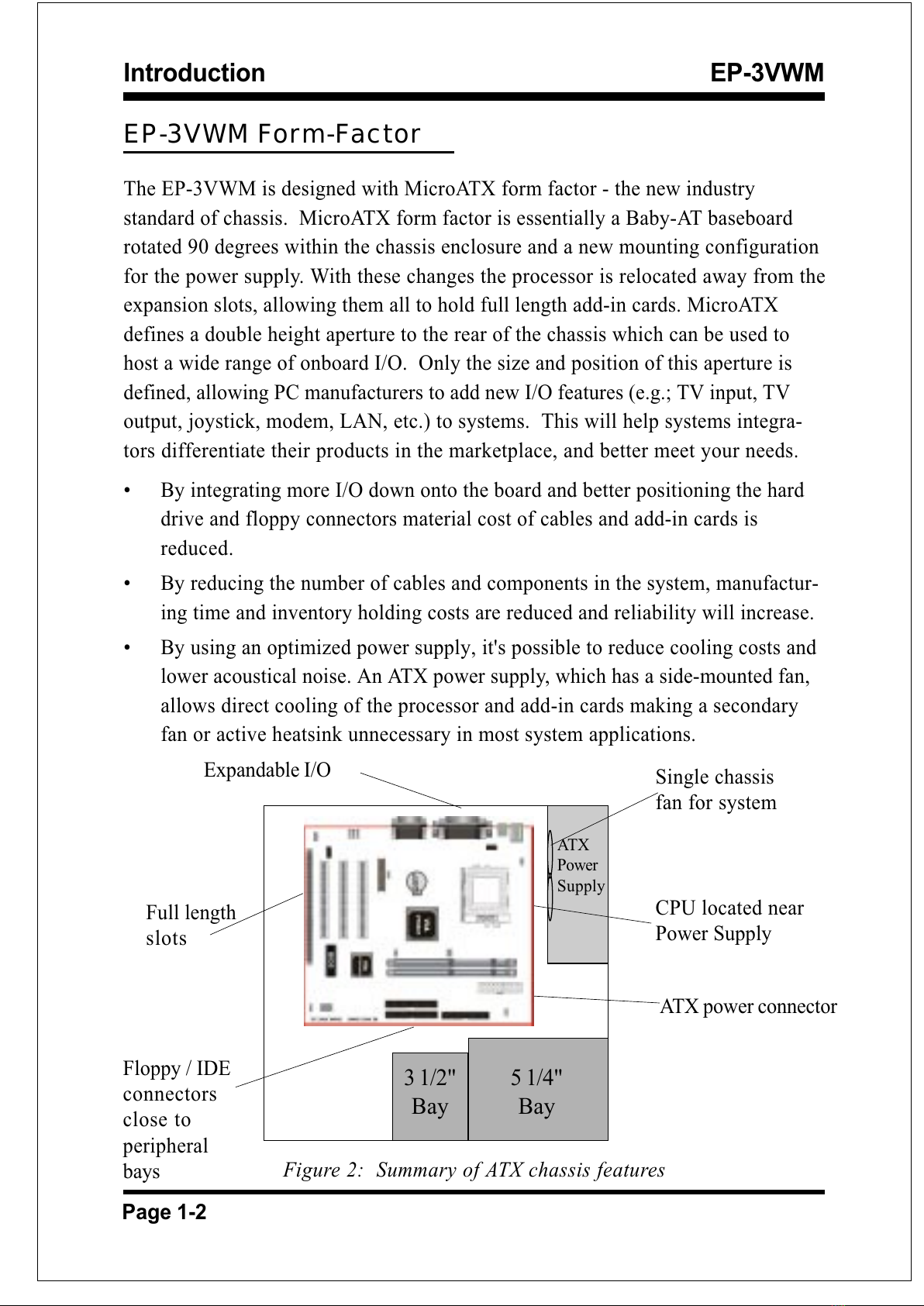

EP-3VWM Form-Factor

The EP-3VWM is designed with MicroATX form factor - the new industry

standard of chassis. MicroATX form factor is essentially a Baby-AT baseboard

rotated 90 degrees within the chassis enclosure and a new mounting configuration

for the power supply. With these changes the processor is relocated away from the

expansion slots, allowing them all to hold full length add-in cards. MicroATX

defines a double height aperture to the rear of the chassis which can be used to

host a wide range of onboard I/O. Only the size and position of this aperture is

defined, allowing PC manufacturers to add new I/O features (e.g.; TV input, TV

output, joystick, modem, LAN, etc.) to systems. This will help systems integra-

tors differentiate their products in the marketplace, and better meet your needs.

 By integrating more I/O down onto the board and better positioning the hard

drive and floppy connectors material cost of cables and add-in cards is

reduced.

 By reducing the number of cables and components in the system, manufactur-

ing time and inventory holding costs are reduced and reliability will increase.

 By using an optimized power supply, it's possible to reduce cooling costs and

lower acoustical noise. An ATX power supply, which has a side-mounted fan,

allows direct cooling of the processor and add-in cards making a secondary

fan or active heatsink unnecessary in most system applications.

Full length

slots

Expandable I/O

5 1/4"

Bay

3 1/2"

Bay

Figure 2: Summary of ATX chassis features

CPU located near

Power Supply

Single chassis

fan for system

ATX

Power

Supply

ATX power connector

Floppy / IDE

connectors

close to

peripheral

bays

All manuals and user guides at all-guides.com

IntroductionEP-3VWM

Page 1-3

Power-On/Off (Remote)

The EP-3VWM has a single 20-pin connector for ATX power supplies. For ATX

power supplies that support the Remote On/Off feature, this should be connected

to the systems front panel for system Power On/Off button. The systems power

On/Off button should be a momentary button that is normally open.

The EP-3VWM has been designed with Soft Off" functions. You can turn Off the

system from one of two sources: The first is the front panel Power On/Off

button, and the other is the "Soft Off" function (coming from the EP-3VWMs

onboard circuit controller) that can be controlled by the operating system such as

Windows®95/98 or Windows®2000 to shutown the system.

Figure 4: Simple ATX Power ON/OFF Controller

J 3

ATX

POWER SUPPLY

Case (chassis) Power

ON/OFF button (J 3)

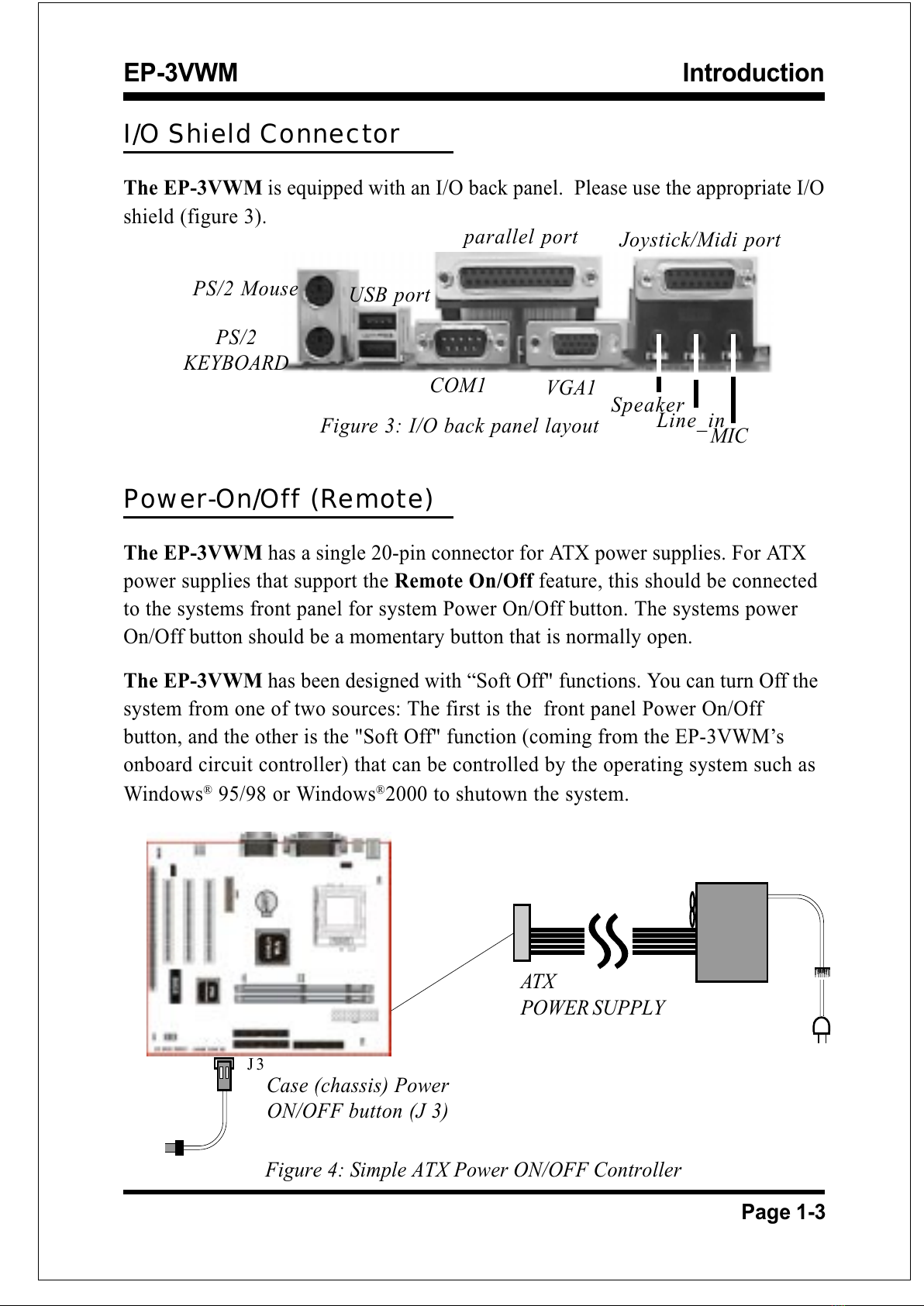

I/O Shield Connector

The EP-3VWM is equipped with an I/O back panel. Please use the appropriate I/O

shield (figure 3).

Figure 3: I/O back panel layout

parallel port

MIC

Joystick/Midi port

USB port

COM1 VGA1 Speaker

Line_in

PS/2 Mouse

PS/2

KEYBOARD

All manuals and user guides at all-guides.com

Introduction EP-3VWM

Page 1-4

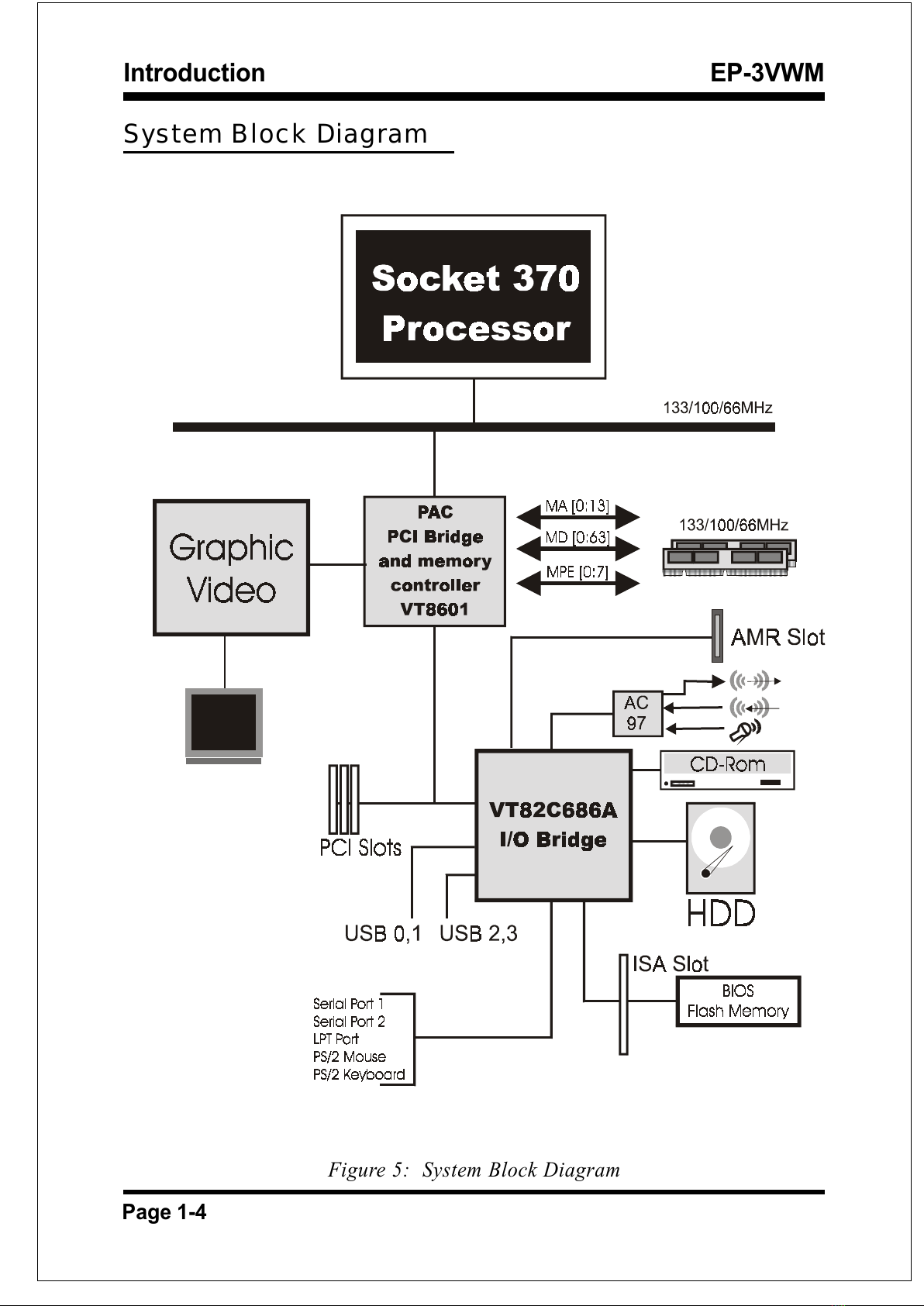

Figure 5: System Block Diagram

System Block Diagram

All manuals and user guides at all-guides.com
