EnGenius ECM355AP Manuel utilisateur

User Manual

Business Solutions

ECM355AP 802.11 abgn/ac Indoor AP

ECM855AP Wireless 802.11 abgn/ac Outdoor AP

ECM955AP AC1300 Wave2 Dual Band Outdoor Cloud Management Base Station

ECM955AP

version 1.1

ECM355AP ECM855AP

IMPORTANT

To install this Access Point please refer to the

Quick Installation Guide included in the product packaging.

Chapter 1 Product Overview...................................................................... 4

Introduction...................................................................................................5

ECM355AP

Key Features.................................................................................... 5

Package Contents......................................................................... 5

Physical Interface......................................................................... 6

ECM855AP

Key Features.................................................................................... 7

Package Contents......................................................................... 7

Physical Interface......................................................................... 8

ECM955AP

Key Features.................................................................................... 9

Package Contents......................................................................... 9

Physical Interface......................................................................... 10

Technical Specications.........................................................................11

Chapter 2 Conguring Your Access Point............................................13

Default Settings./Web Conguration.......................................... 14

Appendix..............................................................................................................15

FCC Interference Statement...........................................................16

Professional installation instruction...........................................19

Table of Contents

Chapter 1

Product Overview

Maximum data rates are based on IEEE 802.11 standards. Actual throughput and range may vary depending on many factors including environmental conditions, distance between

devices, radio interference in the operating environment, and mix of devices in the network. Features and specications subject to change without notice. Trademarks and registered

ECM355AP

Key Features

• Up to 26 dBm transmit power enabling long range connectivity

• Supports IEEE802.11ac/a/b/g/n wireless standards with up to

300 Mbps data rate on 2.4GHz band and 867Mbps on 5GHz

band

• Can be monitored after deployment with ezmCloud for Windows

• Can be power up with Proprietary 54V PoE.

• Fast Transition and Handover between Access Points

• Band Steering shifts client devices to a proper frequency band

for getting more bandwidth and speed under an Access Point.

• Secured Guest Network option available

Introduction

Package Contents

The ECM355AP package contains the following items:*

• ECM355AP Access Point

• Ceiling Mount Bracket

• Mounting Screw Set

• Quick Installation Guide

*(all items must be in package to issue a refund):

Physical interface

1 LAN Port 1 (802.3at PoE Input): Ethernet port for RJ-45 cable.

2 LED Indicators: LED lights for Power, LAN Port 1, LAN Port 2,

2.4 GHz Connection and 5 GHz Connection.

3 DC in

4 Reset button

Dimensions and Weights

Length: 200mm

Width: 200mm

Depth: 45mm”

Weight: TBD

13 4

Maximum data rates are based on IEEE 802.11 standards. Actual throughput and range may vary depending on many factors including environmental conditions, distance between

devices, radio interference in the operating environment, and mix of devices in the network. Features and specications subject to change without notice. Trademarks and registered

ECM855AP

Key Features

• Up to 23 dBm transmit power enabling long range connectivity

• Supports IEEE802.11ac/a/b/g/n wireless standards with up to

300 Mbps data rate on 2.4GHz band and 867Mbps on 5GHz band

• Two detachable 4.5 dBi 2.4 GHz Omni-directional antennas

• Two detachable 6.3 dBi 5 GHz Omni-directional antennas

• Can be monitored after deployment with ezmCloud for Windows.

• Can be used with included power adapter or via PoE with

Proprietary 54V.

• Fast Transition and Handover between Access Points

• Band Steering shifts client devices to a proper frequency band

for getting more bandwidth and speed under an Access Point.

• Secured Guest Network option available

Package Contents

The ECM855AP package contains the following items:*

• ECM855AP Access Point

• 2 detachable 4.5 dBi 2.4 GHz Omni-directional Antenna

• 2 detachable 6.3 dBi 5 GHz Omni-directional Antenna

• Wall Mount Screw set

• Ground cable and Screw for ground use

• Wall Mounting plate, Mounting Bracket, Screw set kit

• Quick Installation Guide

*(all items must be in package to issue a refund)

Physical interface

12.4 GHz Antennas: Detachable 4.5 dBi 2.4 GHz Omni-directional

2 5 GHz Antennas Detachable 6.3 dBi 5 GHz Omni-directional

3 LAN Port 1 (802.3at PoE Input): Ethernet port for RJ-45 cable.

4 LED Indicators: LED lights for Power, LAN Port 1, LAN Port 2,

2.4 GHz Connection and 5 GHz Connection.

5 Mounting Holes: Using the provided hardware, the ECM855AP

can be attached to a wall or pole.

*The installation angle of antenna must be vertical to the ground.

Dimensions and Weights

Length: 218.7mm

Width: 124.0mm

Depth: 56.2mm”

Weight: 2.04kg

1 2

Maximum data rates are based on IEEE 802.11 standards. Actual throughput and range may vary depending on many factors including environmental conditions, distance between

devices, radio interference in the operating environment, and mix of devices in the network. Features and specications subject to change without notice. Trademarks and registered

ECM955AP

Key Features

• Up to 29dBm transmit power enabling long range connectivity

• Supports IEEE802.11ac/a/b/g/n wireless standards with up to

300 Mbps data rate on 2.4GHz band and 867Mbps on 5GHz band

• Two detachable 5 dBi 2.4 GHz Omni-directional antennas

• Two detachable 7 dBi 5 GHz Omni-directional antennas

• Can be monitored after deployment with EnGenius ezmCloud

• Can be used with included power adapter or via PoE with

Proprietary 54V.

• Fast Transition and Handover between Access Points

• Band Steering shifts client devices to a proper frequency band

for getting more bandwidth and speed under an Access Point.

• Secured Guest Network option available

Package Contents

The ECM955AP package contains the following items:*

• ECM955AP Access Point

• 2 detachable 5 dBi 2.4 GHz Omni-directional Antenna

• 2 detachable 7 dBi 5 GHz Omni-directional Antenna

• 1 LTE Antenna

• 1 GPS Antenna

• Ground cable

• Wall Mounting plate, Mounting Bracket, Screw set kit

• Quick Installation Guide

*(all items must be in package to issue a refund)

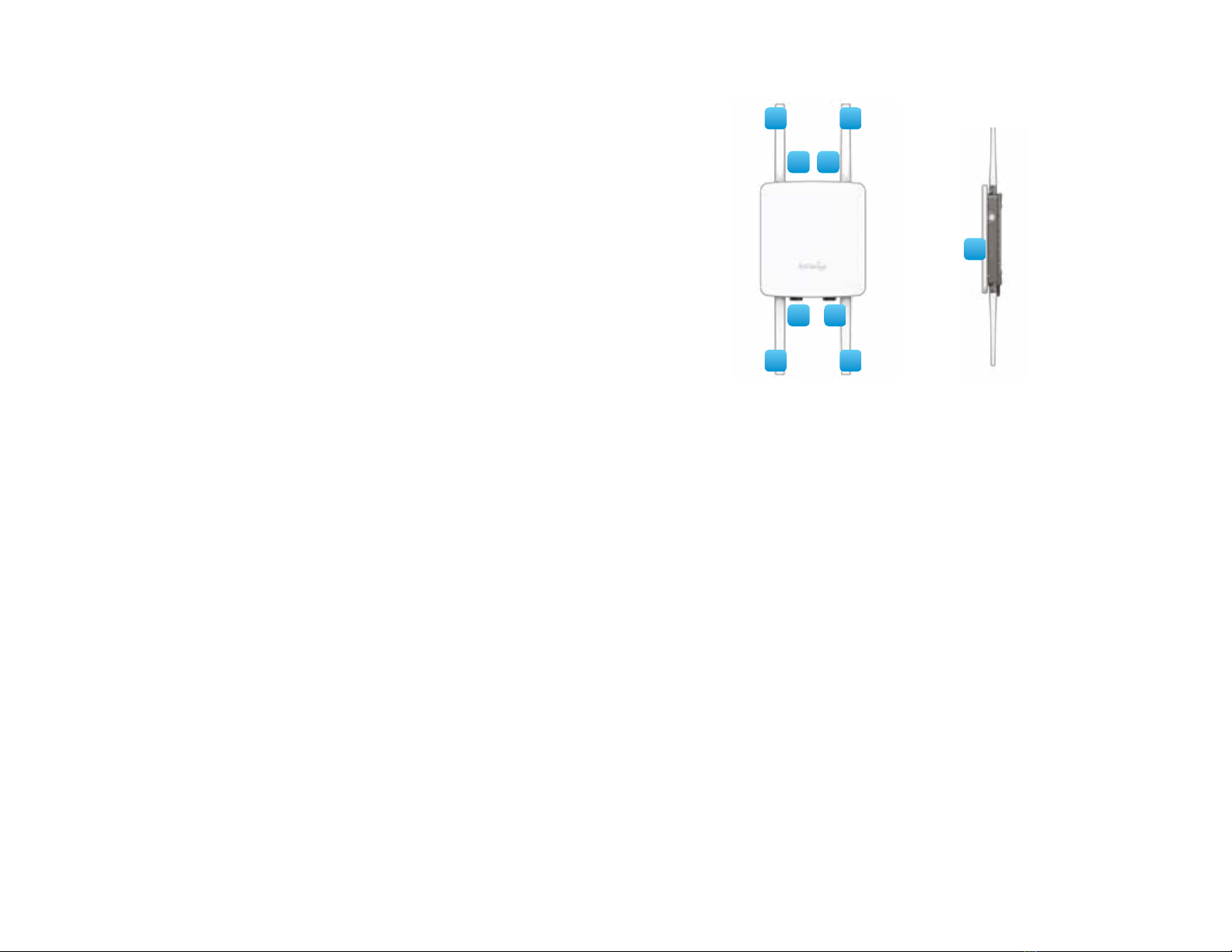

Physical interface

12.4 GHz Antennas: Detachable 5 dBi 2.4 GHz Omni-directional,

2 5 GHz Antennas Detachable 7 dBi 5 GHz Omni-directional

3 LAN Port 1 (802.3at PoE Input): Ethernet port for RJ-45 cable.

4 LAN Port 2 (802.3af PSE Output): Ethernet port for RJ-45 cable.

5 LED Indicators: LED lights for Power, LAN Port 1, LAN Port 2,

2.4 GHz Connection and 5 GHz Connection.

6 Locate GPS

7 Scanning Radio

*The installation angle of antenna must be vertical to the ground.

Dimensions and Weights

Length: 285mm

Width: 218mm

Depth: 55.5mm”

Weight: TBD

6 7
