Quick Start Guide

00825-0600-4026, Rev BA

December 2016

Rosemount™5400 Level Transmitter

Mounting Instructions for Parabolic Antenna

December 2016

Quick Start Guide

1.0 About this guide

This Quick Start Guide provides mechanical installation instructions for the

Rosemount 5402 Level Transmitter with parabolic antenna.

For information about electrical installation and configuration, refer to the

Rosemount 5400 Quick Start Guide.

Failure to follow safe installation and service guidelines could result in death or serious injury.

Make sure the transmitter is installed by qualified personnel and in accordance with applicable code of

practice.

Use the equipment only as specified in this Quick Start Guide and the Reference Manual. Failure to do so

may impair the protection provided by the equipment.

Any substitution of non-authorized parts or repair, other than exchanging the complete transmitter head or

antenna assembly, may jeopardize safety and is prohibited.

Explosions could result in death or serious injury.

Verify that the operating environment of the transmitter is consistent with the appropriate hazardous

locations specifications.

To prevent ignition of flammable or combustible atmospheres, disconnect power before servicing.

Before connecting a Field Communicator in an explosive atmosphere, make sure the instruments in the

loop are installed in accordance with intrinsically safe or non-incendive field wiring practices.

To avoid process leaks, only use O-rings designed to seal with the corresponding flange adapter.

Do not remove the transmitter while in operation.

Electrical shock can result in death or serious injury.

Avoid contact with the leads and terminals. High voltage that may be present on leads can cause electrical

shock.

Make sure the main power to the Rosemount 5400 Level Transmitter is off and the lines to any other

external power source are disconnected or not powered while wiring the transmitter.

Ground device on non-metallic tanks (e.g. fiberglass tanks) to prevent electrostatic charge build-up.

Contents

Parabolic antenna overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 3

Mount the flanged version . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 4

Mount the threaded version . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 5

Mount the welded version . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 9

Adjust the inclination of the antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 15

Connect the air purging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 19

Quick Start Guide

December 2016

2.0 Parabolic antenna overview

Flanged version

Threaded version

Welded version

page 4

page 5

page 9

December 2016

Quick Start Guide

3.0 Mount the flanged version

Step 1: Mount the device on tank

Tighten the bolts and nuts with sufficient torque for the flange and gasket

choice.

Step 2: Adjust the inclination of the antenna (see page 15)

Step 3: Connect the air purging (see page 19)

Gasket

Quick Start Guide

December 2016

4.0 Mount the threaded version

Figure 1. Components

Antenna

Purge plug kit (optional with order)

P/N 05400-1200-0001

Threaded sleeve

M20 adapter

Lock nut G 3½" (optional with order)

P/N 05400-1200-0002

Antenna adapter with ball joint

O-ring

December 2016

Quick Start Guide

Step 1: Remove the lock nut (if applicable)

Step 2: Mount the O-ring

Step 3: Mount the antenna adapter on flange/manhole

cover

Ensure the antenna adapter fits tightly to the flange/manhole cover.

Ø 3.98 ± 0.02 in.

(Ø 101 ± 0.6 mm)

G 3½"

Max. 1.18 in. (30 mm)

> 0.59 in. (15 mm)

Quick Start Guide

December 2016

Step 4: Remove the M20 adapter

Visually inspect the O-rings for damage and dirt.

Step 5: Carefully insert the antenna

Step 6: Secure the antenna

O-rings

Torque 180 in-lb (20 Nm)

27 mm

December 2016

Quick Start Guide

Step 7: Tighten the set screw

Step 8: Mount the antenna assembly on tank

Tighten the bolts and nuts with sufficient torque for the flange and gasket

choice.

Step 9: Adjust the inclination of the antenna (see page 15)

Step 10: Connect the air purging (see page 19)

H2 mm

Torque 5 in-lb (0.5 Nm)

Gasket

Quick Start Guide

December 2016

5.0 Mount the welded version

Figure 2. Components

Antenna

Purge plug kit (optional with order)

P/N 05400-1200-0001

Threaded sleeve

M20 adapter

Weld protection plate

Flange ball

Weld protection bar

O-ring

Ball joint

Clamp flange

Washer

M8 screw

December 2016

Quick Start Guide

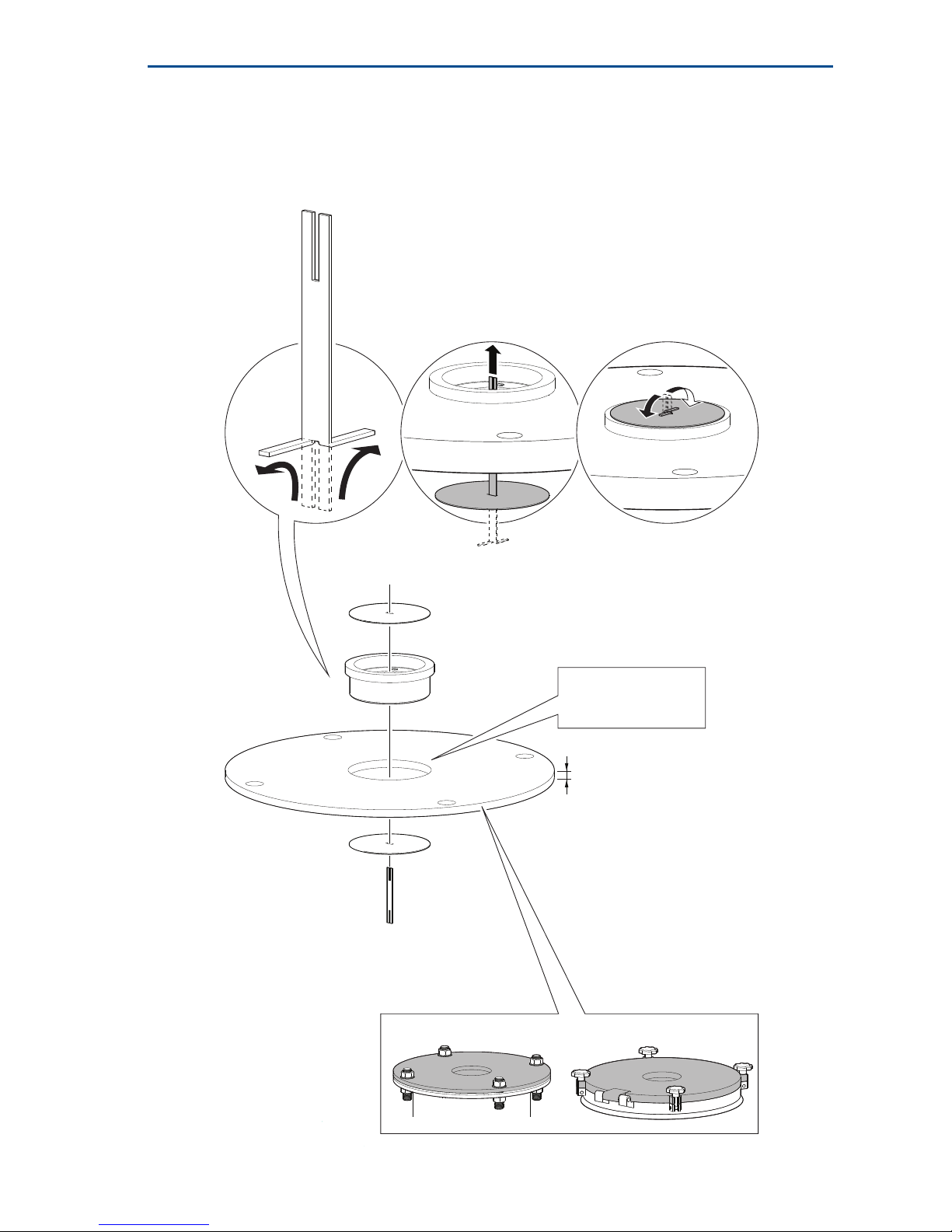

Step 1: Mount the protection plates to flange/manhole

cover

These plates protects the internal surfaces of the flange ball from dust and

sparks during welding.

Ø 3.94 ± 0.02 in.

(Ø 100 ± 0.5 mm)

Max. 1.18 in. (30 mm)
