Emerson Rosemount 2088 Manuel utilisateur
Quick Start Guide
00825-0100-4108, Rev GA
March 2022
Rosemount™ 2088, 2090F, and 2090P
Pressure Transmitter
with 4–20 mA HART® and 1–5 Vdc Low
Power HART Protocol (Revision 5 and 7)
NOTICE
This guide provides basic guidelines for Rosemount 2088, 2090F, and 2090P Transmitters. It does not
provide instructions for configuration, diagnostics, maintenance, service, troubleshooting, Explosion-
proof, Flameproof, or intrinsically safe (I.S.) installations. See the Rosemount 2088 Reference Manual
for more information. This manual is also available electronically on Emerson.com/Rosemount.
WARNING
Explosions could result in death or serious injury.
Installation of this transmitter in an explosive environment must be in accordance with the
appropriatelocal, national, and international standards, codes, and practices. Review the approvals
section of thismanual for any restrictions associated with a safe installation.
•Before connecting a handheld communicator in an explosive atmosphere, make sure
theinstruments in the loop are installed in accordance with intrinsically safe or non-incendive
fieldwiring practices.
•In an explosion-proof/flameproof installation, do not remove the transmitter covers when power
is applied to the unit.
Process leaks could result in death or serious injury.
To avoid process leaks, only use the O-ring designed to seal with the corresponding flange adapter.
Electrical shock could cause death or serious injury.
Avoid contact with the leads and terminals. High voltage that may be present on leads can cause
electrical shock.
Conduit/cable entries
Unless marked, the conduit/cable entries in the transmitter housing use a ½–14 NPT thread
form.Entries marked “M20” are M20 x 1.5 thread form. On devices9 with multiple conduit entries, all
entrieswill have the same thread form. Only use plugs, adapters, glands, or conduit with a compatible
threadform when closing these entries.
Contents
System readiness......................................................................................................................... 3
Mount the transmitter..................................................................................................................5
Set the switches........................................................................................................................... 9
Connect the wiring and power up...............................................................................................11
Verify transmitter configuration using a Field Communicator.................................................... 14
Trim the transmitter...................................................................................................................20
Safety Instrumented Systems (SIS) installation...........................................................................23
Product certifications................................................................................................................. 24
Rosemount 2088 and 2090 Declaration of Conformity...............................................................44
China RoHS................................................................................................................................ 47
Quick Start Guide March 2022
2 Emerson.com/Rosemount
1 System readiness
Confirm HART revision capability
•If using HART-based control or asset management systems, confirm the
HART capability of those systems prior to transmitter installation. Not all
systems are capable of communicating with HART Revision 7 Protocol.
This transmitter can be configured for either HART Revision 5 or 7.
•For instructions on how to change the HART revision of the transmitter,
see Switch HART Revision mode.
1.1 Confirm correct device driver
Verify the latest device driver (DD/DTM™) is loaded on your systems to
ensure proper communication.
Note
The Rosemount 2088, 2090F, and 2090P Transmitters all use Rosemount
2088 Device Revisions and Drivers.
Procedure
1. Download the latest DD at Emerson.com or FieldCommGroup.org.
2. In the Browse by Member dropdown menu, select Emerson.
3. Select desired product.
a) Reference Table 1-1 and Table 1-2, Find Device Driver Files
column to find the correct device driver.
Table 1-1: Rosemount 2088 and 2090 with 4–20 mA HART Device Revisions and
Files
Release
date
Device identification Device driver
identification
Review
instructions
Review
functionality
NAMUR
revision(1)
HART revision(2) Device
revision(3)
Reference
manual
Change
description(4)
(5)
Hardware Software Universal
Aug-16 1.1.xx 1.0.xx 3 7 10 Rosemount
2088, 2090P
and 2090F
Reference
Manual
(5)
5 9
Jan-13 N/A 1.0.xx 1 7 10 (4)
5 9
Jan-98 N/A N/A 178 5 3 N/A
(1) NAMUR revision is located on the hardware tag of the device. Differences in level 3 changes,
signified above by xx, represent minor product changes as defined per NE53. Compatibility
and functionality are preserved and product can be used interchangeably.
March 2022 Quick Start Guide
Quick Start Guide 3
(2) HART software revision can be read using a HART capable configuration tool. Value shown
is minimum revision that could correspond to NAMUR revisions.
(3) Device driver file names use device and DD revision (e.g. 10_01). HART Protocol is designed
to enable legacy device driver revisions to continue to communicate with new HART devices.
To access new functionality, the new device driver must be downloaded. It is recommended
to download new device driver files to ensure full functionality.
(4) HART Revision 5 and 7 selectable, Local Operator Interface (LOI), scaled variable,
configurable alarms, expanded engineering units.
(5) Updated electronics hardware design. Intrinsic Safety temperature classification change.
Table 1-2: Rosemount 2088 with 1–5 Vdc Low Power HART Device Revisions and
Files
Release
date
Device identification Device driver
identification
Review
instructions
Review
functionality
NAMUR
revision(1)
HART revision(2) Device
revision(3)
Reference
manual
Change
description(4)
Hardware Software Universal
Jan-13 N/A 1.0.2 3 7 10 Rosemount
2088, 2090P
and 2090F
Reference
Manual
(4)
5 9
Jan-98 N/A N/A 178 5 3 N/A
(1) NAMUR revision is located on the hardware tag of the device. Differences in level 3 changes,
signified above by xx, represent minor product changes as defined per NE53. Compatibility
and functionality are preserved and product can be used interchangeably.
(2) HART software revision can be read using a HART capable configuration tool. Value shown
is minimum revision that could correspond to NAMUR revisions.
(3) Device driver file names use device and DD revision (e.g. 10_01). HART Protocol is designed
to enable legacy device driver revisions to continue to communicate with new HART devices.
To access new functionality, the new device driver must be downloaded. It is recommended
to download new device driver files to ensure full functionality.
(4) HART Revision 5 and 7 selectable, Local Operator Interface (LOI), scaled variable,
configurable alarms, expanded engineering units.
Quick Start Guide March 2022
4 Emerson.com/Rosemount
2 Mount the transmitter
2.1 Rosemount 2088
Mount directly to the impulse line without using an additional mounting
bracket or mount directly to a wall, panel, or 2-in. pipe using an optional
mounting bracket.
2.2 Rosemount 2090P
Mount directly to the process pipe using an existing weld spud, or have a
skilled welder install a new weld spud using a TIG welder. Refer to Reference
Manual for complete welding instructions. Improper installation may result
in weld spud distortion. Recommended mounting in upright or horizontal
position to allow proper draining of vent.
2.3 Rosemount 2090F
Mount directly to the process pipe using a standard sanitary fitting (either a
1.5- or 2-in. Tri Clamp connection). Recommended mounting in upright or
horizontal position to allow proper draining of vent.

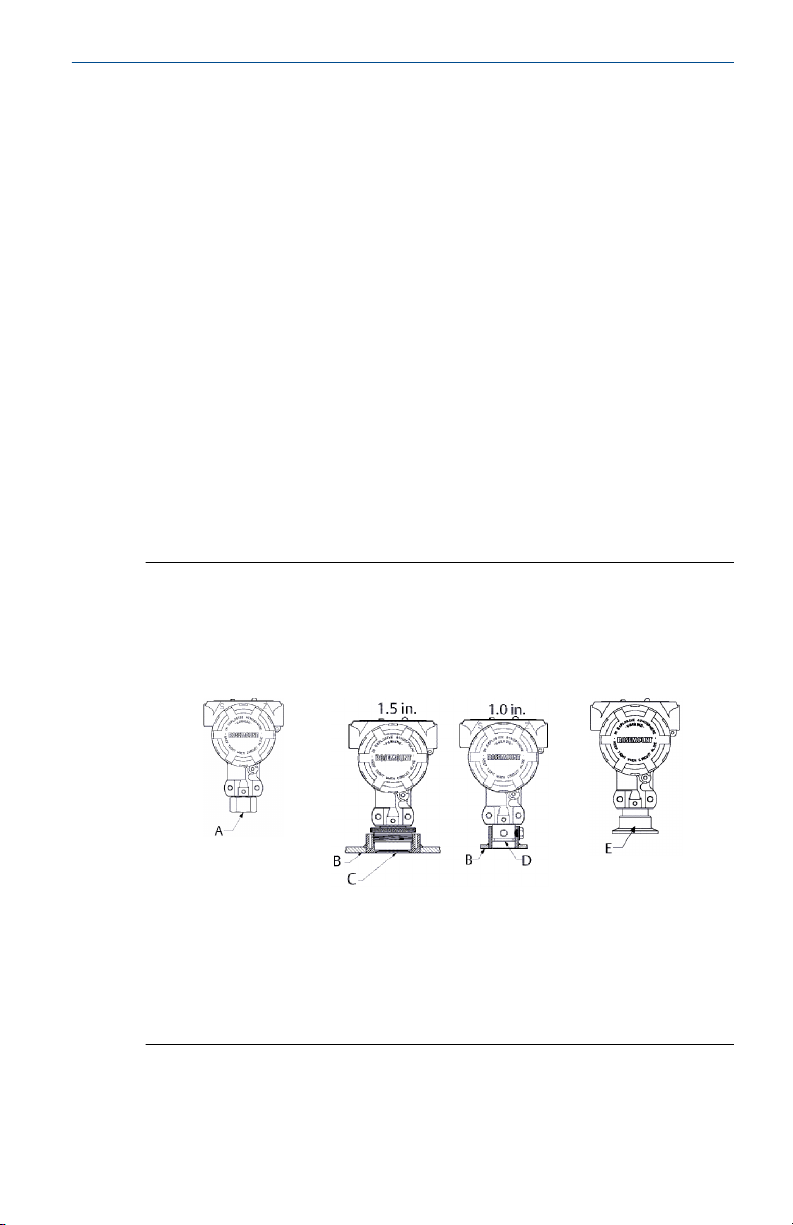

Figure 2-1: Transmitter Direct Mounting
Do not apply torque directly to the electronics housing. To avoid damage,
apply torque only to the hex-shaped process connection.
Rosemount 2088 Rosemount 2090P Rosemount 2090F
A. ½–14 NPT female process connection
B. Vessel wall
C. Weld spud
D. O-ring
E. 1½- or 2-in. Tri Clamp connection
March 2022 Quick Start Guide
Quick Start Guide 5
Figure 2-2: Panel and Pipe Mounting
Panel mount Pipe mount
2.4 Liquid flow applications
Transmitter mounting procedure for liquid flow applications.
Procedure
1. Place taps to the side of the line.
2. Mount beside or below the taps.
Quick Start Guide March 2022
6 Emerson.com/Rosemount
2.5 Gas flow applications
Transmitter mounting procedure for gas flow applications.
Procedure
1. Place taps in the top or side of the line.
2. Mount level or above the taps.
2.6 Steam flow applications
Transmitter mounting procedure for steam flow applications.
Procedure
1. Place taps to the side of the line.
2. Mount beside or below the taps.
3. Fill impulse lines with water.
March 2022 Quick Start Guide
Quick Start Guide 7
2.7 Environmental seal for housing
Thread sealing (PTFE) tape or paste on male threads of conduit is required to
provide a water/dust tight conduit seal and meets requirements of NEMA®
Type 4X, IP66, and IP68. Consult factory if other Ingress Protection ratings
are required. For M20 threads, install conduit plugs to full thread
engagement or until mechanical resistance is met.
2.8 Gage transmitter orientation
The low side pressure port (atmospheric reference) on the gage transmitters
with aluminum housings are located in the neck of the transmitter, behind
the housing. The vent path is 360° around the transmitter between the
housing and sensor. (See Figure 2-3.)
Keep the vent path free of any obstruction, including but not limited to
paint, dust, and lubrication by mounting the transmitter so that the process
can drain away.
Figure 2-3: Gage Low Side Pressure Port
A
A. Low side pressure port (atmospheric reference)
Quick Start Guide March 2022
8 Emerson.com/Rosemount
3 Set the switches
Set alarm and security switch configuration before installation as shown in
Figure 3-1.
•The alarm switch sets the analog output alarm to high or low. Default
alarm is high.
•The security switch allows ( ) or prevents ( ) any configuration of the
transmitter. Default security is off ( ).
Use the following procedure to change the switch configuration:
Procedure
1. If the transmitter is installed, secure the loop, and remove power.
2. Remove the housing cover opposite the field terminal side. Do not
remove the instrument cover in explosive atmospheres when the
circuit is live.
3. Slide the security and alarm switches into the preferred position
using a small screwdriver.
4. Reattach the transmitter cover. The cover must be fully engaged to
comply with explosion-proof requirements.
Figure 3-1: Transmitter Electronics Board
Without LCD display With LOI/LCD display
A
B
A. Alarm
B. Security switch
March 2022 Quick Start Guide
Quick Start Guide 9
CAUTION
Do not tamper with or remove the electonices board in the
Rosemount 2088, 2090F, or 2090P. This will cause permanent
damage to the transmitter.
3.1 Electronics board
The Rosemount 2088 and 2090 electronics board should not be tampered
with or removed from the housing as it could cause permanent damage to
the transmitter.
3.2 LOI/LCD display
The LOI/LCD display can be removed and rotated as needed by following the
“Rotating LOI/LCD display” instructions in the Rosemount 2088 Reference
Manual.
Quick Start Guide March 2022
10 Emerson.com/Rosemount
Autres manuels pour Rosemount 2088
6
Ce manuel convient aux modèles suivants
2
Table des matières
Autres manuels Emerson Émetteur
Emerson
Emerson Rosemount 644 Manuel utilisateur
Emerson
Emerson Rosemount MultiVariable 3051SMV Manuel utilisateur
Emerson
Emerson Rosemount X-well 648 Manuel utilisateur
Emerson
Emerson Rosemount 1208C Manuel utilisateur
Emerson
Emerson Rosemount 5408 Manuel utilisateur
Emerson
Emerson Rosemount 3051 CF Series Manuel utilisateur
Emerson
Emerson Rosemount 644 Manuel utilisateur
Emerson
Emerson Rosemount OCX8800A Manuel utilisateur
Emerson
Emerson Rosemount 3051P Manuel utilisateur
Emerson
Emerson Rosemount 2051CF series Manuel utilisateur
Emerson
Emerson Micro Motion 3500 Manuel utilisateur
Emerson
Emerson Rosemount Analytical HART SMART 5081C-HT Manuel utilisateur
Emerson
Emerson Rosemount 1208A Manuel utilisateur
Emerson
Emerson Rosemount 2051G Manuel utilisateur
Emerson
Emerson Rosemount Oxymitter 4000 Manuel utilisateur
Emerson
Emerson Rosemount 3051S Series Mode d’emploi
Emerson
Emerson Micro Motion 3500 Manuel utilisateur
Emerson
Emerson Micro Motion 4200 Manuel utilisateur
Emerson
Emerson Rosemount 3101 Manuel utilisateur
Emerson
Emerson ROSEMOUNT 5300 Guide de configuration
Manuels Émetteur populaires d'autres marques
Dejero
Dejero EnGo 3x Manuel utilisateur
Rosemount
Rosemount 4600 Manuel utilisateur
Speaka Professional
Speaka Professional 2342740 Manuel utilisateur
trubomat
trubomat GAB 1000 Manuel utilisateur
Teledyne Analytical Instruments
Teledyne Analytical Instruments LXT-380 Manuel utilisateur
Rondish
Rondish UT-11 Manuel utilisateur
