ASSEMBLY INSTRUCTIONS, SLIM SELF-SERVICE STAND

E514693 ELO-SELF-SERV-STAND-SLIM-COUNTERTOP

E514881 ELO-SELF-SERV-STAND-SLIM-FLOOR-TOP

E515260 ELO-SELF-SERV-STAND-SLIM-FLOOR-BASE

ASSEMBLY INSTRUCTIONS, SLIM SELF-SERVICE STAND

Contents for Kit: E514693 ELO-SELF-SERV-STAND-SLIM-COUNTERTOP

Tie-wrap

Qty. 2

Head Assembly

Qty. 1

Screws / Mounting hardware

Bag IQty.8 SCREW, M4X8L, PAN-HEAD,

CROSS-RECESS

Bag LQty.4 SCREW, M4X6L, PAN-HEAD,

CROSS-RECESS

Bag MQty.4 SCREW, M4X18L, PAN-HEAD,

CROSS-RECESS

Bag NQty.4 SCREW, M4X12L, PAN-HEAD,

CROSS-RECESS

Panel Hardware

Qty.2 SCREW, M6X14, PAN-HEAD, CROSS-

RECESS

Qty.2 BACKER BOARD SPACER

Qty.2 THUMB SCREW

Countertop Base

Qty. 1

ASSEMBLY INSTRUCTIONS, SLIM SELF-SERVICE STAND

Contents for Kit: E514881, ELO-SELF-SERV-STAND-SLIM-FLOOR-TOP

Straps

Qty. 1

Tower Assembly

Qty. 1

Tie-wrap

Qty. 2

Screws / Mounting hardware

Bag IQty.8 SCREW, M4X8L, PAN-HEAD,

CROSS-RECESS

Bag LQty.4 SCREW, M4X6L, PAN-HEAD,

CROSS-RECESS

Bag M Qty.4 SCREW, M4X18L, PAN-HEAD,

CROSS-RECESS

Bag NQty.4 SCREW, M4X12L, PAN-HEAD,

CROSS-RECESS

Bag KQty.6 SCREW M5X12 FLAT HEAD,

CROSS-RECESS, BLACK

Panel Hardware

Qty.2 SCREW, M6X14, PAN-HEAD, CROSS-

RECESS

Qty.2 BACKER BOARD SPACER

Qty.2 THUMB SCREW

ASSEMBLY INSTRUCTIONS, SLIM SELF-SERVICE STAND

Contents for Kit: E515260 ELO-SELF-SERV-STAND-SLIM-FLOOR-BASE

Base plate

Qty. 1

ASSEMBLY INSTRUCTIONS, SLIM SELF-SERVICE STAND

Remove and save (4) screws from

stand with provided hex wrench,

pull off rear cover.

1 2

For Floor Stand, skip to step 5

For Countertop Stand, continue to step 2

Attach head to counter top plate

using (4) screws from bag “I”.

ASSEMBLY INSTRUCTIONS, SLIM SELF-SERVICE STAND

Top Landscape

Cable

direction

Add (2) screws from bag “L” to top VESA

positions. Leave ~3mm (1/8”) gap for mounting

to display bracket.

Android Landscape

(For Portrait, go to step 5)

Tie-wrap cables

here as needed.

Assemble the display to top slotted holes

on stand.Add additional (2) screws from

bag “L” to bottom VESA mount holes to

secure the display.

ASSEMBLY INSTRUCTIONS, SLIM SELF-SERVICE STAND

Add (2) screws from bag “L” to top VESA

positions. Leave ~3mm (1/8”) gap for mounting

to display bracket.

Tie-wrap cables

here as needed.

Assemble the display to top slotted holes on stand.

Add additional (2) screws from bag “L” to bottom

VESA mount holes to secure the display.

Android Portrait

Top Portrait

Cable

direction

ASSEMBLY INSTRUCTIONS, SLIM SELF-SERVICE STAND

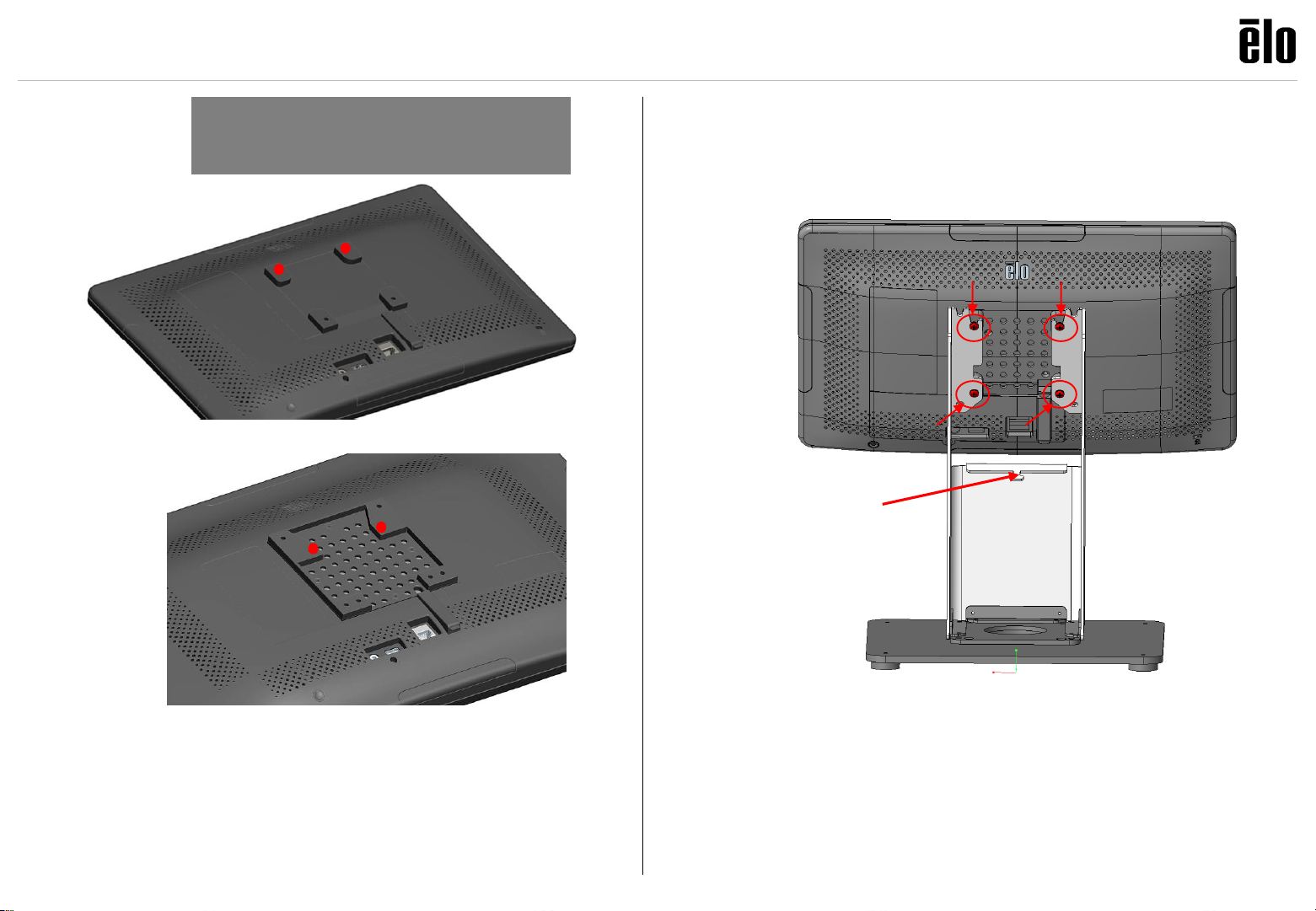

Windows Landscape

(For Portrait, go to step 9)

15” Landscape

15”: add (2) screws from bag “M” to top 75mm VESA positions.

22”: add (2) screws from bag “N” to top 75mm VESA positions.

Leave ~3mm (1/8”) gap for mounting to display bracket.

22” Landscape

Tie-wrap cables

here as needed.

Assemble the display to top slotted holes

on stand.Add additional (2) screws from

bag “L” to bottom VESA mount holes to

secure the display.

Tie-wrap cables

here as needed.

ASSEMBLY INSTRUCTIONS, SLIM SELF-SERVICE STAND

15” Portrait

15”: add (2) screws from bag “M” to top 75mm VESA positions.

22”: add (2) screws from bag “N” to top 100mm VESA positions.

Leave ~3mm (1/8”) gap for mounting to display bracket.

22” Portrait

9Windows Portrait 15” Portrait

Assemble the display to top slotted holes on stand.

Add additional (2) screws from bag “L” to bottom

VESA mount holes to secure the display.

10a

Tie-wrap cables

here as needed.

ASSEMBLY INSTRUCTIONS, SLIM SELF-SERVICE STAND

Route cables through bottom of stand.

Attach back cover using screws saved

from step 1.

END for Countertop Stand

22” Portrait

Tie-wrap cables

here as needed.

10b

Assemble the display to top slotted holes on stand.

Add additional (2) screws from bag “L” to bottom

VESA mount holes to secure the display.
