Elo TouchSystems 1520 Manuel utilisateur

THE 1520 15"

TOUCHCOMPUTER

when combined with

an operating system

operates as a standard

PC. Touch the screen

to navigate, no mouse

is required.

Quick Installation Guide

1520 15" All-in-One Touchcomputer

3After all appropriate

cables are attached,

turn on power to the

Touchcomputer. Make

changes to the screen

image with the on-

screen buttons (see

below).

1CABLE CONNECTIONS:

For easiest access, place monitor

screen-side down (place on soft

cloth to prevent scratches). Remove

two security screws with Alan

wrench (tool provided)

and slide cover off.

2After cables are attached to the

Touchcomputer, slide cover on and

route cables through the opening in the

cable cover. Re-install security screws.

MENU: opens up the menu

ARROWS: navigate menu options

SELECT: choose menu options

POWER: turn system on/off

ON-SCREEN DISPLAY BUTTONS

www.elotouch.com

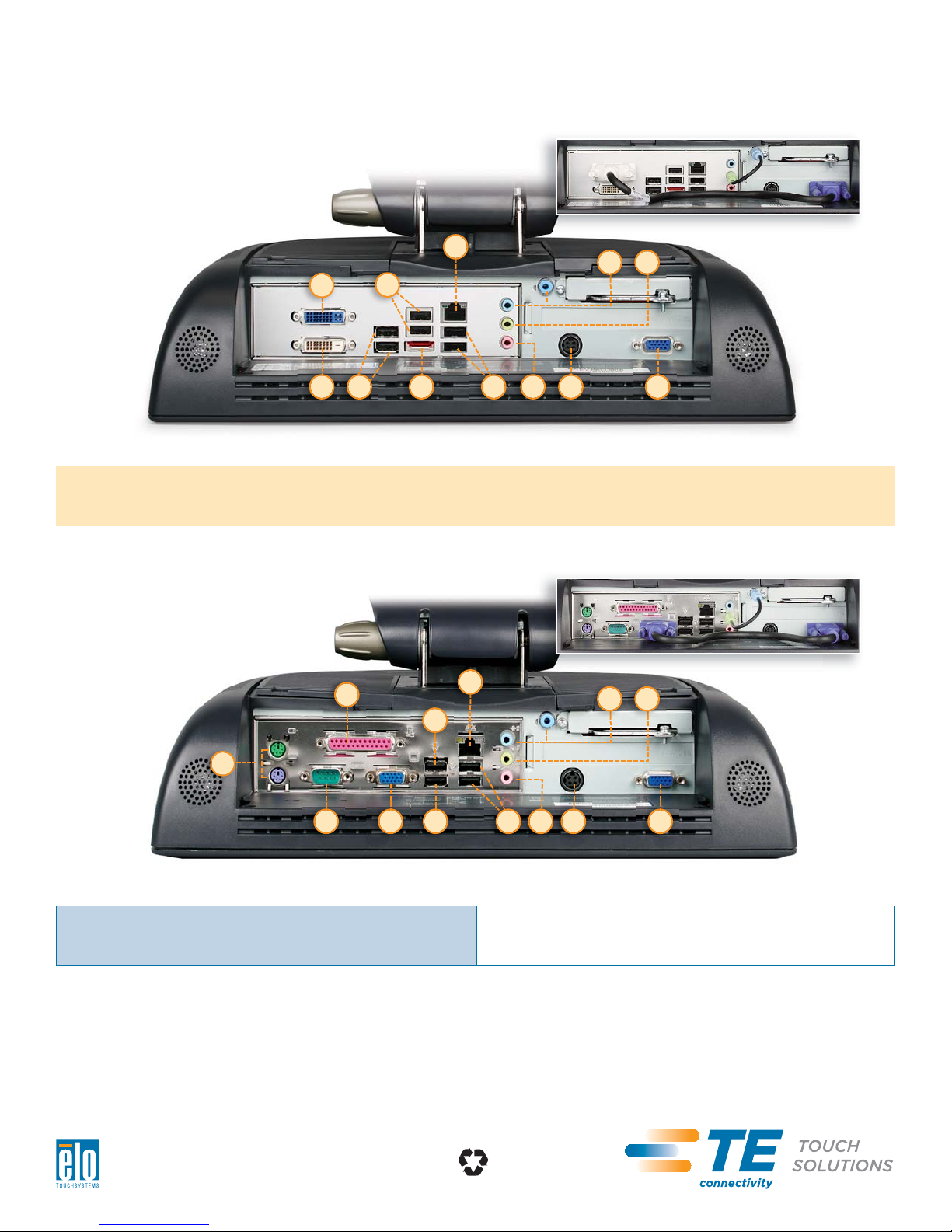

1520 15" All-in-One Touchcomputer

1. Ethernet port

2. USB ports

3. ESATA

4. DVI-I

5. DVI-D

6. Audio In (2)

7. Audio Out

8. Microphone

9. 12V Input

10. Mouse/Keyboard

11. Parallel port

12. Serial port

13. VGA

Acoustic Pulse Recognition

(APR) Touchcomputer

AccuTouch & IntelliTouch

Touchcomputer

INSET: With factory-installed video and audio cables.

2 912

2 3 95 13

1313

6 7

Tyco Electronics Corporation and its Affiliates in the TE Touch Solutions business unit of the TE Connectivity Ltd. family of companies (collectively “TE”) reserves the right to change or update, without notice, any

information contained herein; to change, without notice, the design, construction, materials, processing or specifications of any products; and to discontinue or limit production or distribution of any products.

Elo (logo), Elo TouchSystems, TE Connectivity, TE connectivity (logo) and TE (logo) are trademarks of the TE Connectivity Ltd. family of companies.

Elo Technical Support:

Technical Information: www.elotouch.com/go/websupport • Worldwide Technical Support: www.elotouch.com/go/contactsupport

North America: Website: www.elotouch.com Tel: 800-557-1458 (toll free) or 650-361-4800

For the complete User Manual for this product, visit:

www.elotouch.com/Support/Documentation/manuals.asp

For current Elo news, product updates and announcements,

www.elotouch.com/go/news
