Elkay EFOA8 1D Manuel d'installation

PAGE 1 97344C (7/98)

EFOA8*1D

With FLEXI-GUARD®

Installation/Care/Use Manual

USES HFC-134A REFRIGERANT

FIG. 1

15 & 16

SEE FIG. 4

22, 23, & 25

17, 18, 19, & 20

33 31 24

PAGE 2

97344C (7/98)

EFOA8*1D

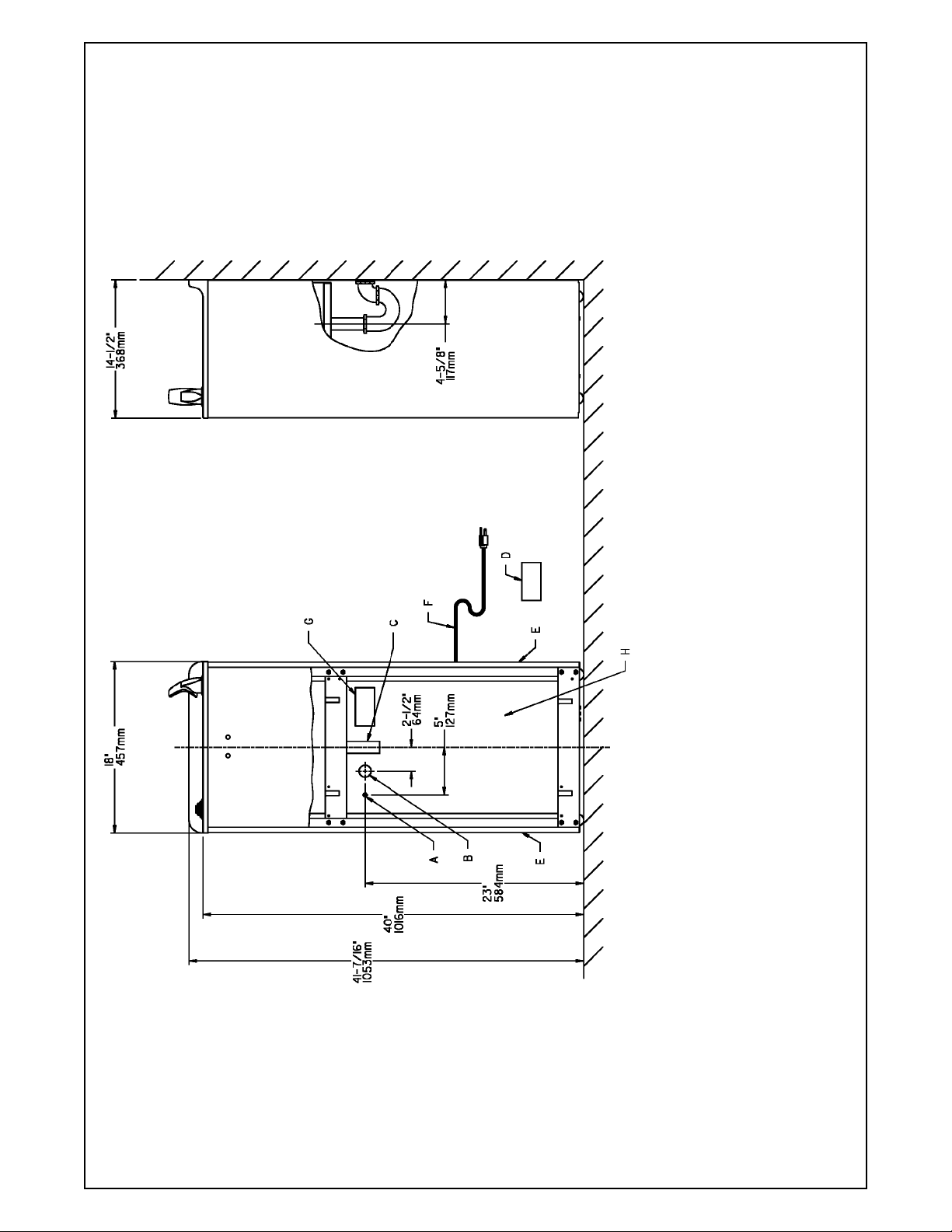

FIG. 2

FINISHED FLOOR

PISO ACABADO

PLANCHER FINI

E = INSURE PROPER VENTILATION BY MAINTAINING 4" (102mm) (MIN.) CLEARANCE FROM CABINET LOUVERS TO WALL.

ASEGURE UNA VENTILACIÓNADECUADA MANTENIENDO UN ESPACIO E 4" (102mm) (MÍN.) DE HOLGURA ENTRE LA

REJILLA DE VENTILACIÓN DEL MUEBLE Y LA PARED

ASSUREZ-VOUS UNE BONNE VENTILATION EN GARDANT 4" (102mm) (MIN.) ENTRE LES ÉVENTS DE LENCEINTE ET LE

MUR.

F = POWER CORD 4 FEET (1219mm) LONG

CABLE ELÉCTRICO DE 4 PIE (1219mm), DE LARGO

CORDON DALIMENTATION 4' (1219mm)

G = ALT. ELECTRICAL OUTLET LOCATION

UBICACIÓN ALT. DE LATOMA DE ELECTRICIDAD

EMPLACEMENTALTERNATIF DE LA PRISE DE COURANT

H = PLUMBING ROUGH-IN CAN BE LOCATED ANYWHERE WITHIN THIS AREA.

SE PUEDE COLOCAR EL DESBASTE DE LATUBERÍA EN CUALQUIER LUGAR DENTRO DE ESTA ÁREA.

ON PEUT PLACER LATUYAUTERIE DANS CETTE RÉGION.

LEGEND/LEYENDA/LÉGENDE

A = RECOMMENDED WATER SUPPLY LOCATION 3/8 O.D. UNPLATED COPPER TUBE CONNECT STUB 1-1/2 IN. (38mm) OUT

FROM WALL SHUT OFF BY OTHERS

SE RECOMIENDA UBICAR EL TUBO CORTO DE CONEXIÓN AL TUBO DE COBRE SIN CHAPAR DE 3/8" DE DIÁM. EXT. A 1-1/2"

(38mm) FUERA DE LALLAVE DE PASO EN LA PARED COLOCADA POR TERCEROS.

EMPLACEMENT RECOMMANDÉ D'ALIMENTATION EN EAU PAR TUBE EN CUIVRE NON PLAQUÉ DE 3/8 PO. (9,5 mm) D.E.

CONNECTANT UNE TUYAUTERIE DE 1-1/2 PO. (38mm) DEPUIS LE ROBINET D'ARRÊT FOURNI PAR D'AUTRES.

B = RECOMMENDED LOCATION FOR WASTE OUTLET 1-1/4 O.D. DRAIN

UBICACIÓN RECOMENDADA PARA EL DRENAJE DE SALIDADE AGUA, DE 1¼ DE DIÁMETRO.

EMPLACEMENT RECOMMANDÉ POUR LE DRAIN DE D.E. 1-1/4" DE SORTIE DEAU.

C = 1-1/4 TRAP NOT FURNISHED**

PURGADOR DE 1¼ NO PROPORCIONADO**

SIPHON 1-1/4 NON FOURNI**

D = ELECTRICAL OUTLET LOCATION

UBICACIÓN DE LA TOMA DE ELECTRICIDAD

EMPLACEMENT DE LA PRISE DE COURANT

PAGE 3 97344C (7/98)

EFOA8*1D

NOTE:

WHEN INSTALLING REPLACEMENT

BUBBLER AND PEDESTAL, TIGHTEN

NUT (ITEM 12) ONLY TO HOLD

PARTS SNUG IN POSITION.

DO NOT OVER TIGHTEN.

FIG. 4

BASIN

WIRING DIAGRAM

This Drawing is merely for illustrating the

components of the electrical sytem.

SENSOR RANGE ADJUSTMENT: The electronic sensor used in this cooler is factory pre-set for a "visual" range of 36

inches (914 mm). If actual range varies greatly from this or a different setting is desired, follow the range adjustment

procedure below:

A. Remove front panel of cooler.

B. Using a small tip screwdriver, rotate range adjustment screw clockwise to increase range and counterclockwise to

decrease range (See Fig. 3).

CAUTION: Complete range of sensor (24-28 inches/610-711mm) is only one turn of the adjusting screw.

C. Replace front panel.

SENSOR CONTROL: If sensor fails to operate valve mechanism or operates erratically, check the following.

A. Ensure there are no obstructions within a 40 inch (1016mm) radius in front of cooler.

B. Check wire connections at the solenoid valve and sensor. CAUTION: Make sure unit is unplugged before checking any

wiring.

C. Ensure proper operation of solenoid valve. If there is an audible clicking sound yet no water flows, look for an obstruction

in the valve itself or elsewhere in the water supply line.

RANGE ADJUSTMENT SCREW

TO PRECOOLER

TO SOLENOID VALVE (ITEM 32)

FIG. 3

TO EVAP. ASSY.(ITEM 29)

PAGE 4

97344C (7/98)

EFOA8*1D

FOR PARTS, CONTACT YOUR LOCAL DISTRIBUTOR OR CALL 1.800.323.0620

ELKAY MANUFACTURING COMPANY  2222 CAMDEN COURT  OAK BROOK, IL 60523  630.574.8484

PRINTED IN U.S.A.

PARTS LIST 115V

ITEM NO. PART NO. DESCRIPTION

22*

RIGHT

PANEL

FRONT

PANEL

LEFT

PANEL

COLOR

TABLE

Gray Beige

Almond

Stainless Steel

Sandalwood

Granite

20622C

21460C

20624C

21458C

27165C

20623C

21461C

20625C

21459C

27168C

27272C

27273C

27270C

27274C

27271C

Cover

Clip

Regulator Retaining Nut

Regulator

Hex Nut

Regulator Holder

Basin

Bubbler Assembly

Orifice Assembly

Housing Assembly

Pedestal

Bubbler Locknut

Cold Control

Power Cord

Condenser

Fan Shroud

Fan Motor

Fan Blade

Fan Bracket

Fan Blade Nut

Drier

Compressor Serv. Pak

Overload/Relay Assembly

Receptor-Drain

Electrical Shield

Strainer

Precooler

Heat Exchanger

Evaporator

Regulator Bracket

Sensor (clear)

Solenoid Valve Assembly

Cross Brace

Screw-Evaporator Mtg

40116C

70254C

15005C

61313C

40045C

50986C

27316C

51349C

40322C

50934C

50168C

70012C

31513C

35890C

66431C

21516C

31490C

30664C

20239C

70018C

66201C

35787C

31034C

50368C

194243901550

55996C

45678C

66255C

66505C

27278C

31516C

35891C

27279C

75568C

*INCLUDES RELAY & OVERLOAD. IF UNDER WARRANTY,

REPLACE WITH SAME COMPRESSOR USED IN ORIGINALASSEMBLY.

NOTE: All correspondence pertaining to any of the above water coolers

or orders for repair parts MUST include Model No. and Serial No. of cooler,

name and part number of replacement part.
