ENG 1
Dear customer,
Thank you for purchasing a "A.O. Smith" branded water dispenser with RO!
You are now the owner of water treatment equipment produced by the world’s leading
manufacturer of water treatment systems. This equipment produces pure water that can
be consumed directly, providing you with a cleaner and healthier source of drinking water.
Please read this user manual carefully before you install and operate your
"A.O. Smith" branded water dispenser. To achieve maximum efciency this user manual
provides detailed instructions regarding the installation of your water dispenser as well as
information related to the proper operation and maintenance of your water dispenser
with RO.
The installation should only be handled by professionals authorized by A.O. Smith
Su Teknolojileri A.Ş.
Spare parts used for maintenance and replacement lter should be approved
by A.O. Smith Su Teknolojileri A.Ş. before they are installed.
Any degradation of performance caused by the use of spare parts or lters that have not
been approved by A.O. Smith Su Teknolojileri A.Ş. will not be covered by our warranty.
If you experience any difculties during installation or operation, please contact your local
distributor to have them carry out repairs or maintenance on your equipment.
CONTENTS
İÇİNDEKİLER
ENG
SAFETY CONSIDERATIONS 4
General Precautions 4
Electrical Precautions 6
TRANSPORTATION 7
PRODUCT DESCRIPTION 8
Brief Introduction 8
Description of Components Frezya 300TU 8
Description of Components Frezya 300S 9
Technical Specications 10
Product Features 11
Functions of R.O. System Components 11
Water Filtration Process 12
Functions of ECO System 12
INSTALLATION AND OPERATION METHODS 13
Installation Methods 13
Operation Methods 14
MAINTENANCE AND REPAIR 16
Filter Replacement Warnings 16
Filter Replacement Method 16
General Warnins for Maintenance 17
Cleaning Cycle 18
AFTER-SALES SERVICE 18
TROUBLESHOOTING GUIDE 19
TR
GÜVENLİK UYARILARI 22
Genel Uyarılar 22
Elektrik Uyarıları 24
NAKLİYE 25
ÜRÜN TANITIMI 26
Kısa Tanıtım 26
300 TU Su Sebilinin Ayrıntılı Proli 26
300S Su Sebilinin Ayrıntılı Proli 27
Teknik Bilgiler 28
Genel Ürün Özellikleri 29
R.O. Sistem Bileşenlerinin İşlevleri 29
Su Filtrasyon Sistemi 30
ECO Sistem Özelliği 30
KURULUM VE KULLANIM TALİMATLARI 31
Kurulum Talimatları 31
Kullanım Talimatları 32
BAKIM VE ONARIM 34
Filtre Değişimi Uyarıları 34
Filtre Değişim Adımları 35
Genel Bakım Uyarıları 35
Parçaların Temizliği 36
SATIŞ SONRASI SERVİS 36
Arızalı Ürün Tanımı 37
ARIZA GİDERME KILAVUZU 37
YETKİLİ SERVİSLER 39
MONTAJ KONTROL KARTI 40
BAKIM KARTI 41
GARANTİ BELGESİ 42
GARANTİ KAPSAMI VE KOŞULLARI 43
Garanti Kapsamı Dışındaki Durumlar 43
İade Şartları ve Koşulları 43
ENG 4
Safety Considerations
Make note of the following safety precautions In order to avoid property damage and harm to you and others.
Not considering the following safety precautions could result in risky situations for you, your water dispenser and your
environment.
Avoid heat and direct sunlight.
It could cause deformation of the exterior.
Do not apply force to the unit.
It could cause malfunction, damage or electric
shock.
Do not attemp to repair, disassemble,
or transform.
It could cause re or electric shock.
Product should be installed in a room-temp.
between 4°C and 45°C.
Do not install in places where there is a risk of
frost-accident during winter.
If not it makes lter life shorter.
Do not put heavy stuff on the unit.
It could cause damage to the unit.

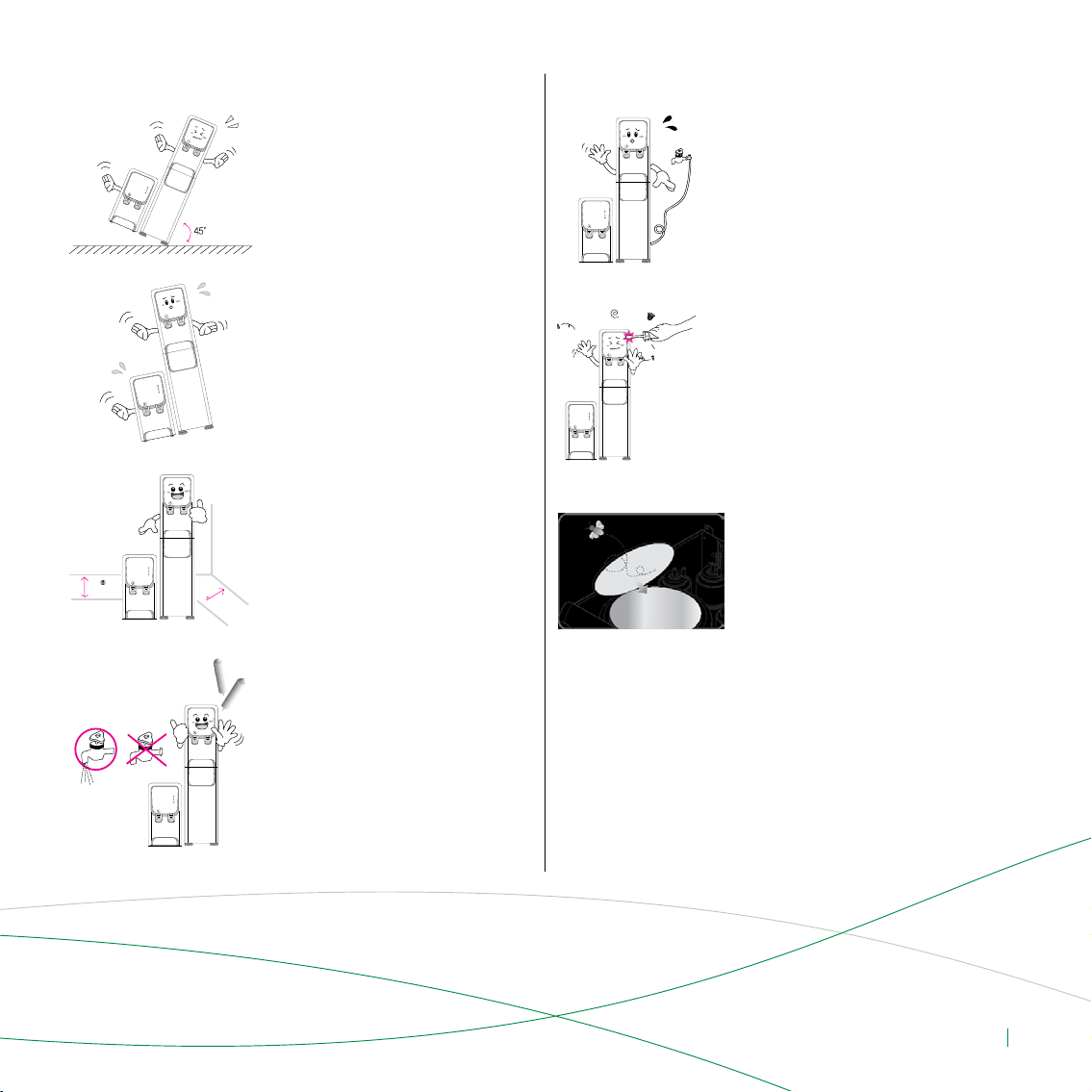

General Precautions
Do not install the unit at a moist place like
bathhouse, shower room or outdoor.
It can cause re or electric shock.
ENG 5
Do not tilt the unit more than 45° while
moving it.
It could cause malfunction.
Do not let the inlet hose be twisted
or bended.
It could cause water and electric leakage.
Place the unit on a level and hard oor.
It could cause malfunction.
Maintain a sufcient distance from the wall.
At least 20 cm is recommended.
It could cause malfunction.
When installing the unit, use our genuine
parts.
It could cause water leakage or damage to
the unit.
20
20®
Connect the unit only to the cold water pipe.
It is harmful for lters to connect to hot
water.
COLD HOT
Before use, entirely close the cold tank cover
in the unit.
Insects or foreign substances may get inside
of the product.
Do not use this product under high water pressure conditions!
Operating under high pressure conditions may cause the unit pipes to
rupture, resulting in leakage, the machine working improperly, or even
serious property damage. There is a pressure reducer inside the unit that
can tolerate water pressure between 0.05~0.58 MPa (0.5 Bar~5.8 Bars)
In places where inlet water pressure is more than 0.58 MPa (5.8
Bars), it is recommended to use a pressure reducer before the unit.
ENG 6
Do not move the unit while it is being
operated.
It could cause malfunction.
This product must be plugged into
AC 220V ~ 50 Hz outlet.
It could cause re or electric shock.
Be careful not to get burned by the hot water.
It could cause scald.
Close main water supply valve and unplug
the power cord when not using the unit for
a long time. Before use it again, drain more
than 10 liters of water in water tank.
It could cause re or water leakage.
When you discard the unit or lter, follow
the proper process of disposal.
It could cause environmental pollution.
When replacing lter, use our genuine one.
It could affect water quality.
Never use Benzene, alcohol or gasoline to
clean the unit.
It could cause discolor, peeling and damage
of the unit.

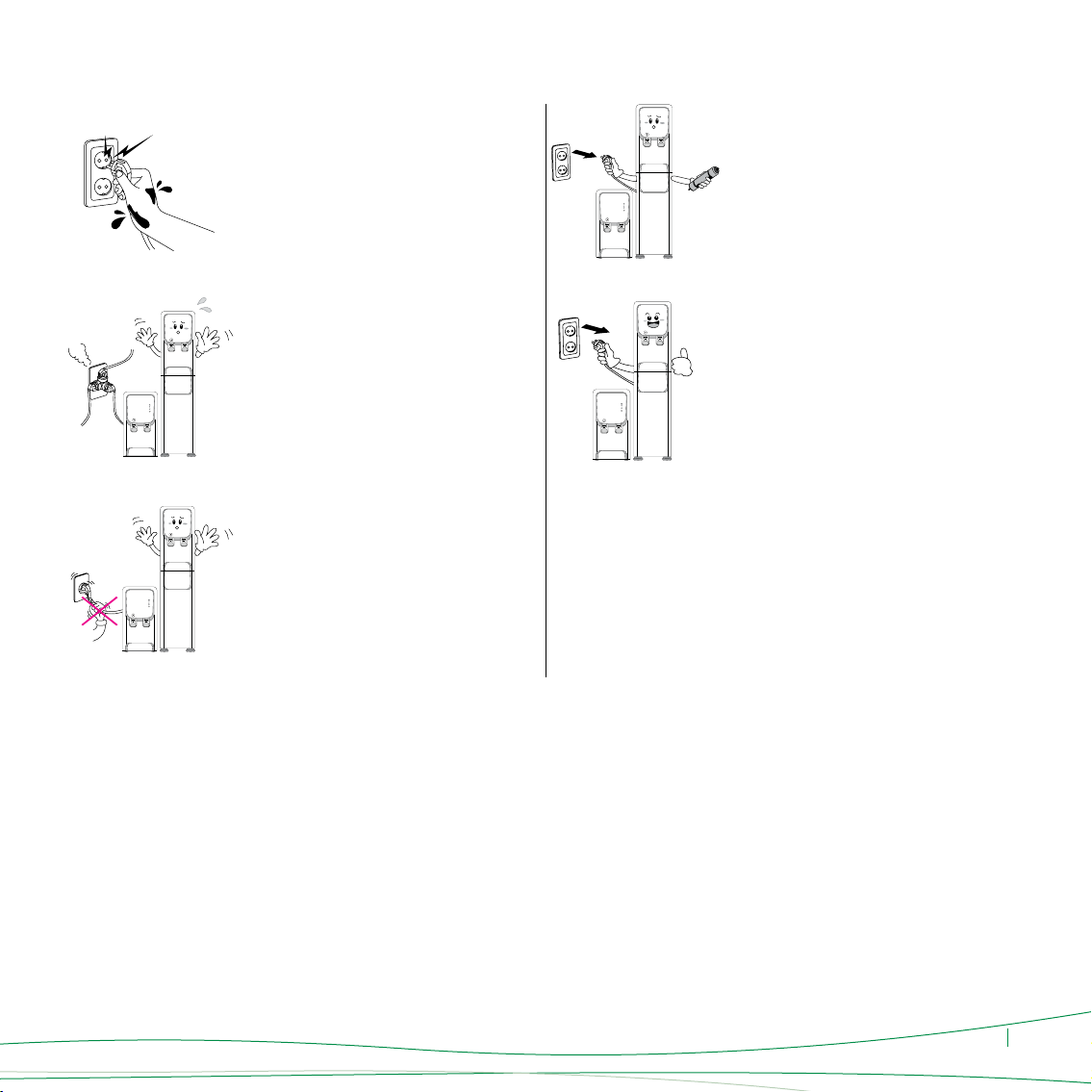

Electrical Precautions
Before use, wipe dust or other foreign
substance off on the plug.
It could cause re by electric shock.
Do not use when the plug is damaged or
swinging. Do not insert a plug in a loose wall
outlet.
It could cause re or electric shock & leakage.
When the plug is damaged, contact customer
service center or your purchasing place.
Do not disassemble or modify the plug.
It could cause re by electric shock.
BENZENE
ENG 7
Do not plug in or unplug the power cord with
wet hands.
It could cause re by electric shock.
The outlet should be rated for more than
10A. Use a separate outlet for the unit.
Do not overload the outlet with too many
plugs. It can cause re.
Do not try to bend, tie or pull
the power cord.
It could cause re by electric shock.
Before replacing lter, unplug
the power cord.
It could cause electric shock.
When water supply is cut off, unplug the
power cord.
It could cause malfunction.
연속
•Do not stock up on top of each other more than 2 pieces.
•Before lifting the packages be sure that xing tapes below
the package are intact.
•Lift the packages holding from bottom.
•Do not tilt the unit more than 45° while moving it.
•Persons, who are vulnarable to heavy lifting shoud not carry the packages
to prevent any health issues.
Transportation
Please take into consideration the following points while transporting the units.
ENG 8
Brief Introduction
This equipment utilizes the current, most advanced international
RO technology. RO technology relies on the articial reversing of
the naturally occurring osmosis phenomena. The RO membranes have
pores with a diameter of 0.0001 micron (0.1 nm), so they can effectively
remove bacteria, viruses, heavy metals, pesticide residue, and other harmful
substances from the water. Produced water is fresh, pure and suitable
for direct use.
Product Description
Frezya 300TU
Cold Water Tank
Sediment Filter Pre-Carbon Filter
R/O Filtre
Post- Carbon Filter
Booster Pump
Hot Water Tank
Hot Water
Faucet
Cold Water
Faucet Top Cover Drain Water Outlet Water Inlet
Wire Condenser
Hot Water Switch
Eco Switch
Cold Water Switch
Hot Water Safety
Button
Hot Water Faucet
Adjustable Feet
Wasted Water Tank
Cold Water Faucet
Eco Sensor
Cold Water Lamp
Hot Water Lamp
Description of Components Frezya 300TU
Diagram 1
Diagram 2
