Elite Screens Sable Frame CineGrey 3D Manuel utilisateur

5/17/2016-DR www.elitescreens.com 1

Sable Frame CineGrey 3D

Ambient Light Rejecting Fixed Frame Screen

USER’S GUIDE (spring type)

Congratulations on your new Sable Frame purchase! The screen material included is our ISF Certified

CineGrey 3D which is a front projection material, precisely formulated for environments with minimal control

over room lighting. It was designed to enhance picture brightness, offer accurate color fidelity, and improve

contrast levels. The CineGrey 3D is best for family rooms, educational facilities, conference rooms, house of

worship or any applications in which incident light is a factor.

In order for the CineGrey 3D to maintain its projection qualities and optimum performance please refer to the list

below for proper maintenance and cleaning.

•Use a dry microfiber cloth to remove dust from the screen’s surface.

•When cleaning, use a damp microfiber cloth with warm water to remove any marks.

•Never rub or apply pressure when cleaning the surface.

•Never attempt to use any solutions, chemicals or abrasive cleaners on the screen surface.

•In order to avoid damaging the screen, avoid touching it directly with your fingers, pens/pencils or any

other sharp or abrasive objects.

Assembly Video

Watch our assembly video on-line at

www.elitescreens.com/video/ezframeCG5D

or scan the QR code

5/17/2016-DR www.elitescreens.com 2

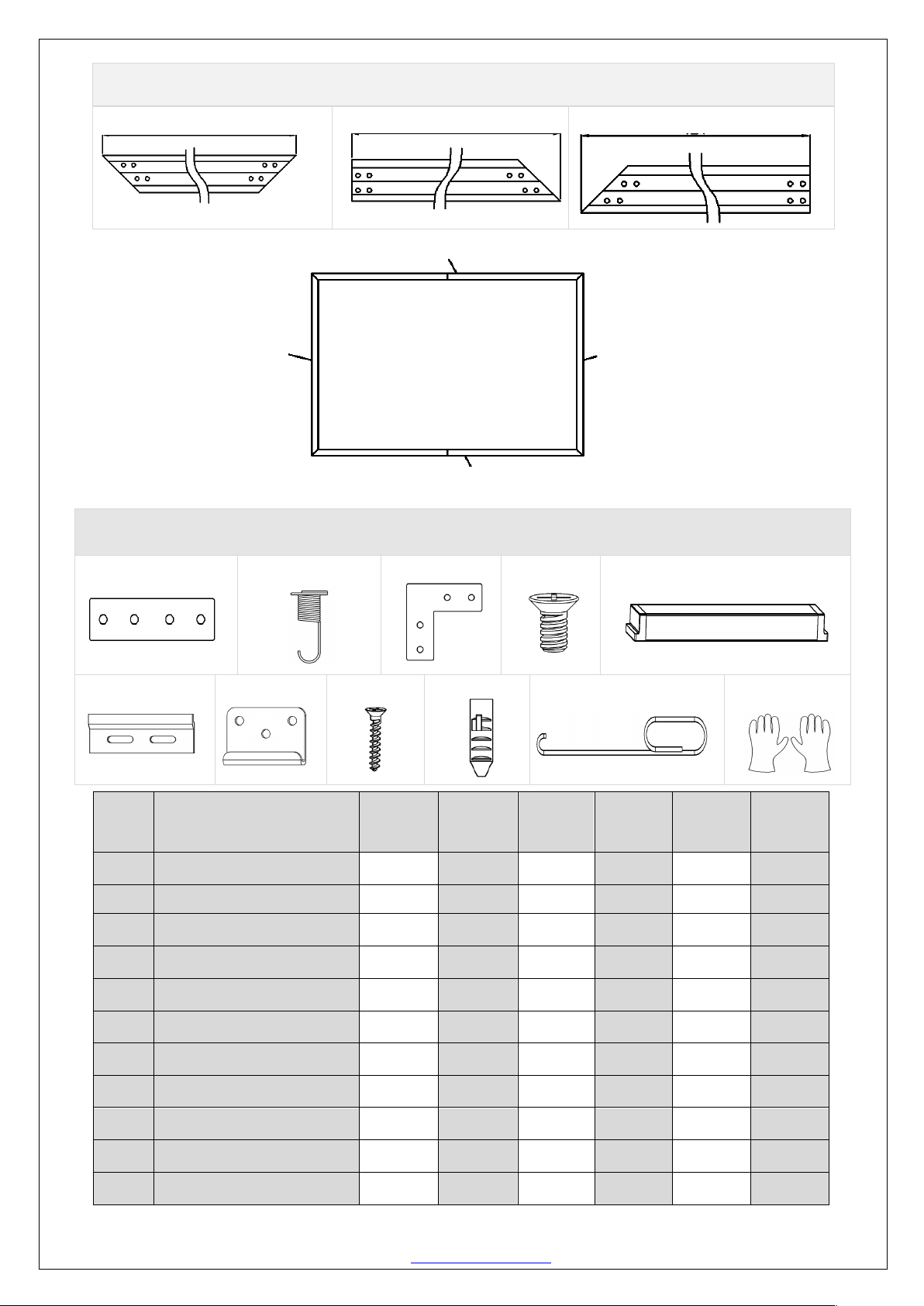

Hardware!Parts!List!

a.!

b.!

c.!

d.!!

e.!

Frame!Parts!List!

A. Vertical!Frame!x!2pcs!

B. ½!Horizontal!Frame!x2!pcs!

C. ½!Horizontal!Frame!x!2!pcs!

Item!

Parts!List!

84”!

Screen!

92”!

Screen!

100”!

!Screen!

110”!

!Screen!

120”!

Screen!

135”!

!Screen!

a.!

Center!Joints!

b.!

Spring!

80!

84!

92!

100!

112!

124!

c.!

Elbow!Joints!

d.!

Screws!M4x6!

48!

e.!

Center!Support!Bar!

f.!

Top!hanging!brackets!

g.!

Bottom!brackets!

h.!

Wall!Screws!M5x50!!

i.!

Hollow!Wall!anchors!

j.!

Pull!Hook!

k.!

White!gloves!

C+B

B+C

5/17/2016-DR www.elitescreens.com 3

Frame Assembly

Step 1. Place a soft-clean cloth on the ground of the area where the screen will be assembled.

Step 2. Position the pieces of the frame on the soft-clean cloth in the arrangement shown below.

Step 3.Remove all of the tape strips before assembling the frame.

Step 4. Insert the center joint connectors into one-half of the horizontal frame and secure with the

M4x6 screws (2 for both top and bottom). Once secure, connect the other half of the horizontal frame

and fasten with the M4x6 screws (2 for both top and bottom).

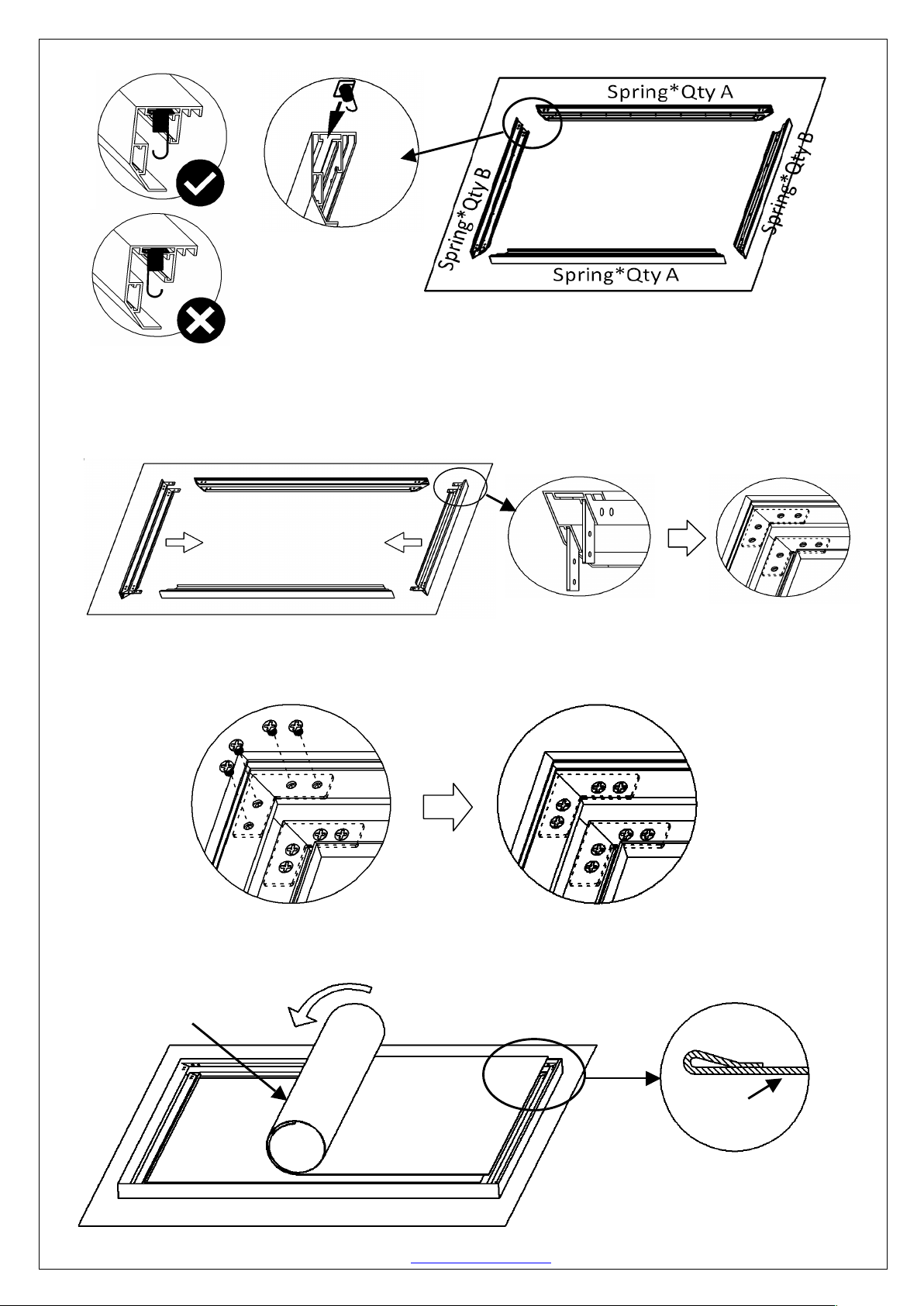

Step 5. Insert the springs into the grooves of the frame. The spring hooks should be facing the front

side of the frame. For the correct amount of springs to place into the frame, please refer to the table

listed below.

Note: The springs are pre-installed into the grooves of the frame.

Screen Size

84”

92”

100”

110”

120”

135”

Qty

A (spring)

B (spring)

5/17/2016-DR www.elitescreens.com 4

Step 6. Connect the elbow joints to top and bottom sections of the vertical frame. Once inserted,

connect the vertical sections to the horizontal frame sections. Make sure all the holes are in alignment

and the frames pieces are flush (no gaps). They should form perfect right angles.

Step 7. Secure the elbow joints by fastening them with 4 M4x6 screws (4 at each corner). Do no tighten

completely until all frame pieces are assembled correctly.

Step 8. Put on the white gloves (k) and carefully unroll the screen material on a clean surface from the roller to

the other side as shown below. The back side of the screen material should be placed upwards.

Front!Side!

Front

5/17/2016-DR www.elitescreens.com 5

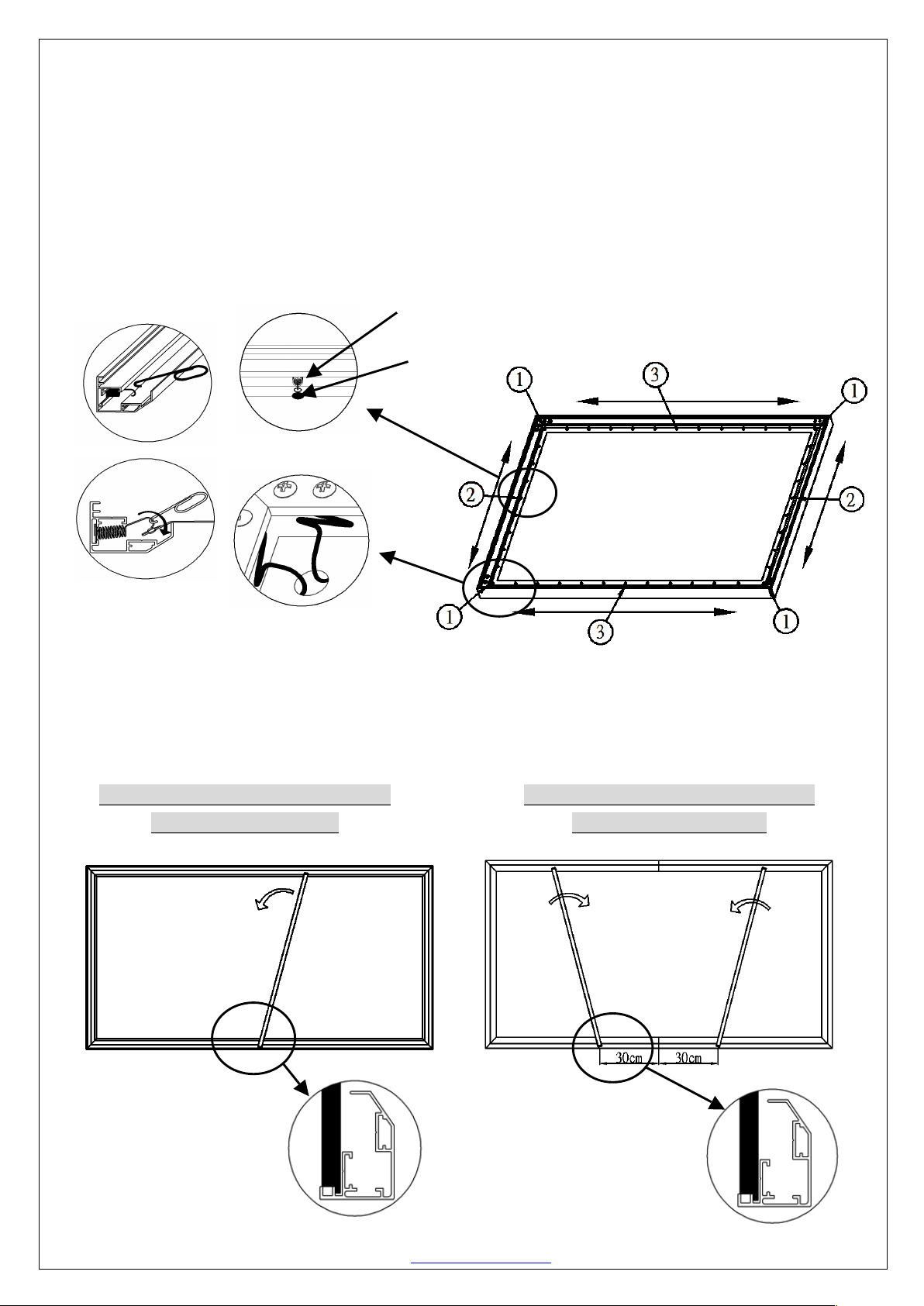

Step 9. With one end of the spring and secure inside the groove of the frame, hook the spring to the hole located

on the screen material’s outer edge. Use the pull hook when necessary. Attach the four corners first (1). After

those are secure, connect the vertical portions of the material, begin in the center and move towards the corners

(2). Lastly, connect the horizontal sections of the material by connecting the center of the material and make your

way towards the corners (3).

Note: Please make note of the yellow label and spring in the center of the frame. This is an indicator to start the

screen material installation process from the middle area of the frame.

Step 10. Insert the Center Support Bar into the upper top groove on the back of the frame (not the one where

the spring inserts) with the bottom end near the approximate center point of the frame. Rotate it in at an angle so

that both ends of the bar are in alignment with the groove. (See illustrations below for details)

typ

Qty

(Spring)

75' 18 11

90' 21 13

100' 23 14

110' 25 15

120' 28 16

135' 31 18

150' 34 20

typ

Qty

(Spring)

75' 18 11

90' 21 13

100' 23 14

110' 25 15

120' 28 16

135' 31 18

150' 34 20

typ Qty

STEP 4.

Diagonal Models 150” and below use

1 x Center Support Bar

Diagonal Models above 150” require

2 x Center Support Bars

Yellow label

Yellow spring

5/17/2016-DR www.elitescreens.com 6

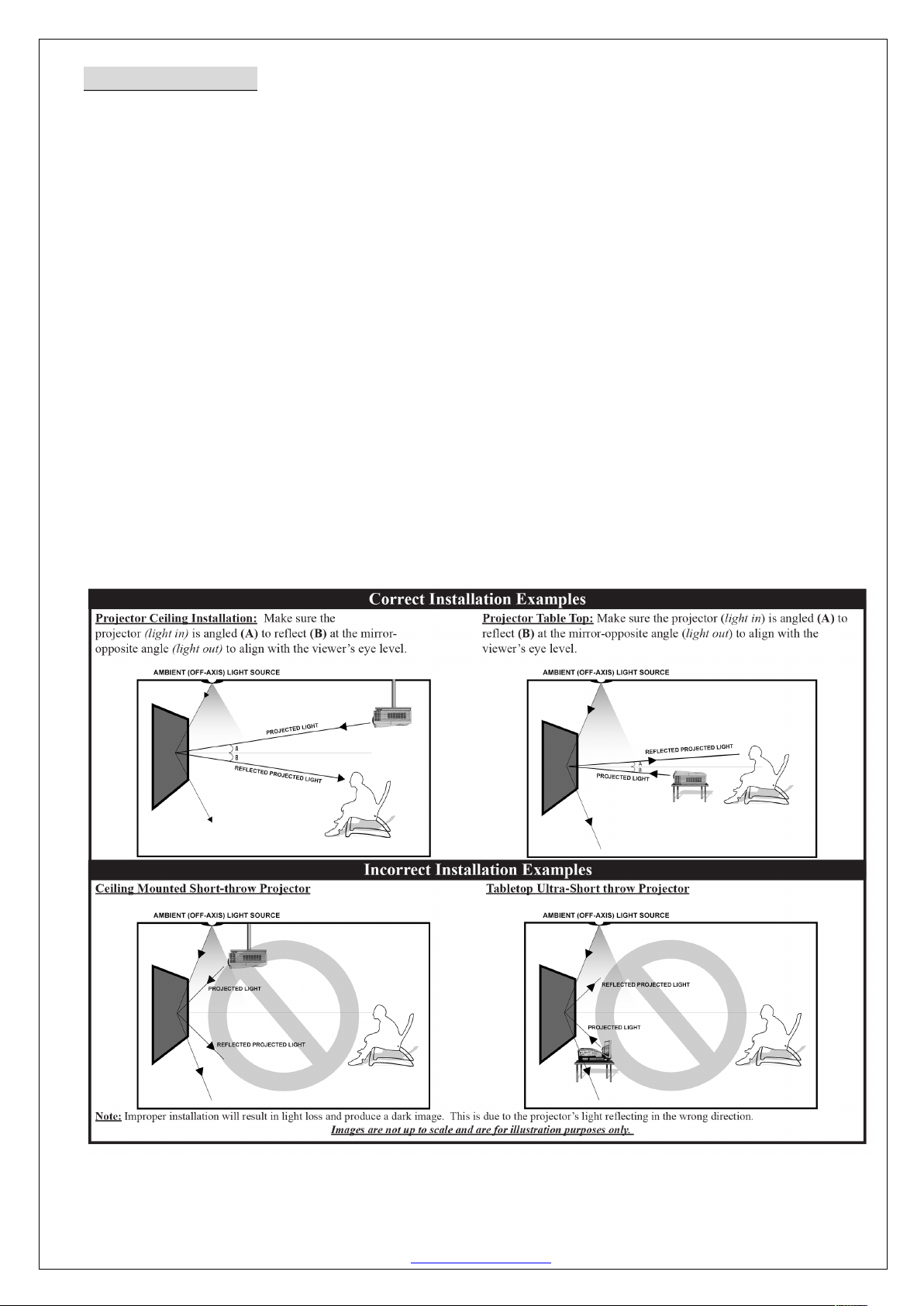

Notice to Installer:

Please use the following installation instructions to obtain superior optical performance from the

CineGrey 3D Angular Reflective ALR (Ambient Light Rejecting) Screen.

Make sure to follow these instructions in order for the CineGrey 3D to perform correctly.

•Angular-Reflective material is not compatible with ultra/short-throw projectors

•Minimum lens throw ratio 1.5x image width

•Ambient light must not come from the same direction as the projector

Since angular-reflective means that the projected image will reflect at the mirror-opposite

angle, it is important to position the projector so that the viewer will get the best possible

image.

Step 1: Establish the general “eye level” of the viewers

Step 2: Set the appropriate projection level

Step 3: Adjust the screen height level and projection angle

Input Angle (A) = Output Angle (B) aligns with the viewer’s angle

(Spring)

75' 18 11

90' 21 13

100' 23 14

110' 25 15

120' 28 16

135' 31 18

150' 34 20

5/17/2016-DR www.elitescreens.com 7

Installation

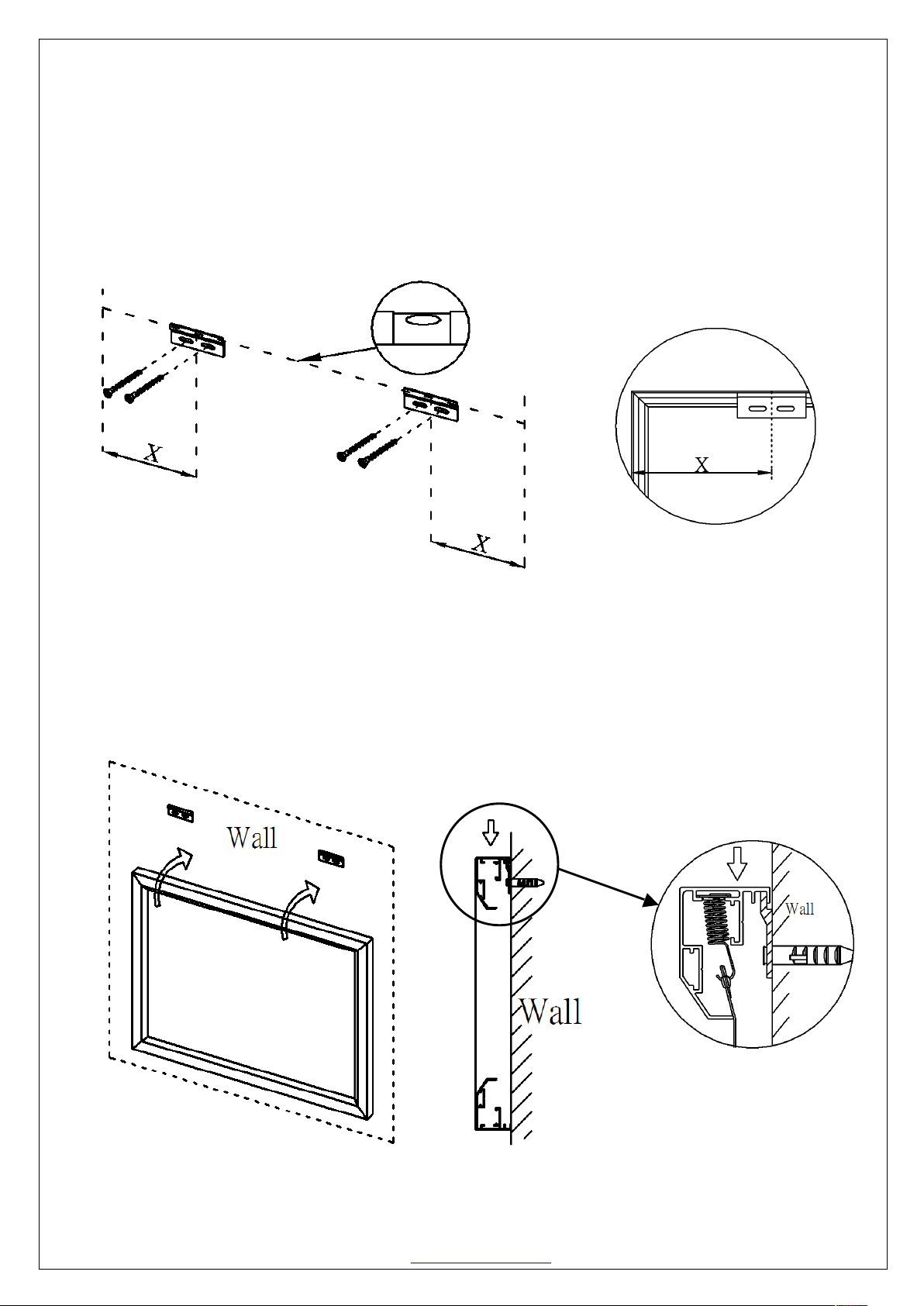

Step 11. Measure the overall length and height of the frame and drill holes for the top brackets. Line up the wall

brackets with the drilled holes on the installation location and screw them in using a Phillips screwdriver. If not

installing into a structural wood stud, use a hollow wall anchor then screw in the M5x50 wood screws with a

screwdriver. Make sure the brackets are leveled.

Step 12. Position the fixed frame screen onto the top wall brackets as shown below and push down at the center

of the top of the frame to secure.

5/17/2016-DR www.elitescreens.com 8

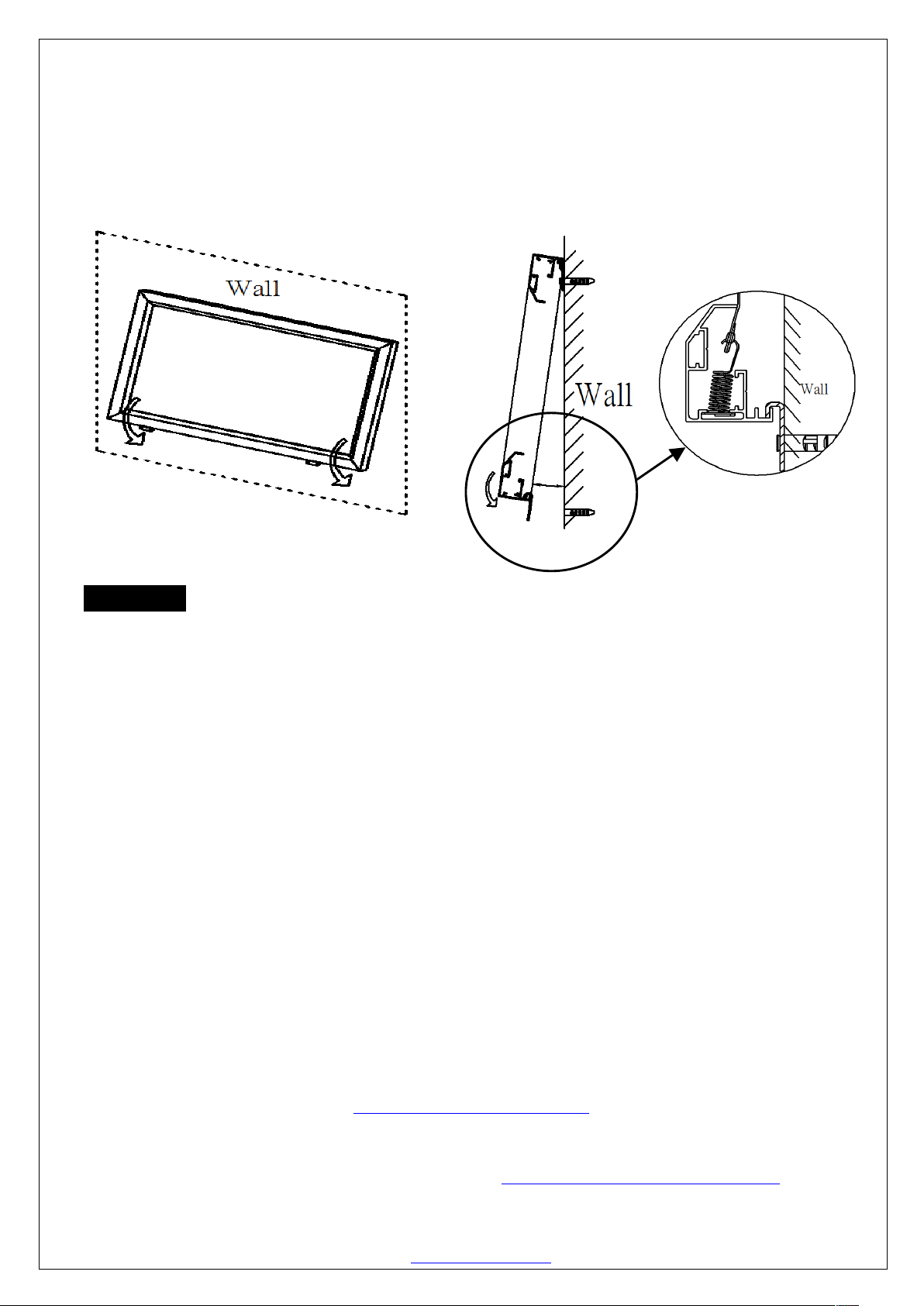

Step 13.With the frame slightly tilted outward; connect the bottom brackets onto the bottom groove of the frame.

Slowly return the screen to a normal upright position. Once the screen is flush to the wall, secure the brackets to

the wall with a screw. If not installing into a structural wood stud, mark the sites where the hollow wall anchors

will be placed using the same instructions above. With the wood anchor installed, repeat the process and fasten

the brackets with the M5x50 wood screws.

CAUTION

Please follow these instructions carefully to ensure proper maintenance and safety of your Fixed Frame

Screen.

1. When hanging the screen up, please make sure that no other objects such as power switches, outlets, furniture,

ladders, windows, etc. occupy the space designated for your Fixed-Frame screen.

2. Regardless if the screen is hung on or installed into the wall, make sure that the proper mounting anchors are

used and that the weight is supported appropriately by a strong and structurally sound surface just as any large

and heavy picture frame should. (Please consult a home improvement specialist for the best advice on

installation)

3. Frame parts are made of high quality velour-surfaced aluminum and should be handled with care.

4. When not in use, cover over the screen with a furniture sheet to protect it from dirt, grime, paint or any other

impurities.

5. Spare Parts should be placed out of reach of small children in accordance with household safety guidelines.

For!Technical!Support!or!an!Elite!Screens!contact!in!your!area,!visit!

www.elitescreens.com!

Online!User!Guide!or!Download:!www.elitescreens.com/UG!!
