Elcometer 456 Manuel utilisateur

User Guide

Elcometer 456

Coating Thickness Gauge

www.elcometer.com

For the avoidance of doubt, please refer to the original English language version.

The Elcometer 456 is available in 3 models. This User Guide is written for the Model T. Where applicable the

Model B and Model S are referenced.

Gauge Dimensions: 141 x 73 x 37mm (5.55 x 2.87 x 1.46")

Gauge Weight: Integral: 156g (5.5oz) including batteries; Separate: 161g (5.68oz) including batteries.

Applicable patents: US6243 661; US5886522; US6762603; US7606671; GB2306009; GB2367135;

GB2342450, DE10131827

transcribed, stored (in a retrieval system or otherwise) or translated into any language, in any form or by any

means (electronic, mechanical, magnetic, optical, manual or otherwise) without the prior written permission of

Elcometer Limited.

CONTENTS

en-1

Section

Page

Gauge Overview

en-2

Box Contents

en-2

Using the Gauge

en-3

Getting Started

en-3

Connecting the Probe

en-4

Taking a Reading

en-4

Calibrating the Gauge

en-5

Locking & Unlocking the Calibration

en-5

Calibration Methods

en-6

Measurement Modes

en-7

Batching

en-8

Displaying Graphs

en-8

Menu Structure - Model T

en-10

Menu Structure - Model S

en-11

Menu Structure - Model B

en-12

Downloading Data & Upgrading Your Gauge

en-13

Technical Specification

en-14

Legal Notices & Regulatory Information

en-15

1 GAUGE OVERVIEW

1 LED Indicators - Red (left), Green (right)

2 Colour Screen

3 Multifunction Softkeys

4 On/Off Key

5 Internal Probe / Separate Probe Connection

6 USB Data Output Socket (below cover)

7 Battery Compartment (¼ turn open/close)

8 Wrist Strap Connection

www.elcometer.com en-2

2 BOX CONTENTS



Elcometer 456 Coating Thickness Gauge



Calibration Foils (Integral gauges)



Wrist Harness



Protective Case (B, S & T models)



Transit Case (T model)



1 x Screen Protector (S & T models)



2 x AA Batteries



USB Cable & ElcoMaster Software (S & T)



Test Certificate



User Guide

3 USING THE GAUGE

www.elcometer.com

en-3

Model

Battery Life Indicator

BST

Bluetooth On -

Grey: not paired; Orange: paired

Substrate Type - F, N, FNF

BST

Calibration Method

BST

Reading Outside Calibration

Warning On

Upper Limit On

Units of Measurement -

µm, mils, mm, inch

BST

Batch Type -

normal, counted average, IMO

Menu Softkey

BST

Display Softkey

BST

Batch / Data Softkey

BST

Calibration Softkey

BST

Reading Value

BST

User Selectable Statistics -

4 rows

BST

Batch Name (when in Batching)

Date & Time (when not in batching)

Bar Graph - highest, lowest &

average reading

BST

Lower Limit On

Measurement Mode - Standard,

Auto Repeat, Scan

Run Chart - last 20 readings

Upper & Lower Limits On

4.1 ENSURING YOUR GAUGE HAS THE LATEST FIRMWARE &

UPGRADING YOUR GAUGE

To ensure that your gauge has the most up-to-date gauge firmware,

allowing you to benefit from the latest features and functionality, we

recommend that the gauge is connected to ElcoMaster on a regular

basis and before first use.

Simply connect the gauge via USB to an internet connected computer

running ElcoMaster using the ‘Connect Gauge’ feature. If a later

version of the gauge firmware is available, ‘Update Gauge’ will be

displayed to the right of the gauge details. Click ‘Update Gauge’ to

install the latest firmware.

4 GETTING STARTED

www.elcometer.com en-4

4.2 SELECTING YOUR LANGUAGE

1 Press and hold the ON/OFF button until the Elcometer logo is

displayed. 

2 Select your language using the softkeys.



3 Follow the on screen menus.

To access the language menu when in a foreign language:

1 Switch the gauge OFF.

2 Press and hold the left softkey and switch the gauge ON.



3 Select your language using the softkeys.



4 GETTING STARTED (continued)

5 CONNECTING YOUR PROBE

SEPARATE GAUGES ONLY

1 Rotate the probe plug to align the pins.

2 Screw in the collar - clockwise.

6 TAKING A READING

1 Hold the probe by its sleeve.

2 To take a reading, bring the probe down onto the surface whilst

holding it perpendicular.

3 For subsequent readings, lift the probe off and then replace it on

to the coated surface.



•

Hold the probe by the probe sleeve.

•

Gently place the probe onto the surface.

•

Allow the sleeve to make contact with the surface - to improve

accuracy.

www.elcometer.com

en-5

† The  softkey will appear when the “ X “ changes to a number.

6 TAKING A READING (continued)



DO NOT

•

Drag the probe over the coated surface.

•

Bang the probe down hard onto the surface.

•

Allow the probe to hover over the surface as this could result in

a false reading.

 The display will dim if inactive for more than 15 seconds and will go ‘black’ if

inactive for the period defined in Menu/Setup/Screen Settings/Screen Timeout.

Either press any key, or tap the gauge to awaken it.

 The gauge will switch off automatically after 5 minutes of inactivity.

 - - - indicates reading outside range of probe.

7 CALIBRATING THE GAUGE

1 Press the Cal softkey.

2 For alternative calibration methods,

select Cal/Cal Method.

3 Select Calibrate and follow the on-

screen instructions.

4 When prompted place the probe on

the centre of the foil(s).

Foils can be stacked.

 Not all calibration methods are available for all gauge types see 9 Calibration

Methods.

90°

8 LOCKING AND UNLOCKING THE CALIBRATION

To set a calibration lock PIN code:

1 Press the Menu softkey and select

Setup/Calibration Lock.

2 Set the four digit PIN Code using the

 softkeys to select 0 to 9



and the  softkey to move from the

†

first to the fourth digit .

3 Press Ok, Escape to cancel or Adjust

to amend the PIN code.

www.elcometer.com en-6

8 LOCKING AND UNLOCKING THE CALIBRATION (continued)

To unlock the calibration:

1 Press the Cal softkey and select Calibration Lock.



2 Enter the four digit PIN Code, if set, using the softkeys to



select 0 to 9 and the  softkey to move from the first to the fourth

†

digit .

3 Press Ok or Escape to cancel.

To disable the calibration lock PIN Code:

1 Press the Menu softkey and select Setup/Calibration Lock.

2 Enter the four digit PIN Code.

Should the user forget or loose the PIN code, the PIN can be disabled via

ElcoMaster . Using the USB cable, simply connect the gauge to a PC with

ElcoMaster Version 2.0.33 or higher installed and select Edit/Clear Calibration

PIN.

CALIBRATION

METHOD

MODEL

DESCRIPTION

Zero

B, S, T

A one point calibration - ideal for smooth

surfaces, simply place the probe on the

uncoated substrate and the gauge will

automatically calibrate

Smooth

B, S, T

A two point calibration - the user selects a

suitable calibration foil and a smooth,

uncoated substrate (zero)

Rough/ 2 Point

B, S, T

The ideal calibration method for rough or

profiled substrates, using two foils of known

thickness - one above, another below the

target dry film thickness

Zero Offset

S, T

Calibration method for measurement when

the substrate profile/ roughness is unknown,

or not accessible. A user defined offset value

is applied to the measurement reading

9 CALIBRATION METHODS

† The  softkey will appear when the “ X “ changes to a number.

9 CALIBRATION METHODS (continued)

CALIBRATION

METHOD

MODEL

DESCRIPTION

Auto

S, T

Ideal for repetitive inspections. The user

stores known calibration foil thicknesses into

the gauge. When calibrating the user is

prompted to calibrate the gauge and the

gauge automatically adjusts the readings to

the stored foil thicknesses - simplifying and

considerably speeding up the calibration

process

ISO

S, T

Sets the calibration method to Zero Offset

and sets the Counted Average to 5 - in

accordance with ISO19840

SSPC PA2

S, T

Sets the calibration method to Rough/2

Point and sets the Counted Average to

3 - in accordance with SSPC PA2

Swedish

S, T

Sets the calibration method to Rough/2

Point and sets the Counted Average to

5 - in accordance with SS standards

Australian

S, T

Sets the calibration method to Zero Offset,

and sets the Counted Average to 5 - in

accordance with AS standards

www.elcometer.com

en-7

10 MEASUREMENT MODES (MODEL T)

10.1 MEASUREMENT MODES

Three measurement modes are available: “Standard Mode”, “Auto

Repeat Mode” and “Scan Mode”.

To select the measurement mode, press Menu/Setup/Measurement Mode.

 “Auto Repeat Mode” and “Scan Mode” are only available with an Elcometer 456

Ultra/Scan Probe. For further information contact Elcometer or visit

www.elcometer.com.

10.2 NAVSEA MODE

Displays the reading to the nearest 1mil (1µm) above 10mils (254µm)

and 0.1mil (0.1µm) below 10mils (254µm).

To select NAVSEA mode, press Menu/Setup/NAVSEA or Batch/New

Batch/NAVSEA.

11 BATCHING (MODEL S & T)

1 To use the Batching memory facility, press the Batch softkey.

2 Select “New Batch” or “Open Existing Batch” to add readings.

3 Copy and review batch data.

4 Select “Edit Batch” to rename, clear readings from or delete a

batch.

5 Fixed Batch Size allows users to pre-define the number of

readings to be stored in a batch. Once all readings have been

taken the gauge automatically opens a new batch with a link

to the original batch name. For Example NewBatch_1 becomes

NewBatch_2, NewBatch_3, etc.

 Save each reading into memory or store the average of a pre-defined number of

readings using the Counted Average function.

www.elcometer.com en-8

12 DISPLAYING GRAPHS

12.1 BAR GRAPH

The Bar Graph displays an analogue

representation of the thickness value

together with the highest, lowest and

average reading as measurements are

taken. To display the Bar Graph:

1 Press the Display softkey and select

“Readings & Bar Graph”.

 If a reading is outside set limits, the white bar and the reading value turn red.

 When in “Scan” Mode (Model T), the bar graph is automatically displayed during

each scan.

12.2 RUN CHART (MODEL S & T)

To display the Run Chart of the last 20

readings:

1 Press the Batch softkey.

2 Select “New Batch” or “Open

Existing Batch”.

3 Press the Display softkey and select

“Readings & Run Chart”.

 Red points signify a reading outside the batch’s limits (if set).

12 DISPLAYING GRAPHS (continued)

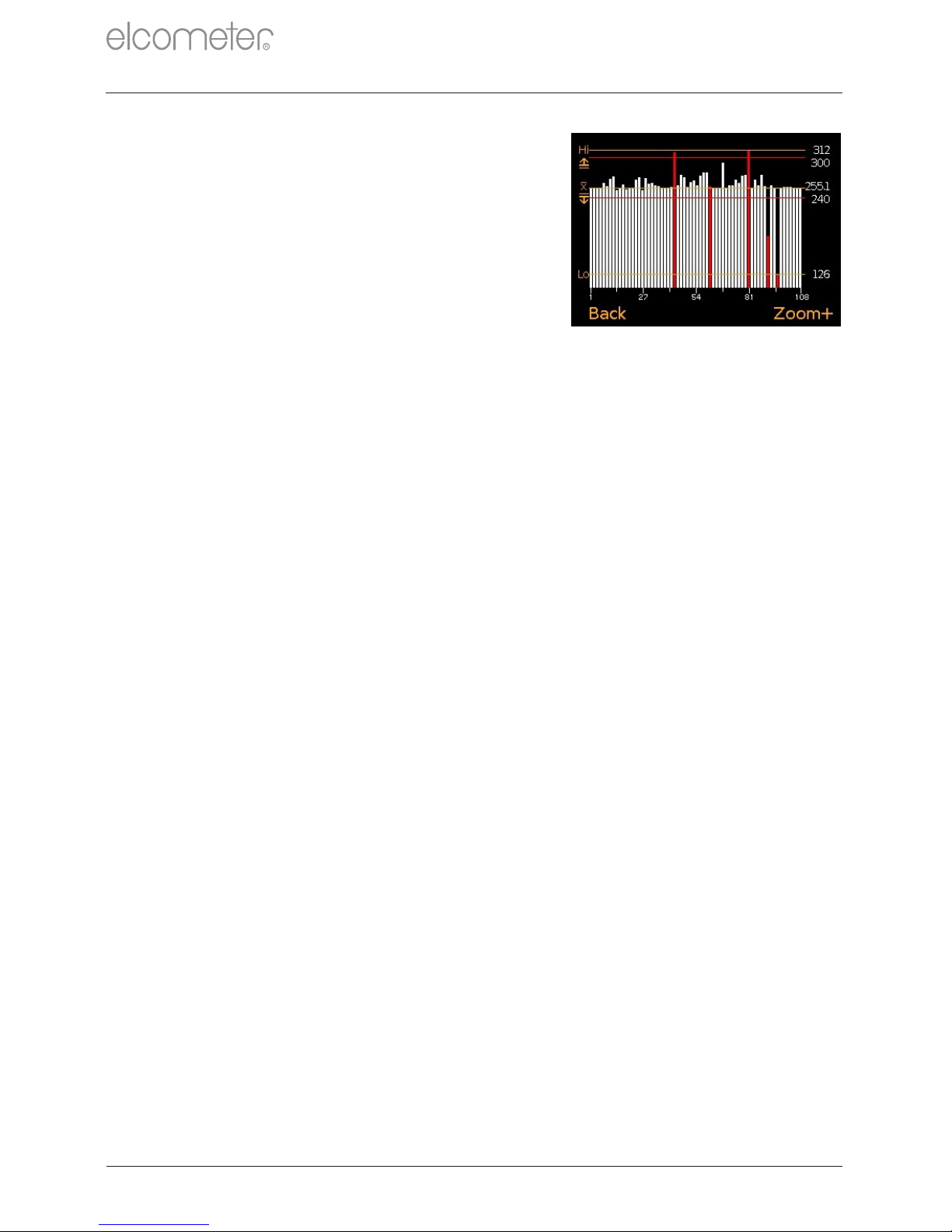

12.3 BATCH GRAPH (MODEL T)

To display the Batch Graph:

1 Select the appropriate batch name

from Batch/Review Batch.

2 Select “Batch Graph”.

 Red columns signify a reading outside the

batch’s limits (if set).

 Press the Zoom+ softkey followed by  or 

to review individual readings as required.

www.elcometer.com

en-9

Autres manuels pour 456

Table des matières

Langues :

Autres manuels Elcometer Instrument de mesure

Elcometer

Elcometer 207 Manuel utilisateur

Elcometer

Elcometer 456 Manuel utilisateur

Elcometer

Elcometer 119 Manuel utilisateur

Elcometer

Elcometer 406L Manuel utilisateur

Elcometer

Elcometer 2020 Manuel utilisateur

Elcometer

Elcometer 205 Manuel utilisateur

Elcometer

Elcometer Protovale CoverMaster CM52 Manuel utilisateur

Elcometer

Elcometer CG30 Manuel utilisateur

Elcometer

Elcometer CG20 Manuel utilisateur

Elcometer

Elcometer 224 Manuel utilisateur

Elcometer

Elcometer 112 Manuel utilisateur

Elcometer

Elcometer 456 Manuel utilisateur

Elcometer

Elcometer 2350 Manuel utilisateur

Elcometer

Elcometer 319 S Manuel utilisateur

Elcometer

Elcometer 331 H Manuel utilisateur

Elcometer

Elcometer G116A-1 Manuel utilisateur

Elcometer

Elcometer 138/2 Manuel utilisateur

Elcometer

Elcometer Novo-Gloss 402 Manuel utilisateur

Elcometer

Elcometer SG80 Manuel utilisateur

Elcometer

Elcometer PTG6 Manuel utilisateur

Elcometer

Elcometer Novo-Gloss 406 Manuel utilisateur

Elcometer

Elcometer 224 Manuel utilisateur

Elcometer

Elcometer CG70ABDL Manuel utilisateur

Elcometer

Elcometer 345 Manuel utilisateur

Manuels Instrument de mesure populaires d'autres marques

Suaoki

Suaoki D40 Manuel utilisateur

Elster

Elster BK-G1.6 Manuel utilisateur

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manuel

Duratool

Duratool D03128 Manuel utilisateur

Vega

Vega VEGAPULS 65 Manuel utilisateur

Tonghui

Tonghui TH2618B Manuel utilisateur

Tenmars

Tenmars TM-801 Manuel utilisateur

MSR

MSR 145 Manuel utilisateur

TPS

TPS WP-82 Manuel utilisateur

ELMETRON

ELMETRON CP-511 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 003C30 Manuel utilisateur

Tenma

Tenma 72-10465 Manuel utilisateur

Endress+Hauser

Endress+Hauser Proline Promag 50 Caractéristiques techniques

Siemens

Siemens SITRANS F Coriolis FCT030 Manuel de la liste des pièces

KLINGER

KLINGER CMF V Series Manuel utilisateur

EXFO

EXFO FTB-2 Manuel d'exploitation et d'entretien

Keysight

Keysight M8290A Manuel utilisateur

ADTEK

ADTEK MW-5 Manuel utilisateur
