EK-XLC Predator 240/360

Push-Pull Addon

For EK-XLC Predator units | 1st revision, July 15th 2016

INSTALLATION MANUAL

/ 1 /

This product is intended for installation

only by expert users. Please consult

with a qualiﬁed technician for installa-

tion. Improper installation may result in

damage to your equipment. EK Water

Blocks assumes no liability whatso-

ever, expressed or implied, for the use

of these products, nor their installation.

The following instructions are subject

to change without notice. Please visit

our web site at www.ekwb.com for up-

dates. Before installation of this product

please read important notice, disclosure

and warranty conditions printed on the

back of the box.

Before you start using this product

please follow these basic guide-

lines:

1. Please carefully read the manual

through before beginning with the

installation process!

2. Please remove your Predator unit

from the computer to assure safest

mounting process in order to pre-

vent any possible damages to your

hardware.

3. Please use only the enclosed

screws. Using inappropriate screws

may result in radiator puncture lead-

ing to leakage of the cooling ﬂuid.

All disclosures, notices and warranty conditions are being written on the EKWB

website. Please read terms of use.

/ 2 /

CONTENTS OF THE PACKAGE

Vardar F4-120ER fan

2/3pcs

Cable tie

3/4 pcs

2,5 mm Allen key

1 pcs

M4x6 DIN7984

8/12 pcs M4X10 DIN7984

3/4 pcs

/ 3 /

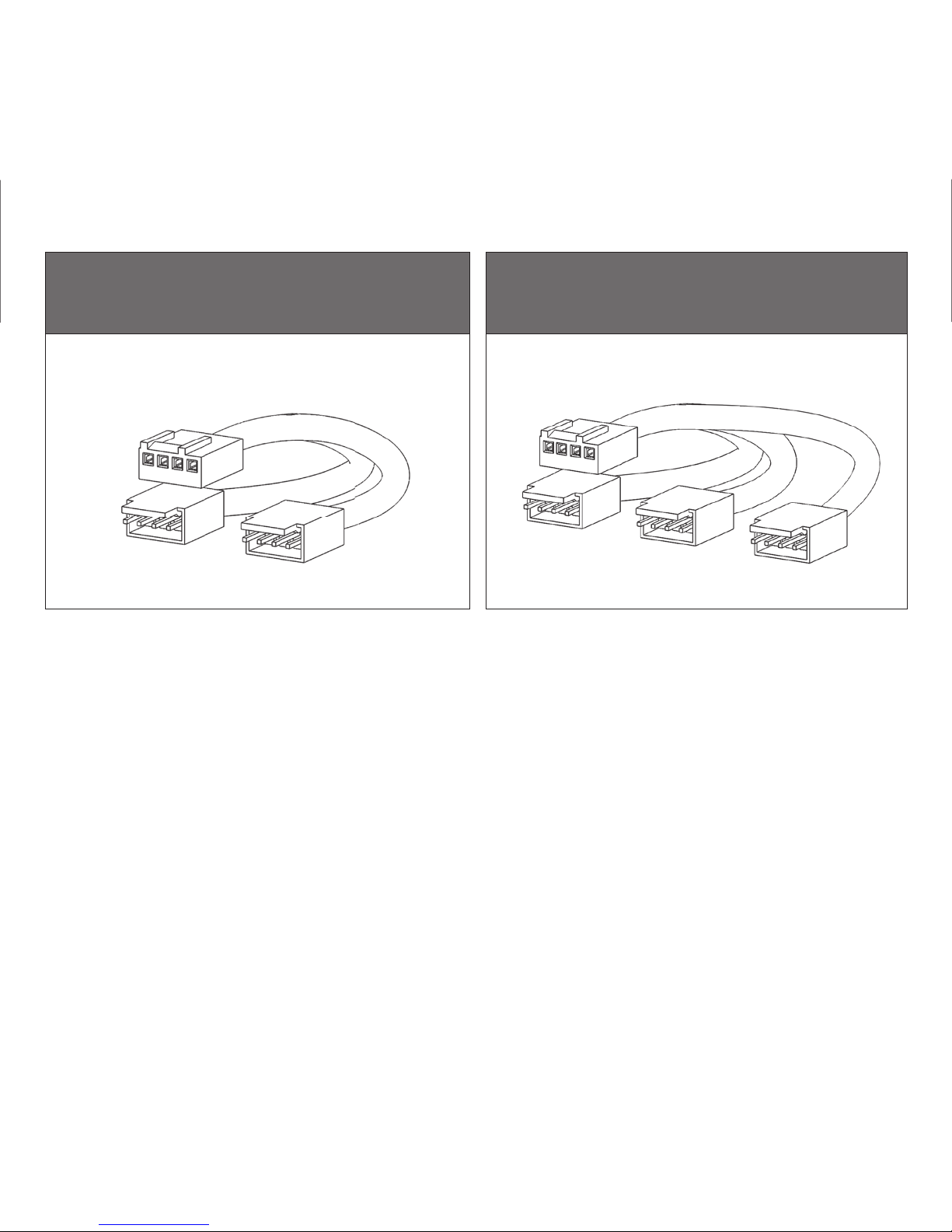

Y 3-fan splitter adapter

1 pcs (only at360 mm version)

Y 2-fan splitter adapter

1 pcs

/ 4 /

The fans come with dierent ca-

ble leads lenght. This is because

every fan is intended for speciﬁc

position on the Predator unit. The

longer the cable, the further away

from the fan splitter hub is fan

meant to be installed.

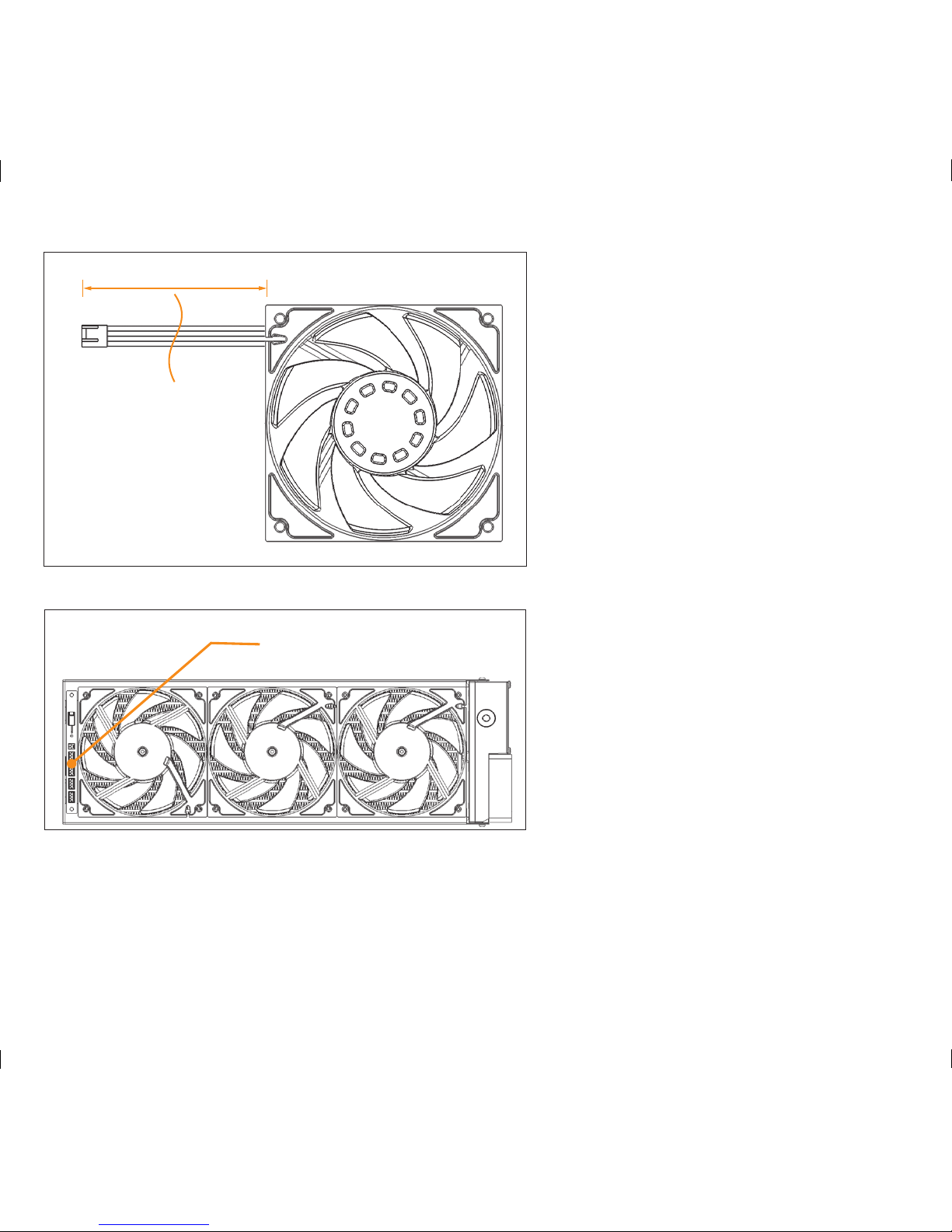

Cable lenghts for dierent EK-

XLC Predator versions:

A. 170mm (Predator 240 & 360)

B. 300mm (Predator 240 & 360)

C. 420mm (Predator 360)

Cable lenght

A B C

Fan splitter hub

/ 5 /

PREPARING YOUR PREDATOR UNIT

STEP 1:

It is recommended to remove the

Predator unit out of the chassis. You

can leave the water block installed but

must be careful not to pull/bend the

tubing. That may result to leakage

and damaged hardware. You can also

unplug all the electrical connections

from the predator unit in order to in-

stall the fans comfortably.

STEP 1

/ 6 /

INSTALLING ADDITIONAL FANS

The additional two (With EK-XLC

Predator 240) or three (With EK-

XLC Predator 360) fans should be

installed on the bottom side of the

Predator unit. Do NOT install the

additional fans on top of the stock

ones. That may lead to malfunc-

tioning of the fans. The orientation

of the fans is crucial in order to

achieve the best performance of the

radiator. Install the fans so that they

push the air through the radiator. For

orientation you can also look at the

orientation of the EK logo. It must

be rotated in same direction at both,

upper and lower set of fans. Make

sure to face the cable routing holes

on the fan case to same side as the

already installed ones.

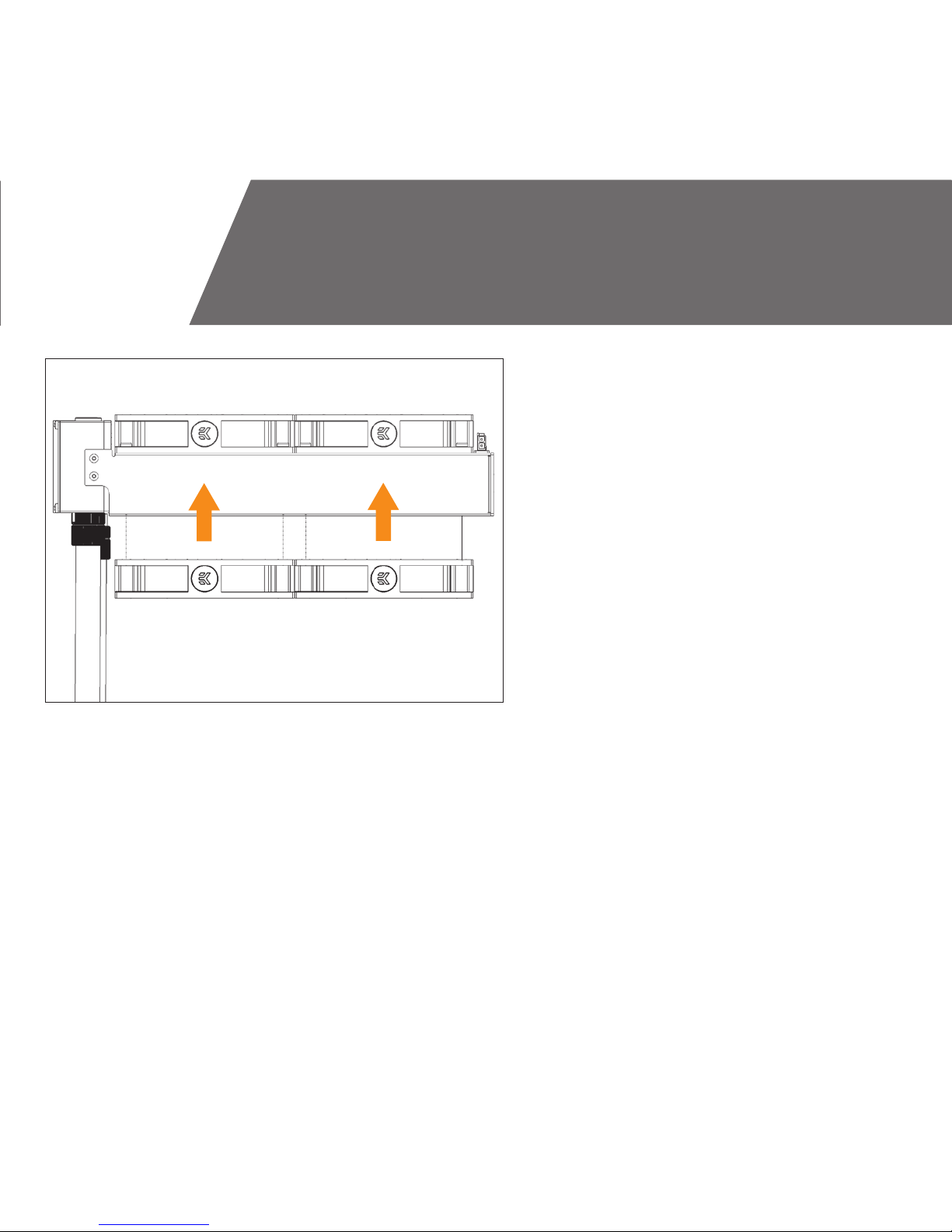

Airﬂow direction

/ 7 /

In order to secure the fans

to the Predator chassis you

should use four (4) M4x6

DIN 7984 screws with the

enclosed Allen key for each

fan unit. If you want to se-

cure the cables to the Pred-

ator unit you should use a

cable tie along with longer –

M4x10 DIN7984 screws in-

stead. (See the detailed pic-

ture below). There is no need

to use a cable tie on every

screw mounting position.

For better understanding

you can look at the cable

management at already in-

stalled fans.

M4x6 DIN

7984 Screws

2,5mm Allen key

Cable tie

M4x10 DIN

7984 Screw

Cable tie

M4x10 DIN

7984 Screw

/ 8 /

ELECTRICAL CONNECTIONS

In order to connect the fans you should

take the enclosed fan splitter adapters.

Please follow the instructions below, de-

pending on the variant of EK-XLC Predator

EK-XLC PREDATOR 240

STEP 1:

Connect the 2 female 4-pin headers from

the fans with the male ones from the Y

2-fan splitter as shown on the picture.

STEP 2:

Connect the Female 4-pin connector

header from the Y fan splitter adapter with

the male one on the fan splitter hub located

on the backside of EK-XLC Predator unit.

The electrical connection is now complete.

STEP 2

STEP 1

Y 2-fan splitter adapter

/ 9 /

EK-XLC PREDATOR 360

STEP 1:

Connect the 3 female 4-pin headers from

the fans with the male ones from the Y

3-fan splitter as shown on the picture.

STEP 2:

Disconnect one fan from the fan splitter

hub located on the backside of EK-XLC

Predator unit. There are 3 4-pin connec-

tors powering the 3 fans and one pow-

ering the pump. You can only disconnect

the fans and leave the connector on the

far right (pump) connected.

STEP 2

STEP 1

Y 3-fan splitter adapter

Pump connector
