EK-Quantum

Reﬂection DK-O5F Left/Right D-RGB

INSTALLATION MANUAL

1st Revision, October 5, 2020

- 2 -

TABLE OF CONTENTS

PREPARING THE DESK 3

INSTALLING WATER COOLING COMPONENTS 4

RECOMMENDED CONFIGURATION 9

CONNECTING THE D-RGB LED STRIP 10

TESTING THE LOOP 10

SUPPORT AND SERVICE 11

SOCIAL MEDIA 11

- 3 -

PREPARING THE DESK

STEP 1

Carefully read the Lian Li DK-05F manual before installing water

cooling parts.

STEP 2

To install your EK components, you need to mount them when the

desk is completely disassembled. In case your desk is brand new and

still in its original package, open the box number 1 and remove the

glass tabletop. After that, remove all the screws that attach the ﬂat

aluminum panel.

If the desk was already assembled, the legs must be removed. There

are 21 screws on each leg, securing them in place.

STEP 2

- 4 -

STEP 1

INSTALLING WATER COOLING COMPONENTS

To install the radiators, all of the fan mounting brackets must be

removed.

STEP 1

Remove the 360mm and 480mm bracket from the left or right side

of the desk - depending on what corresponds to your EK-Quantum

Reﬂection DK-05F product. There are two (2) thumb screws and two

(2) locating screws per bracket.

480mm

RADIATOR/FAN

BRACKETS

360mm RADIATOR/

FAN BRACKETS

- 5 -

STEP 2

STEP 3

STEP 2

Use four (4) UNC 6-32 x 30mm screws for each fan to secure them to

the radiator. The fans should be placed on the same side as the ports.

STEP 3

Mount the fan bracket onto the other side of the radiator and secure it

with UNC 6-32 x 5mm screws that are supplied with the radiator. Pay

attention that slotted holes of the mounting bracket are underneath

the ports, as shown in the picture.

UNC 6-32 x 30mm

SCREWS

UNC 6-32 x 5mm

SCREWS

FAN MOUNTING BRACKET

- 6 -

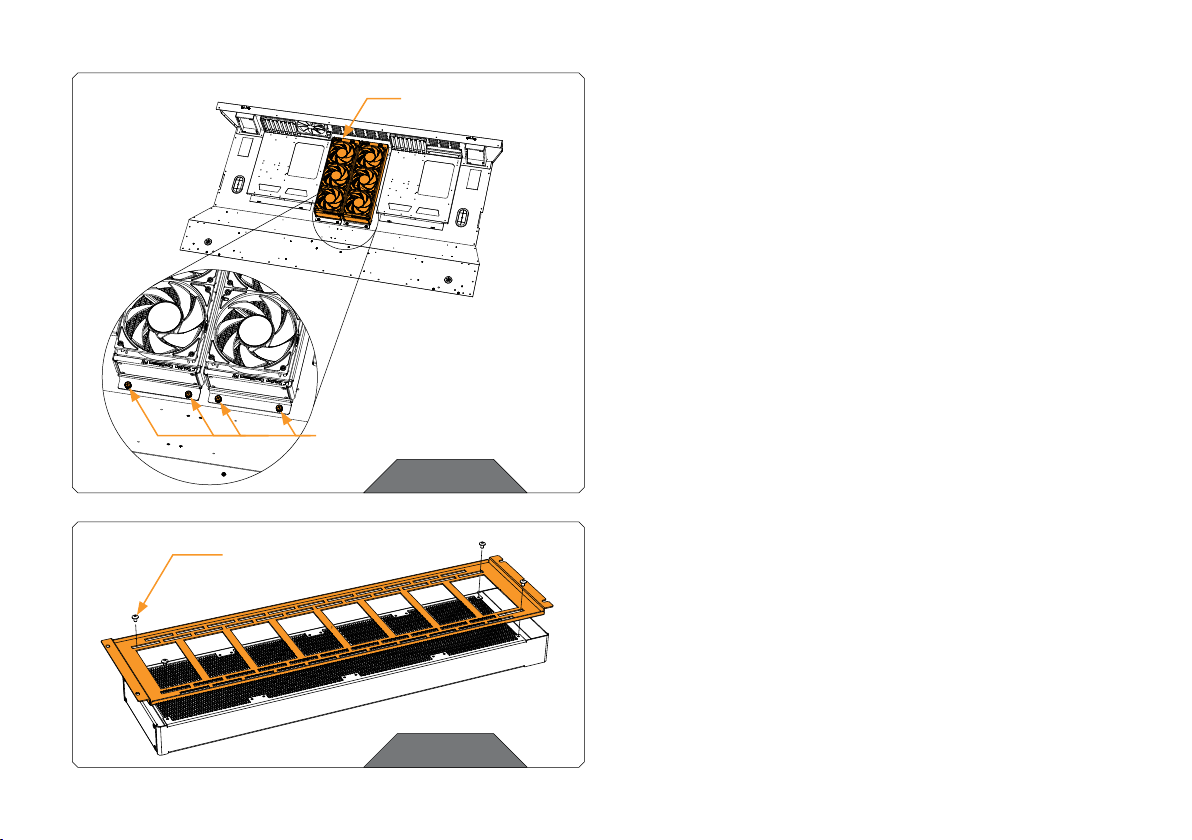

STEP 4

STEP 5

STEP 4

The two (2) locating screws should be installed at the rear end of

the desk, allowing the radiator to be ﬁtted with the ports at the rear.

Carefully place the radiator inside and secure it with the two (2) thumb

screws at the front.

STEP 5

Install the 480mm mounting bracket to the back of the PE480

radiator and secure it with UNC 6-32 x 5mm screws. Pay attention

that slotted holes of the mounting bracket are underneath the ports,

as shown in the picture.

360mm RADIATORS

WITH FANS

STOCK SCREWS

UNC 6-32 x 5mm

SCREWS

- 7 -

STEP 6

Four (4) 25mm thick fans need to be used on the PE480 radiator to

ensure perfect alignment. Secure the fans and mounting brackets

using the UNC 6-32 x 30mm screws. The mounting brackets are

positioned at the end of each radiator, with the folded element facing

outwards. The radiators ports should be at the side of the desk, not

the center.

UNC 6-32 x 30mm SCREWS

RADIATOR

PORTS

LEFT SIDE RIGHT SIDE

- 8 -

STEP 7

STEP 8

STEP 7

The two (2) locating screws should be installed at the sides of the desk

in order for the radiator to be ﬁtted with ports at the side. Carefully

place the radiator inside and secure it with the two (2) thumb screws

at the center.

STEP 8

Place the distribution plate on top of the mounting brackets and

secure it with the two (2) enclosed M4 X 35 DIN7991 screws. Use the

two (2) open holes, as shown in the image.

STOCK SCREWS

RIGHT

SIDE

LEFT

SIDE

M4x35 DIN7991

SCREWS

- 9 -

RECOMMENDED CONFIGURATION

Lian Li DK 05F – Left

Radiator 1: Up to XE 360mm

Radiator 2: Mandatory PE 480mm

Lian Li DK 05F – Right

Radiator 1: Up to XE 360mm

Radiator 2: Mandatory PE 480mm

RETURN FROM RADIATOR 2

RETURN FROM GPU

OUTLET TO UNI 140

OUTLET TO RADIATOR 2

OUTLET TO GPU

INLET FROM UNI 140

OUTLET TO RADIATOR 1

RETURN FROM RADIATOR 1

OUTLET TO GPU

RETURN FROM RADIATOR 1

RETURN FROM GPU

OUTLET TO UNI 140

OUTLET TO RADIATOR 1

INLET FROM UNI 140

OUTLET TO RADIATOR 2

RETURN FROM RADIATOR 2

- 10 -

To make sure the installation of EK components was successful, we

recommend you perform a 24-hour leak test.

When your loop is complete and ﬁlled with coolant, connect the

pump to a PSU outside of your system. Do not connect power to

any of the other components. Turn on the PSU and let the pump

run continuously.

Inspect all parts of the loop, and in case the coolant leaks, ﬁx the issue

and repeat the testing process. To prevent possible damage, please

ensure that all hardware is dry before the system is powered on.

TESTING THE LOOP

CONNECTING THE D-RGB LED STRIP

Plug the 3-pin connector of the distribution plate D-RGB LED light to

the D-RGB header on the motherboard. The LEDs will work if the pin

layout on the header is as follows: +5V, Data, Empty, Ground.

D-RGB Header

RGB Header
