2. Introduction

Thank you for selecting an Eaton product to protect your equipment.

The Eaton 3SMini range has been designed with the utmost care. We recommend

that you take the time to read this advanced user guide and documentations provided

to take full advantage of the many features of your UPS (Uninterruptible Power

System).

Before installing your Eaton 3SMini, please read the information and safety

instructions provided. Follow the instructions in the quick start guide and if necessary,

refer to this advance user guide.

To discover the entire range of Eaton products, we invite you to visit our web site at

eaton.com or contact your Eaton representative.

The Eaton 3SMini Uninterruptible Power System (UPS) is designed for small electrical

such as, but not limited to, Internet gateways, switches or routers, IP cameras etc. It

must not be used to supply other electrical equipment (lighting, household appliances,

etc.). It prevents your critical equipment from power failures and power surges.

5 | Page 01/03/2021 AUG_Eaton-3SMini_V0

3. Presentation

Mini UPS (plastic casing)

Removable AC input cord (CEE7/7 FR/DIN shown here)

Attached DC output cord

4x green LED: Voltage (Chapter 4.5), battery level (Chapter

5.2) and abnormal situations (Chapter 6)

ON/OFF button, battery level display and voltage selector

6 | Page 01/03/2021 AUG_Eaton-3SMini_V0

4. Installation

4.1. Package contents

Included with the Eaton 36W AC-to-DC UPS:

Barrel adaptor polarity:

Supplied input cord (x1):

Supplied barrel

connectors (x4):

Supplied Quick

start/Safety notes (x1):

BS1363: 3SM36B models

CEE7/7 (FR/DIN): 3SM36 models

Note: Extended replacement

kit can be ordered through

your local customer service

eaton.eu/3SMini

7 | Page 01/03/2021 AUG_Eaton-3SMini_V0

4.2. Safety

For product installation or additional information refer to the Quick Start and Advanced

User Guide. For customer support please contact your local after sales services.

DANGER: Dangerous voltage levels are present within the UPS. Do not

attempt to open the unit.

CAUTION: Do not dispose of batteries in a fire. When exposed to flame,

batteries may explode. Do not open or mutilate the battery or batteries. Released

electrolyte is harmful to the skin and eyes and may be extremely toxic.

Installation

Check that the indications on the rating plate correspond to your AC-power

system and to the actual electrical consumption of all the equipment to be connected

to the UPS. For PLUGGABLE EQUIPMENT, the socket-outlet shall be installed near

the equipment and shall be easily accessible. Ensure that AC main outlet is properly

earthed.

The UPS and their batteries must be kept in a ventilated place. Never expose the UPS

to direct sunlight or source of heat. This equipment should only be used in a dry indoor

environment. The admissible storage conditions are -20°C to +45°C (around 3 Months)

and +25°C max (1 year+). 0% to 95% of humidity non-condensing.

Do not place the UPS on any heat source or electronic equipment.

Use and Maintenance

There are no user serviceable parts inside the UPS.

Environmental Notice

Eaton has implemented an environmental-protection policy. Our products are

developed according to an eco-design approach (eaton.com/productstewardship).

Battery: The product contains batteries that must be processed according to

applicable local regulations concerning batteries.

The product includes Li-ion batteries, follow end-of-life instruction in view of

correct waste disposal

8 | Page 01/03/2021 AUG_Eaton-3SMini_V0

4.3. Power supply cord / socket

Connect the UPS to the AC power source through a wall-protected outlet equipped with an

earth connector, using the attached cord for a UPS with FR/DIN (CEE7/7) or British (BS1363)

sockets.

Figure 1 FR/DIN example

Initial power-on requires that the UPS is plugged to main first.

9 | Page 01/03/2021 AUG_Eaton-3SMini_V0

4.4. Start UPS

Do not connect load until the voltage has been appropriately setup (see 4.5)

Press the ON/OFF button for three seconds. The battery level is first displayed for five

seconds then the LED indicates the output voltage level (default 12V):

Figure 2 Start UPS

Battery levels:

Slow blinking LED

Fast blinking LED

Figure 3 Battery levels

10 | Page 01/03/2021 AUG_Eaton-3SMini_V0

4.5. Voltage setup

Before entering voltage setup, ensure that the protected equipment is

disconnected from the UPS:

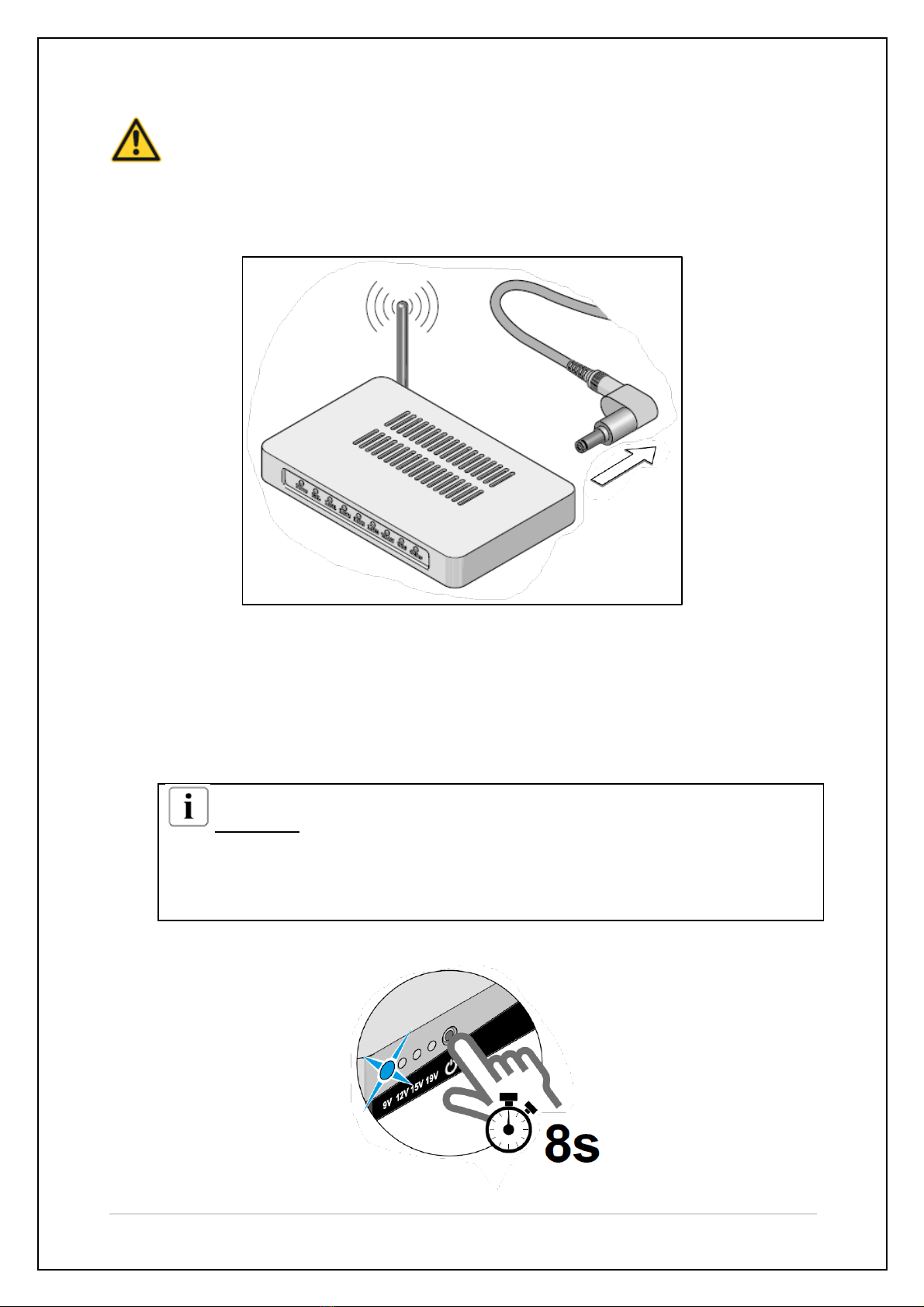

Figure 4 Disconnect the equipment

Then enter voltage setup mode and select the appropriate output DC voltage

corresponding to equipment nominal input voltage (9V, 12, 15V or 19V):

•Press the ON/OFF button (5) for eight seconds

Important: The LED and UPS will briefly shut down (OFF to 0V) during the

process and it will turn off any connected equipment, just keep pressing the

button until eight seconds have passed.When LED start flashing (slow), release

the button.
