Drive Dart 3 Wheel Manuel utilisateur

DART SCOOTER

Dart 3 Wheel Dart 4 Wheel

OWNER’S MANUAL

1. PREFACE AND INTRODUCTION ……..………………………………… 2

2. SAFETY NOTICE…………………………………………………………...….

2.1 Before driving

2.2 While driving

2.3 Labeling

2.4 EMI

PARTS INTRODUCTION……………..……………….. …………………….

OPERATION…………………………………………………………………....

4.1 Control panel

4.2 How to operate your scooter

4.3 How to set to freewheel mode

5. DRIVING ON THE ROAD…………………………………………………….. 13

6. BATTERY CHARGINGAND CARE………………………………………....

6.1 Charging the battery

6.2 Battery

6.3 Replacing batteries

INSPECTION AND MAINTENANCE……………………………………..…

7.1 Inspection

7.2 Regular checking record

7.3 Battery, fuse and tire

7.4 Storage

7.5 Moving about

7.6 Assembling the scooter

8. TROUBLESHOOTING……………………………..……………..………… 21

9. SPECIFICATION…………….………………………………………..……… 22

10. WARRANTY………………………………………………………………….....

TABLE OF CONTENTS

1. PREFACE AND INTRODUCTION

Please carefully read this owner’s manual before using the vehicle. Improper use of the

vehicle could result in harm, injury or traffic accidents. To ensure that you get the most

your scooter, please read this owner’s manual before using.

♦ This owner’s manual includes operation instructions for every aspect of the vehicle,

assembly instructions, as well as instructions for how to deal with possible accidents.

♦ The symbols used in this manual are explained as follows:

1Warning

Improper usage could result in serious injury or death

)Attention

Improper usage could lead to injury and/or damage to your scooter.

Suggestion

Follow these instructions to keep your vehicle in a good operating

order.

♦ This manual includes a copy of repair and maintenance record chart and warranty

information. Please keep it in a safe place or in the scooter.

♦ If someone else uses the scooter, please make sure that you provide him or her with this

owner’s handbook for his or her consideration.

♦ As designs change some illustrations and pictures in the manual may not correspond to

the vehicle that you purchased. We reserve the right to make design modifications.

2. SAFETY NOTICE

2.1 BEFORE DRIVING

The user needs to be familiar with the usage and operation of this vehicle before driving.

Therefore, please follow the commendations in this safety notice.

■ The same traffic rules apply to the use of this vehicle as apply to pedestrians

♦ For your safety, please follow and adhere to the same traffic laws as pedestrians.

♦ Please do not drive your scooter after consuming alcohol or when you are tired.

♦ Please be careful when driving your scooter in low light. It has not been designed for

use at night.

♦ Be extremely cautions when driving you scooter in busy areas or in shopping malls.

♦ Ride on the paved roads or pedestrian areas only. Never ride on motorways or

dual carriageways.

♦ Be aware of traffic when crossing or using roads.

■ Practice operating your vehicle

Before using the scooter in busy or potentially dangerous areas, familiarize yourself with

the operation of your scooter. Please practice in a wide and open area like a park. In order

to avoid accidents with your scooter whilst driving, please bear in mind driving motions,

such as accelerating, stopping, turning, reversing, up-and down ramps.

♦ Turn the speed dial to minimum value for your initial practice.

♦ Be sure someone accompanies you for safety when driving on the roads for the first

time.

♦ Only use higher speed setting when you are confident that you can easily operate

and control your scooter.

■ The Scooter is only to be used by one person at a time

Do not carry passengers on your scooter (including children)

■ Do not use this vehicle to carry or haul goods

♦ The maximum weight that can be carried is285lbs/130kg(including occupant and any

goods).Refer to “MAX LOAD WEIGHT” in “9. SPECIFICATION”

■ Please carry out daily inspections.

Refer to the section entitled “DAILY CHECKING”

2. SAFETY NOTICE

2.2 WHILE DRIVING

■ Do not use your vehicle under the circumstances below.

♦ On surfaces that are muddy, gravelly, bumpy, narrow, snowed over, or icy,

♦ Do not drive at night or when it is raining, snowing, misty, or windy.

♦ Do not drive your vehicle in an “S” pattern or make erratic turnings.

♦ Do not take the scooter onto escalators.

♦ UNDER NO CIRCUMSTANCES SHOULD THE SCOOTER BE USED AS A SEAT

IN A MOTOR VEHICLE (E.G. CARS, BUSES, TRAINS, ETC).

■ About Mobile Phones and other electrical equipment

♦ Do not use a mobile phone or other wireless communication devices while driving.

♦ Always switch off the scooter and remove the ignition key before using a mobile

phone.

♦ Do not charge the mobile phone or any other electrical devices from your scooter’s

battery.

■ Automatic Power Shut Down

In order to avoid accidental battery run down, your scooter is equipped with an

automatic power shut down facility. If the scooter is switched on, after remaining

undisturbed for a period of thirty minutes it will automatically turn off. If this situation

occurs, simply switch your scooter off and back on and it will be ready to use.

■ Ramps, inclines and drops

♦ Do not drive onto steep ramps greater than the specified gradient. Refer to the section

entitled “CLIMBING ANGLE” in “9. SPECIFICATION“

♦ Always use a low speed setting when ascending or descending a gradient.

♦ Do not drive on roads with large drops or potholes. Refer to the section

entitled “MAX. GROUND CLEARANCE” in “ 9. SPECIFICATION”.

♦ Please slow down when driving on roads with inclines.

♦ Do not make sudden turns when driving on gravel roads or ramps.

♦ Always lean forward when climbing a steep gradient.

2.3 LABELING

Carefully read all the labeling on the scooter before drive it.

2. SAFETY NOTICE

2.4 EMI

This portion of the content will provide the user with basic information that describes the

problems with EMI, known sources of EMI, protective measures either to lessen the

possibility or exposure or to minimize the degree of exposure, and suggested action

should unexpected or erratic movement occur.

Caution: It is very important that you read this information regarding the possible

effects of electromagnetic interference on your electric SCOOTER.

■ ELECTROMAGNETIC INTERFERENCE (EMI) FROM RADIO WAVE

SOURCES

Powered vehicle may be susceptible to electromagnetic interference (EMI), which is

interfering electromagnetic energy (EM) emitted from sources such as radio stations, TV

stations, amateur radio (HAM) transmitters, two-way radios, and mobile phones. The

interference (from radio wave sources) can cause the powered scooter to release its

brakes, move by itself, or move in unintended directions. It can also permanently damage

the powered scooter’s control system. The intensity of the interfering EM energy can be

measured in volts per meter (V/m). Each powered scooter can resist EMI up to a certain

intensity. This is called its “immunity level”. The higher the immunity level, the greater

the protection. At this time, current technology is capable of achieving at least a 20 V/m

immunity level, which would provide useful protection from the more common sources

of radiated EMI. This powered scooter model as shipped, with no further modification,

has an immunity level of 20 V/m without any accessories.

There are a number of sources of relatively intense electromagnetic fields in the everyday

environment. Some of these sources are obvious and easy to avoid. Others are not

apparent and exposure is unavoidable. However, we believe that by following the

warning listed below, your risk to EMI will be minimized.

The sources of radiated EMI can be broadly classified into three types:

1. Hand-held portable transceivers ( transmitter -receivers with the antenna mounted

directly on the transmitting unit. Examples include: citizens band (CB) radios,

“walkie talkie”, security, fire, and police transceivers, cellular telephones and other

personal communication devices.

Note: Some mobile telephones and similar transmit signal while they are ON, even

when not being used;

2. Medium-range mobile transceivers, such as those used in police cars, fire trucks,

ambulances and taxis. These usually have the antenna mounted on the outside of the

scooter.

2. SAFETY NOTICE

3. Long-range transmitters and transceivers, such as commercial broadcast transmitter

(radio and TV broadcast antenna towers) and amateur (HAM) radios.

Note: Other types of hand-held devices, such as cordless phones, laptop computers,

AM/FM radios, TV sets, CD player, and cassette players, and small appliances, such

as electric shavers and hair dryers, so far as we know, are not likely to cause EMI

problems to your powered scooter.

■ POWERED VEHICLE ELECTROMAGNETIC INTERFERENCE (EMI)

Because EM energy rapidly becomes more intense as one moves closer to the

transmitting antenna (source), the EM fields from hand-held radio wave sources

( transceivers ) are of special concern. It is possible to unintentionally bring high levels

of EM energy very close to the control system of powerchair while using these devices.

This can affect powered vehicle movement and braking. Therefore, the warnings listed

below are recommended to prevent possible interference with the control system of the

powered scooter.

■ WARNINGS

Electromagnetic interference (EMI) from sources such as radio and TV stations,

amateur radio (HAM) transmitters, two-way radios, and mobile phones can affect

powered scooter and motorized scooter. Following the warnings listed below should

reduce the chance of unintended brake release or powered scooter movement which

could result in serious injury.

1.Do not operate hand-held transceivers-receivers), such as citizens band (CB) radios,

or turn ON personal communication devices, such as cellular phones, while the

powered vehicle is turned ON;

2.Be aware of nearby transmitters, such as radio or TV stations, and try to avoid

coming close to them;

3.If unintended movement or brake release occurs, turn the powered vehicle OFF as

soon as it is safe;

4.Be aware that adding accessories or components, or modifying the powered vehicle,

may make it more susceptible to EMI ( Note: There is no easy way to evaluate

their effect on the overall immunity of the powered scooter).

5.Report all incidents of unintended movement or brake release to the powered scooter

manufacturer, and note whether there is a source of EMI nearby,

■ IMPORTANT INFORMATION

1. 20 Volts per meter ( V/m) is a generally achievable and useful immunity level against

EMI ( the higher the level, the greater the protection);

2. This product has an immunity level of 20 V/m without any accessories and connected

to it.

3. PARTS INTRODUCTION

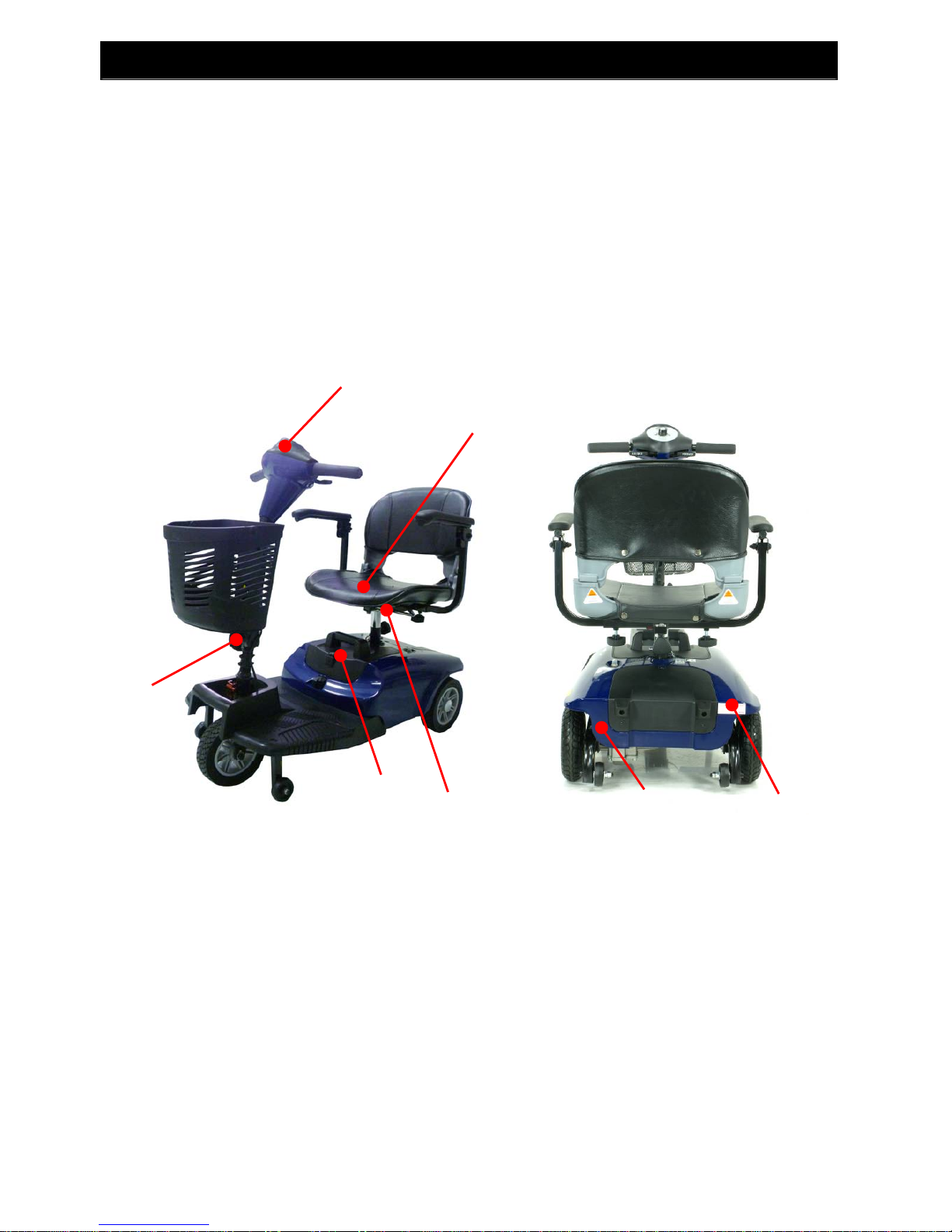

PARTS DESCRIPTION

1. Control panel 2. Tiller Adjustment Knob

3. Seat 4. Battery Pack

5. Freewheel Lever 6. Anti-tip wheels

7.Seat Post Knob

4. OPERATION

4.1 CONTROL PANEL

1. Speed Dial

2. Battery Indicator

4.2 HOW TOOPERATE YOUR SCOOTER

■Power switch

♦ To switch the power on , turn the key clockwise in the ignition. The power eye

should illuminate.

♦ To switch the power off , turn the key counter clockwise . The power eye should

switch off and the key can be removed if required.

■Speed Dial

Turn the speed dial to determine the maximum

speed of the scooter. Turn the dial clockwise to

increase the speed setting and turn the dial

counter clockwise to decrease the speed setting.

■Moving and Braking

♦ Push the right-hand side speed control lever forward with your right thumb and the

scooter will move forward.

♦ Push the left-hand side speed control lever forward with your left thumb and the

scooter will move backward.

♦ To brake , release the speed control lever which will return to neutral and activate

the electromagnetic brake automatically .This will bring the scooter to a prompt

stop.

♦ The speed control lever allows you to control the speed of the scooter up to a

maximum speed determined by the Speed Dial .The further the speed control lever

is deflected, the faster the scooter will go.

■ Braking

Electro-magnetic brake: Release the speed control lever completely, and the

electromagnetic brake will be activated automatically, and the scooter will stop.

Slowest setting Fastest setting

4. OPERATION

1Warning

When on a gradient NEVER set the vehicle to the freewheel mode. The

electromagnetic brakes will not be applied. This may result in injury or damage.

■ Battery indicator

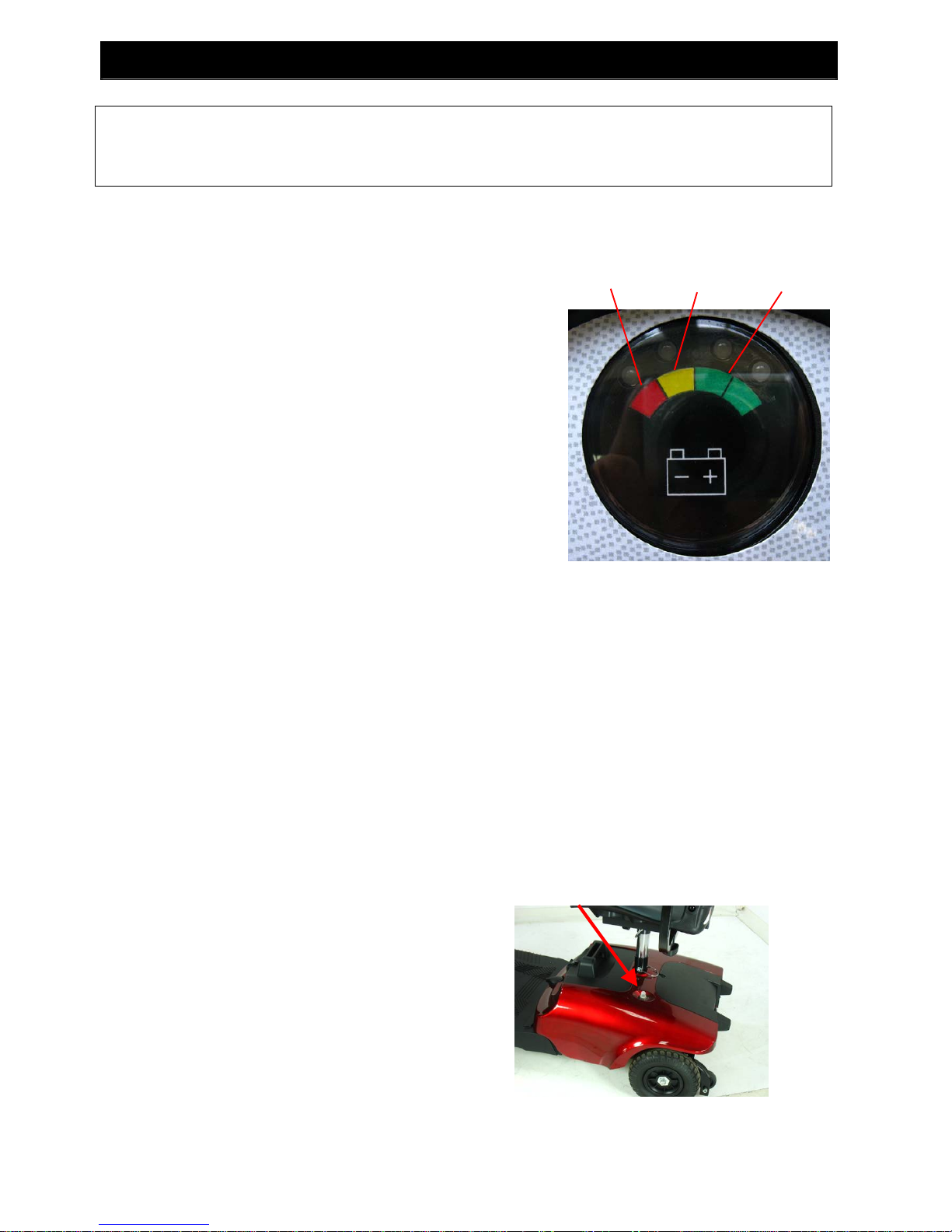

The battery indicator on the tiller console uses

a color code to indicate the approximate power

remaining in your batteries. Green indicates(40～

100%) capacity, yellow a draining charge(10 ～

30%),and red indicates that an immediate recharge

is necessary.

♦ The remaining power suggested by the battery

indicator will vary by the actual driving time

incurred and how you drive. Repeated starting,

stopping, climbing will consume the power

more quickly.

■ Main Circuit Breaker (Reset Button)

When the voltage in your scooter’s batteries becomes low or the scooter is heavily

strained because of excessive loads or steep inclines ,the main circuit breaker may tip to

protect the motor and electronics from damage.

♦The main circuit breaker rest button pops out when the

breaker trips.

♦When the breaker trips, the entire electrical system of your

scooter shuts down.

♦Allow a minute or two for your scooter’s electronics to “rest”.

♦Push in the reset button to reset the main circuit breaker.

RED

ELLOW GREEN

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Drive Aide à la mobilité

Drive

Drive 2112-3 Manuel utilisateur

Drive

Drive Raised Toilet Seat Manuel utilisateur

Drive

Drive Comfort TOUCH RTL2017CTK Manuel utilisateur

Drive

Drive PATRIOT Series Manuel utilisateur

Drive

Drive RTL10263KDR Manuel utilisateur

Drive

Drive WINNIE MIMI LITE Manuel utilisateur

Drive

Drive CE 1000 B Manuel utilisateur

Drive

Drive FC 2028 Manuel utilisateur

Drive

Drive D-Lite Manuel utilisateur

Drive

Drive Delphi Manuel utilisateur

Drive

Drive KA 1200N Manuel utilisateur

Drive

Drive RTL800KD-BK Manuel utilisateur

Drive

Drive 10240-2 Manuel utilisateur

Drive

Drive DUPONT MADRID Manuel utilisateur

Drive

Drive Folding Height-Adjustable Quad Cane Manuel utilisateur

Drive

Drive DeVilbiss HEALTHCARE ROAD Manuel utilisateur

Drive

Drive PreserveTech RTL12C005-WH Manuel utilisateur

Drive

Drive FC 2030N Manuel utilisateur

Drive

Drive RTL10266BK Manuel utilisateur

Drive

Drive ROOMBA Manuel utilisateur

Drive

Drive 11148-1 Manuel utilisateur

Drive

Drive Q-011000 Manuel utilisateur

Drive

Drive Ready Set Go Manuel utilisateur

Drive

Drive Aluminium Triwalker Steel Triwalker Guide de l'utilisateur

Manuels Aide à la mobilité populaires d'autres marques

Alber

Alber Scalamobil iQ Manuel utilisateur

Ferno

Ferno CCT-PX Manuel utilisateur

HEPRO

HEPRO Gripo Manuel utilisateur

Otto Bock

Otto Bock Pheon 3R62 Manuel utilisateur

NRS Healthcare

NRS Healthcare M11090 Manuel utilisateur

Medline

Medline MDS86835DSHEC Guide d'installation

Guldmann

Guldmann Twin Turner II Manuel utilisateur

Gate

Gate Balder Manuel utilisateur

Decon wheel

Decon wheel TNS Notos Manuel utilisateur

ExoAtlet

ExoAtlet ExoAtlet-II Manuel utilisateur

Invacare

Invacare Storm Series Mode d’emploi

Rhythm Healthcare

Rhythm Healthcare B3800F Manuel utilisateur

AMF-BRUNS

AMF-BRUNS PROTEKTOR Manuel utilisateur

Drive DeVilbiss Healthcare

Drive DeVilbiss Healthcare OTTER Manuel utilisateur

Rhythm Healthcare

Rhythm Healthcare C500U Manuel utilisateur

Lumex

Lumex RJ4200A Manuel utilisateur

Rebotec

Rebotec Jumbo Manuel utilisateur

Rehaforum MEDICAL

Rehaforum MEDICAL PR50548 Manuel utilisateur
