Drive Q-011000 Manuel utilisateur

Dynamic Rollator

item #s:

Q-011000

Q-012000

Q-154000

Q-172000

Q-848000

www.drivemedical.com

Rev.1.07.21.14

parts list

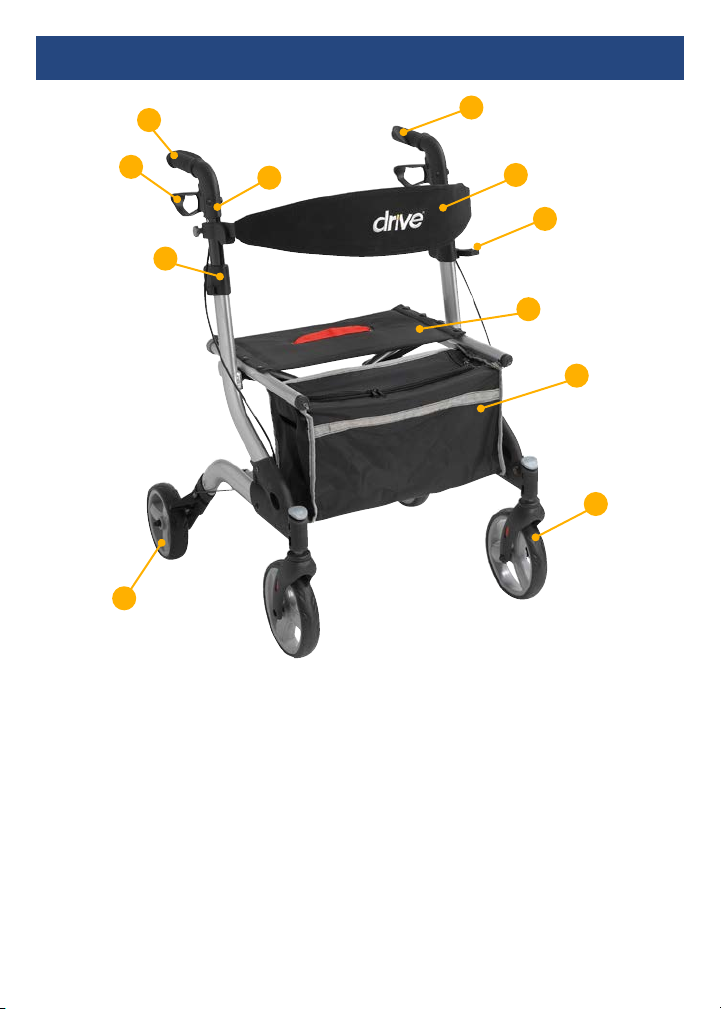

1. Handgrip

2. Adjustable tubing handgrip

3. Rear reflector on handgrip

4. Brake lever

5. Interlock button for handgrips

6. Backrest

7. Seat

8. Bag

9. Front wheel

10. Rear wheel

11. Cane Holder

Rev.1.07.21.14

Item # Q-848000

WEIGHTCAPACITYLBSKG

The Walking aid is suitable for a single user with limited mobility. The Dynamic

Rollator is ideal for indoor and outdoor use.

1. Wheels 3. Carry Bag 5. Cane Holder

2. Handles 4. Backrest 6. Operating Instructions

introduction

includes:

1. Remove contents from carton. (Figure 1)

assembly instructions

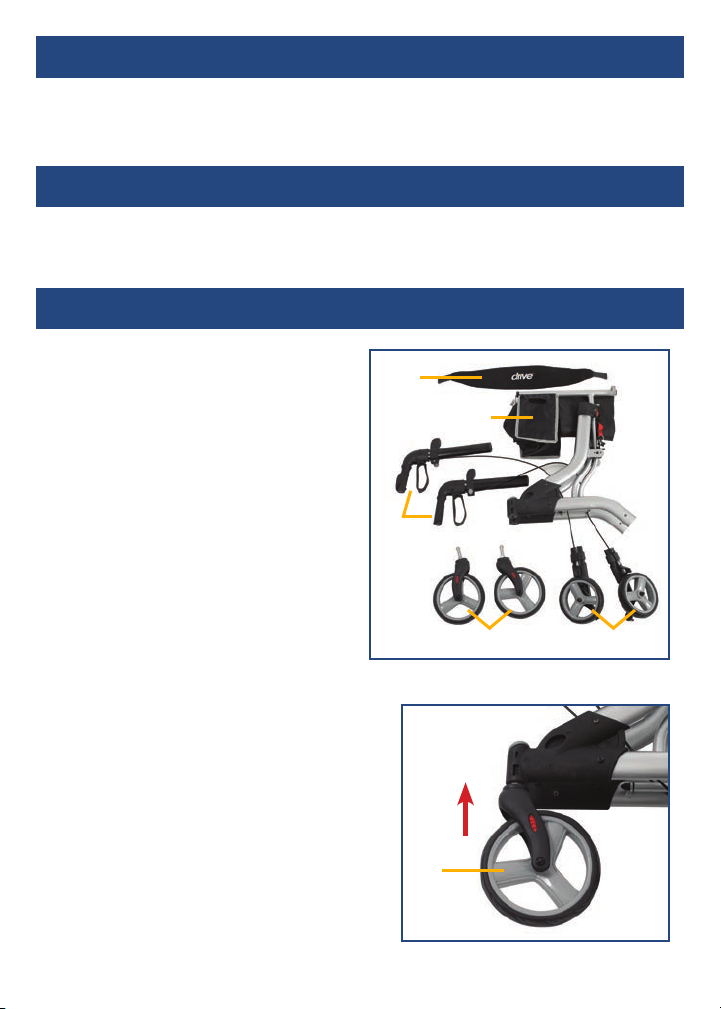

2. Insert front wheel (A) into receptacle

located on the front of the frame. A click

can be heard when the wheel is securely

in place. Repeat for the second front

wheel (Figure 2).

Figure 2

Figure 1

A B

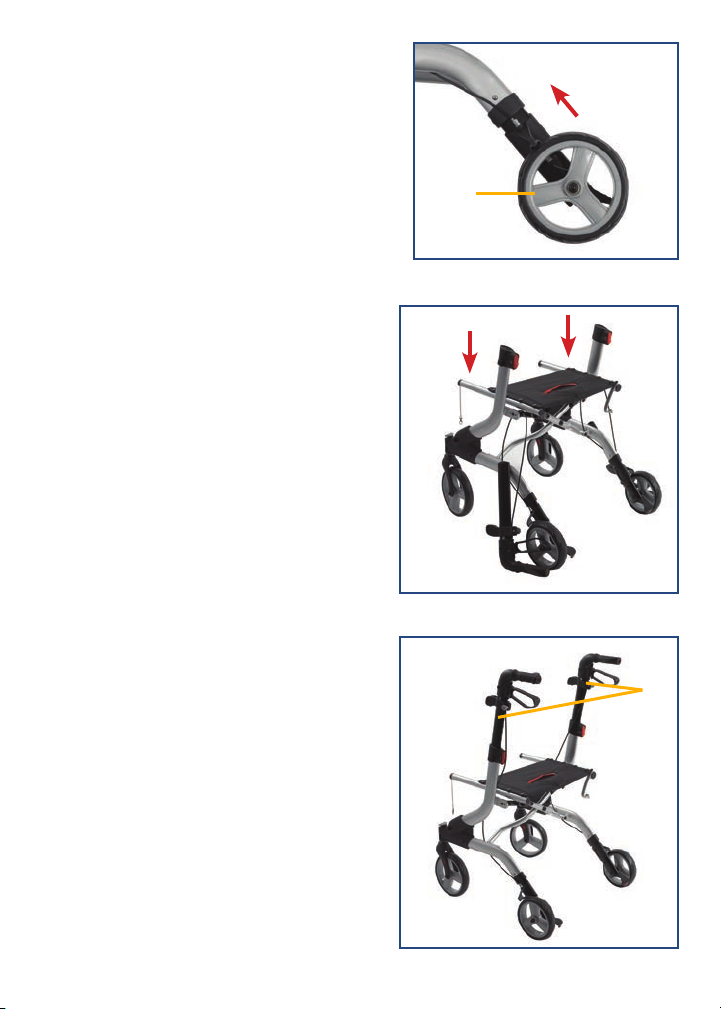

3. Insert back wheel (B) into back of frame

by depressing push pin and sliding into

the back receptacle, making sure the

wheels face outwards from the frame.

The push pin will snap into place when

secure. Repeat for the second back

wheel. (Figure 3)

4. Unfold the Dynamic Rollator by

pressing down on both sides of the

seat frame. (Figure 4)

5. Insert the handles (C) into the handle

receptacles. Press in the red buttons

located on the back of the Dynamic

Rollator and slide the handles into the

frame to secure the handles in place.

(Figure 5)

Rev.1.07.21.14

Figure 5

Figure 3

Figure 4

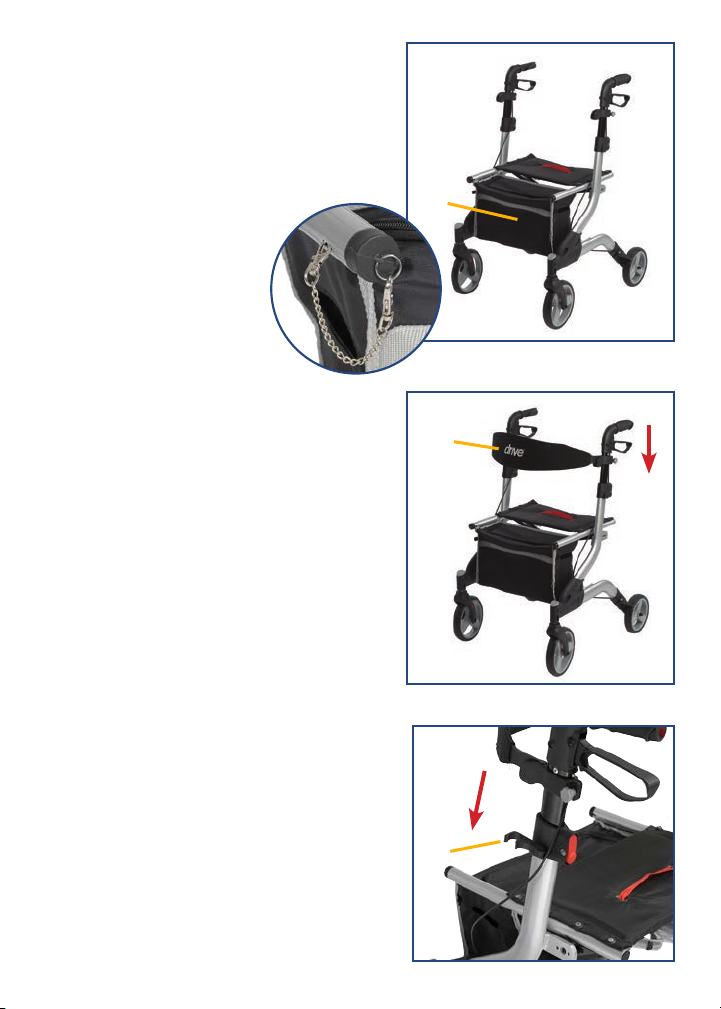

6. Attach the bag (D) to the seat frame by

sliding the bag into the grooves located on

the inside of the frame. Secure the bag

in place by sliding the knobs into the end

of the frame and rotating. Attach knobs

to the frame by hooking the clasp into the

receptacle on the outside of

the frame. (Figure 6)

NOTE Fold the Dynamic

Rollator slightly to make it

easier to install the bag.

Figure 6

7. Attach the backrest (E) by sliding the

backrest hooks down into the receptacles

located on the front of the frame.

(Figure 7)

8. Attach the cane holder (F) to the side

of frame by sliding it down over the

receptacle located on the side of the

handle height adjustment buttons.

(Figure 8)

Figure 7

Figure 8

Rev.1.07.21.14

height adjustment

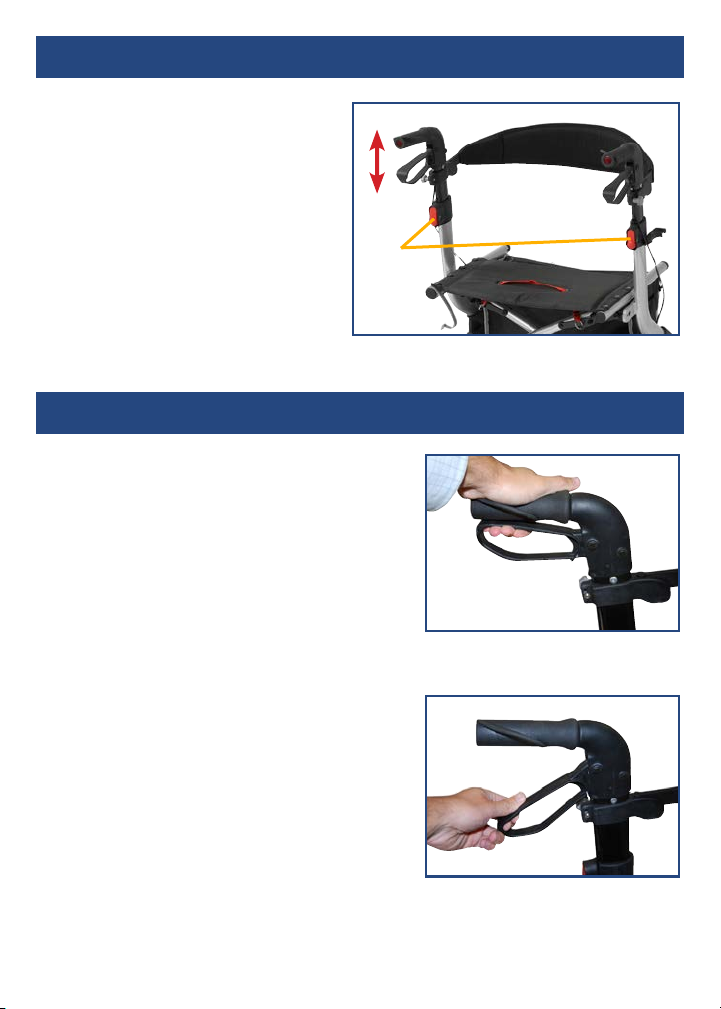

9. Press the red release buttons (G)

for handgrips, as shown in Figure

9, and pull the handgrip upwards

at the same time. As the handle

moves, release the button. This

automatically locks in the next

possible height. Repeat this

process until the desired height is

reached.

braking / locking

10. Pull both brake levers upwards to apply the

brakes while the Dynamic Rollator is moving.

(Figure 10) Always brake slowly and steady.

Press both brake levers down to apply the

locks while the Dynamic Rollator is stationary.

(Figure 11) Pull up the brake levers and

release to release the locks.

The effect of the brakes can be affected by

abrasion of the wheels.

Regularly test the brakes.

Figure 10

Figure 11

Figure 9

sitting

11. Position the Dynamic Rollator on an even and solid surface. Lock the brakes

(parking position). The Dynamic Rollator must stand and must not slip. Sit

straight up and do not lean backwards.

DO NOT MOVE ROLLATOR WHILE SEATED.

folding / transport / storage

12. To fold, pull seat upwards by the red handle on the seat plate as shown in

Figure 12. The Dynamic Rollator can now be folded completely and secured by

using the safety clasp (G) as shown in Figure 13.

Figure 13

Figure 12

safety instructions

•Use only as a walking aid!

•Use only on even and solid surfaces.

•Maximum user weight: 300 lbs.

•Regularly check the screws and fasteners on the Dynamic Rollator and retighten

if necessary.

•Use bag only for transport of objects and do not overload. Maximum load: 11 lbs.

•Do not expose the product to temperatures above 104°F for an extended period

of time, as this can cause the Dynamic Rollator parts to overheat and burn the

user.

•Please make sure the Rollator is fully opened, seat is down and the folding bar

under seat is locked in the down position.

•Be sure that both knobs are fully tightened and are at equal heights. Test

Rollator for stability before applying full weight to hand grips.

•Test the brake lever before operating the Rollator. When wheels are locked, lock

bar on rear wheels should prevent wheels from turning. When locks are released,

the wheels should turn freely.

•Always lock the brake lever before sitting and do not use seat when unit is on an

incline or uneven ground.

•Replace tires when significantly worn or damaged.

•DO NOT MOVE ROLLATOR WHILE SEATED. This is a walking aid only

and is not to be used as a transportation device.

cleaning / maintenance

Clean regularly by hand with a damp cloth. Do not use aggressive detergents.

Rev.1.07.21.14

The frame of your Drive Medical product is warrantied to be free of defects

in material and workmanship for the lifetime of the product for the original

consumer purchaser. The brake handle and housing are covered for a period

of 5 years from the date of purchase for the original consumer purchaser.

This device was built to exacting standards and carefully inspected prior to

shipment. This Lifetime Limited Warranty is an expression of our confidence

in the materials and workmanship of our products and our assurance to the

consumer of years of dependable service.

This warranty does not cover device failure due to owner misuse or

negligence, or normal wear and tear. The warranty does not extend to

non-durable components, such as rubber accessories, casters, and grips,

which are subject to normal wear and need periodic replacement.

If you have a question about your Drive device or this warranty, please

contact Drive Medical toll-free at 877-224-0946.

Drive is a trademark of Medical Depot, Inc.

Port Washington N.Y. 11050 USA Made in China

lifetime limited

warranty

Rev.1.07.21.14
