Doosan P260/HP220WYM Manuel

Doosan Infracore Portable Power

1293 Glenway Drive

Statesville, N.C. 28625

www.doosanportablepower.com

Book: 46553446 (3-2010) Rev A

This manual contains important safety information.

Do not destroy this manual.

This manual must be available to the personnel who operate and maintain this machine.

OPERATION, MAINTENANCE,

COMPRESSOR MODEL

P260/HP220WYM-T3 (D82)

MANUAL

Revised (10-12)

Doosan purchased Bobcat Company from Ingersoll-Rand Company in

2007. Any reference to Ingersoll-Rand Company or use of trademarks,

service marks, logos, or other proprietary identifying marks belonging

to Ingersoll-Rand Company in this manual is historical or nominative

in nature, and is not meant to suggest a current affiliation between

Ingersoll-Rand Company and Doosan Company or the products of

either.

1 - 1

TABLE OF CONTENTS

Manual-Name

TITLE PAGE

FOREWORD. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3

Foreword. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4

DRAWBAR NOTICE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7

SAFETY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-11

Safety Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-12

NOISE EMISSION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-21

Noise Emission . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-22

This section pertains only to machines distributed within the United States. . . . . . . . . . . . . . . . . . . 2-22

Noise Emission Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-23

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-23

GENERAL DATA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-27

General Data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-28

Unit Model: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-28

FLUID CAPACITIES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-28

RUNNING GEAR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-28

UNITS MEASUREMENTS WEIGHTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-28

EXPENDABLE SERVICE PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-29

OPERATION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-31

BEFORE TOWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-32

TOWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-33

CONTROL PANEL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-33

LUBRICATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-41

Lubrication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-42

Portable Compressor Fluid Chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-42

1 - 2

TABLE OF CONTENTS

Manual-Name

TITLE PAGE

MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-43

Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-44

General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-44

Scheduled Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-44

Compressor Oil Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-44

Air Cleaner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-45

Gauges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-45

Fuel Tank . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-45

Battery. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-45

Fasteners . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-46

Radiator. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-46

Hoses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-46

Compressor Oil Cooler . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-48

Compressor Oil. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-48

Receiver-Separator Systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-49

Scavenge Line . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-50

Exterior Finish Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-50

MAINTENANCE SCHEDULE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-52

TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-53

Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-54

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-54

Action Plan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-54

Trouble Shooting Chart. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-55

Book: 46553446 (3-15-2010) Rev A 3

Foreword

Operating & Maintenance Manual Foreword

4Book: 46553446 (3-15-2010) Rev A

Foreword

The contents of this manual are considered to be proprietary and confidential to Doosan

Infracore Portable Power (herein referred to as “Portable Power”), and should not be

reproduced without the prior written permission of Portable Power.

Nothing contained in this document is intended to extend any promise, warranty or

representation, expressed or implied, regarding the Portable Power products described

herein. Any such warranties or other terms and conditions of sale of products shall be in

accordance with the standard terms and conditions of sale for such products, which are

available upon request.

This manual contains instructions and technical data to cover all routine operation and

scheduled maintenance tasks by operation and maintenance staff. Major overhauls are

outside the scope of this manual and should be referred to an authorized Portable Power

Service department.

All components, accessories, pipes and connectors added to the compressed air system

should be:

• of good quality, procured from a reputable manufacturer and, wherever possible, be

of a type approved by Portable Power.

• clearly rated for a pressureat least equal to the machine maximum allowable working

pressure.

• compatible with the compressor lubricant/coolant.

• accompanied with instructions for safe installation, operation and maintenance.

Details of approved equipment are available from the Portable Power Service departments.

The use of repair parts other than those included within the approved parts list may create

hazardous conditions over which Portable Power has no control. Therefore, Portable Power

cannot be held responsible for equipment in which non-approved repair parts are installed.

Portable Power reserves the right to make changes and improvements to products without

notice and without incurring any obligation to make such changes or add such improvements

to products sold previously.

The intended uses of this machine are outlined below and examples of unapproved usage are

also given. However, Portable Power cannot anticipate every application or work situation that

may arise. If in doubt, consult supervision.

This machine has been designed and supplied for above ground operation to be used for

compression of normal ambient air containing no additional gases, vapors or particles within

the ambient temperature range specified in the general data section of this manual.

Foreword Operating & Maintenance Manual

Book: 46553446 (3-15-2010) Rev A 5

This machine should not be used:

A. For direct or indirect human consumption of the compressed air.

B. Outside the ambient temperature range specified in the general data section of

this manual.

C. When an actual or foreseeable risk of hazardous levels of flammable gases or

vapors exists.

D. With other than Portable Power approved components.

E. With guards, or controls or switches missing or disabled.

F. For storage or transportation of materials inside or on the enclosure.

This company accepts no responsibility for errors in translation of this manual from the original

English version.

You as the customer are expected to provide certain service and maintenance items. Your

Portable Power dealer will provide all other more detailed service and maintenance items on

a special preventive maintenance schedule for each machine. It is very important that the

minimum service and maintenance requirements explained in this manual be performed at the

required intervals. Exceeding these intervals may reduce the reliability of the machine.

The purpose of this manual is to train the operator with functions, operation, and basic service

and maintenance requirements of the compressor. During the preparation of this manual,

every effort was made to ensure the adequacy and accuracy of the contents.

Your Portable Power dealer will assist with setup and initial startup of the compressor. He will

also provide brief operating and service instructions and will insure that a copy of this manual

is included with the machine. Before starting the compressor, this manual and instructions

should be carefully read to obtain a thorough knowledge of the duties to be performed. Please

take pride in the compressor, keep it clean, and in good mechanical condition.

Operating & Maintenance Manual Foreword

6Book: 46553446 (3-15-2010) Rev A

Book: 46553446 (3-15-2010) Rev A 7

DRAWBAR NOTICE

Operating & Maintenance Manual DRAWBAR NOTICE

8Book: 46553446 (3-15-2010) Rev A

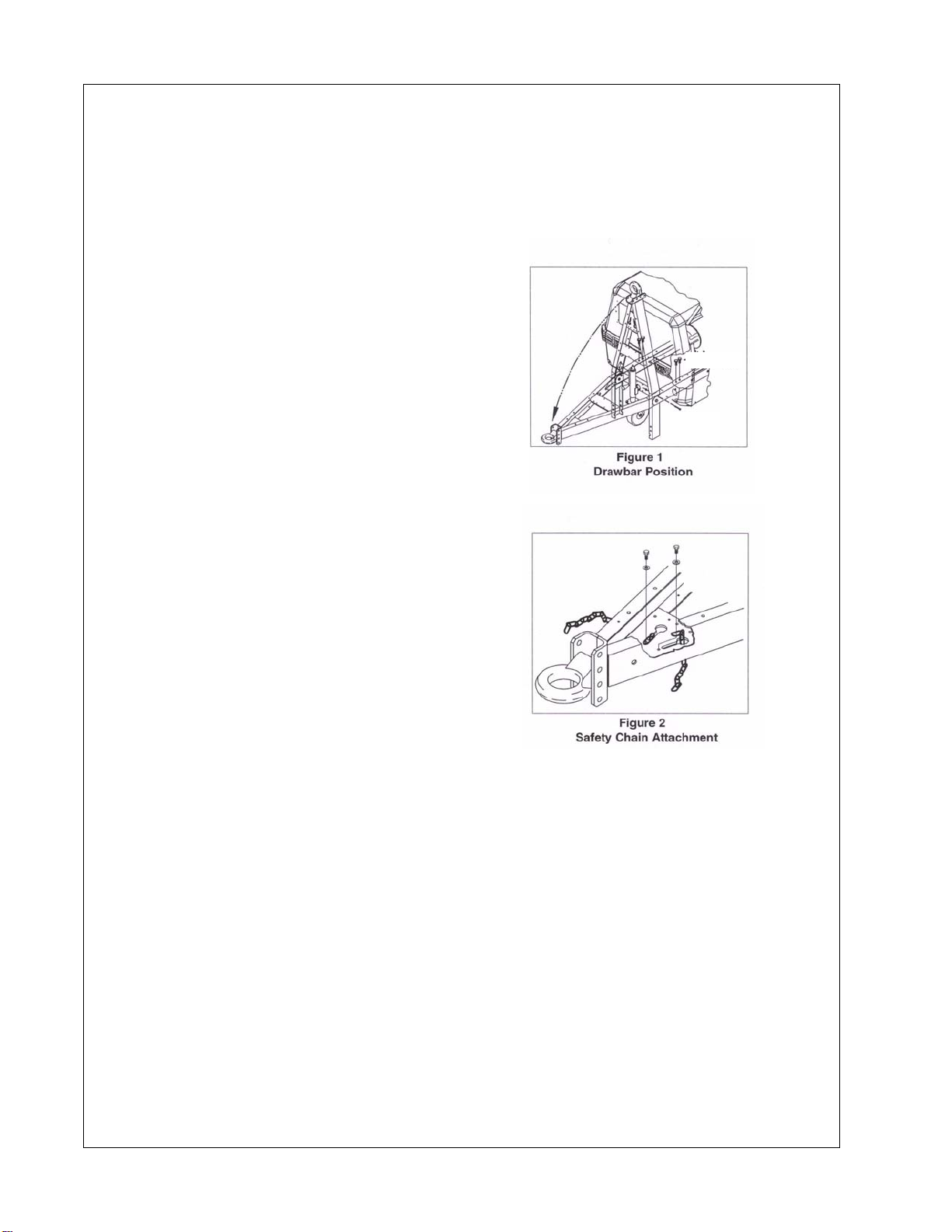

DRAWBAR NOTICE (Important)

This machine may have been shipped from

the factory with the drawbar positioned

upright.

To Convert From Shipping Position to

Towing Position

The following tools are required:

Ratchet

13mm socket to fit ratchet

Torque wrench set to 68 foot pounds (9.4 kg-

meters)

16mm socket to fit torque wrench

5 inch extension for torque wrench

Hardware Included:

(4) 12mm bolts with pre-applied thread lock

(2) 8mm Taptite Bolts

(2) Washers

(2) Safety Chains

1. Remove hardware box from compressor

toolbox.

2. Open box and remove the bag containing

hardware, safety chains and assembly

instructions.

3.Using the jack, raise the front of the unit so

that the legs are approximately 1” above the

ground.

4.Remove the temporary retaining bolts from

both sides of the frame at the drawbar

connection (See Figure 1).

5.Carefully lower drawbar to the Level

Position.

6.Install the four bolts (with pre-applied

thread lock) to the four points inside the

enclosure and torque to 68 ft. lbs.(9.4kg-m)

(See Figure 2).

7.Install safety chains by sliding the second

link of one chain into the slot in drawbar

plate. Fasten chain to plate using taptite and

washer. Repeat for the other chain (See

Sketch).

8. Temporarily support drawbar and move

jack from front of compressor to side of

drawbar.
