INSTALLATION AND PROGRAMMING GUIDE

7000 Series ThinlineTM and

AqualiteTM Keypad

TABLE OF CONTENTS

About the Keypad .........................1

Keypad Features........................... 2

Enter Characters........................... 4

Number Pad .......................................................... 4

Panic Key Options .............................................. 5

User Options Menu............................................. 6

Install the Keypad......................... 7

Remove the Cover.............................................. 7

Wire the Keypad.................................................. 8

Wire for Access Control ................................... 11

Wire the Electronic Lock ................................13

Wire the 333 Suppressor .................................13

Program the Keypad ................... 16

Keypad Options...................................................16

Custom Card Format.................. 20

Additional Programming................................. 27

Test the Keypad ...........................28

End User Training ....................... 30

Keypad Arming and Disarming .....................31

Keypad Access Control ................................... 33

Keypad Entry Delay .......................................... 34

Wiring Speciﬁcations..................35

Keypad Speciﬁcations ............... 36

Public Card Formats ...................37

Readers and Credentials ............38

Compliance Speciﬁcations ....... 40

Accessories.................................. 40

Certiﬁcations................................ 41

FCC Information ......................... 42

Industry Canada Information.... 43

7000 Series Installation and Programming Guide | Digital Monitoring Products, Inc. 1

ABOUT THE KEYPAD

Thinline Series (7060, 7063, 7070, 7073, 7160, 7163, 7170, and 7173) and Aqualite Series

(7060A, 7063A, 7070A, and 7073A) LCD keypads oer ﬂexible features and functionality.

Each keypad provides:

• Custom 16-character home or business name in the display

• Four 2-button panic keys

• AC Power/Armed LED

• 32-character display

• Backlit keyboard and DMP logo

• Internal speaker

• Red keyboard lighting in alarm conditions

• Simple harness connection to 4-wire keypad bus

• Optional backboxes for conduit or wall mount applications

Models 7070/A, 7073/A, 7170, and 7173

Provide four fully-programmable, Class B, Style A, supervised, power limited protection

zones that can be programmed for a variety of burglary and access control applications.

Models 7063/A, 7073/A, 7163, and 7173

Provide a built-in proximity card reader designed to read proximity credentials.

Models 7073/A and 7173

Provide a door strike relay and allow Wiegand input from external card readers.

Digital Monitoring Products, Inc | 7000 Series Installation and Programming Guide2

KEYPAD FEATURES

FRI 2: 52 PM

1 2 3 4

5 6 7 8

9 0 CMD

Armed/Power

LEDs

Proximity

Credential Reader

and Backlit Logo

Keypad Display/

Status List

Select Keys

Panic Keys

Command

(CMD) Key

Back Arrow Key

1 43

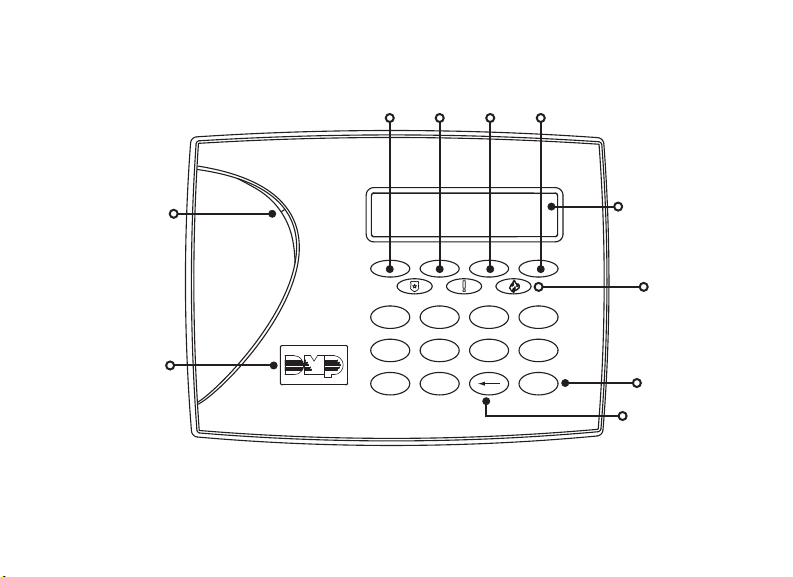

Figure 1: 7000 Series LCD Keypad

7000 Series Installation and Programming Guide | Digital Monitoring Products, Inc. 3

ABC SECURITY

FRI 2: 52 PM

1 2 3 4

5 6 7 8

Power LED

Armed LED

32-Character Display

Select Keys

Command

Back Arrow

9 0 CMD

Proximity

Credential

Reader and

Backlit Logo

Figure 2: Thinline 7100 Series LCD Keypad

Digital Monitoring Products, Inc | 7000 Series Installation and Programming Guide4

ENTER CHARACTERS

NUMBER PAD

1. Choose a character from the table. Use the Greek Characters table if Greek was

selected as the keypad language setting.

2. Identify the Number the character correlates with and press that number on the

number pad.

3. Identify the Select Key for the character and press that select key on the keypad.

Press that select key again for the lowercase letter (Latin characters only).

4. When the desired character displays on the keypad, return to step 1 to enter

another character or press CMD if ﬁnished.

NUMBER SELECT KEY

12 3 4

1A B C ( [ {

2D E F ) ] }

3G H I ! ^ ~

4J K L ? “ |

5M N O / \ `

6P Q R & $

7S T U @ %

8V W X , =

9Y Z Space : _ ;

0- + . ‘ * < # >

Table 1: Latin Characters

NUMBER SELECT KEY

12 3 4

1Α Β Γ ( [ {

2Δ Ε Ζ ) ] }

3Η Θ Ι ! ^ ~

4Κ Λ Μ ? “ |

5Ν Ξ Ο / \ `

6Π Ρ Σ & $

7Τ Υ Φ @ %

8Χ Ψ Ω , =

9Space Space Space : _ ;

0- + . ‘ * < # >

Table 2: Greek Characters

7000 Series Installation and Programming Guide | Digital Monitoring Products, Inc. 5

PANIC KEY OPTIONS

2-Button Panic Keys

All keypads oer a panic key function that allows users to send panic, emergency, or ﬁre

reports to the central station in an emergency. Enable the panic key function in the keypad

user menu. Place the supplied icon stickers below the top row select keys. The user must

press and hold the two select keys for two seconds until a beep is heard.

Panic (left two select keys)—Zone 19 + Device Address

Emergency Non-Medical (center two select keys)—Zone 29 + Device Address

Fire (right two select keys)—Zone 39 + Device Address

7/0 Panic Keys

All keypads allow the user to initiate a panic alarm by pressing the 7 and 0 (zero) keys at

the same time for one-half (1/2) second. Enable the 7/0 Panic function in Installer Options.

When enabled, all keypads send a Zone Short message to the panel for the ﬁrst zone of

the keypad address. When the keys are released, a Zone Restore message can be sent

from the initiating keypad. To produce a panic alarm, program the ﬁrst zone of the keypad

address as a panic type (PN) in panel programming. Place a 1k Ohm end-of-line (EOL)

resistor, DMP Model 311, across the white/brown pair of zone wires on models 7070/A,

7073/A, 7170, and 7173. A Zone Restore message sends when the keys are released. The 1k

Ohm EOL resistor is not required on 7060/A, 7063/A, 7160, and 7163 keypads.

Digital Monitoring Products, Inc | 7000 Series Installation and Programming Guide6

USER OPTIONS MENU

To access the Options menu, press and hold the back arrow and CMD keys for 2 seconds.

Backlighting Brightness

Adjust the LCD display brightness level, power and armed LEDs, the green keyboard,

and the logo backlighting. At SET BRIGHTNESS, use the left select key to decrease the

brightness and the right select key to increase the brightness. If the brightness level is

lowered, it reverts to maximum intensity whenever a key is pressed. If no keys are pressed,

and the speaker has not sounded for 30 seconds, the user-selected brightness level

restores.

Internal Speaker Tone

Adjust the keypad internal speaker tone. At SET TONE, use the left select key to decrease

the tone and the right select key to increase the tone.

Internal Volume Level

Adjust the keypad internal speaker volume for key presses and entry delay tone

conditions. During alarm and trouble conditions, the volume is always at maximum level.

At SET VOLUME LEVEL, use the left select key to decrease the volume and the right select

key to increase the volume.

Model Number

Display the keypad model number, ﬁrmware version, and date.

Keypad Address

Display the current keypad address.
