Owner’s Manual

Model

DS5629

7208330100R03

IMPORTANT SAFETY INFORMATION: Always read this manual rst

before attempting to install or use this stove. For your safety, always

comply with all warnings and safety instructions contained in this manual

to prevent personal injury or property damage.

To view the full line of Dimplex products, please visit

www.dimplex.com

2 www.dimplex.com

Table of Contents

Always use a qualied technician

or service agency to repair

this stove.

!NOTE: Procedures and

techniques that are

considered important

enough to emphasize.

CAUTION: Procedures and

techniques which, if not

carefully followed, will result

in damage to the equipment.

WARNING: Procedures

and techniques which, if not

carefully followed, will expose

the user to the risk of re,

serious injury, or death.

Welcome & Congratulations . . . . . . . . . . . . . . . . .3

IMPORTANT INSTRUCTIONS . . . . . . . . . . . . . . .4

Stove Installation ..........................7

Operation................................8

Maintenance............................10

Warranty ...............................12

ReplacementParts........................14

Welcome & Congratulations

Thank you and congratulations for choosing to purchase an electric

stove from Dimplex, the world leader in electric replaces.

Please carefully read and save these instructions.

CAUTION: Read all instructions and warnings carefully before

starting installation. Failure to follow these instructions may result in a

possible electric shock, re hazard and will void the warranty.

Please record your model and serial numbers below for future

reference: model and serial numbers can be found on the Model and

Serial Number Label of your stove.

Model

Number

NO NEED TO RETURN TO THE STORE

Questions with operation or assembly? Require Parts Information?

Product Under Manufacturer’s Warranty?

For Troubleshooting and Technical Support

OR Toll-Free 1-888-DIMPLEX (1-888-346-7539)

Monday to Friday 8:00 a.m. to 4:30 p.m. EST

Please have your model number and product serial

number ready. (See above)

Model Number

Serial

Number

Serial Number

4 www.dimplex.com

When using electrical appliances,

basic precautions should always

be followed to reduce the risk of

fire, electric shock, and injury to

persons, including the following:

①Read all instructions before

using the Stove.

②The heater is hot when in use.

To avoid burns, do not let bare

skin touch hot surfaces. The trim

around the heater outlet becomes

hot during heater operation.

Keep combustible materials, such

as furniture, pillows, bedding,

papers, clothes, and curtains at

least 3 feet (0.9m) from the front

of the unit.

CAUTION: High Temperature,

keep electrical cords, drapery,

and other furnishings at least 3FT

(.9m) from the front of the heater

and away from the side and rear.

③ Extreme caution is necessary

when any heater is used by or

near children or invalids and

whenever the unit is left operating

and unattended.

④ Always unplug the Stove when

not in use.

⑤ Do not operate any unit with

a damaged cord or plug, or if the

IMPORTANT INSTRUCTIONS

heater has malfunctioned, or if

the Stove has been dropped or

damaged in any manner. Return

heater to authorized service

facility for examination, electrical

or mechanical adjustment, or

repair.

⑥ Do not use outdoors.

⑦ The Stove is not intended for

use in bathrooms, laundry areas

and similar indoor locations.

Never locate heater where it may

fall into a bathtub or other water

container.

⑧Do not run the cord under

carpeting. Do not cover cord with

throw rugs, runners, or the like.

Arrange cord away from trafc

area and where it will not be

tripped over.

⑨To disconnect the unit, turn the

controls off, then remove the plug

from the outlet.

⑩Do not insert or allow foreign

objects to enter any ventilation

or exhaust opening as this may

cause an electric shock or re, or

damage to the heater.

⑪ To prevent a possible re, do

not block air intake or exhaust

in any manner. Do not use on

SAVE THESE INSTRUCTIONS

soft surfaces, like a bed, where

openings may become blocked.

⑫All electrical heaters have hot

and arching or sparking parts

inside. Do not use in areas where

gasoline, paint, or ammable

liquids are used or stored or

where the unit will be exposed to

ammable vapors.

⑬Do not modify the Stove.

Use it only as described in

this manual. Any other use

not recommended by the

manufacturer may cause re,

electric shock or injury to persons.

⑭ To reduce the risk of electric

shock, this appliance has a

polarized plug (one blade is wider

than the other). This plug will t in

a polarized outlet only one way.

If the plug does not t fully in the

outlet, reverse the plug. If it still

does not t, contact a qualied

electrician to install the proper

outlet. Do not change the plug

in any way. Avoid the use of an

extension cord. Plug the cord

directly into an appropriate wall

receptacle.

⑮ Do not burn wood or other

materials in the Stove.

⑯Do not strike the clear door

panel.

⑰ Always use a certied

electrician should new circuits or

outlets be required.

⑱ Always use properly

grounded, fused and polarized

outlets.

⑲ Disconnect all power supply

before performing any cleaning,

maintenance or relocation of the

unit.

⑳ When transporting or storing

the unit and cord, keep in a

dry place, free from excessive

vibration and store so as to avoid

damage.

IMPORTANT INSTRUCTIONS

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

NO USER-SERVICEABLE PARTS INSIDE

6 www.dimplex.com

CAUTION: This equipment has

been tested and found to comply with

the limits for Class B digital device,

pursuant to part 15 of the FCC

Rules. These limits are designed to

provide reasonable protection against

harmful interference in a residential

installation. This equipment

generates, uses and can radiate

radio frequency energy and, if not

installed and used in accordance with

the instructions, may cause harmful

interference to radio or television

reception, which can be determined

by turning the equipment off and

on, the user is encouraged to try to

correct the interference by one or

more of the following measures:

Reorient or relocate the receiving•

antenna.

Increase the separation between•

the equipment and the receiver.

Connect the equipment into an•

outlet on a circuit different from

that to which the receiver is

connected.

Consult the dealer or an•

experienced radio/TV technician

for help.

Operation is subject to the following

two conditions: (1) this device may

not cause interference and (2) this

device must accept any interference,

including interference that may cause

undesired operation of the device.

IMPORTANT INSTRUCTIONS

WARNING: Remote control

contains small batteries. Keep away

from children. If swallowed, seek

medical attention immediately.

WARNING: Do not install battery

backwards, charge, put in re or mix

with used or other battery types - may

explode or leak causing injury.

!NOTE: Changes or modications

not expressly approved by the party

responsible for compliance could

void user's authority to operate the

equipment.

Stove Installation

!NOTE: A 15amp, 120

volt circuit is required. A

dedicated circuit is preferred

but not essential in all cases. A

dedicated circuit will be required

if, after installation, the circuit

breaker trips or fuse blows on a

regular basis when the heater is

operating. Additional appliances

on the same circuit may exceed

the current rating of the circuit

breaker.

WARNING: Ensure the power

cord is not installed so that

it is pinched or against a

sharp edge and ensure that

the power cord is stored or

secured to avoid tripping or

snagging to reduce the risk of

re, electric shock or injury to

persons.

Construction and electrical

outlet wiring must comply

with local building codes and

other applicable regulations to

reduce the risk of re, electric

shock and injury to persons.

Do not attempt to wire your

own new outlets or circuits. To

reduce the risk of re, electric

shock or injury to persons,

always use a licensed electri-

cian.

Make sure the units On/Off1.

switch is switched OFF (refer

to operating instruction sec-

tion).

Plug the unit into a2.

15Amp/120volt outlet.

8 www.dimplex.com

To access the controls go to the

back of the Stove

A. 3-Position Switch

The switch has two On positions

marked with "-" and "=". The "-"

position is for manual operation.

In this position the built-in remote

control is bypassed. The "="

position is for operating the unit

with the provided remote control.

When in "=" position the unit is

operated with the On and Off but-

tons of the remote control.

When the switch is in the center

position the unit is off.

B. Heater On/Off Switch

The Heater On/Off Switch sup-

plies power to the heater fan and

the heater element.

C. Heater Thermostat Control

To adjust the temperature to your

individual requirements, turn the

thermostat control clockwise all

the way to turn on the heater.

When the room reached the

desired temperature, turn the

thermostat knob counter clock-

wise until you hear a click. Leave

in this position to maintain the

room temperature at this setting.

For additional heat, turn clockwise

until you hear the click again and

the heater will turn on. To turn the

heater off, switch the Heater On/

Off switch to the Off position.

!NOTE: When the heater is

switched On, the heater fan will

operate. The heater element may

or may not be on, depending on

the thermostat control setting.

(See "Heater Thermostat Con-

trol")

Resetting the Temperature

Cutoff Switch

Should the heater overheat, an

automatic cut out will turn the

heater off and it will not come

back on without being reset. It

can be reset by switching the On/

Off Switch to Off and waiting 5

minutes before switching the unit

back on.

CAUTION: If you need to

continuously reset the heater,

unplug the unit and call Dimplex

Operation

Figure 1

Operation

North America Limited at 1-800-

668-6663.

Remote Control (Figure 2)

The stove is supplied with an inte-

grated On/Off remote control.

!NOTE: Ensure that the stove

3-position switch is set to the

remote control setting, "=".

To operate, push the ON button to

turn stove on, push the OFF but-

ton to turn the stove off.

!NOTE: Before attempting any

operation with the remote, pull

the plastic insulator strip out from

between the remote casing and

battery cover (Figure 2).

Remote Control Reprogram-

ming/Initialization

Place the 3-Position Switch1.

(Figure 1A) in the OFF (“O”)

position.

Wait a minimum of ve (5) 2.

seconds and then place the

3-Position Switch in the Re-

mote position, "=".

Within 10 seconds of chang-3.

ing the switch position, press

the On button located on

the remote control (Figure

2). This will synchronize the

remote control and the stove

receiver.

!NOTE: You will have only 10

seconds to perform this last step.

Failure to do so will result in these

steps needing to be followed

again.

Battery Replacement

To replace the battery:

Slide battery cover open on1.

the remote control.

Correctly install one 12 volt2.

(A23) battery in the battery

holder.

Close the batter cover.3.

Battery must be recycled

or disposed of properly.

Check with your Local

Authority or Retailer for recycling

advice in your area.

Figure 2

Off Button

Button

Battery

Cover

Plastic

Strip

10 www.dimplex.com

WARNING: Disconnect power

before attempting any main-

tenance or cleaning to reduce

the risk of re, electric shock

or damage to persons.

Light Bulb Replacement

Allow at least 5 minutes for light

bulbs to cool off before touching

bulbs to avoid accidental burning

of skin.

Light bulbs need to be replaced

when you notice a dark section of

the ame or when the clarity and

detail of the log exterior disap-

pears. There are two bulbs under

the log set which generate the

ames and embers.

Tool Requirements - Phillips

screw driver

Helpful Hints: It is a good idea to

replace all light bulbs at one time

if they are close to the end of their

rated life. Group replacement will

reduce the number of times you

need to open the unit to replace

light bulbs.

Upper Light Bulb Requirements

Quantity of 1 clear chandelier or

candelabra bulbs with an E-12

(small) socket base, 7 watt rating.

Upper Bulb Replacement

Open door by pulling the1.

Maintenance

handle.

Locate the upper bulb brack-2.

et.

Bend light retainer bracket3.

down.

Locate and remove the light4.

bulb.

Insert new bulb.5.

Bend light retainer bracket6.

back into its original position.

Close the door.7.

Lower Light Bulb Requirements

Quantity of 2 clear chandelier or

candelabra bulbs with an E-12

(small) socket base, 60 watt rat-

ing.

Lower Bulb Replacement

Open door by pulling the1.

handle.

Remove the screw from the2.

logset located in the center

of the emberbed and remove

the logset from the unit.

Locate and examine the bulbs3.

to determine which bulb(s)

required replacement.

Locate and remove the light4.

bulb(s).

Insert new bulb(s).5.

Install the logset into the unit,6.

pushing rmly against the

Autres manuels pour DS5629

Table des matières

Autres manuels Dimplex Poêle

Dimplex

Dimplex 143041WT Manuel utilisateur

Dimplex

Dimplex Westcott 12kW Stove Manuel utilisateur

Dimplex

Dimplex Club CLB20 Manuel utilisateur

Dimplex

Dimplex RIT20 Manuel utilisateur

Dimplex

Dimplex ELECTRALOG CS4416 Manuel utilisateur

Dimplex

Dimplex BAR20-AU Manuel utilisateur

Dimplex

Dimplex ELECTRIC PATIO STOVE Manuel utilisateur

Dimplex

Dimplex Delaware DWR20 Manuel utilisateur

Dimplex

Dimplex Bellingham BLM4iSE Manuel utilisateur

Dimplex

Dimplex Cadogan CGN20 Manuel utilisateur

Dimplex

Dimplex DS7420 Guide de démarrage rapide

Dimplex

Dimplex VLT-OV Manuel utilisateur

Dimplex

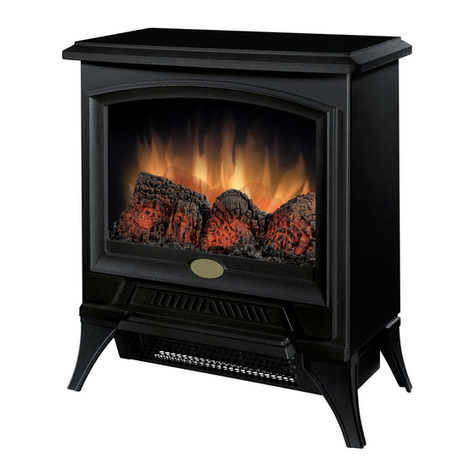

Dimplex ELECTRALOG CS1205 Manuel utilisateur

Dimplex

Dimplex Westcott WST4i Manuel utilisateur

Dimplex

Dimplex ROTHESAY RSY20BR Manuel utilisateur

Dimplex

Dimplex Langbrook LBK5 Manuel utilisateur

Dimplex

Dimplex CS-12056A Manuel utilisateur

Dimplex

Dimplex Westcott 5 Manuel utilisateur

Dimplex

Dimplex Optiflame Cassia Noir RTOFSTV20 Mode d’emploi

Dimplex

Dimplex Bayport BYP20 Mode d’emploi

Dimplex

Dimplex Optiflame Leckford LEC20 Mode d’emploi

Dimplex

Dimplex Westcott 5 WST5SE Manuel utilisateur

Dimplex

Dimplex DS6650 Manuel utilisateur

Dimplex

Dimplex Willowbrook WLL20 Mode d’emploi

Manuels Poêle populaires d'autres marques

Arada

Arada Cassette Stove Manuel utilisateur

Parmco

Parmco FS 600 Manuel utilisateur

MCZ

MCZ SUITE AIR 10 M2 Manuel utilisateur

HearthStone

HearthStone Stowe DV 8321 Guide de dépannage

Cattara

Cattara FAMILY Manuel utilisateur

Stanley

Stanley Argon F500 OVAL Manuel utilisateur

Avalon

Avalon B-VENT Manuel utilisateur

Nordpeis

Nordpeis Vega Manuel utilisateur

Exquisit

Exquisit EKC601-5 Manuel d'utilisation

Stanley

Stanley Oisin Oil MK II Manuel du propriétaire

Thermocet

Thermocet Brookfield S/CC Manuel utilisateur

HASE

HASE delhi Manuel utilisateur

Vermont Castings

Vermont Castings Intrepid 2 Manuel utilisateur

Italiana Camini

Italiana Camini CLASSICA Guide de démarrage rapide

Avalon

Avalon Vashon Avanti DVS FS Manuel utilisateur

Spartherm

Spartherm ambiente a1 Manuel utilisateur

Warmlite

Warmlite WL46040 Manuel utilisateur

Regency

Regency Ultimate U39E Series Guide de démarrage rapide
