SYMPHONY

MODEL SF5598

PARTS & SERVICE MANUAL

TABLE OF CONTENTS

OPERATION PAGE 3

PARTS DRAWING PAGE 5

PARTS LIST/WIRING SCHEMATIC PAGE 6

UPPER LIGHT BULB REPLACEMENT PAGE 7

LOWER LIGHT BULB REPLACEMENT PAGE 8

MAIN POWER ON/OFF SWITCH REPLACEMENT PAGE 9

LIGHT DIMMER SWITCH REPLACEMENT PAGE 10

FLAME SPEED CONTROL REPLACEMENT PAGE 11

FLAME MOTOR/FLAME ROD REPLACEMENT PAGE 12

HEATER ON/OFF SWITCH PAGE 14

HEATER THERMOSTAT REPLACEMENT PAGE 15

HEATER ASSEMBLY REPLACEMENT PAGE 16

POWER CORD REPLACEMENT PAGE 17

SYMPHONY ELECTRIC FIREPLACE

OPERATION

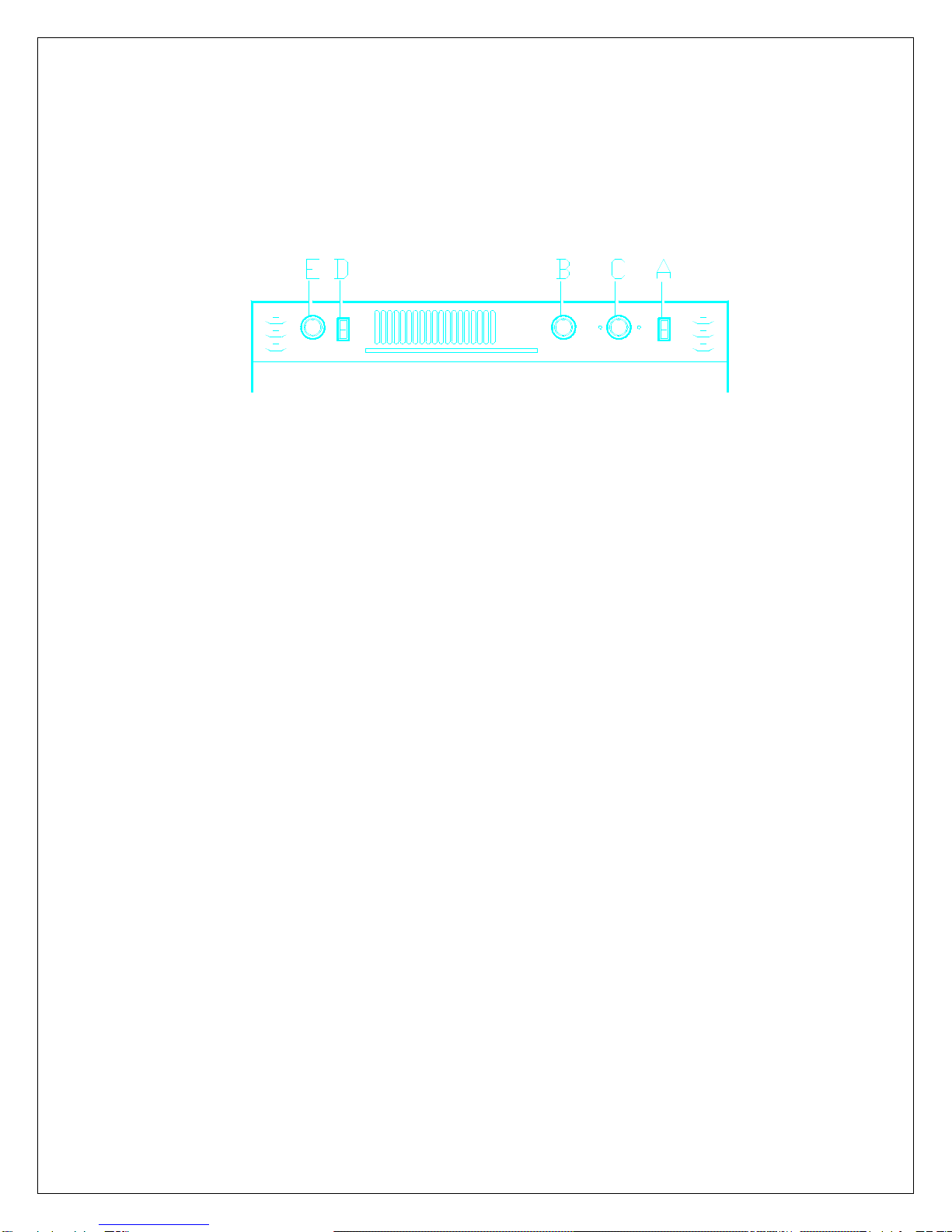

This section will explain the function of each convent control.

To access the controls, open the upper grill by pulling near the top, forward

and down.

A. MAIN ON/OFF SWITCH

The on/off switch supplies power to all fireplace functions (heater & flame).

B. FLAME SPEED CONTROL (not available on some models)

Turn the flame speed control knob to adjust the flame speed to the desired

level.

C. FLAME LIGHT DIMMER CONTROL

Turn the flame brightness control to increase or decrease the brightness

of the flame and embers.

D. HEATER ON/OFF SWITCH

The heater on/off switch supplies power to the heating unit when the main

on/off switch (A) is in the on position.

E. HEATER THERMOSTAT CONTROL

To adjust the temperature to your individual requirements, turn the

thermostat control clockwise all the way to turn in the heater. When the

room reaches the desired temperature, turn the thermostat knob counter

clockwise until you hear a click. Leave in this position to maintain the

room temperature at its setting. For additional heat, turn clockwise until

you hear the click again and the heater will turn on. To turn the heater off,

rotate the knob fully counter clockwise.

RESETTING THE TEMPERATURE CUTOFF

This unit is equipped with a thermostat which controls the temperature of

the room. It does this by turning the heater on and off. The heater is

protected with a safety device to prevent overheating. Should the heater

overheat, an automatic cut out will turn the heater off and it will not come

back on without being reset. It can be reset by switching the ON/OFF

SWITCH to OFF and waiting 5 minutes before switching the unit back on.

CAUTION

If you need to continuously reset the heater, unplug the unit and call your

local dealer.

SYMPHONY ELECTRIC FIREPLACE

OPTIONAL REMOTE CONTROL USAGE

1. Plug the stove into the outlet located on the

side of the receiver.

2. Plug the receiver into the wall outlet.

3. Install a 9 volt battery into the transmitter.

4. Turn the stove main power switch to the on

position prior to using the remote control.

5. The remote control works up to 50 feet away.

6. Push the ON button to turn stove on, push the

OFF button to turn the stove off.

NOTE:

To prevent the risk of fire, the stove plug must be

inserted fully into the receiver.

NOTE:

The remote control and receiver use one of 243

independent frequencies. When replacing the

remote control or the receiver they must be

replaced as a set to ensure proper operation.

The frequency of the remote is located on the

back of the remote on a label. (Figure 1)

Figure 1

SYMPHONY ELECTRIC FIREPLACE

RREPLACEMENT PARTS

SF SERIES FIREPLACES

SYMPHONY

\CATALOGUE NO. SF5598 SF5598 SF5598

PART NO. 6900240459 6900240459 6900240459

MOD. LEVEL None Mod A & B Mod C

REPLACEMENT PART REPLACEMENT PART NO.

1. GLASS 6900100500 6900100500 6900100500

2. GRILL 6900080159 6900080159 6900080159

3. LOG SET 0437960100 0437960100 0437960100

4. MIRROR 6900100300 6900100300 6900100300

5. POWER ON/OFF SWITCH 2800070100 2800070100 2800070200

6. LIGHT DIMMER KNOB 8800000100 8800000100 8800000800

7. FLAME SPEED KNOB 8800000200 8800000200 8800000200

8. HEATER ON/OFF SWITCH 2800070200 2800070200 2800070200

9. THERMOSTAT KNOB 8800000300 8800000300 8800000300

10.THERMOSTAT 2300150100 2300150100 2300150100

11.FLAME PROJECTION PANEL 0437970100 0437970100 0437970100

12.LIGHT BLOCK NOT AVAILABLE NOT AVAILABLE NOT AVAILABLE

13.LOWER LIGHT HARNESS 2500090100 2500090100 2500090100

14.UPPER LIGHT HARNESS 2500080100 2500080100 2500080100

15.D.C. MOTOR 6900140100 2000150100 2000150100

16.SUPPORT FOOT 8800090100 8800090100 8800090100

17.REFLECTOR ROTISSERIE 6900190300 6900190400 6900190400

18.HEATER ASSEMBLY 2200290600 2200290600 2200290600

19.LIGHT DIMMER 2800020100 2800020100 2800020100

20.FLAME SPEED CONTROL 3000180300 3000180300 3000180300

SYMPHONY ELECTRIC FIREPLACE

If unit was operating prior to servicing allow at least 10 minutes for light bulbs and

heating element to cool off to avoid accidental burning of skin.

Disconnect power before attempting any maintenance or cleaning to reduce the

risk of electric shock or damage to persons.

Light bulbs need to be replaced when you notice a dark section of the flame or

when the clarity and detail of the log exterior disappears. There are two bulbs at

the top of the opening that illuminates the log set exterior and four bulbs under

the log set which generate the flames and embers.

It is a good idea to replace all of the light bulbs at one time if they are close to the

end of their rated life. Group replacement will reduce the number of times you

need to open the unit to replace the light bulbs.

TO REPLACE UPPER LIGHT BULBS

1. Remove the firebox trim by placing your hand on the grill section, grasping

the trim and pulling outwards releasing the retainer clips.

2. Remove the mounting screw in the center of the glass and remove the

retainer bracket.

3. Remove the glass by lifting up from the bottom.

CAUTION: Even though the glass is safety glass it may break if bumped,

struck of dropped. Care must be taken when handling the glass.

4. Locate upper bulbs inside the center of the firebox at the top.

5. Replace bulb(s) that require replacement, holding onto the light socket

when while unscrewing.

6. Reassemble in the reverse order as above.

UPPER BULB-Quantity 2 chandelier or candelabra bulbs with an E-12

(small) socket base, 15 watt rating.

CAUTION DO NOT EXCEED 15 WATTS PER BULB

SYMPHONY ELECTRIC FIREPLACE

If unit was operating prior to servicing allow at least 10 minutes for light bulbs and

heating element to cool off to avoid accidental burning of skin.

Disconnect power before attempting any maintenance or cleaning to reduce the

risk of electric shock or damage to persons.

Light bulbs need to be replaced when you notice a dark section of the flame or

when the clarity and detail of the log exterior disappears. There are two bulbs at

the top of the opening that illuminates the log set exterior and four bulbs under

the log set which generate the flames and embers.

It is a good idea to replace all of the light bulbs at one time if they are close to the

end of their rated life. Group replacement will reduce the number of times you

need to open the unit to replace the light bulbs.

TO REPLACE LOWER LIGHT BULBS

1. Remove the firebox trim by placing your hand on the grill section, grasping

the trim and pulling outwards releasing the retainer clips.

2. Remove the mounting screw in the center of the glass and remove the

retainer bracket.

3. Remove the glass by lifting up from the bottom.

CAUTION: Even though the glass is safety glass it may break if bumped,

struck of dropped. Care must be taken when handling the glass.

4. Only handle the log set by the ember bed and not by the logs. To remove

the log set lift up the front edge of log set until it clears the front tabs. Pull

out until the rear tab clears the back ledge, and then lift out.

5. Replace bulb(s) that require replacement, holding onto the light socket

when while unscrewing.

6. Replace the log by pushing it down and in until it rests against the mirror.

7. Reassemble in the reverse order as above.

LOWER BULB-Quantity 4 chandelier or candelabra bulbs with an E-12

(small) socket base, 60 watt rating.

GE 60BC or Philips 60CTC

CAUTION DO NOT EXCEED 60 WATTS PER BULB

SYMPHONY ELECTRIC FIREPLACE

If the fireplace was operating prior to servicing allow at least 10 minutes for light

bulbs and heating element to cool off to avoid accidental burning of skin.

Disconnect power before attempting any maintenance or cleaning to reduce the

risk of electric shock or damage to persons.

TO REPLACE MAIN ON/OFF SWITCH

1. Remove the firebox trim by placing your hand on the grill section, grasping

the trim and pulling outwards releasing the retainer clips.

2. Remove the firebox from the mantel.

3. Lower the grill covering the controls.

4. Remove the retaining screws on the top cover and remove the top, placing

it upside down on the top of the unit being careful not to damage any of

the wiring.

5. Locate the main on/off switch mounted on the top panel and disconnect

the wiring clips and connections noting their original locations.

6. Depress the retainer clips on the rear of the switch and push the switch

out of the rear cover.

7. Properly orientate the new switch and connect all of the wiring clips and

connections.

8. Reassemble in the reverse order as above.

SYMPHONY ELECTRIC FIREPLACE

If the fireplace was operating prior to servicing allow at least 10 minutes for light

bulbs and heating element to cool off to avoid accidental burning of skin.

Disconnect power before attempting any maintenance or cleaning to reduce the

risk of electric shock or damage to persons.

TO REPLACE LIGHT DIMMER SWITCH

1. Remove the firebox trim by placing your hand on the grill section, grasping

the trim and pulling outwards releasing the retainer clips.

2. Remove the firebox from the mantel.

3. Lower the grill covering the controls.

4. Remove the retaining screws on the top cover and remove the top, placing

it upside down on the top of the unit being careful not to damage any of

the wiring.

5. Locate the light dimmer switch mounted on the top panel and disconnect

the wiring clips and connections noting their original locations.

6. Pull off the thermostat control knob.

7. Remove the dimmer switch mounting screws and remove the switch.

8. Properly orientate the new dimmer switch and connect all of the wiring

connections.

9. Reassemble in the reverse order as above.
