CONSUMER SAFETY INFORMATION: PLEASE READ THIS MANUAL BEFORE

INSTALLING AND OPERATING THIS APPLIANCE. FAILURE TO FOLLOW

THESE INSTRUCTIONS MAY RESULT IN A POSSIBLE ELECTRIC SHOCK,

FIRE HAZARD, AND/OR INJURY AND WILL VOID THE WARRANTY.

To view the full line of Dimplex products,

This instruction can be also downloaded from our company website.

visit www.dimplex.com.au

or www.dimplex.co.nz

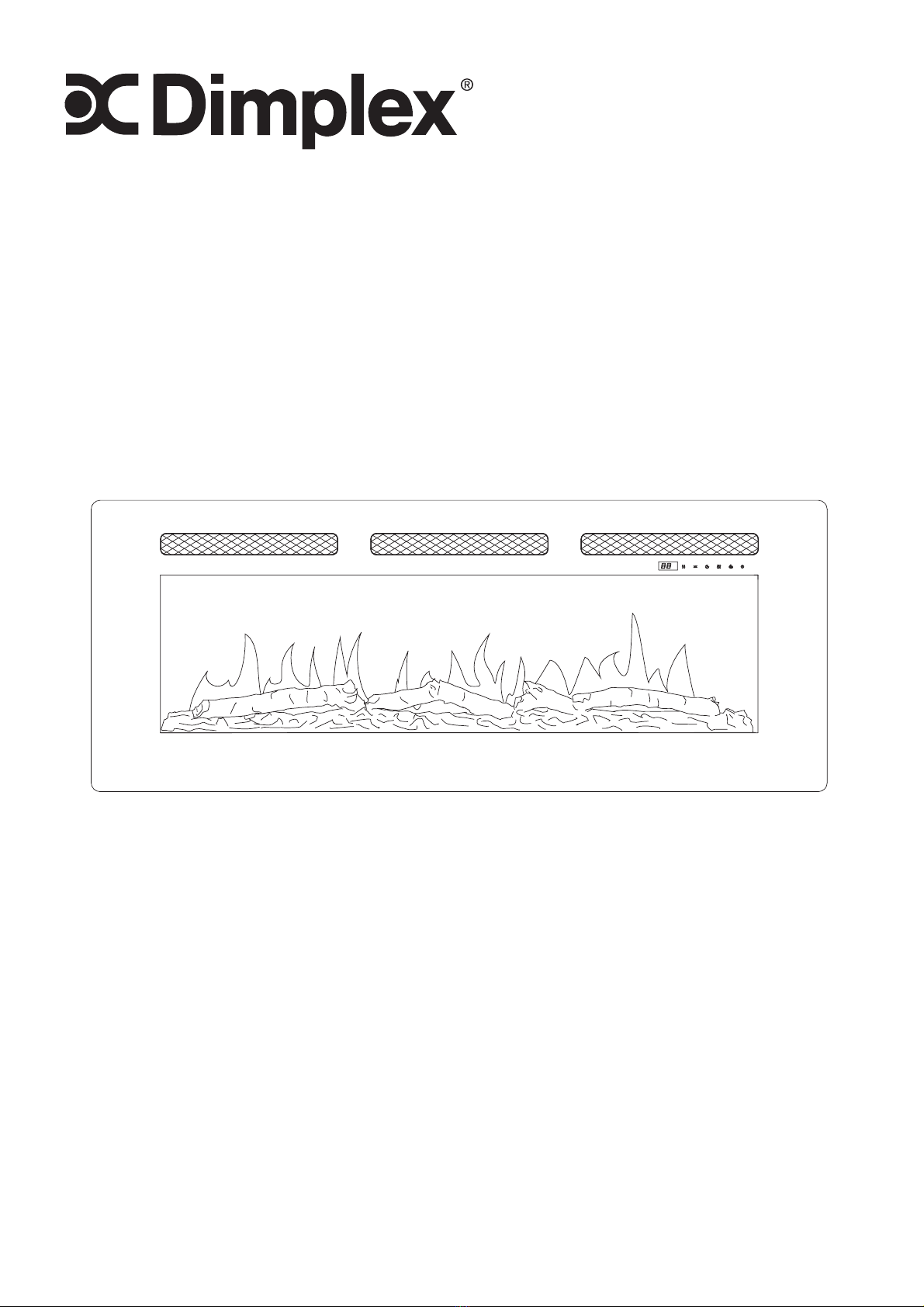

Owner’s Manual

Models: DVF1200, DVF1500 & DVF1800

V 1.1

Table of Contents

Conventions used in this manual:

!NOTE: Procedures and techniques considered important enough to us.

CAUTION: Procedures and techniques which, if not carefully followed, will result in

damage to the equipment.

WARNING: Procedures and techniques which, if not carefully followed, will expose

Welcome .............................................................3

IMPORTANT INSTRUCTIONS............................4

......................................................6

Installation ...........................................................7

Operation...........................................................16

Maintenance......................................................19

Troubleshooting.................................................21

Warranty............................................................22

Technical Support..............................................24

Welcome

Please record your model and serial numbers below for future reference:

model and serial numbers can be found on the Model and Serial Number Label

of your fireplace.

Thank you and congratulations for choosing to purchase an electric fireplace

from Dimplex, the world leader in electric fireplaces.

Read all instructions and warnings carefully before starting installation.CAUTION:

and will void the warranty.

NO NEED TO RETURN TO THE STORE

Questions with operation or assembly? Require Parts Information?

Product Under Manufacturer’s Warranty?

For Troubleshooting and Technical Support

1300 556 816 or www.dimplex.com.au for Australia

09 274 8265 or www.dimplex.co.nz for New Zealand

In order to better serve you, please have your model and serial numbers

ready or register your product online before calling (see above).

Serial Number

Model Number

Read this manual before attempting

to install or use the electric fireplace.

Always comply with the warnings and

safety instructions contained in this

property damage.

When using electrical appliances, basic

precautions should always be followed

to reduce the risk of fire, electric shock

following:

IMPORTANT INSTRUCTIONS

SAVE THESE INSTRUCTIONS

• Children of less than 3 years should

be kept away unless continuously

supervised.

• Children aged from 3 years and less

than 8 years shall only switch on/off

the appliance provided that it has

been placed or installed in its intended

normal operating position and they

have been given supervision or

instruction concerning use of the

appliance in a safe way and

understand the hazards involved.

Children aged from 3 years and less

than 8 years shall not plug in, regulate

and clean the appliance or perform

user maintenance.

• If the supply cord is damaged, it

must be replaced by the manufacturer,

its service agent or similarly qualified

persons in order to avoid a hazard.

• WARNING: In order to avoid

overheating, do not cover the heater.

• Do not use this heater in the

immediate surroundings of a bath, a

shower or a swimming pool.

• The heater must not be located

immediately below a socket outlet.

• Do not use this heater with a

programmer, timer, separate

remotecontrol system or any other

device that switches the heater on

automatically, since a fire risk exists if

the heater is covered or positioned

incorrectly.

• There is possible danger of

installation close to curtains and other

combustible materials.

• CAUTION — Some parts of this

product can become very hot and

cause burns. Particular attention has

to be given where children and

vulnerable people are present.

• Do not use this heater if it has been

dropped.

• Do not use if there are visible signs

of damage to the heater.

• Use this heater on a horizontal and

stable surface, or fix it to the wall, as

applicable.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

NO USER-SERVICEABLE PARTS INSIDE

IMPORTANT INSTRUCTIONS

• CAUTION: In order to avoid a hazard

due to inadvertent resetting of the

thermal cut-out, this appliance must

not be supplied through an external

switching device, such as a timer, or

connected to a circuit that is regularly

switched on and off by the utility.

• This appliance can be used by

children aged from 8 years and above

and persons with reduced physical,

sensory or mental capabilities or lack

of experience and knowledge if they

have been given supervision or

instruction concerning use of the

appliance in a safe way and

understand the hazards involved.

Children shall not play with the

appliance. Cleaning and user

maintenance shall not be made by

children without supervision.

A disconnecting switch incorporated in

the fixed wiring shall be provided.

Electrical

Voltage:

Watts:

Amps: 6-7 A

Wiring: Plug-In

Bulb Type: LED

Dimensions

DVF1200

Width: 1046 mm

Height: 460 mm

Height with feet: 547 mm

Depth: 133 mm

Depth with feet: 279 mm

Weight

18.5 kg

DVF1500

Width: 1318 mm

Height: 460 mm

Height with feet: 547 mm

Depth: 133 mm

Depth with feet: 279 mm

Weight

28.9 kg

DVF1800

Width: 1626 mm

Height: 460 mm

Height with feet: 547 mm

Depth: 133 mm

Depth with feet: 279 mm

Weight

35.3 kg

220V~240V 50Hz

1 300~1 600 Watts

Installation

GROUNDING INSTRUCTIONS

• This product is equipped with a cord that has an

equipment-grounding conductor and a grounding

plug. The plug must be plugged into an appropriate

outlet that is properly installed and grounded in

accordance with all local codes and ordinances.

• This heater is for use on 220-240 volts.

• A 10 Amp, 220-240 Volt circuit is required. A dedicated circuit is preferred,

but not essential in all cases. A dedicated circuit will be required if,

after installation, the circuit breaker trips or the fuse blows on a

regular basis when the heater is operating. Additional appliances

on the same circuit may exceed the current rating of the circuit breaker.

WARNING: Electrical outlet wiring must comply with local building codes and other

applicable regulations to reduce the risk of fire, electric shock, or injury to persons.

Grounding Pin

Package Contents

Tools required

G H

Installation

IN-WALL INSTALLATION

Model A B C

DVF1200 1057 165 470

DVF1500 1331 165 470

DVF1800 1636 165 470

Cabinet - mm

Model D E F

DVF1200 1046 119 460

DVF1500 1318 119 460

DVF1800 1626 119 460

Firebox - mm

Installation

INSTALLATION HEIGHT

15-3/4 IN |PO |PLG (40.0 cm)

MINIMUM / MÍNIMA

2 IN |PO |PLG

(5cm)

MINIMUM / MÍNIMA

2 IN |PO |PLG

(5cm)

MINIMUM / MÍNIMA
