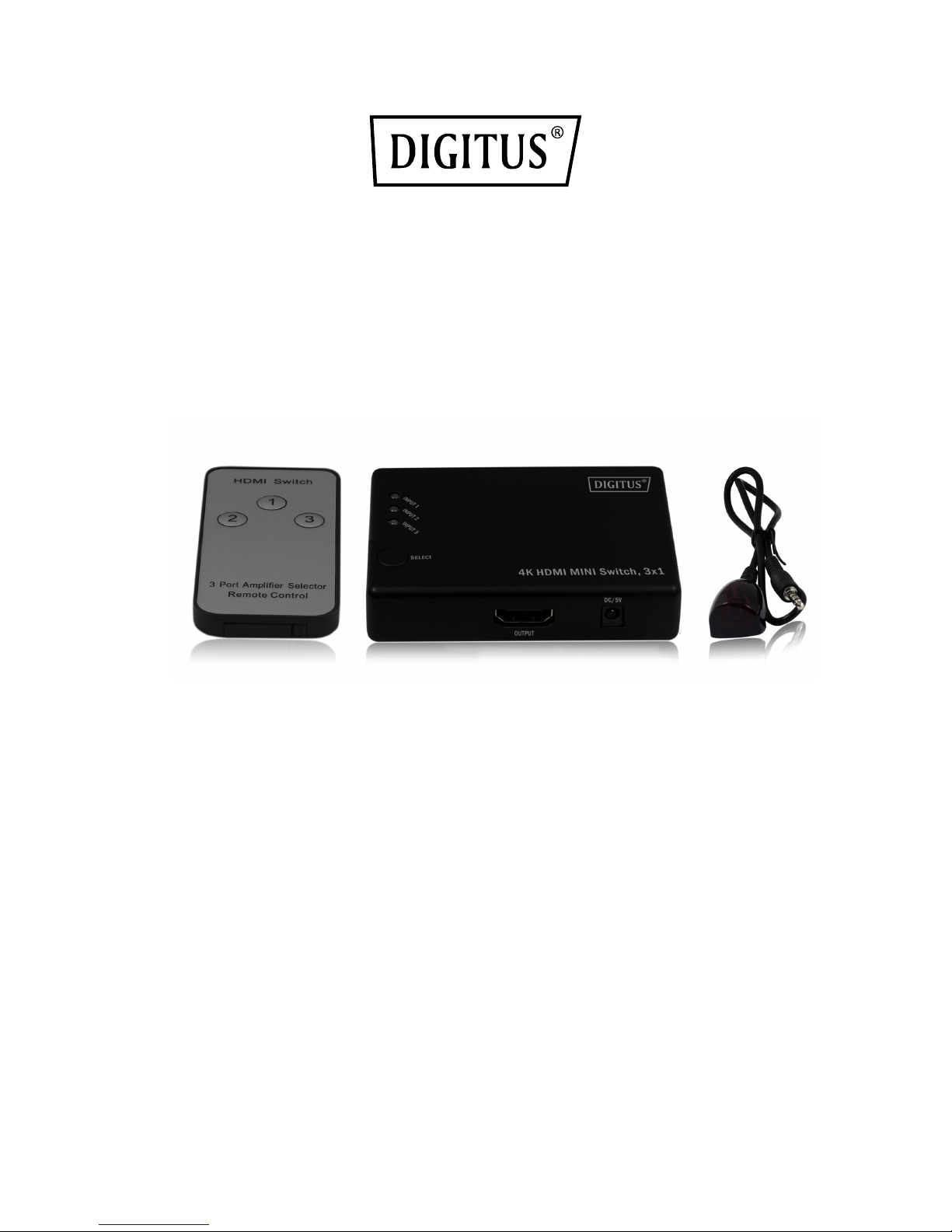

4K HDMI Switch, 3x1

Manual

DS-45305

1.0 Introduction

The 3x1 HDMI Switcher routes high definition video (in multiple resolutions up

to 4k x 2k) and digital audio from any 3x1 sources to display unit. Three inputs

accommodate the simultaneous connection of up to three high definition video

sources, such as satellite systems and HD DVD players. The output sends the

high definition audio/video signals to a high definition display. This kind of the

HDMI Switcher not only has the key-press-switching function, but also has the

IR remote control and intelligent function.

1.1 Intelligent Function

When supplied with power, this switcher will select the power-on source

device depending on the sequence automatically (input1>input2>input3)

Once the source device is turned on or plugged in (should stay power-on

mode), the switches will automatically select this source

Once the source device is turned off or plugged out, the switches will

automatically select the next power-on source depending on the sequence

automatically (input 1>input2>input3)

Note:

1) When the source devices are on the stand-by mode, its power supply

should be turned off, otherwise these switches cannot meet intelligent

function

2) When plugged in or out, this switches is completely intelligent

2.0 Features

Multifunctional on switching; intelligent or mechanical

IR extender receiver (included)

IR remote (included)

Support high Definition resolution 4KX2K@30Hz,1080p and 3D.

Support 300MHz/3.0Gbps per channel bandwidth.

Support 12bit per channel (36bit all channel) deep color.

HDCP pass-through

HDMI Pass-through

CEC Pass-through

Support uncompressed audio such as LPCM.

Support compressed audio such as DTS Digital, Dolby Digital

（including DTS-HD and Dolby True HD）

3.0 Specifications

Input DDC Signal 5 volts p-p (TTL)

Maximum Single Link Range 4Kx2K

Vertical Frequency Range 50/60Hz

Video Amplifier Bandwidth 3.0Gbps/300MHz

Interlaced(50&60Hz) 480i,576i,1080i

Progressive(50&60Hz) 480p,576p,720p,1080p,4Kx2K@30Hz

Size(L-W-H) 80x58x18mm

Weight(Net) 55g

Operating Temperature 0 ℃to +70℃

Operating Humidity 10% to 85 % RH (no condensation)

Storage Temperature -10℃to +80℃

Storage Humidity 5% to 90 % RH (no condensation)

Note:

1) Specifications are subject to change without notice.

2) Please switch on three input sources at the same time when using this

no power needed switcher with PS4.

4.0 Package Contents

Main Unit.

Remote control

IR extender receiver

User's Manual

5.0 Panel Descriptions

6.0 connection and operation

Connect the HDMI input source into 3x1 HDIM Switch

Connect the HDMI output display into 3x 1 HDMI Switch

Attention: Insert / Extract cable gently.

6.1 Connection Diagram

Hereby ASSMANN Electronic GmbH, declares that this device is in compliance with the

requirements of Directive 2014/30/EU (EMC), Directive 2014/35/EU (LVD) and the Directive

2011/65/EU for RoHS compliance. The complete declaration of conformity can be requested

by post under the below mentioned manufacturer address.

Warning:

This device is a class B product. This equipment may cause some radio interference in living

environment. In this case, the user can be requested to undertake appropriate measures to

prevent interference.

www.assmann.com

Assmann Electronic GmbH

Auf dem Schüffel 3

58513 Lüdenscheid

Germany
