Digital Watchdog DWC-C232D Manuel utilisateur

ABOUT MANUAL

Before installing and using the camera, please read this manual carefully.

Be sure to keep it handy for future reference.

High Resolution Box Camera

DWC-C232D

DWC-C232T

08092012

PRECAUTIONS

Do not open or modify.

Do not open the case except during maintenence and installation,

for it may be dangerous and can cause damages.

Do not put objects into the unit.

Keep metal objects and flammable substances from entering the camera.

It can cause fire, short-circuits, or other damages.

Be careful when handling the unit.

To prevent damages, do not drop the camera or subject it to shock or vibration.

Do not install near electric or magnetic fields.

Protect from humidity and dust.

Protect from high temperature.

Be careful when installing near the ceiling of kitchen or a boiler room,

as the temperature may rise to high levels.

Cleaning:

To remove dirt from the case, moisten a soft cloth with a soft detergent solution and wipe.

Mounting Surface:

The material of the mounting surface must be strong enough to support the camera.

FCC COMPLIANCE

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection

against harmful interference. when the equipment is operated in a residential environment. This

equipment generates, uses, and radiates radio frequency energy; and if it is not installed and used in

accordance with the instruction manual, it may cause harmful interference to radio communications.

WARNING: Changes or modifications are not expressly approved by the manufacturer.

TABLE OF CONTENTS

Introduction

Installation

Troubleshooting

Warranty Information

Specifications

Features

Parts and Descriptions

Dimensions

Inside the Box

Mount Installation Instructions

Adjustment of Focus

8-9

12-13

14-15

FEATURES*

1/3” Sony Super HAD CCD II

570 TV Lines (B&W), 540 TV Lines (Color)

Electronic Day and Night [DWC-C232D Only]

TDN (True Day and Night/ TDN5) [DWC-C232T Only]

Ultra Low Light Sensitivity

BLC (Backlight Compensation)

HME (Highlight Masking Exposure)

Programmable Privacy Zones (4) & Motion Detection

Easy Icon Driven OSD Menu with Built-In Joystick

Auto Sensing 12VDC or 24VAC with Line Lock

RS-485 Built-in

Compatible with C or CS Mount Lens (Not Included)

PARTS & DESCRIPTION*

Lens Connector

Box Camera

Mounting Bracket Connectors

A-Iris Socket

Back Focus

Alarm +/-

RS485 Connector

OSD Control Arrows and Enter Buttons

Power LED

BNC Video Output

AC / DC Power Input Terminal Block

10 11

119.7(4.71”)

14.5(0.57”)

47.6

(1.87”)

62.0(2.44”)

119.7(4.71”)

131.8(5.19”)

58.8(2.31”)

55.0(2.17”)

62.0(2.44”)

58.8(2.31”)

55.0(2.17”)

DIMENSIONS IN MILLIMETERS (IN)*

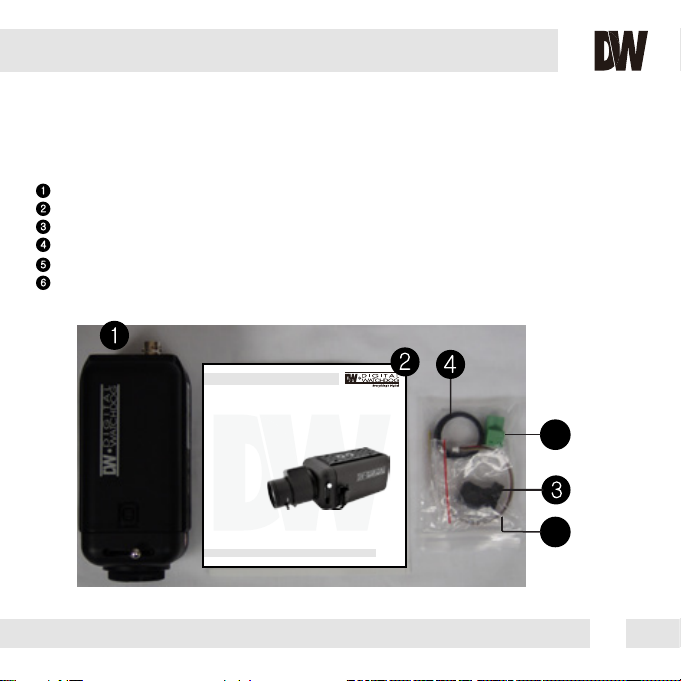

INSIDE THE BOX*

Included with C2 Box Camera

Color Box

User Manual

Mini-DIN Connector (For Video or DC Auto Iris Lens)

Adapter Ring for “C” Type Lenses

Two-Port Terminal Block (for AC or DC Power Connection)

Cable Extension for Alarm In / Out and RS-485

ABOUT MANUAL

Before installing and using the camera, please read this manual carefully.

Be sure to keep it handy for future reference.

High Resolution Box Camera

DWC-C232D

DWC-C232T

07062012

INSTALLATION*

Using an appropriate mounting bracket, mark and drill the

necessary holes to mount the bracket to a wall or ceiling.

Attach the mounting bracket to the surface using machine screws.

Attach the box camera to the mounting bracket.

Adjust the camera’s position. Consult the manual of the

mounting bracket for additional information.

INSTALLATION*

Connect an appropriate lens to the camera lens connector by twisting the lens clockwise.

The camera is compatible with any C or CS mount lens. For “C” lenses, please use the provided

Adapter Ring. See page 10 for details. *Lens is not included.

Connect the lens’ cable to the box’s A-Iris Socket.

Adjust the lens’ zoom and focus accordingly. Consult the manual of the lens for additional

information.

Please make sure the lens is C or CS Mount.

To use C Mount lens, please insert the included C ring to the lens; then insert the lens.

To use CS Mount lens, fix the lens directly into the front camera without the C ring.

To adjust the focus, slide the focus lever on the side of the front camera.

Please tighten the focus lever after the adjustment in order to prevent being out of focus.

Focus Adjustment

ADJUSTMENT OF BACK FOCUS*
