Digital Watchdog DWC-D3563WTIR Manuel utilisateur

Quick Start Guide Quick Start Guide

1. The mounting surface must withstand ﬁve times the weight of

your camera.

2. Do not let the cables get caught in improper places or the electric

line cover can be damaged. This may cause a short or ﬁre.

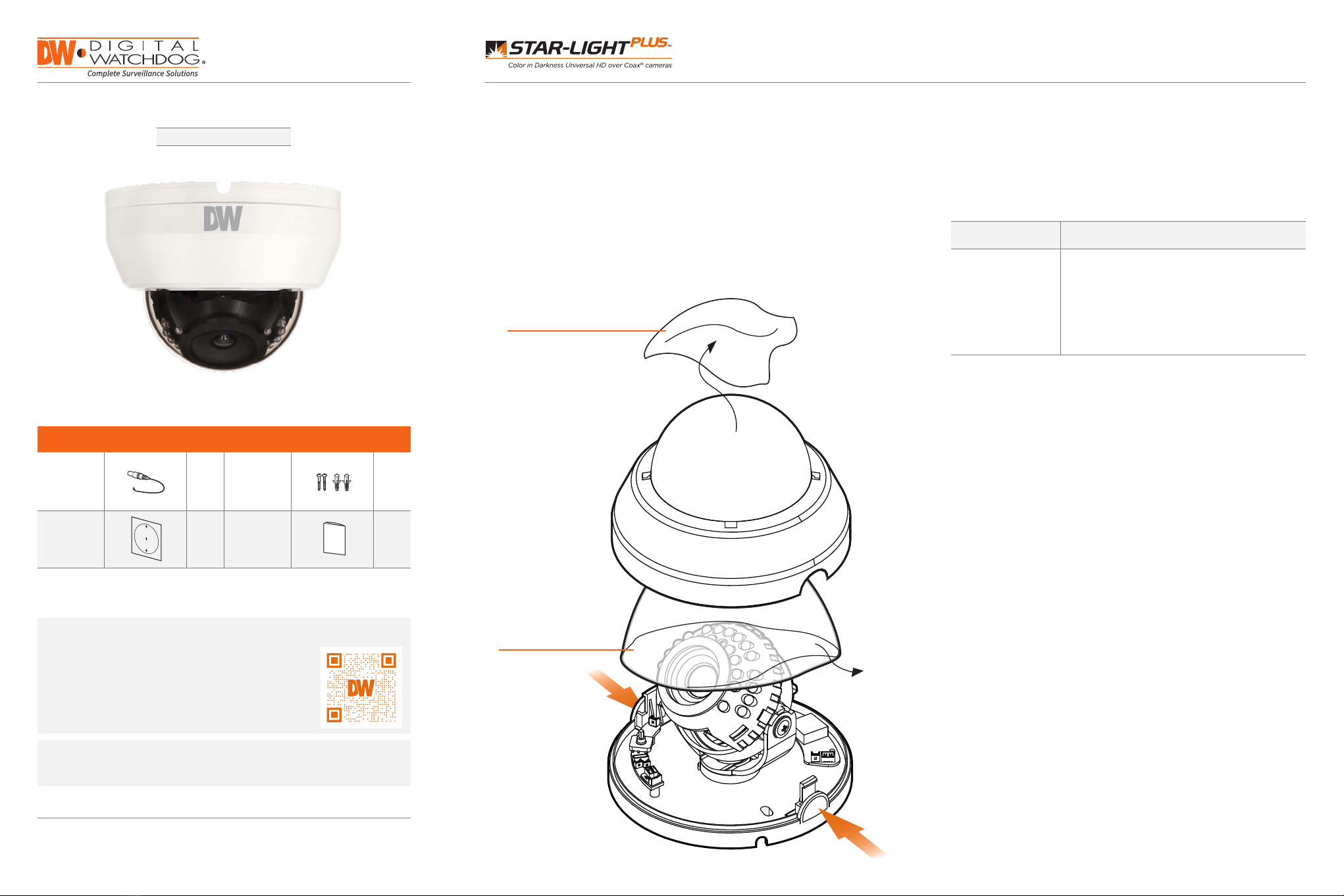

3. Detach the camera’s dome cover by pressing on the two small

buttons located at each side of the cover dome.

4. Remove the dome protection ﬁlm before placing the dome back

on the camera base.

STEP 1 – PREPARING TO MOUNT THE CAMERA

Pass the wires through the mount bracket and make all

necessary connections. Connect the BNC cable and power

cables to the camera.

STEP 2 – CABLING THE CAMERA TO

EXTERNAL DEVICES

Power

Requirements Power Consumption

DC12V/AC24V

dual voltage

DC12V (LED o): 3.3W (275mA)

DC12V (LED on): 5.9W (495mA)

AC24V (LED o): 2.75W (200mA)

AC24V (LED on): 5.3W (360mA)

Tel: +1 (866) 446-3595 / (813) 888-9555

Technical Support Hours:

9:00AM – 8:00PM EST, Monday thru Friday

digital-watchdog.com

DWC-D3563WTIR

WHAT’S IN THE BOX

DC plug

cable 1 Set

Screws

and plastic

anchors

(2pcs)

1 Set

Template

sheet 1 Set Quick Setup

Guide 1 Set

Torx Wrench DC Plug Cable Test Video Cable

ManualTemplate Sheet Screw & Moisture absorber &

Absorber Guide

Sunshield cover &

Torx Wrench DC Plug Cable Test Video Cable

ManualTemplate Sheet Screw & Moisture absorber &

Absorber Guide

Sunshield cover &

Torx Wrench DC Plug Cable Test Video Cable

ManualTemplate Sheet Screw & Moisture absorber &

Absorber Guide

Sunshield cover &

Protection sticker

Protection ﬁlm

Attention: This document is intended to serve as a quick reference for

initial set-up. It is recommended that the user read the entire instruction

manual for complete and proper installation and usage.

NOTE: Download all your support materials and tools in one place

1. Go to: http://www.digital-watchdog.com/resources

2. Search your product by entering the part number in

the ‘Search by Product’ search bar. Results for

applicable part numbers will populate automatically

based on the part number you enter.

3. Click ‘Search’. All supported materials, including manuals

and quick start guide (QSGs) will appear in the results.

Quick Start Guide

1. The camera supports HD-Analog, HD-CVI and HD-TVI signals. To

switch between the signals:

a. Enter the camera’s OSD menu. You can access it locally from

using the camera’s joystick in the body of the camera, or from a

recorder supporting UTC communication. Go to SETUP >

OUTPUT > ANALOG MODE.

b. Set the camera’s analog signal output from the following

options:

• HD-A: supports 5MP/1944p @ 20fps and 12.5fps, 4MP/1440p

@ 30fps, 2.1MP/1080p @ 30fps and 720p @ 30fps.

• HD-T: supports 5MP/1944p @ 20fps, 4MP/1440p @ 30fps,

2.1MP/1080p @ 30fps and 720p @ 30fps.

• HD-C: supports 4MP/1440p @ 30fps, 2.1MP/1080p @ 30fps

and 720p @ 30fps.

• CVBS: supports up to 960H @ 30fps

c. Change CONFIRM to ON to save the changes.

d. Go to the EXIT menu and select SAVE&EXIT to save all changes.

The camera signal automatically.

1. Once all cables have been connected, use the screws included

with the camera to properly mount and secure the camera to the

mounting surface.

2. Adjust the camera’s pan, tilt and position to achieve the desired

view. The cameras’ max angles are:

Pan: 0° ~ 360°

Tilt: 0° ~ 70°

Rotation: 0° ~ 360°

3. To adjust the camera’s focus and zoom:

a. Unlock the zoom or focus screws by rotating them

counter-clockwise.

b. Adjust the zoom and focus screws at the base of

the camera module to achieve a clear image.

c. Tighten the screws and close the front case

by rotating it clock-wise.

4. Once the installation is complete, remove the protective ﬁlm from

the camera’s dome cover.

STEP 4 – INSTALLING THE CAMERASTEP 3 – CHANGING THE SIGNAL IN

THE CAMERA

Rev Date: 06/19

Speciﬁcations and pricing are subject to change without notice.

Focus

Zoom
