Digital Watchdog DWC-B562DIR Manuel utilisateur

ABOUT MANUAL

Before installing and using the camera, please read this manual carefully.

Be sure to keep it handy for future reference.

DWC-B562DIR

960H Outdoor Bullet Camera

User Manual

11192012

Value

PRECAUTIONS

FCC COMPLIANCE

WARNING: Changes or modifications are not expressly approved by the manufacturer.

Do not open or modify.

Do not open the case except during maintenance and installation,

for it may be dangerous and can cause damages.

Do not put objects into the unit.

Keep metal objects and flammable substances from entering the camera. It can cause fire, short-circuits,

or other damages.

Be careful when handling the unit.

To prevent damages, do not drop the camera or subject it to shock or vibration.

Do not install near electric or magnetic fields.

Protect from humidity and dust.

Protect from high temperature.

Be careful when installing near the ceiling of a kitchen or a boiler room, as the temperature may rise to

high levels.

Cleaning: To remove dirt from the case, moisten a soft cloth with a soft detergent solution and wipe.

Mounting Surface: The material of the mounting surface must be strong enough to support the camera.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant

to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful

interference when the equipment is operated in a residential environment. This equipment generates, uses,

and radiates radio frequency energy; and if it is not installed and used in accordance with the instruction

manual, it may cause harmful interference to radio communications.

Table of Contents

Introduction

Installation

Camera OSD Menu and Glossary

Troubleshooting

Warranty Information

Specifications

Features

Parts and Descriptions

Dimensions

Included Accessories

Easy Installation

Connecting to Monitors

OSD Control Board

Camera Setting Angle

13-24

26-27

28-29

Adjusting the Lens 12

FEATURES*

DWC-B562DIR

1/3” 960H High Resolution CCD

700 TV Lines

3.3~12mm Varifocal Auto Iris Lens

85ft Range IR with Intelligent Camera Sync, Smart IR

Electronic Day and Night

HME (Highlight Masking Exposure)

AGC / Smart BLC / AWB

Night-Up

Mirror Image Control

Programmable Privacy Zones (8) & Motion Detection

Easy Icon Driven OSD Menu with Built-In Joystick

Secondary Video-BNC Output

IP66 Certified, No Fog or Condensation

PARTS & DESCRIPTIONS*

1Front Cover

4Bracket

5Set Screw

2Lens

3Body Case

6BNC

Sunshield Screw

Sunshield

7Power Connector

DIMENSIONS IN MILLIMETERS (INCHES)*

Ø68

(Ø2.67”)

41.4

(1.63)

146.7(5.77”)

251.2(9.89”)

111.5(4.39”) 115.8(4.56”)

80.6(3.17”)

INSTALLATION*

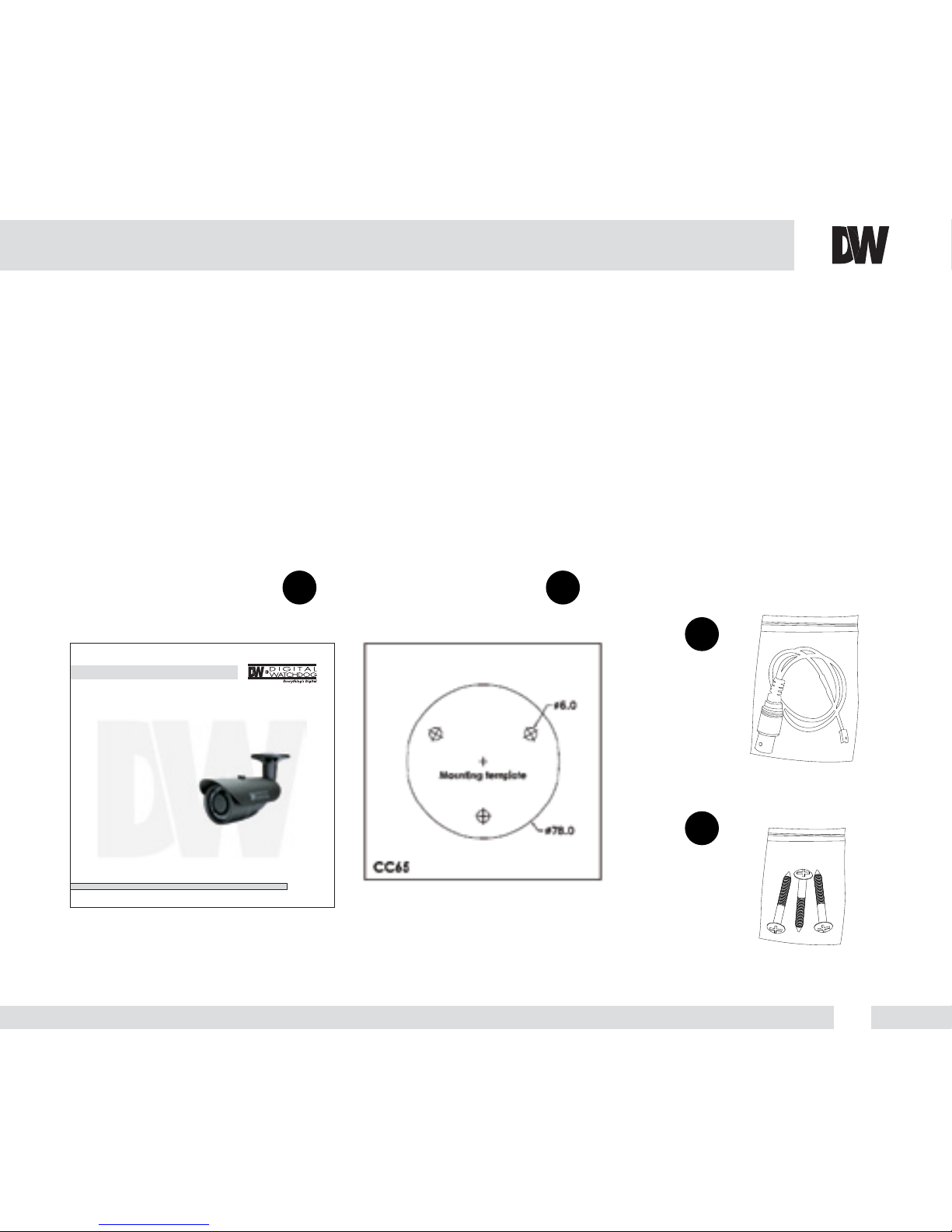

Included with Value Line Bullet Camera

1. User Manual

2. Mounting Template

1 2

3. Second Video Jack

4. Mounting Screws (3)

ABOUT MANUAL

Before installing and using the camera, please read this manual carefully.

Be sure to keep it handy for future reference.

DWC-B562DIR

Outdoor Bullet Camera

User Manual

05032012

EASY INSTALLATION*

1. Using the template, mark appropriate holes

on the mounting surface.

2. Secure the camera by drilling the three screws through

the camera holes into the mounting surface.

3. Adjust the camera’s lens. See pages 10-12 for

more information.

CONNECTING TO MONITORS*

CAUTION

Check for polarity when using a DC 12V power supply.

All cameras are equipped with a service monitor output on the camera module for easy on-site

configuration.

300.0(11.8”)

OSD CONTROL BOARD**

Joystick

Connector 1

FUNCTION

S OF CONTROL B

OARD

Joystick: Functional control of OSD (On Screen Display) Menu

Connector 1: Second Video Output Connector

①

②

NOTE: Turn the front cover counter-clockwise and remove to access the OSD Contol Board.
