Before installing and using the camera, please read this manual carefully.

Be sure to keep it handy for future reference.

ABOUT MANUAL

User Manual

DWC-LPR650

Bullet Camera

12232010

5436 W Crenshaw St. Tampa, FL 33634

Tel: 866-446-3595 / 813-888-9555

Fax: 813-888-9262

www.Digital-Watchdog.com

[email protected]

Technical Support Hours: Monday-Friday

8:30am to 8:00pm Eastern Time

■Do not open or modify.

■Do not open the case except during maintenance and installation,

for it may be dangerous and can cause damages.

■Do not put objects into the unit.

■

Keep metal objects ble substances from entering the camera. It can cause short-

circuits, or other damages.

■Be careful when handling the unit.

■Toprevent damages, do not drop the camera or subject it to shock or vibration.

■Donot install near electric or magnetic elds.

■Protect from humidity and dust.

■Protect from high temperature.

■

Becareful when installing near the ceiling of akitchen or a boiler room, as the temperature may

rise to high levels.

■Cleaning

■To remove dirt from the case, moisten a soft cloth with a soft detergentsolution and wipe.

■Mounting Surface

■The material of the mounting surface mustbe strong enough to support the camera.

PRECAUTIONS

Before sending your camera for repair, check the following or contact our technical specialist.

No VIDEO

Check the coaxial cable and make sure itis connectedsecurely.

Check the lens’ iris adjustment at the menu setup of the camera.

Check the power supply and make sure the camera has the proper voltage and current.

Out-of-Focus VIDEO

Check the clear dome cover and the lens for dirt or ngerprints. Use a soft cloth and gently clean.

Check the lens manual focal and zoom adjustment. Field test monitor is recommended.

TROUBSHOOTING

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC rules. These limits are designed to Provide reasonable protection

against harmful interference .when the equipment is operated in a residential environment.

This equipment generates, uses, and radiates radio frequency energy; and if it is not installed

and used in accordance with the instruction manual, it may cause harmful interference to radio

communications.

WARNING :Changes o not expressly approved by the manufacture.

FCC COMPLIANCE

■1/3” Sony Super HAD II CCD

■High Resolution 600 TV Lines

■6~50mm Varifocal Auto Iris Lens

■13~30ft Capture Range

■Plate Recognition Technology Captures License Plates up to 50mph

■Reliable Performance under Any Lighting Conditions

■Star-Light (Super Low Light Technology)

■3D-DNR (3D Digital Noise Reduction)

■HME (Highlight Masking Exposure)

■Easy Icon Driven OSD Menu with Built-In Joystick

■Auto Sensing 12 VDC / 24 VAC with Line Lock

■Secondary Video BNC Output Cable for Field Test Monitor

■No Fog or Condensation under Any Weather Condition

FEATURES*

4.2 96.7

78.0

68.0

DC12V / AC24V

Front View Bracket Rear View

230.0

86.5

122.0 96.5

BLACK

RED

(OPTION)

CABLE LENGTH

STANDARD : 13.78 (350.0mm)

5mm TWIST SORDERING

AC 24V or DC 12V

BNC JACK

VIDEO(yellow)

CONNECTION*

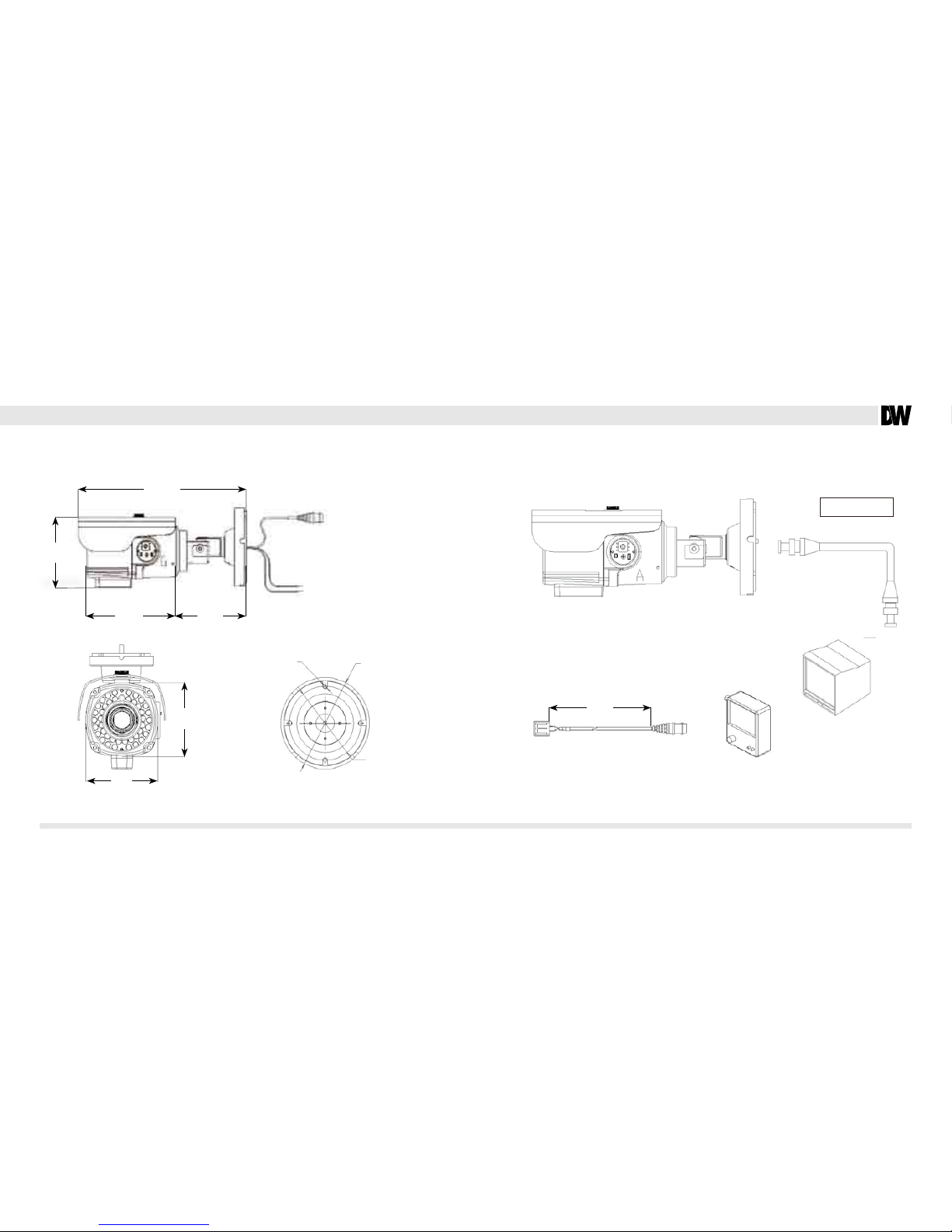

DIMENSIONS IN MILLIMETERS*

300.0

CAUTION : CHECK THE POLARITY WHEN USING A DC12V OR AC24V POWER SUPPLY.

EXTERNAL CONTROL BOARD*

CAMERA SETTING ANGLE*

LEFT

DOWN

RIGHT

CON1

2nd Video Out

IR LED Brightness

Adjustable

OSD Control

ATTENTION

1. Do not rotate more than 360°.

2. Do not unnecessarily twist many times.

FUNCTIONAL OF CONTROL BOARD

1. SW: Functional Control OSD (On-Screen Display

2. CON1: Second Video Output Connector

3. VR: IR LED Brightness Adjustable

122.0

86.5

106.0

360˚

90˚

①

②

INSTALLATION & REQUIREMENT*LENS ZOOM & FOCUS ADJUSTMENT*

1. Rotate Zoom lever to display desired view.

2. Rotate Focus lever to adjust the focus.

Maximum Wire Distance

Wire Gauge 12VDC 24VAC

24 AWG 80feet 323feet

22 AWG 128feet 513feet

20 AWG 203feet 815feet

18 AWG 323feet 1295feet

16 AWG 514feet 2056feet

14 AWG 816feet 3264feet

12 AWG 1295feet 5183feet

10 AWG 2057feet 8228feet

Bottom View

FOCUSZOOM

Coaxial Cable Type Maximum Distance

RG59/U 750feet

RG6/U 1,000feet

RG11/U 1,500feet

Power Requirement

12VDC @1A

24VAC @500mA

EXPOSURE

LENS DC (0~100) / MANUAL / VIDEO. (DC Lens is recommended.)

SHUTTER

1/60 / FLK / 1/250 ~ 100000 / SENS-UP x2 ~ x250

FLK (Flickerless);1/1000sec ~ 1/2000sec is recommended for License

Plate Application only.

BLC/HME OFF / BLC / HME

HME is recommended only for License Plate Application.

AGC HIGH / MIDDLE / LOW / OFF

STARIGHT AUTO (x2 ~ x250) / OFF

Not Necessary. Off is recommended for License Plate Application.

EXIT JUMP EXIT / SAVE&EXIT / FACTORY SET

COLOR

WB MODE AWC / ATW / INDOOR / OUTDOOR / PUSH LOCK / MANUAL

Not Necessary for License Plate Application.

R-Y GAIN 0 ~ 100

B-Y GAIN 0 ~ 100

EXIT JUMP EXIT / SAVE&EXIT / FACTORY SET

DAY & NIGHT

D&N MODE

B&W Mode: BURST - OFF/ON

Less noise when the BURST is OFF.

C-SUP Color Suppression : 0 ~ 63

Not Available when 3D-DNR is ON.

A-SUP Aperture Suppression: 0 ~ 100

Not Available when 3D-DNR is ON.

EXIT JUMP EXIT / SAVE&EXIT / FACTORY SET

FUNCTION

MIRROR OFF/MIRROR/V-FLIP/ROTATE

SHARPNESS 0 ~ 31

GAMMA 0.05 ~ 1.00

1.00 is recommended for License Plate Application.

FREEZE OFF / ON

Not Necessary. Off is recommended for License Plate Application.

NEGATIVE OFF/ ON

Not Necessary. Off is recommended for License Plate Application.

D-ZOOM OFF / ON (x1.0 ~ x32 PTZ)

Not Necessary. Off is recommended for License Plate Application.

3D-DNR ON (0 ~ 100) / OFF (3D Digital Noise Reduction)

Not Necessary. Off is recommended for License Plate Application.

DRC OFF / INDOOR / OUTDOOR

Not Necessary. Off is recommended for License Plate Application.

EXIT JUMP EXIT / SAVE&EXIT / FACTORY SET

MOTION (Omni-Focus Lens Only)

MOTION

OFF / ON

AREA SELECT / AREA DISPLAY: OFF / O

LEFT-RIGHT / WIDTH / UP-DOWN

HEIGHT / SENSITIVITY / MOTION VIEW: ON / OFF

EXIT JUMP EXIT / SAVE&EXIT / FACTORY SET

Digital Watchdog (referred to as “the Warrantor”)

warrants the Camera Series against defects in

materials or workmanship as follows.

LABOR :For the initial two (2) years from the date of original purchase,

if the camera is determined to be defective,

the Warrantor will repair or replace the unit, with new or refurbished

product at its option, at no charge.

PARTS :In addition, the Warrantor will supply

replacement parts for the initial two (2) years.

To obtain warranty or out of warranty service,

please contact a Technical Support Representative at

1-866-446-3595 Monday through Friday from 9:00 AM to 5:00 PM Eastern.

A purchase receipt or other proof of the original purchase date is required

before warranty service is rendered. This warranty only covers failures due to

defects in materials and workmanship which arise during normal use.

This warranty does not cover damage which occurs in shipment or failures

which are caused by products not supplied by the Warrantor or failures

which result from accident, misuse, abuse, neglect, mishandling,

misapplication, alteration, modification, faulty installation, set-up adjustments,

improper antenna, inadequate signal pickup, maladjustment of consumer controls,

improper operation, power line surge, improper voltage supply, lightning damage,

rental use of the product or service by anyone other than an authorized repair

facility or damage that is attributable to acts of God.

PRIVACY

OFF / ON

AREA SELECT: 1~7 / AREA DISPLAY: OFF / ON

LEFT / RIGHT / WIDTH / UP / DOWN

HEIGHT / SENSITIVITY / COLOR

EXIT JUMP EXIT / SAVE&EXIT / FACTORY SET

SYNC

SYNC INTERNAL / LINE

EXIT JUMP EXIT / SAVE&EXIT / FACTORY SET

SETUP

TITLE EDIT OFF / ON

PC CONTROL

(RS485 Control) CAM ID / ID DISPLAY: OFF/ON / BAUDRATE: 2400/4800/9600

LANGUAGE ENGLISH

OMNI LENS OFF/ 1~7 to enable the auto zoom function of the OMNI-PLUS

CAMERA ONLY

MONITOR CRT / LCD

Select LCD only if the camera is directly connected to an LCDMonitor.

SETUP NORMAL / HIGH

EXIT JUMP EXIT / SAVE&EXIT / FACTORY SET

EXIT

SAVE & EXIT

FACTORY RESET

WARRANTY INFORMATION*

There are no express warranties except as listed above.

The Warrantor will not be liable for incidental or consequential

damages (including, without limitation, damage to recording media)

resulting from the use of these products, or arising out of any breach

of the warranty. All express and implied warranties, including the

are limited to the applicable warranty period set forth above.

Some states do not allow the exclusion or limitation of incidental

or consequential damages, or limitations on how long an implied

warranty lasts, so the above exclusions or limitations may not

may also have other rights that vary from state to state.

If the problem is not handled to your satisfaction,

then write to the Address listed on the next page.

Service calls which do not involve defective materials or

workmanship as determined by the Warrantor, in its sole

discretion, are not covered. Costs of such service calls are

the responsibility of the purchaser.

LIMITS AND EXCLUSIONS*SPECIFICATIONS*

Model DWC-LPR650

Camera TYPE BW

License Plate Recognition Camera

Mount 3D Bracket

Image Device 1/3” Sony Super HAD II CCD

Pixels-Total 811 (H) x 508 (V)

768 (H) x 494 (V)

Scanning System 525 line, 2:1Interlace

Horizontal Frequency Internal Mode 15,734Hz

Vertical Frequency Internal Mode 59.94Hz

Min. Scene Illumination IR-LED on 0.0 Lux

IR DISTANCE 42 IR LEDs / 850nm Zero Lux

OSD Controls BLC ON/OFF (Area Setting)

AGC ON/OFF (Gain Adjust)

Shutter Speed Adjustable

HME ON/OFF

DRC OFF / INDOOR / OUTDOOR

3D-DNR OFF / On 0 ~ 100

Lens Focal Length 6 ~ 50mm Varifocal Auto Iris Lens

Resolution Horizontal 600 TV Lines

Video Output VBS 1.0Vp-p VBS 1.0Vp-p(75 Load)

S/N Ratio S/N Ratio 52dB

Environmental Conditions Operating Temperature -10o~ +55o(14o~ 131o)

Humidity Less than 90%

Power Power Requirement 12VDC / 24VAC

Power Consumption 165mA / 360mA; 4.90Watts / 4.96Watts

Dimensions(H x L) 85.4 x 231.5mm; 3.36 x 9.11in

Nema Type IP66

Weight 2.2 lbs

CE, FCC, RoHS

Table des matières

Autres manuels Digital Watchdog Caméra de sécurité

Digital Watchdog

Digital Watchdog STAR-LIGHT AHD DWC-V7753WTIR Manuel utilisateur

Digital Watchdog

Digital Watchdog PTZ39XFM Manuel utilisateur

Digital Watchdog

Digital Watchdog MEGAPIX DWC-MT94WiAT Manuel utilisateur

Digital Watchdog

Digital Watchdog STAR-LIGHT Universal HD over Coax... Manuel utilisateur

Digital Watchdog

Digital Watchdog B1362TIR650 Manuel utilisateur

Digital Watchdog

Digital Watchdog Infinity V3367WTIR Manuel utilisateur

Digital Watchdog

Digital Watchdog STAR-LIGHT Universal HD over Coax... Manuel utilisateur

Digital Watchdog

Digital Watchdog STAR-LIGHT DWC-D4283WTIR Manuel utilisateur

Digital Watchdog

Digital Watchdog DWC-V7553W Manuel utilisateur

Digital Watchdog

Digital Watchdog MEGApix DWC-MPVA5WiAT Manuel utilisateur

Digital Watchdog

Digital Watchdog STAR-LIGHT DWC-V6263WTIR Manuel utilisateur

Digital Watchdog

Digital Watchdog D2362DIR Manuel utilisateur

Digital Watchdog

Digital Watchdog MEGApix Ai DWC-PDS10Wi28A Manuel utilisateur

Digital Watchdog

Digital Watchdog STAR-LIGHT PLUS DWC-V6863WTIRW Manuel utilisateur

Digital Watchdog

Digital Watchdog PTZ39X Manuel utilisateur

Digital Watchdog

Digital Watchdog MEGAPIX DWC-MB44Wi650 Manuel utilisateur

Digital Watchdog

Digital Watchdog MEGApix DWC-MB44WiA Manuel utilisateur

Digital Watchdog

Digital Watchdog Star-Light Plus DWC-B6563WTIR Manuel utilisateur

Digital Watchdog

Digital Watchdog MEGApix CaaS DWC-MB44LPRC2 Manuel utilisateur

Digital Watchdog

Digital Watchdog INFINITY 960H SNAP-IT DWC-D4567WD Manuel utilisateur

Digital Watchdog

Digital Watchdog STAR-LIGHT 960H DWC-V6553D Manuel utilisateur

Digital Watchdog

Digital Watchdog MEGApix DWC-MV421D Manuel utilisateur

Digital Watchdog

Digital Watchdog STAR-LIGHT Universal HD over Coax... Manuel utilisateur

Digital Watchdog

Digital Watchdog DWC-PTZ12x Manuel utilisateur

Manuels Caméra de sécurité populaires d'autres marques

Okina USA

Okina USA SIR36-870VF650LP Manuel utilisateur

Divio

Divio NDR155PA Manuel utilisateur

Canon

Canon VB-C500D Manuel utilisateur

Easy Access

Easy Access EasyGuard Manuel utilisateur

Vivotek

Vivotek FD9389-EHV-v2 Manuel utilisateur

TUYA

TUYA COSMO W2 Manuel utilisateur

Eusso

Eusso UNC7500-IR Guide de configuration

urmet domus

urmet domus 1096/204 Manuel utilisateur

VC VC20 series Manuel utilisateur

Axis

Axis Q1614 Manuel utilisateur

ieGeek

ieGeek DD201 Manuel utilisateur

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manuel utilisateur

Vicon

Vicon V662-D-1 Mode d'emploi

Grundig

Grundig GCH-K0274P Manuel utilisateur

Lorex

Lorex VANTAGE LBC7032 Manuel utilisateur

4xem

4xem WPT Manuel utilisateur

Samsung

Samsung SCV-3082 Manuel utilisateur

Vitek

Vitek VTC-C544 Manuel utilisateur
