G5C900-B

COM Express Board

User’s Manual

935-G5C901-000G

A01500719

This publication contains information that is protected by copyright.

No part of it may be reproduced in any form or by any means or

used to make any transformation/adaptation without the prior writ-

ten permission from the copyright holders.

This publication is provided for informational purposes only. The

manufacturer makes no representations or warranties with respect to

the contents or use of this manual and specifically disclaims any ex-

press or implied warranties of merchantability or fitness for any par-

ticular purpose.The user will assume the entire risk of the use or the

results of the use of this document. Further, the manufacturer re-

serves the right to revise this publication and make changes to its

contents at any time, without obligation to notify any person or en-

tity of such revisions or changes.

Trademarks

Windows®2000, Windows®CE, Windows®XP and Windows®XP

Embedded are registered trademarks of Microsoft Corporation.

Product names or trademarks appearing in this manual are for iden-

tification purpose only and are the properties of the respective own-

ers.

FCC and DOC Statement on Class B

This equipment has been tested and found to comply with the limits

for a Class B digital device, pursuant to Part 15 of the FCC rules.

These limits are designed to provide reasonable protection against

harmful interference when the equipment is operated in a residential

installation.This equipment generates, uses and can radiate radio fre-

quency energy and, if not installed and used in accordance with the

instruction manual, may cause harmful interference to radio communi-

cations. However, there is no guarantee that interference will not

occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined

by turning the equipment off and on, the user is encouraged to try

to correct the interference by one or more of the following meas-

ures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and the receiver.

• Connect the equipment into an outlet on a circuit different from

that to which the receiver is connected.

• Consult the dealer or an experienced radio TV technician for

help.

Notice:

1. The changes or modifications not expressly approved by the

party responsible for compliance could void the user's authority

to operate the equipment.

2. Shielded interface cables must be used in order to comply with

the emission limits.

Table of Contents

About this Manual................................................................................

Warranty.................................................................................................

Static Electricity Precaution................................................................

Safety Measures.....................................................................................

About the Package...............................................................................

Specifications..........................................................................................

Board Layout..........................................................................................

System Memory......................................................................................

CPU...........................................................................................................

Installing G5C900-B on the Carrier Board.....................................

Jumper Settings......................................................................................

Connectors.............................................................................................

LEDs............................................................................................................

SPI Flash ROM Socket..........................................................................

Cooling Options....................................................................................

BIOS Setup.............................................................................................

Supported Software..............................................................................

Watchdog Timer....................................................................................

115

About this Manual

An electronic file of this manual is included in the CD. To view the

user’s manual in the CD, insert the CD into a CD-ROM drive. The

autorun screen (Main Board Utility CD) will appear. Click “User’s

Manual” on the main menu.

Warranty

1. Warranty does not cover damages or failures that arised from

misuse of the product, inability to use the product, unauthorized

replacement or alteration of components and product specifica-

tions.

2. The warranty is void if the product has been subjected to physi-

cal abuse, improper installation, modification, accidents or unau-

thorized repair of the product.

3. Unless otherwise instructed in this user’s manual, the user may

not, under any circumstances, attempt to perform service, adjust-

ments or repairs on the product, whether in or out of warranty.

It must be returned to the purchase point, factory or authorized

service agency for all such work.

4. We will not be liable for any indirect, special, incidental or

consequencial damages to the product that has been modified

or altered.

COM Express Board

Static Electricity Precautions

It is quite easy to inadvertently damage your PC, system board,

components or devices even before installing them in your system

unit. Static electrical discharge can damage computer components

without causing any signs of physical damage. You must take extra

care in handling them to ensure against electrostatic build-up.

1. To prevent electrostatic build-up, leave the board in its anti-static

bag until you are ready to install it.

2. Wear an antistatic wrist strap.

3. Do all preparation work on a static-free surface.

4. Hold the device only by its edges. Be careful not to touch any of

the components, contacts or connections.

5. Avoid touching the pins or contacts on all modules and connec-

tors. Hold modules or connectors by their ends.

Important:

Electrostatic discharge (ESD) can damage your processor,

disk drive and other components. Perform the upgrade in-

struction procedures described at an ESD workstation

only. If such a station is not available, you can provide

some ESD protection by wearing an antistatic wrist strap

and attaching it to a metal part of the system chassis. If a

wrist strap is unavailable, establish and maintain contact

with the system chassis throughout any procedures requir-

ing ESD protection.

Safety Measures

To avoid damage to the system:

• Use the correct AC input voltage range.....

To reduce the risk of electric shock:

• Unplug the power cord before removing the system chassis

cover for installation or servicing. After installation or servicing,

cover the system chassis before plugging the power cord.

Battery:

• Danger of explosion if battery incorrectly replaced.

• Replace only with the same or equivalent type recommend

the manufacturer.

• Dispose of used batteries according to local ordinance.

COM Express Board

About the Package

The package contains the following items. If any of these items are

missing or damaged, please contact your dealer or sales representa-

tive for assistance.

;The system board

;A user’s manual

;One “Main Board Utility” CD

;One QR (Quick Reference)

The board and accessories in the package may not come similar to

the information listed above. This may differ in accordance to the

sales region or models in which it was sold. For more information

about the standard package in your region, please contact your

dealer or sales representative.

COM Express Board

Processor

Chipset

System Memory

BIOS

Graphics

LAN

Audio

Expansion

Interfaces

• Intel®CoreTM Duo/Solo processor

Intel®CoreTM2 Duo processor

- 667MHz/533MHz system data bus

• Intel®Celeron®M processor

- 533MHz system data bus (on Ultra Low Voltage)

• Processor socket: mPGA478M

• Cooling options

- Heatspreader

- Heat sink with cooling fan

• Intel®chipset

- Intel®945GME Graphics Memory Controller Hub (GMCH)

- Intel®ICH7M

• One 200-pin SODIMM socket (1.8V)

• Supports up to 2GB DDR2 SDRAM

• Supports 533MHz and 667MHz DDR2 SDRAM

• SPI interface BIOS (8Mbit)

• Internal graphics features

- DVMT 3.0 support

- Intel®Dual-Frequency Graphics Technology

- Intel®Smart 2D Display Technology

- Dual Independent display pipes

- Intel Gen 3.5 Integrated Graphics Engine

• Integrated graphics interface

- Analog CRT

- Integrated 400MHz RAMDAC

- Analog monitor supports up to UXGA

- LVDS interface

- Panel support up to UXGA (1600x1200)

- 25MHz-112MHz single/dual channel @ 18/24bpp, TFT panel

type support

• One Realtek RTL8111C PCI Express Gigabit controller

• Supports 10Mbps, 100Mbps and 1Gbps data transmission

• IEEE 802.3 (10/100Mbps) and IEEE 802.3ab (1Gbps) compliant

• Supports AC97 digital interface

• 1 PCI Express x16

• 3 PCI Express x1

• 4 PCI (Master)

Specifications

COM Express Board

Serial ATA

IDE

Damage Free

Intelligence

Connectors

Temperature

Humidity

Power

Regulatory

PCB

• Supports 2 Serial ATA interfaces which are compliant with SATA

1.0 specification

• Supports up to 2 IDE devices

• Supports up to Ultra ATA 100

• Monitors CPU temperature and overheat alarm

• Monitors CPU Smart fan speed and failure alarm

• Monitors Vcore/1.8V/1.5V voltages and failure alarm

• COM Express connectors

- Two 220-pin COM Express standard connectors

- Module connector pin: Tyco 3-6318490-6

• 1 CPU fan connector

• Operating: 0oC to 60oC

• Non-operating: -40oC to 85oC

• Operating: 10% to 90%

• Input: 12V, 5VSB, VCC_RTC

• EMC: CE, FCC Part 15 Class B

• Dimensions

- COM Express basic form factor

- 9.5cm (3.74") x 12.5cm (4.9")

• Compliance

- PICMG COM Express R1.0 basic form factor, Type 2

COM Express Board

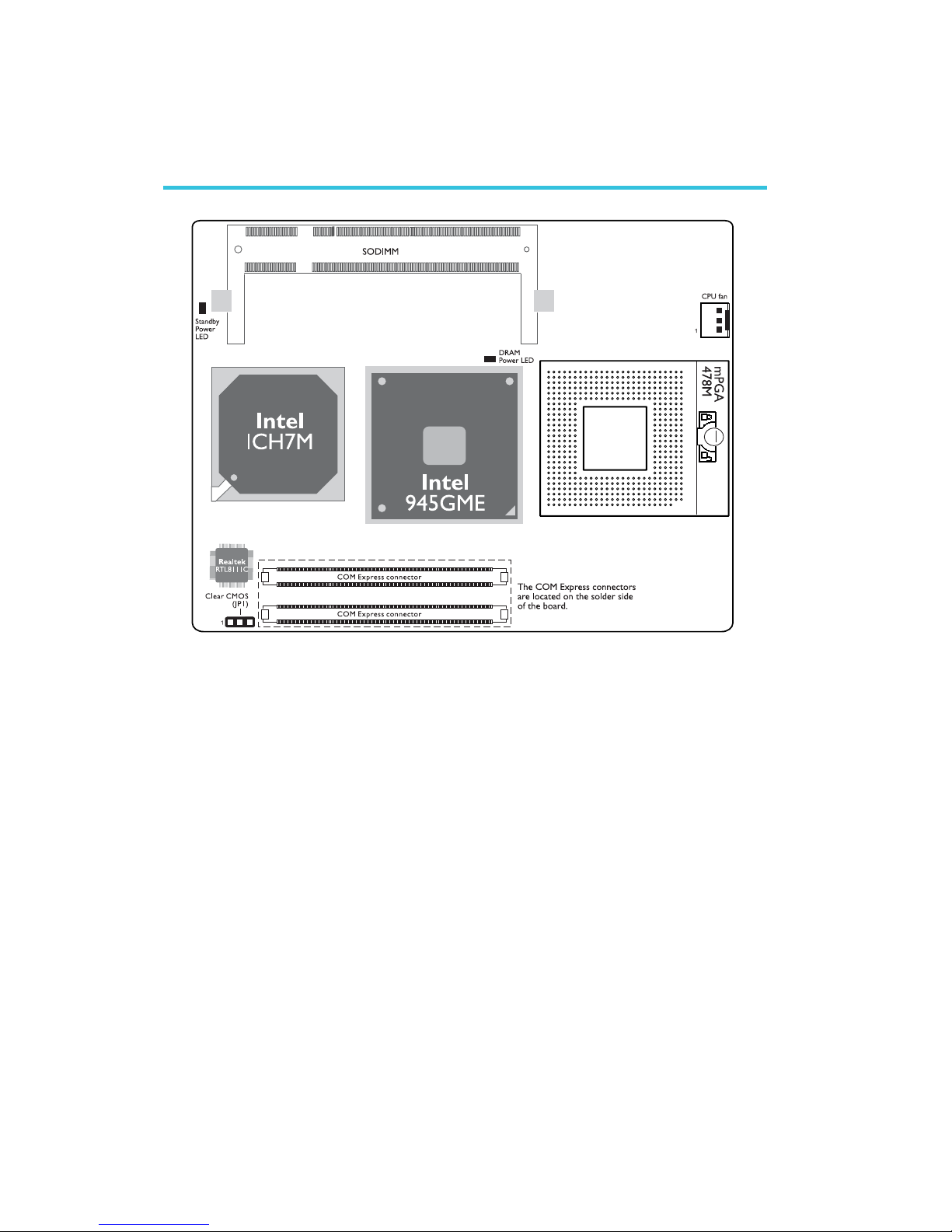

Board Layout
