DFI AD76 RAID Manuel utilisateur

AD76 RAID

Rev.A+

System Board User’s Manual

Carte Mère Manuel Pour Utilisateur

System-Platine Benutzerhandbuch

Manual del Usuario de Placas Base

59700225

935-AD7601-000

This publication contains information that is protected by copyright.

No part of it may be reproduced in any form or by any means or

used to make any transformation/adaptation without the prior

written permission from the copyright holders.

This publication is provided for informational purposes only. The

manufacturer makes no representations or warranties with respect to

the contents or use of this manual and specifically disclaims any

express or implied warranties of merchantability or fitness for any

particular purpose.The user will assume the entire risk of the use or

the results of the use of this document. Further, the manufacturer

reserves the right to revise this publication and make changes to its

contents at any time, without obligation to notify any person or

entity of such revisions or changes.

Trademarks

Microsoft®MS-DOS®, WindowsTM, Windows®95, Windows®98,

Windows®98 SE, Windows®ME, Windows®2000, Windows NT®

4.0 and Windows®XP are registered trademarks of Microsoft

Corporation. AMD, AthlonTM XP, AthlonTM and DuronTM are

registered trademarks of Advanced Micro Devices, Inc. VIA is a

registered trademark of VIA Technologies, Inc. Award is a registered

trademark of Award Software, Inc. Other trademarks and registered

trademarks of products appearing in this manual are the properties

of their respective holders.

Caution

To avoid damage to the system:

• Use the correct AC input voltage range.....

To reduce the risk of electric shock:

• Unplug the power cord before removing the system chassis

cover for installation or servicing. After installation or servicing,

cover the system chassis before plugging the power cord.

Battery:

• Danger of explosion if battery incorrectly replaced.

• Replace only with the same or equivalent type recommend

the manufacturer.

• Dispose of used batteries according to the battery

manufacturer’s

instructions.

Joystick or MIDI port:

• Do not use any joystick or MIDI device that requires more than

10A current at 5V DC. There is a risk of fire for devices that

exceed this limit.

FCC and DOC Statement on Class B

This equipment has been tested and found to comply with the limits

for a Class B digital device, pursuant to Part 15 of the FCC rules.

These limits are designed to provide reasonable protection against

harmful interference when the equipment is operated in a residential

installation. This equipment generates, uses and can radiate radio

frequency energy and, if not installed and used in accordance with

the instruction manual, may cause harmful interference to radio

communications. However, there is no guarantee that interference

will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of the

following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and the receiver.

• Connect the equipment into an outlet on a circuit different from

that to which the receiver is connected.

• Consult the dealer or an experienced radio TV technician for

help.

Notice:

1. The changes or modifications not expressly approved by the

party responsible for compliance could void the user's authority

to operate the equipment.

2. Shielded interface cables must be used in order to comply with

the emission limits.

Quick Setup Guide

Quick Setup

Guide

Table of Contents

Chapter 1

Quick Setup Guide.............................................

Chapter 2

English......................................................................

Chapter 3

Français (French).................................................

Chapter 4

Deutsch (German)................................................

Chapter 5

Español (Spanish)..................................................

Note:

The user’s manual in the provided CD contains detailed information

about the system board. If, in some cases, some information doesn’t

match those shown in this manual, this manual should always be

regarded as the most updated version.

Quick Setup Guide

Quick Setup

Guide

Chapter 1 - Quick Setup Guide

Table of Contents

1.1 System Board Layout..................................................................................................

1.2 Jumpers.....................................................................................................................................

1.3 Ports and Connectors................................................................................................

1.4 Award BIOS Setup Utility.......................................................................................

Important:

To ensure proper boot up and operation of your system, you must

power-off the system then turn off the power supply’s switch or

unplug the AC power cord prior to altering the setting of a jumper

or replacing the CPU.

Quick Setup Guide

Quick Setup

Guide

1.1 System Board Layout

Mouse

USB 1

USB 2

LAN

ATX p ower

(J19)

CPU fan (J18)

COM 1 (J3)

Parallel (J4)

COM 2 (J5)

Game/MIDI (J8)

Line

out

(J6)

Line

(J7)

Mic

(J9)

CD-in (J12)

AUX-in (J15)

Front audio (J13)

Realtek

RTL8100

Second chassis

fan (J26)

Socket 462

AC’97

Winbond

W83697HF

BIOS IrDA (J17)

VIA

VT6202

DIMM standby

power LED

DDR 1

VIA

KT333

VIA

VT8233ACE

DDR 2 DDR 4

DDR 3

USB 2.0 (J22)

Wake-On-

LAN (J23)

Wake-On-

Ring (J24)

Promise

20276

USB 1.1 (J25)

Chassis fan

(J21)

RESET

SPEAKER HD-LED

Battery

Primary

IDE (J27)

Secondary

IDE (J29)

FDD

(J34)

Clear

CMOS

(JP5)

CPU FSB

select (JP4)

RAID Primary

IDE (J31)

RAID Secondary

IDE (J35)

J35

J28

Wake-On-

USB 2.0

KB/Mouse

(J11)

USB 2.0

(J20)

G-SW

G-LED

PWR-LED

ATX-SW

PS/2 KB/Mouse power select (JP1)

RAID

setting (JP2)

PCI standby

power LED

AGP Slot

PCI Slot 1

PCI Slot 2

PCI Slot 3

PCI Slot 4

PCI Slot 5

PCI Slot 6

S/PDIF-out (J38)

Quick Setup Guide

Quick Setup

Guide

1.2 Jumpers

1.2.2 CPU’s Front Side Bus - JP4

To ensure proper boot up and operation of your system, you must power-

off the system then turn off the power supply’s switch or unplug the AC

power cord prior to altering the setting of the jumper.

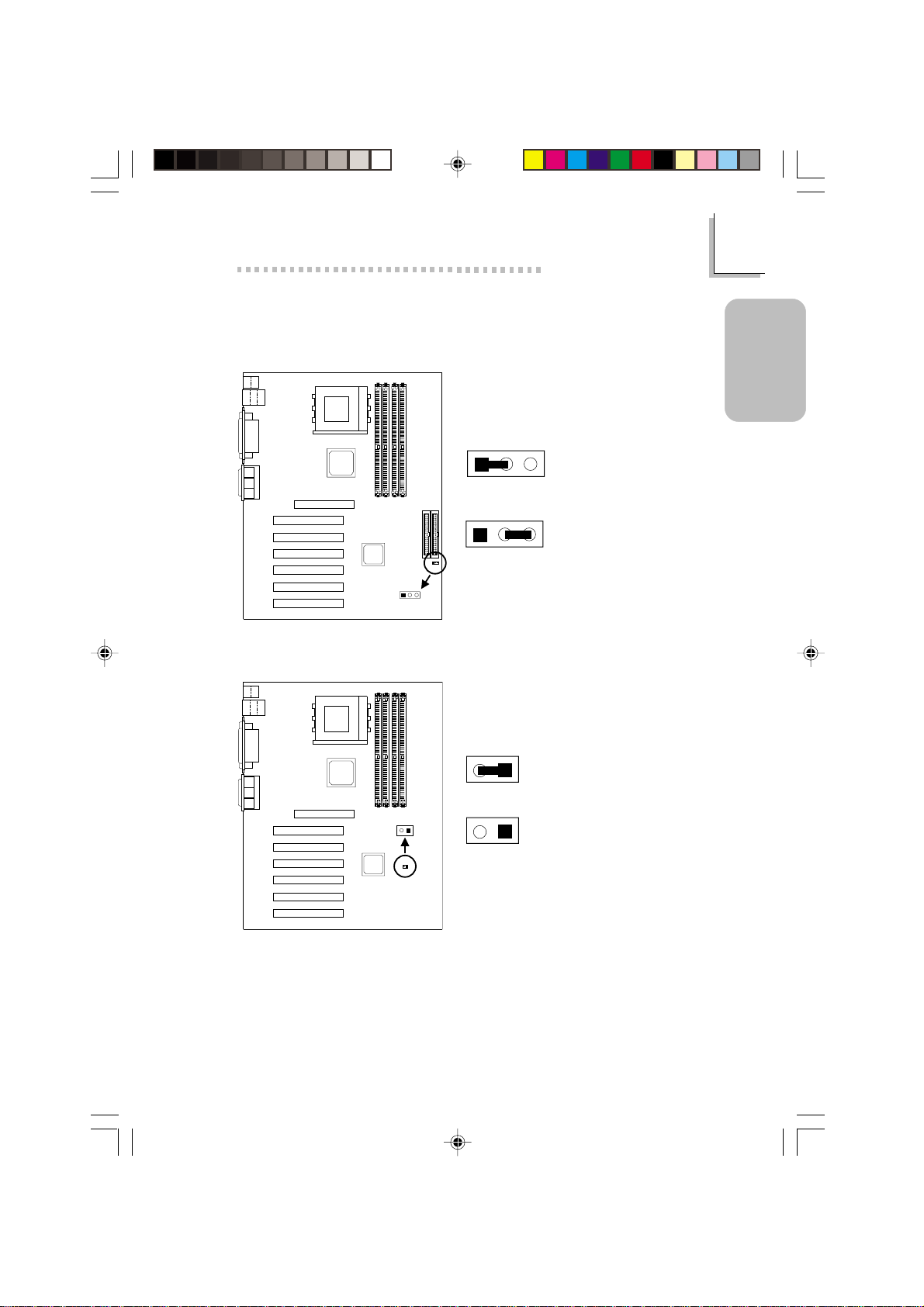

1.2.1 Clear CMOS Data - JP5

Clear CMOS

(JP5)

123

1-2 On:

Normal (default)

2-3 On:

Clear CMOS Data

CPU FSB

select (JP4)

On:

100MHz (200MHz FSB)

(default)

Off:

133MHz (266MHz FSB)

Quick Setup Guide

Quick Setup

Guide

1.2.3 Power Select for PS/2 (JP1)

1.2.4 Wake-On-USB 2.0 Keyboard/Mouse - J11

PS/2 KB/Mouse

power select (JP1)

1-2 On: 5V

(default)

2-3 On: 5VSB

Wake-On-USB 2.0

KB/Mouse (J11)

123

1-2 On:

Enable - 5VSB power

(default)

2-3 On:

Disable - VCC power

Quick Setup Guide

Quick Setup

Guide

1.2.5 RAID Settings - JP2

RAID setting

(JP2)

123

1-2 On:

Disable the RAID function

2-3 On:

Enable the RAID function

(default)

Quick Setup Guide

Quick Setup

Guide

1.3 Ports and Connectors

1.3.1 PS/2 Mouse and PS/2 Keyboard Ports

Make sure to turn off your

computer prior to connecting or

disconnecting a mouse or keyboard.

Failure to do so may damage the

system board.

PS/2 Mouse

PS/2 Keyboard

Mouse

(Green)

(Purple)

1.3.2 RJ45 Fast-Ethernet Port

RJ45

LAN

RJ45 LAN
