DFI CS330-H310 Manuel utilisateur

www.dfi.com

Quick Reference

CS330-H310/Q370

Board Layout and Jumper Settings

933-CS3301-000G A49303946

iTE

IT8893E

PCIe 2 (PCIe x4)

TPM

(optional)

Mini PCIe

(Q370 only)

Nuvoton

NCT6106D

210

USB

7/8

USB

5/6

JP5

PTN3355

Intel

I219V (for CS330-H310)

I219LM (for CS330-Q370)

Intel

I211AT

DIO

S/PDIF

Realtek

ALC888S

Front Audio

Buzzer

9 10

Front

Panel

1 2

7 8

SPI Flash BIOS

LANLED

USB

9/14

210

SATA

191919 1

919

SMBus

JP7

COM

2 2

COM

JP9 (Q370 only)

Chassis Intrusion

Intel

H310/Q370

JP10

2 6

JP6 JP8

SATA 2

SYS

Fan 2

SATA 1

SATA 0

Battery

110

1119

KB/MS

USB 5/6

(USB 2.0)

VGA

COM1

DVI-I

(DVI-D signal)

DP++

LAN 1

USB 1/2

(USB 3.1)

LAN 2

USB 3/4

(USB 3.1)

Mic In

Line Out

Line In

DDR4_1

DDR4_2

DDR4_3 DDR4_4

SYS FAN1

CPU FAN

LGA 1511

JP2 JP3

JP1 JP4

+12V Power

ATX

power

1 13

12 24

Standby

Power

LED

LPC

PCI 1

PCI 2

PCIe 1 (PCIe x16)

Clear CMOS Data JP6

Normal (default) 1-2 On

Clear CMOS Data 2-3 On

Mini PCIe Signal Select

(Q370 only) JP9

Mini PCIe (default) 1-2 On

mSATA 2-3 On

COM Serial

Signal Select

JP1 (COM 1)

JP10 (COM 2)

JP2&3 (COM 1)

JP6&8 (COM 2)

RS232 1-2 On 1-2, 3-4 On

RS422 Full Duplex 3-4 On 3-4, 5-6 On

RS485 5-6 On 3-4, 5-6 On

COM Ports RS232

Power Select

JP4 (COM 1)

JP7 (COM 2)

RS232 (default) 1-3 (RI-), 2-4 (DCD-) On

RS232 with power 3-5 (+5V), 4-6 (+12V) On

2Quick Reference |

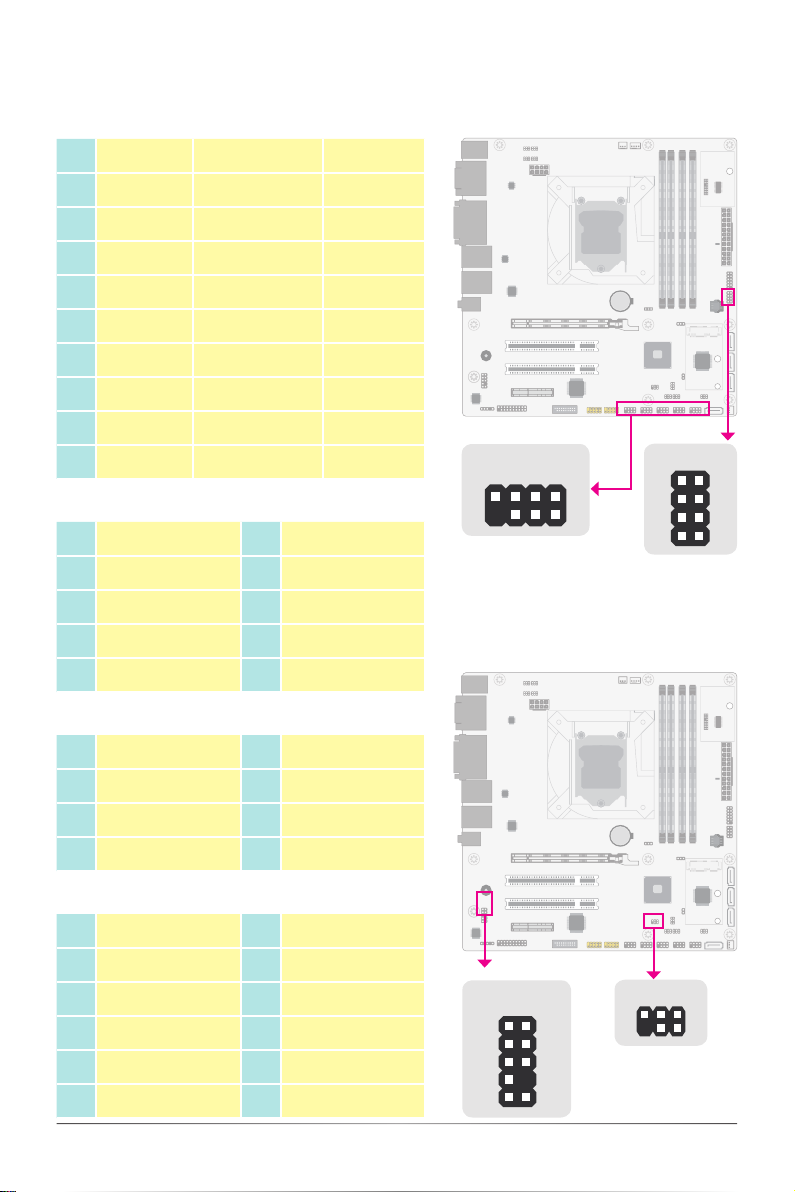

Pin Assignment

CS330-H310/Q370

COM Ports (COM 2-6)

Pin RS232 RS422

Full Duplex RS485

1DCD- RXD+ DATA+

2RXD RXD- DATA-

3TXD TXD+ NC

4DTR- TXD- NC

5GND GND GND

6DSR- NC NC

7RTS- NC NC

8CTS- NC NC

9RI- NC NC

LAN LED

Pin Assignment Pin Assignment

1GBE_LED_1000- 2GBE_LED_100-

3GBE_LED_LINK_ACT- 43V3DU

5LINK_1000_4 6LINK_100_4

7LINK_ACTIVITY_4 83V3DU

SMBus

Pin Assignment Pin Assignment

13V3SB 2GND

3SMBus_Clock 4SMBus_DATA

5SMBus_Alert 6---

Front Audio

Pin Assignment Pin Assignment

1Mic2-L 2GND

3Mic2-R 4N.C.

5Line2-R 6Mic2-JD

7GND 8---

9Line2-L 10 Line2-JD

Note: All three modes, i.e. RS232, RS422 Full

Duplex, and RS485 are vailbable for COM 1 &

2. Only RS232 is available for COM 3 - 6.

COM 2 - 6

(from left to right)

SMBus

Front Audio

LAN LED

3Quick Reference | CS330-H310/Q370

LPC

Pin Assignment Pin Assignment

1L_CLK 2L_LAD1

3L_RST# 4L_LAD0

5L_FRAME# 63.3V

7L_LAD3 8GND

9L_LAD2 10 ---

11 INT_SERIRQ 12 GND

13 5VSB 14 5V

Front Panel

Pin Assignment Pin Assignment

1N.C.

PWR-LED

2LED Power

HD-LED

3HDD Power 4LED Power

5Signal 6Signal

RESET

7Ground

ATX-SW

8Ground

9Signal 10 Signal

11 N.C. 12 ---

Digital I/O (DIO)

Pin Function Pin Function

1GND 2+12V

3DIO7 4+12V

5DIO6 6GND

7DIO5 8+5V

9DIO4 10 +5V

11 DIO3 12 GND

13 DIO2 14 +5VDU

15 DIO1 16 +5VDU

17 DIO0 18 GND

19 GND 20 ---

Note: The LPC connector can be mount-

ed with an EXT RS232/RS485 card for 4

additional COM ports.

Front Panel

PWR-LED

HD-LED

ATX-SWRESET

11 12

LPC

2 1

14 13

Digital I/O

19 1

4Quick Reference | CS330-H310/Q370

DFI reserves the right to change the specications at any time prior

to the product's release. For the latest information about the product,

please visit the document download page at go.d.com/CS330-H310,

go.d.com/CS330-Q370 or via the QR codes to the right.

USB 2.0 Headers (for Internal I/0 USB 7/8/9/14)

Pin Assignment Pin Assignment

1VCC 2VCC

3DATA- 4DATA-

5DATA+ 6DATA+

7GND 8GND

9--- 10 NC

Chassis Intrusion

Pin Function Pin Function

1Signal 2GND

USB 3.1 Gen 1 Headers (USB 5/6, CS330-Q370 only)

Pin Assignment Pin Assignment

1PWR 11 D+

2RX- 12 D-

3RX+ 13 GND

4GND 14 TX+

5TX- 15 TX-

6TX+ 16 GND

7GND 17 RX+

8D- 18 RX-

9D+ 19 PWR

10 Over Current

Protection 20 ---

S/PDIF

Pin Assignment Pin Assignment

1+5V 2---

3SPDIF Out 4GND

5SPDIF In

USB 3.1 (USB 5/6)

USB 7/8USB 9/14

USB 2.0

210

S/PDIF

Note:

USB 9/14 can be replaced by optional vertical USB.

CS330-H310 CS330-Q370

Chassis

Intrusion
