D55168

Oil Free Portable Air Compressor

Compresseur d’air portatif sans huile

Compresor de aire sin aceite portátil

INSTRUCTION MANUAL

GUIDE D'UTILISATION

MANUAL DE INSTRUCCIONES

INSTRUCTIVO DE OPERACIÓN, CENTROS DE SERVICIOY PÓLIZA

DEGARANTÍA.ADVERTENCIA:LÉASEESTEINSTRUCTIVOANTES

DE USAR EL PRODUCTO.

If you have questions or comments, contact us.

Pour toute question ou tout commentaire, nous contacter.

Si tiene dudas o comentarios, contáctenos.

1-800-4-DEWALT • www.dewalt.com

English

A. On/Off Switch

B. Air Tank Pressure Gauge

C. Regulated Pressure Gauge

D. Pressure Regulator

E. Quick Connect

Pump/Motor Speciﬁcations

Voltage: Single Phase 120V

Minimum branch circuit requirement: 15 A

Fuse Type: Time delay

Speciﬁcations

MODEL D55168

WEIGHT 88 lbs. (39.92 kg)

HEIGHT 41.75" (1060.5mm)

WIDTH 19.0" (482.6 mm)

LENGTH 21.25 (539.8 mm)

AIRTANK CAPACITY (GALLONS) 15 Gallon (56.8 liters)

APPROX CUT-IN PRESSURE

160 PSI (1103.2 kPa)

APPROX. CUT-OUT PRESSURE

200 PSI (1379.0 kPa)

SCFM @ 90 PSI (620.5 kPa) 5.4

D55168 Air Compressor FIG. 1

F. Check Valve

G. Safety Valve

H. Air Tank Drain Valve

I. Pressure Switch

English

Deﬁnitions: Safety Guidelines

The definitions below describe the level of severity

for each signal word. Please read the manual and

pay attention to these symbols.

DANGER: Indicates an imminently hazardous

situation which, if not avoided, will result in death

or serious injury.

WARNING: Indicates a potentially hazardous

situation which, if not avoided, could result in death

or serious injury.

CAUTION: Indicates a potentially hazardous

situation which, if not avoided, may result in minor

or moderate injury.

CAUTION: Used without the safety alert symbol

indicates a potentially hazardous situation which, if

not avoided, may result in property damage.

IF YOU HAVE ANY QUESTIONS OR COMMENTS ABOUT

THIS OR ANY D

WALT TOOL, CALL US TOLL FREE AT:

1-800-4-D

WALT (1-800-433-9258)

Important Safety Instructions

WARNING:Do not operate this unit until you read and understand

this instruction manual for safety, operation and maintenance

instructions.

WARNING:Some dustcreated by powersanding, sawing,grinding,

drilling, and other construction activities contains chemicals known

(to the State of California) to cause cancer, birth defects or other

reproductive harm. Some example of these chemicals are:

• lead from lead-based paints

• crystalline silica from bricks and cement and other masonry

products

• arsenic and chromium from chemically-treated lumber

Your risk from these exposures varies, depending on how often you

do this type of work. To reduce your exposure to these chemicals:

work in a well ventilated area, and work with approved safety

equipment, always wear OSHA/MSHA/NIOSH approved, properly

fitting face mask or respirator when using such tools.

When using air tools, basic safety precautions should always be

followed to reduce the risk of of personal injury.

WARNING: This product contains chemicals, including lead,

known to the State of California to cause cancer, and birth

defects or other reproductive harm.Wash hands after handling.

SAVE THESE INSTRUCTION

DANGER: RISK OF EXPLOSION OR FIRE

WHAT CAN HAPPEN HOWTO PREVENT IT

• It is normal for electrical con-

tacts within the motor and

pressure switch to spark.

• Always operate the compres-

sor in a well ventilated area

free of combustible materials,

gasoline, or solvent vapors.

English

• If electrical sparks from

compressor come into con-

tact with flammable vapors,

they may ignite, causing fire

or explosion.

• If spraying flammable materi-

als, locate compressor at

least 20 feet (6.1 m) away

from spray area. An addi-

tional length of hose may be

required.

• Store flammable materials in

a secure location away from

compressor.

• Restricting any of the com-

pressor ventilation openings

will cause serious overheat-

ing and could cause fire.

• Never place objects against or

on top of compressor.

• Operate compressor in

an open area at least 12"

(30 cm) away from any wall or

obstruction that would restrict

the flow of fresh air to the

ventilation openings.

• Operate compressor in a

clean, dry well ventilated area.

Do not operate unit indoors or

in any confined area.

• Unattended operation of

this product could result in

personal injury or property

damage.To reduce the risk

of fire, do not allow the

compressor to operate unat-

tended.

• Always remain in attendance

with the product when it is

operating.

• Always turn off and unplug

unit when not in use.

DANGER: RISKTO BREATHING (ASPHYXIATION)

WHAT CAN HAPPEN HOWTO PREVENT IT

• The compressed air directly

from your compressor is not

safe for breathing.The air

stream may contain carbon

monoxide, toxic vapors,

or solid particles from the

air tank.Breathing these

contaminant's can cause

serious injury or death.

• Air obtained directly from the

compressor should never be

used to supply air for human

consumption.In order to use air

produced by this compressor

for breathing, suitable filters

and in-line safety equipment

must be properly installed.In-

line filters and safety equipment

used in conjunction with the

compressor must be capable

of treating air to all applicable

local and federal codes prior to

human consumption.

• Sprayed materials such as

paint, paint solvents, paint

remover, insecticides, weed

killers, may contain harmful

vapors and poisons.

• Work in an area with good

cross ventilation.Read and

follow the safety instructions

provided on the label or safety

data sheets for the materials

you are spraying.Always use

certified safety equipment:

OSHA/MSHA/NIOSH

respiratory protection designed

for use with your specific

application.

English

WARNING: RISK OF BURSTING

Air Tank: The air tank on your Air Compressor is designed and may

be UM coded (for units with air tanks greater than 6 inch diameter)

according to ASME Section VIII, Div. 1 rules. All pressure vessels

should be inspected once every two years.To find your state pressure

vessels inspector, look under the Division of Labor and Industries in

the government section of a phone book or call 1-800-4-DEWALT for

assistance.

The following conditions could lead to a weakening of the air tank, and

result in a violent air tank explosion:

WHAT CAN HAPPEN HOWTO PREVENT IT

• Failure to properly drain

condensed water from

air tank, causing rust and

thinning of the steel air tank.

• Drain air tank daily or after

each use.If air tank develops

a leak, replace it immediately

with a new air tank or replace

the entire compressor.

• Modifications or attempted

repairs to the air tank. • Never drill into, weld, or make

any modifications to the air

tank or its attachments.Never

attempt to repair a damaged or

leaking air tank.Replace with a

new air tank.

• Unauthorized modifications to

the safety valve or any other

components which control air

tank pressure.

• The air tank is designed

to withstand specific

operating pressures.Never

make adjustments or parts

substitutions to alter the factory

set operating pressures.

Attachments & accessories:

• Exceeding the pressure

rating of air tools, spray guns,

air operated accessories,

tires, and other inflatables

can cause them to explode or

fly apart, and could result in

serious injury.

• Follow the equipment

manufacturers

recommendation and never

exceed the maximum allowable

pressure rating of attachments.

Never use compressor to

inflate small low pressure

objects such as children’s toys,

footballs, basketballs, etc.

WARNING: RISK OF ELECTRICAL SHOCK

WHAT CAN HAPPEN HOWTO PREVENT IT

• Your air compressor is

Like any other electrically

powered device, If it is not

used properly it may cause

electric shock.

• Never operate the compressor

outdoors when it is raining or

in wet conditions.

• Never operate compressor

with protective covers

removed or damaged.

• Repairs attempted by

unqualified personnel can

result in serious injury or

death by electrocution.

• Any electrical wiring or

repairs required on this

product should be performed

by a DEWALT factory

service center or a DEWALT

authorized service center in

accordance with national and

local electrical codes.

English

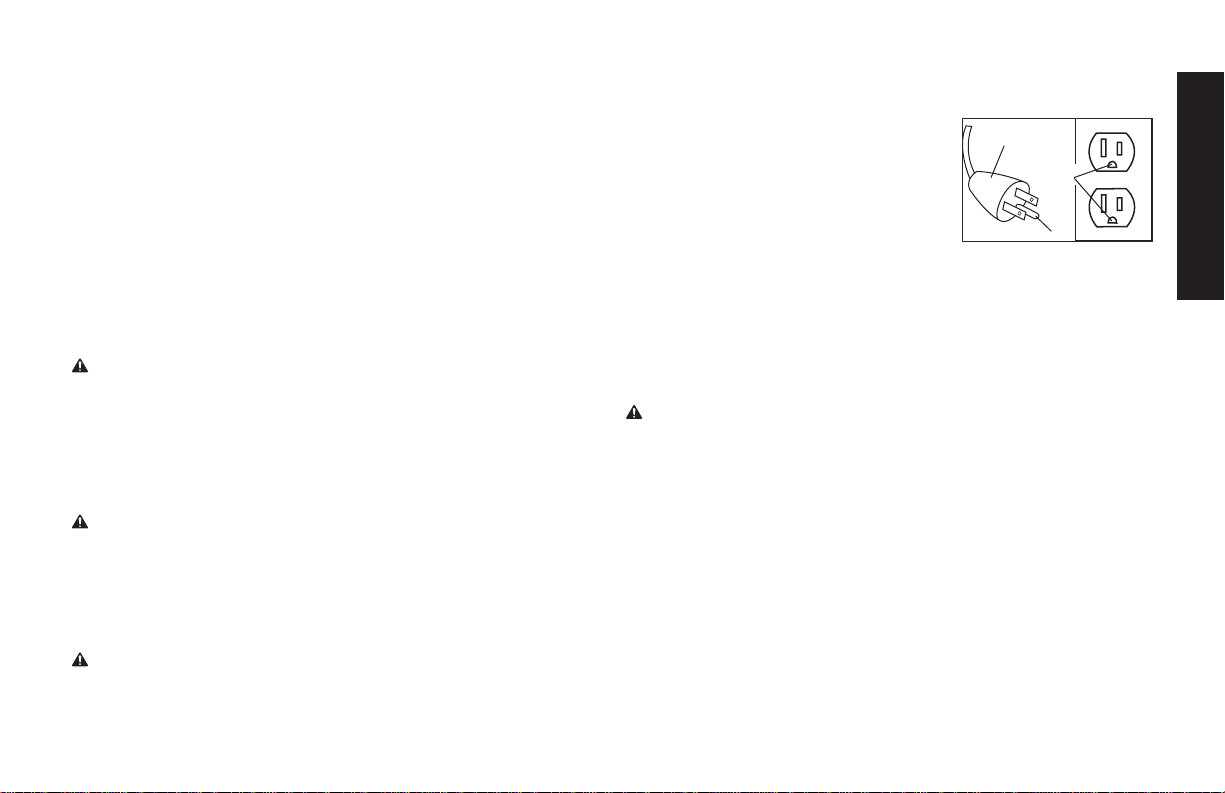

• Electrical Grounding:

Failure to provide adequate

grounding to this product

could result in serious injury

or death from electrocution.

See Grounding

Instructions under

Installation.

• Make certain that the

electrical circuit to which the

compressor is connected

provides proper electrical

grounding, correct voltage and

adequate fuse protection.

WARNING: RISK FROM FLYING OBJECTS

WHAT CAN HAPPEN HOWTO PREVENT IT

• The compressed air stream

can cause soft tissue

damage to exposed skin and

can propel dirt, chips, loose

particles, and small objects

at high speed, resulting in

property damage or personal

injury.

• Always wear certified safety

equipment:ANSI Z87.1 eye

protection (CAN/CSA Z94.3)

with side shields when using

the compressor.

• Never point any nozzle or

sprayer toward any part of

the body or at other people or

animals.

• Always turn the compressor off

and bleed pressure from the

air hose and air tank before

attempting maintenance,

attaching tools or accessories.

WARNING: RISK OF HOT SURFACES

WHAT CAN HAPPEN HOWTO PREVENT IT

• Touching exposed metal such

as the compressor head,

engine head, engine exhaust

or outlet tubes, can result in

serious burns.

• Never touch any exposed

metal parts on compressor

during or immediately after

operation. Compressor will

remain hot for several minutes

after operation.

• Do not reach around

protective shrouds or attempt

maintenance until unit has

been allowed to cool.

WARNING: RISK FROM MOVING PARTS

WHAT CAN HAPPEN HOWTO PREVENT IT

• Moving parts such as the

pulley, flywheel, and belt can

cause serious injury if they

come into contact with you or

your clothing.

• Never operate the compressor

with guards or covers which

are damaged or removed.

• Keep your hair, clothing, and

gloves away from moving parts.

Loose clothes, jewelry, or long

hair can be caught in moving

parts.

• Air vents may cover moving

parts and should be avoided as

well.

English

• Attempting to operate

compressor with damaged or

missing parts or attempting

to repair compressor with

protective shrouds removed

can expose you to moving

parts and can result in

serious injury.

• Any repairs required on this

product should be performed

by a DEWALT factory service

center or a DEWALT authorized

service center.

WARNING: RISK OF UNSAFE OPERATION

WHAT CAN HAPPEN HOWTO PREVENT IT

• Unsafe operation of your air

compressorcould lead to seri-

ous injury or death to you or

others.

• Review and understand all

instructions and warnings in

this manual.

• Become familiar with the

operation and controls of the

air compressor.

• Keep operating area clear of all

persons, pets, and obstacles.

• Keep children away from the air

compressor at all times.

• Do not operate the product

when fatigued or under the

influence of alcohol or drugs.

Stay alert at all times.

• Never defeat the safety fea-

tures of this product.

• Equip area of operation with a

fire extinguisher.

• Do not operate machine with

missing, broken, or unautho-

rized parts.

WARNING: RISK OF FALLING

WHAT CAN HAPPEN HOWTO PREVENT IT

• A portable compressor

can fall from a table,

workbench, or roof causing

damage to the compressor

and could result in serious

injury or death to the

operator.

• Always operate compressor

in a stable secure position to

prevent accidental movement

of the unit. Never operate

compressor on a roof or

other elevated position.Use

additional air hose to reach

high locations.

CAUTION: RISK FROM NOISE

WHAT CAN HAPPEN HOWTO PREVENT IT

• Under some conditions and

duration of use, noise from

this product may contribute

to hearing loss.

• Always wear certified safety

equipment: ANSI S12.6

(S3.19) hearing protection.

SAVE THESE INSTRUCTIONS

FOR FUTURE USE

English

FEATURES

ON/OFF SWITCH

Placethisswitch(A)intheONpositiontoprovide

automatic power to the pressure switch and

OFF to remove power at the end of each use.

PRESSURE SWITCH

The pressure switch (I) automatically starts the

motor when the air tank pressure drops below

the factory set cut-in pressure.It stops the motor when the air tank

pressure reaches the factory set cut-out pressure.

SAFETY VALVE

If the pressure switch does not shut off the air compressor at its

cut-out pressure setting, the safety valve (G) will protect against

high pressure by popping out at its factory set pressure (slightly

higher than the pressure switch cut-out setting).

CHECK VALVE

When the air compressor is operating, the check valve (F) is

open, allowing compressed air to enter the air tank. When the

air compressor reaches cut-out pressure, the check valve closes,

allowing air pressure to remain inside the air tank.

TANK PRESSURE GAUGE

The tank pressure gauge (B) indicates the D

reserve air pressure in the tank.

OUTLET PRESSURE GAUGE

The outlet pressure gauge (C) indicates

the air pressure available at the outlet

side of the regulator. This pressure is

controlled by the regulator and is always

less than or equal to the tank pressure.

REGULATOR

The regulator (D) controls the air pressure shown on the outlet

pressure gauge. Pull the knob out and turn clockwise to increase

pressure and counterclockwise to decrease pressure. When the

desired pressure is reached push knob in to lock in place.

UNIVERSAL QUICK CONNECT BODIES

The universal Quick Connect body (E) accepts the three most

popular styles of Quick Connect plugs: Industrial, automotive, and

ARO. One hand push-to-connect operation makes connections

simple and easy.

DRAIN VALVE

The drain valve (H) is located at the base of the air

tank and is used to drain condensation at the end

of each use.

See Draining Air Tank under

Maintenance.

COOLING SYSTEM

This compressor contains an advanced design cooling system.

It is normal for this fan to blow air through the vent holes in large

amounts.The cooling system is working when air is expelled.

AIR COMPRESSOR PUMP

The pump compresses air into the air tank. Working air is not

available until the compressor has raised the air tank pressure

above that required at the air outlet.

PRESSURE RELEASE VALVE

The pressure release valve located on the side of the pressure

switch, is designed to automatically release compressed air from

the compressor head and the outlet tube when the air compressor

reaches "cut-out" pressure or is shut off.The pressure release valve

allows the motor to restart freely. When the motor stops running,

air will be heard escaping from this valve for a few seconds. No air

should be heard leaking when the motor is running or after the unit

reaches "cut-out" pressure.

English

MOTOR OVERLOAD PROTECTOR

The motor has a manual thermal overload protector. If the motor

overheats for any reason, the overload protector will shut off the

motor. The motor must be allowed to cool down before restarting.

To restart:

1. Set the On/Auto/Off lever to OFF and unplug unit.

2. Allow the motor to cool.

Plug the power cord into the correct branch circuit receptacle.

4. Set the On/Auto/Off lever to ON/AUTO position.

INSTALLATION

Assembly

INSTALLING HOSES

WARNING: Risk of unsafe operation. Firmly grasp hose in hand

when installing or disconnecting to prevent hose whip.

1. Ensure regulated pressure gauge reads 0 PSI (0 kPa).

2. Grasp the hose at the Quick Connect plug and push the plug

into the Quick Connect body (E). Coupler will snap into place.

3. Grasp the hose and pull to ensure coupler is seated.

DISCONNECTING HOSES

WARNING: Risk of unsafe operation. Firmly grasp hose in hand

when installing or disconnecting to prevent hose whip.

1. Ensure regulated pressure gauge reads 0 PSI (0 kPa).

2. Pull coupler on Quick Connect body back to release Quick

Connect plug on hose.

Grounding Instructions

WARNING: Risk of Electrical Shock. In the event of a short

circuit, grounding reduces the risk of shock by providing an escape

wire for the electric current. This air compressor must be properly

grounded.

The portable air compressor is equipped with a cord having a

grounding wire with an appropriate grounding plug.

1. Thecord set and plug(M)withthis unit

contains a grounding pin (L).This plug

MUST be used with a grounded outlet

(K).

IMPORTANT: The outlet being used must

be installed and grounded in accordance

with all local codes and ordinances.

2. Ensure the outlet being used has the same configuration as the

grounded plug. DO NOT USE AN ADAPTER.

3. Inspect the plug and cord before each use. Do not use if there

are signs of damage.

4. If these grounding instructions are not completely understood, or

if in doubt as to whether the compressor is properly grounded,

have the installation checked by a qualified electrician.

DANGER: Risk of Electrical Shock. IMPROPER GROUNDING

CAN RESULT IN ELECTRICAL SHOCK.

Do not modify the plug provided. If it does not fit the available

outlet, a correct outlet should be installed by a qualified

electrician.

Repairs to the cord set or plug MUST be made by a qualified

electrician.

Extension Cords

If an extension cord must be used, be sure it is:

• a 3-wire extension cord that has a 3-blade grounding

plug, and a 3-slot receptacle that will accept the plug on

the product

English

• in good condition

• no longer than 50 feet

• 12 gauge (AWG) or larger. (Wire size increases as gauge num-

ber decreases.10 AWG and 8 AWG may also be used. DO NOT

USE 14 OR 16 AWG.)

CAUTION: The use of an undersized extension cord will cause volt-

age to drop resulting in power loss to the motor and overheating.

Instead of using an extension cord, increase the working reach of

the air hose by attaching another length of hose to its end. Attach

additional lengths of hose as needed.

Voltage and Circuit Protection

Refer to the Voltage and Minimum Branch Circuit Requirements

under Pump/Motor Specifications.

CAUTION: Certain air compressors can be operated on a

15 amp circuit if the following conditions are met.

• Voltage supply to circuit must comply with the National Electrical

Code.

• Circuit is not used to supply any other electrical needs.

• Extension cords comply with specifications.

• Circuit is equipped with a 15 amp circuit breaker or 15 amp

time delay fuse. NOTE: If compressor is connected to a circuit

protected by fuses, use only time delay fuses.Time delay fuses

should be marked “D” in Canada and “T” in the US.

If any of the above conditions cannot be met, or if operation of the

compressor repeatedly causes interruption of the power, it may be

necessary to operate it from a 20 amp circuit. It is not necessary

to change the cord set.

Compatibility

NOTE: Always use an air line filter to remove moisture when

spraying paint.

Location

Place the air compressor in a clean, dry and well ventilated area

at least 12" (30 mm) away from the wall or other obstructions that

will interfere with the flow of air. Keep the compressor away from

areas that have dirt and/or volatile fumes in the atmosphere.These

impurities may clog the intake filter and valves, causing inefficient

operation.

WARNING: Theaircompressorpumpandshroudaredesignedto

allowforpropercooling.Theventilationopeningsonthecompressor

are necessary to maintain proper operating temperature. Do not

place rags or other containers on or near these openings.

Place the air compressor on a flat surface resting on the rubber

feet.

ELECTRICAL

Refer to all safety instructions before using unit. Observe extension

cord safety instructions if necessary. Always move the On/Off

switch (A) to the OFF position before removing the plug from the

outlet.

TRANSPORTING

When transporting the compressor in a vehicle, trailer, etc., make

sure the tank is drained and the unit is secured with straps to prevent

tipping. Use care when driving to prevent tipping the unit over in the

vehicle. Damage can occur to the compressor or surrounding items

if the compressor is tipped.

Autres manuels pour D55168

Table des matières

Autres manuels DeWalt Compresseur d'air

DeWalt

DeWalt D55166 Manuel utilisateur

DeWalt

DeWalt XR DCC1018 Manuel utilisateur

DeWalt

DeWalt D55146 Manuel utilisateur

DeWalt

DeWalt DXCM301 Manuel utilisateur

DeWalt

DeWalt D55141 Manuel utilisateur

DeWalt

DeWalt DXCMH1608WB-CA Manuel utilisateur

DeWalt

DeWalt D55140 Manuel utilisateur

DeWalt

DeWalt DXCMSAC260 Manuel utilisateur

DeWalt

DeWalt D55690 Manuel utilisateur

DeWalt

DeWalt Emglo D55152 Manuel utilisateur

DeWalt

DeWalt D2002M-WK Manuel utilisateur

DeWalt

DeWalt DXCMV5048055 Manuel utilisateur

DeWalt

DeWalt DCC1054N-XJ Manuel utilisateur

DeWalt

DeWalt DXCM272 Manuel utilisateur

DeWalt

DeWalt DXCMV5248069 Manuel utilisateur

DeWalt

DeWalt DXCM201 Manuel utilisateur

DeWalt

DeWalt D55146-CA Manuel utilisateur

DeWalt

DeWalt D55371 Manuel utilisateur

DeWalt

DeWalt DXCMTE6590811 Manuel utilisateur

DeWalt

DeWalt 919.175260 Manuel utilisateur

DeWalt

DeWalt U3A2008X Manuel utilisateur

DeWalt

DeWalt D55168 Manuel utilisateur

DeWalt

DeWalt D55168 Manuel utilisateur

DeWalt

DeWalt DXCM804 Manuel utilisateur

Manuels Compresseur d'air populaires d'autres marques

Sparmax

Sparmax DC-25XR Manuel utilisateur

KAESER

KAESER M122 Manuel utilisateur

GMC

GMC GAC1500 Manuel utilisateur

Briggs & Stratton

Briggs & Stratton Air Compressor Manuel utilisateur

Fini

Fini F3GST2TK Manuel utilisateur

Industrial Air

Industrial Air CP1580325 Manuel de programmation

Campbell Hausfeld

Campbell Hausfeld RP3300 Guide de démarrage rapide

Ingersoll-Rand

Ingersoll-Rand UP6 20 HP Manuel utilisateur

Hitachi

Hitachi EC99S Manuel de l'opérateur

Parkside

Parkside PKO 270 A1 Manuel utilisateur

Sullair

Sullair 185 Manuel utilisateur

Clas Ohlson

Clas Ohlson QIE-ZTH-15 Manuel utilisateur

Ferm

Ferm CRM1046 Manuel utilisateur

BE AC153 Manuel utilisateur

RIDGID

RIDGID OF25150A Manuel utilisateur

Johnson Controls

Johnson Controls QUANTUM LX Manuel

Sears

Sears Craftsman 919.167463 Manuel utilisateur

Ring Automotive

Ring Automotive RAC700 Manuel utilisateur
