MultiChoice®Valve Trim with Diverter

Installation Instructions

Owners Manual

T27859, T27867, T27897,

T27899, T27959, T27967,

T27997 & T27999

Series

Write purchased model number here.

You May Need

THIS VALVE MEETS OR EXCEEDS THE

FOLLOWING STANDARDS: ASME A112.18.1/

CSA B125.1 and ASSE 1016 (Type -P- or -T-).

CAUTION: This system/device must be set by the

installer to ensure safe, maximum temperature.

Any change in the setting may raise the discharge

temperature above the limit considered safe and

may lead to hot water burns.

NOTICE TO INSTALLER: CAUTION!–As the

installer of this valve, it is your responsibility

to properly INSTALL and ADJUST this valve

per the instructions given. This valve does

not automatically adjust for inlet temperature

changes, therefore, someone must make the

necessary Rotational Limit Stop adjustments

at the time of installation and further adjustments

may be necessary due to seasonal water

temperature change. YOU MUST inform the

owner/user of this requirement by following

the instructions. If you or the owner/user are

unsure how to properly make these adjustments

please refer to page 6 and if still uncertain, call

us at 1-800-345-DELTA.

After installation and adjustment, you must afx

your name, company name and the date you

adjusted the Rotational Limit Stop to the caution

label provided and apply or attach the label to

the back side of the closest cabinet door and the

warning label to the water heater. Leave this

Instruction Sheet for the owner’s/user’s

reference.

WARNING: This pressure balanced or

thermostatic bath valve is designed

to minimize the effects of outlet water

temperature changes due to inlet pressure

changes, commonly caused by dishwashers,

washing machines, toilets and the like. It may

not provide protection from hot water burns

when there is a failure of other temperature

controlling devices elsewhere in the

plumbing system, if the rotational limit stop

is not properly set or if the hot water

temperature is changed after the settings are

made or if the water inlet changes

due to seasonal changes.

WARNING: Do not install a shut-off device on

either outlet of this valve. When this type of

device shuts off the water ow, it can defeat

the ability of the valve to balance the hot and

cold water pressures.

92345

Table of Contents:

Warranties ............................................................................... Page 2

Installation Instructions ........................................................... Pages 3 - 7

Clean and care......................................................................... Page 9

Maintenance ............................................................................ Page 9

Cartridge Summary Reference Sheet ..................................... Page 9

Classic Series Replacement Parts .......................................... Page 10-12

For additional replacement parts, visit www.deltafaucet.com

08/06/2018

3/32"

92345 Rev. E 2

Parts and Finish

All parts (other than electronic parts and batteries) and finishes of this Delta®faucet are warranted to the original consumer purchaser to be free from

defects in material and workmanship for as long as the original consumer purchaser owns the home in which the faucet was first installed or, for com-

mercial users, for 5 years from the date of purchase.

Electronic Parts and Batteries (if applicable)

Electronic parts (other than batteries), if any, of this Delta®faucet are warranted to the original consumer purchaser to be free from defects in material

and workmanship for 5 years from the date of purchase or, for commercial users, for one year from the date of purchase. No warranty is provided on

batteries.

Delta Faucet Company will replace, FREE OF CHARGE, during the applicable warranty period, any part or finish that proves defective in material and/

or workmanship under normal installation, use and service. If repair or replacement is not practical, Delta Faucet Company may elect to refund the

purchase price in exchange for the return of the product. These are your exclusive remedies.

Delta Faucet Company recommends using a professional plumber for all installation and repair. We also recommend that you use only genuine Delta®

replacement parts.

Delta Faucet Company shall not be liable for any damage to the faucet resulting from misuse, abuse, neglect or improper or incorrectly performed

installation, maintenance or repair, including failure to follow the applicable care and cleaning instructions.

Replacement parts may be obtained by calling the applicable number below or by writing to:

In the United States and Mexico: In Canada:

Delta Faucet Company Masco Canada Limited, Plumbing Group

Product Service Technical Service Centre

55 E. 111th Street 350 South Edgeware Road

Indianapolis, IN 46280 St. Thomas, Ontario, Canada N5P 4L1

1-877-345-DELTA (3358) 1-877-345-DELTA (3358)

[email protected] [email protected]

Proof of purchase (original sales receipt) from the original purchaser must be made available to Delta Faucet Company for all warranty claims unless

the purchaser has registered the product with Brizo Kitchen & Bath Company. This warranty applies only to Delta®faucets manufactured after January

1, 1995 and installed in the United States of America, Canada and Mexico.

DELTA FAUCET COMPANY SHALL NOT BE LIABLE FOR ANY SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES (INCLUDING LABOR

CHARGES) FOR BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THE FAUCET. Some states/provinces do not allow the exclusion or lim-

itation of special, incidental or consequential damages, so these limitations and exclusions may not apply to you. This warranty gives you special legal

rights. You may also have other rights which vary from state/province to state/province.

This is Delta Faucet Company’s exclusive written warranty and the warranty is not transferable.

If you have any questions or concerns regarding our warranty, please view our Warranty FAQs at www.deltafaucet.com, email us at customerservice@

deltafaucet.com or call us at the applicable number above.

Lifetime Faucet and Finish Limited Warranty

92345 Rev. E

Installation

1Cartridge Installation

A. B.

Turn off water supplies. Remove cover (1),

bonnet nuts (2) and test caps (3) from the

rough-in body (4).

Place a bucket or small container over the front

of the valve body and slowly open the water

supplies to ush any debris from the supply

lines before installing the cartridge. Turn the

water supplies back off.

Insert adapter assembly (1) into rough-in

body (2). Make sure the adapter assembly

is correctly positioned and is pressed all

the way down inside rough-in body.

Rotate cartridge (1) so the words “HOT SIDE”

(2) appear on the left. Insert cartridge assembly

into rough-in body. Make sure the key (3) on the

valve cartridge is fully engaged with the slot in

the brass body (4). Insert bonnet nut (5) over

the cartridge and thread onto the body. Hand

tighten securely, slide o-ring (6) over bonnet

and cartridge. A light coating of plumbers

grease applied to o-rings may aid in assembly.

For the exceptions of back to back or reverse

installations (hot on right and cold on left) only:

Rotate valve cartridge (1) so “HOT SIDE” (2)

appears on the right.

Apply silicone lube to the three o-rings shown

above to make the cartridge easier to install and

remove from the rough-in body.

Install the cartridge making sure that the keys

are fully engaged with the slot in the rough-in

body (see step C).

Slide o-ring (3) and bonnet nut (4) over the

cartridge and thread onto the rough-in body.

Hand tighten securely.

C. Back to back Installation

Normal Installation

(changes not required)

Reverse

Installation

Cold

Hot

92345 Rev. E

Installation

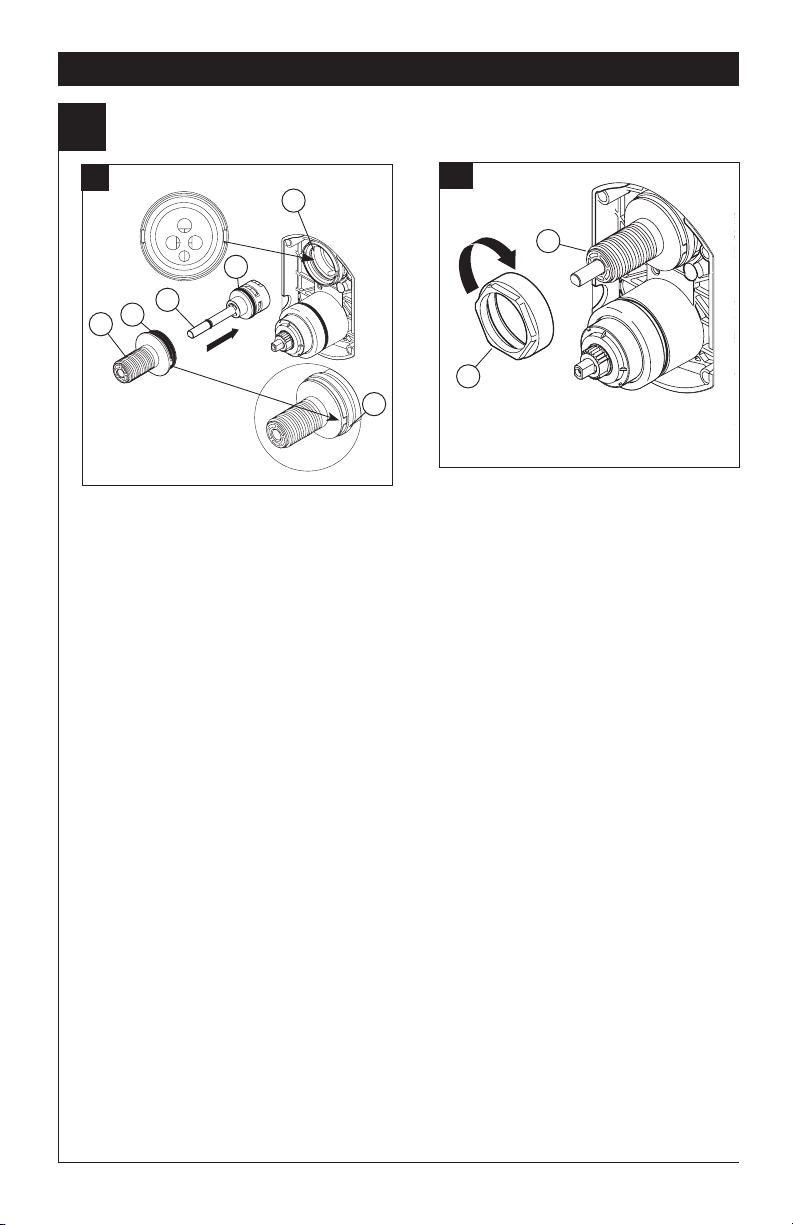

2Diverter Cartridge Installation

For Bonnet Installation

Slide bonnet nut (1) over diverter sleeve (2)

and thread into rough-in body.

Hand tighten securely.

FOR DIVERTER CARTRIDGE

INSTALLATION:

Apply silicone lube to the o-ring (2) to make

the diverter sleeve (3) easier to install diverter

cartridge. A light coating of plumbers grease

applied to o-rings (4) may aid in assembly.

Install diverter cartridge (1) assuring that the

locating pin on the bottom of the cartridge

aligns with mating hole in rough-in body.

Slide diverter sleeve (3) over cartridge stem

aligning tabs on the diverter sleeve with slots

in rough-in body (5).

92345 Rev. E

Installation

Trim Installation

Trim Sleeve Installation

Slide trim sleeve (1) over the bonnet (2),

cartridge and rough-in body.

Ensure sleeve is properly positioned over the

front of cartridge.

Escutcheon Installation

For nished wall thickness up to 1 1/8". Secure

the backplate (1) to the rough-in body (2) using

4 screws (3) provided.

Note: Be sure backplate is oriented front side

forward and markings are visible.

Slide escutcheon (4) over diverter cartridge,

thread trim nut (5) onto diverter sleeve (6).

Note: For thick wall installations, order

installation kit RP90543 to support nished

wall thickness up to 2 1/8".

On rough or uneven surfaces it is necessary

to apply caulk around the backplate (1) to

supplement the seal. Do not caulk the drip notch

in the bottom of the backplate (1). Do not caulk

the escutcheon (4).

A. B. 12

Install volume control handle (1) with lever

pointing down, then turn to the on position.

DO NOT SECURE WITH SCREW.

Drip notch

92345 Rev. E

Installation

Installation and Adjustment of the Rotational Limit Stop

A. B.

Place the rotational limit stop (1) in

volume

handle (2) and rotate to the mixed

position (if

required). DO NOT SECURE WITH

SCREW.

Turn on water supplies; let the

water

run until

both hot and cold water is as hot/

cold as

possible. Place thermometer in a plastic tumbler,

and hold the tumbler in the water stream.

Record the temperature reading.

If the water temperature is above 120°F, remove

and rotate the limit stop (1) clockwise one tooth

for every 4°F - 6°F (approximate) change in

temperature. If water temperature is cooler than

desired, rotate the limit stop counterclockwise.

IMPORTANT: The rst position of the Rotational

Limit Stop (the Limiter) is the position that

restricts the rotation of the stem the most and is

at the maximum clockwise setting. According to

industry standards, the maximum allowable

temperature of the water exiting from the valve is

120oF. This temperature may vary in your local

area. The Rotational Limit Stop may need to be

readjusted if the inlet water temperature changes.

For instance, during the winter, the cold water

temperature is colder than it is during the summer

which could result in varying outlet temperatures.

Typical temperature for a comfortable bath or

shower is between 90o–110oF.

Hotter

Colder

Secure temperature control knob (1) with screw

(2). See next step (D) for securing temperature

control cover (3).

Snap temperature control cover over temperature

control knob by rst aligning smaller tab (1) on

cover with receiving slot (2) on temperature knob.

Swing larger tab (3) to engage with snap feature

(4). Note: If dis-assembly is required, reverse

this motion, disengaging larger tab (3) from snap

feature (4) rst.

92345 Rev. E

Potential scald or thermal shock injury could result due to cross ow if outlet at the shower is

blocked or restricted (e.g., pause control on showerhead). Be sure to point showerhead away

from you when re-starting ow or install inlet check valves on both supply lines to prevent

possible injury.

6Diverter handle Installation

Diverter Handle Installation

Slide diverter handle (1) onto trim sleeve (2).

Using a allen wrench, insert set screw (3) into

handle (1). Applying pressure, insert set screw

cover (4) until properly seated.

Installation

92345 Rev. E 8

Diverter Handle Reference Sheet

2nd Position 

2 ª Posición 

2e position 

3rd Position

3 ª posición

3e position

1st Position

1 ª posición

1ère position

2nd Position 

2 ª Posición 

2e position 

3rd Position

3 ª posición

3e position

Outlet 1

Salida 1

Sortie 1

Outlet 2

Salida 2

Sortie 2

Outlet 3

Salida 3

Sortie 3

In / Entrada / Entrée

4th Position 

4 ª posición 

4e position 

5th Position

5 ª posición

5e position

6th Position



6 ª posición



6e position



Water Flow For 3 Function Diverter / Flujo de agua para Desviadores de 3 posiciones / Écoulement

de l’eau pour les inverseurs à 3 positions

Water Flow For 6 Function Diverter / Flujo de agua para Desviadores de 6 posiciones / Écoulement

de l’eau pour les inverseurs à 6 positions

In / Entrada / Entrée In / Entrada / Entrée

In / Entrada / Entrée In / Entrada / Entrée In / Entrada / Entrée

Outlet 1

Salida 1

Sortie 1

Outlet 2

Salida 2

Sortie 2

Outlet 3

Salida 3

Sortie 3

Outlet 1

Salida 1

Sortie 1

Outlet 2

Salida 2

Sortie 2

Outlet 3

Salida 3

Sortie 3

Outlet 1

Salida 1

Sortie 1

Outlet 2

Salida 2

Sortie 2

Outlet 3

Salida 3

Sortie 3

Outlet 1

Salida 1

Sortie 1

Outlet 2

Salida 2

Sortie 2

Outlet 3

Salida 3

Sortie 3

Outlet 1

Salida 1

Sortie 1

Outlet 2

Salida 2

Sortie 2

Outlet 3

Salida 3

Sortie 3

Outlet 1

Salida 1

Sortie 1

Outlet 2

Salida 2

Sortie 2

Outlet 3

Salida 3

Sortie 3

Outlet 1

Salida 1

Sortie 1

Outlet 2

Salida 2

Sortie 2

Outlet 3

Salida 3

Sortie 3

Outlet 1

Salida 1

Sortie 1

Outlet 2

Salida 2

Sortie 2

Outlet 3

Salida 3

Sortie 3

In / Entrada / Entrée In / Entrada / Entrée In / Entrada / Entrée

 Shared positions do not exist in non-shared cartridges.

 Los ajustes o posiciones compartidas no existen en los cartuchos no-compartidos.

 Comme leur nom l’indique, les cartouches sans position partagée ne comportent aucune position partagée.

Shared positions do not exist in non-shared cartridges.

Los ajustes o posiciones compartidas no existen en los cartuchos no-compartidos.

Comme leur nom l’indique, les cartouches sans position partagée ne comportent aucune position partagée.

1st Position

1 ª posición

1ère position

92345 Rev. E

Clean and Care

Care should be given to the cleaning

of this product. Although its nish is

extremely durable, it can be damaged by

harsh abrasives or polish. To clean, simply

wipe gently with a damp cloth and blot dry

with a soft towel.

Maintenance

Faucet leaks from showerhead:

SHUT OFF WATER SUPPLIES.

Replace valve cartridge

RP46463 or RP32104

See Helpful Hints 1, 2, 3 & 4.

Helpful Hints:

1. Before removing valve cartridge assembly for any

maintenance, be sure to note the position of the

rotational limit stop on the cap. The valve cartridge

assembly must always be put back in the same

position. BE SAFE! After you have nished the

installation, turn on valve to make sure COLD

WATER FLOWS FIRST.

2. To remove valve cartridge from body, shut off

water supplies and remove handle and bonnet nut.

Do not pry the valve cartridge out of the body with

a screwdriver. Place handle on stem and rotate

counterclockwise approximately 1/4 turn after the

stop has been contacted. Lift valve cartridge out

of body.

Remove seats and springs and replace.

Place the largest diameter of the spring into the

seat pocket rst and then press the tapered end

of the seal over the spring. Reassemble valve

cartridge and replace in body following instructions

given in 1 above.

3. If the water in your area has lime, rust, sand

or other contaminants in it, your pressure

balance valve will require periodic inspection.

The frequency of the inspection will depend

on the amount of contaminants in the water. To

inspect valve cartridge remove it and follow the

steps in note 1 above. Turn the valve to the full

mix position and shake the cartridge vigorously.

If there is a rattling sound, the unit is functional

and can be reinstalled following instructions given

in note 1 above. If there is no rattle, replace the

housing assembly with the proper RP.

Cartridge Summary Reference Sheet

Order RP46463 to

Replace Cartridge.

Grey Upper Cap

V Notch

Adapter

Shorter Tab

T27

92345 Rev. E

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels Delta Unité de contrôle

Delta

Delta HDMP_S100 Manuel utilisateur

Delta

Delta MultiChoice 13 Series Manuel utilisateur

Delta

Delta DFM-400P Guide de l'utilisateur

Delta

Delta DVPSCM Series Manuel utilisateur

Delta

Delta MultiChoice T27976-CZLHP Manuel utilisateur

Delta

Delta DVP04AD-SL Manuel utilisateur

Delta

Delta RP70878 Manuel utilisateur

Delta

Delta TECK II 81T201BTA-MMO Manuel utilisateur

Delta

Delta TECK II Manuel utilisateur

Delta

Delta MultiChoice T24859 Series Manuel utilisateur

Delta

Delta EnviroStation EMS2000 Manuel utilisateur

Delta

Delta R3270-MIXLF Manuel utilisateur

Delta

Delta DVP04AD-H2 Manuel utilisateur

Delta

Delta MULTICHOICE R22000 Manuel utilisateur

Delta

Delta 160 T6 Series Manuel utilisateur

Delta

Delta DVP04PT-E2 Manuel utilisateur

Delta

Delta TECK COMMERCIAL R2570-MIXLFBOX Guide de démarrage rapide

Delta

Delta DOP-A series Manuel utilisateur

Delta

Delta Standard AX Series Manuel utilisateur

Delta

Delta MultiChoice T24 Series Manuel utilisateur

Delta

Delta DVPAEXT01-E2 Manuel utilisateur

Delta

Delta T27T859 Manuel utilisateur

Delta

Delta DVP04AD-H Manuel utilisateur

Delta

Delta R3707 Manuel utilisateur

Manuels Unité de contrôle populaires d'autres marques

Festo

Festo Compact Performance CP-FB6-E Manuel de la liste des pièces

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Manuel utilisateur

JS Automation

JS Automation MPC3034A Manuel utilisateur

JAUDT

JAUDT SW GII 6406 Series Guide rapide

Spektrum

Spektrum Air Module System Manuel utilisateur

BOC Edwards

BOC Edwards Q Series Manuel utilisateur

KHADAS

KHADAS BT Magic Manuel utilisateur

Etherma

Etherma eNEXHO-IL Manuel utilisateur

PMFoundations

PMFoundations Attenuverter Manuel utilisateur

GEA

GEA VARIVENT Manuel utilisateur

Walther Systemtechnik

Walther Systemtechnik VMS-05 Manuel utilisateur

Altronix

Altronix LINQ8PD Instructions de montage

Eaton

Eaton Powerware Series Manuel utilisateur

WAGO

WAGO 750-407/040-000 Manuel utilisateur

Sony

Sony CCU-590 Manuel utilisateur

Graco

Graco 25D614 Manuel utilisateur

Task Force Tips

Task Force Tips YE-RF-900 Manuel de programmation

Shini

Shini SPV-U Series Manuel utilisateur
