Instructions

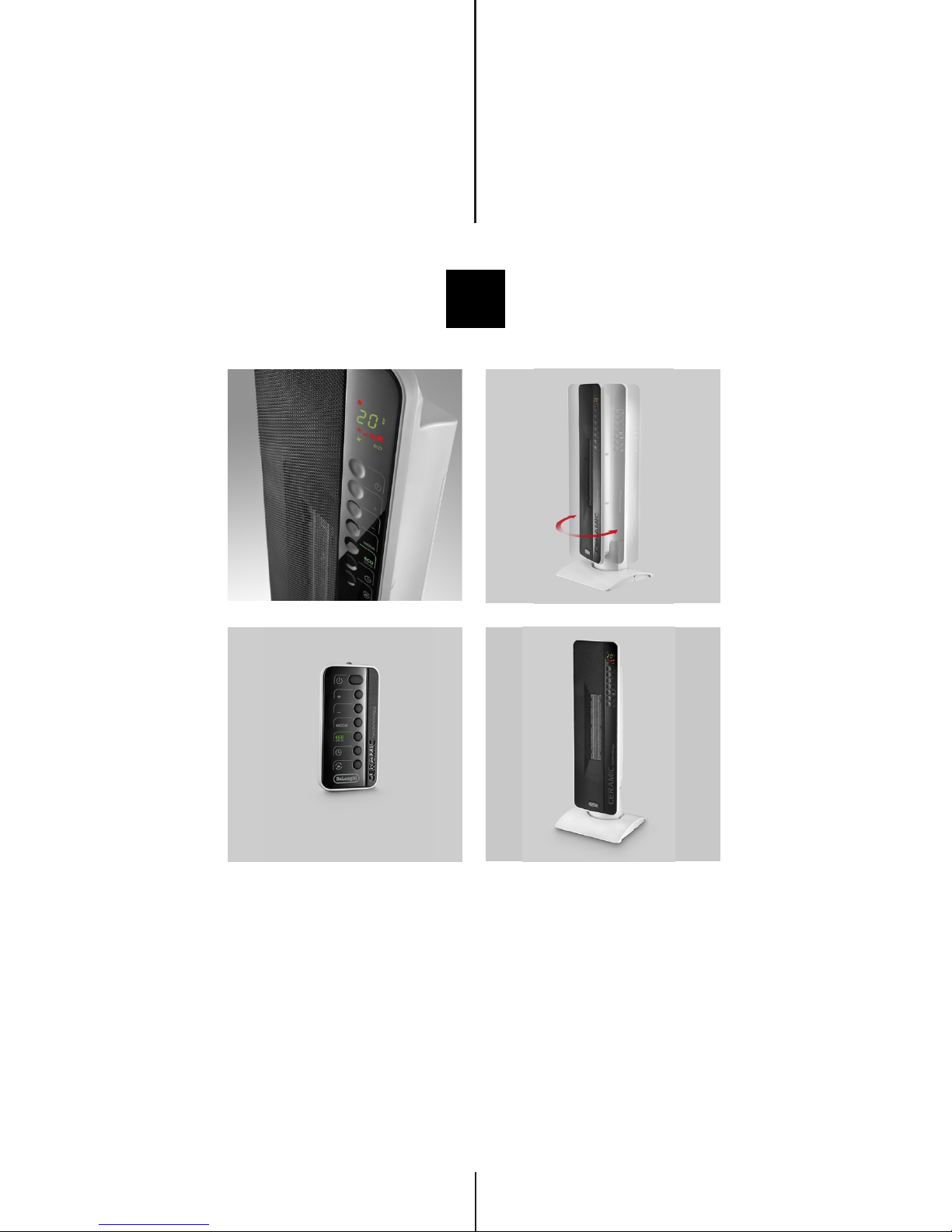

CERAMIC FAN HEATERInstructions

TCH8093ER

A) If your appliance comes tted with a plug, it will incorporate a 13 Amp fuse. If it does not t your socket, the plug should

be cut o from the mains lead, and an appropriate plug tted, as below.

WARNING: Very carefully dispose of the cut o plug after removing the fuse: do not insert in a 13 Amp socket elsewhere

in the house as this could cause a shock hazard.

With alternative plugs not incorporating a fuse, the circuit must be protected by a 15 Amp fuse. If the plug is a moulded-

on type, the fuse cover must be re-tted when changing the fuse using a 13 Amp Asta approved fuse to BS 1362. In

the event of losing the fuse cover, the plug must NOT be used until a replacement fuse cover can be obtained from your

nearest electrical

dealer.The colour of the correct replacement fuse cover is that as marked on the base of the plug.

B) If your appliance is not tted with a plug, please follow the instructions provided below.

IMPORTANT

The wires in the mains lead are coloured in accordance with the following code:

Blue: Neutral

Brown: Live

As the colours of the wires in the mains lead may not correspond with the coloured markings identifying the terminals in your

plug, proceed as follows:

The blue wire must be connected to the terminal marked with the letter N or coloured black.The brown wire must be connec-

ted to the terminal marked with the letter L or coloured red. If you have a 3-pins plug, do not connect any wire to the

“earth” terminal.

- Voltage and wattage can be found on the rating label on the underside of the machine.

electrical connection (UK only)

Description

Fig. 1

Fig. A Fig. B Fig. C

INTRODUCTION

Thank you for choosing a De’Longhi Ceramic fan heater.

Please take a few minutes to read these instructions.

This will avoid all risks and damage to the appliance.

IMPORTANT SAFEGUARDS

- Do not use this heater near showers, bathtubs, sinks,

swimming pools, etc.

- Always use the heater in an upright position.

- Do not use the heater to dry laundry. Never obstruct the

intake and outlet grilles (danger of overheating).

The appliance is not intended for use by persons

(including children) with reduced physical, sensory or

mentalcapabilities,orlackofexperienceandknowledge,

unless they have been given supervision or instruction

concerning use of the appliance by a person responsible

for their safety. Children should be supervised to ensure

that they do not play with the appliance.

- The heater must be positioned at least 50 cm from

furniture or other objects.

- Do not use the appliance near walls, furniture, curtains,

etc.

- To avoid risk of cable overheating, extension leads must

not be used in powering this appliance.

- If the power cable is damaged, it must be replaced by

the manufacturer, an authorised service centre or a

qualied electrician in order to eliminate all risk. Please

contact customer Experience, see enclosed guarantee

- The appliance must not be placed immediately under a

xed power socket.

- Do not use the appliance in rooms with a oor area of

less than 4 m².

- Before storing the appliance, check it is completely o

and the cable is unplugged. At this point wrap the cord

around the base. Do not store in a dusty room.The room

temperature should be between 0-30°C. Do not load

anything above it.

IMPORTANT: To avoid overheating, never under

any circumstances cover the appliance during

operation as this would lead to a dangerous rise in

temperature.

WARNING: to avoid the safety system resetting accidentally,

this appliance must not be powered through an external on/

o device such as a timer, or connected to a circuit which is

turned o and on regularly by the energy supplier.

Safety functions

-Safety device: the appliance is tted with a safety

device which switches it o in the event of accidental

overheating (e.g. obstruction of air intake and outlet

grilles, motor turning slowly or not at all).

To reset, unplug the appliance from the mains socket for

a few minutes, remove the cause of overheating then

plug in again.

-Tip over safety device: a tip over safety device turns

the appliance o if it falls over or is positioned inappro-

priately in such a way as to jeopardise safety.

The appliance emits a beep and a dot ashes on the di-

splay. The appliance resumes operation a few seconds

after being placed in an upright position again.

Disposing of the appliance

In compliance with European directive 2002/96/EC,

the appliance must not be disposed of with house-

hold waste, but taken to an authorised waste separa-

tion and recycling centre.

Important safeguards

Description/Use

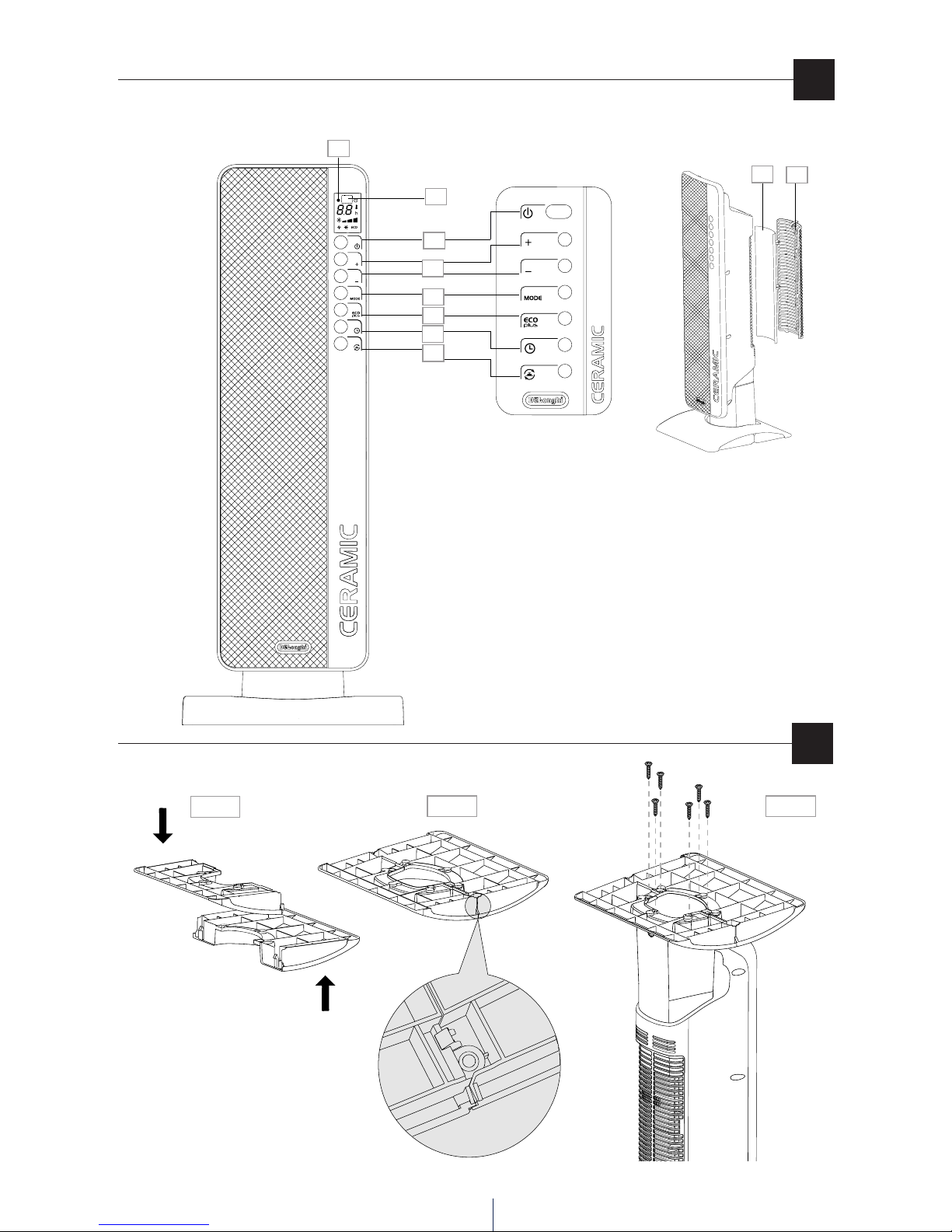

DESCRIPTION

(see g. 1)

A ON/STAND-BY button

B +/- adjustment buttons

C MODE button (selects the operating mode)

D “ECO plus”button

E Timer button

F Swing button

G Remote control receiver

H Indicator light

I Air intake grille

J Filter

USE

Installation

- The appliance can be used on any horizontal surface.

Do not overload the electrical circuit. Avoid using the

same socket for other appliances.

Electrical connection

- Before connecting the plug to the power outlet,

make sure that the voltage of your electrical system

corresponds to the voltage shown on the appliance

rating label and the outlet you are going to use is in

good condition.

- THIS APPLIANCE COMPLIES WITH DIRECTIVE 2004/108/

EEC ON RADIO INTERFERENCE SUPPRESSION.

Mounting the base

- Fit the two parts of the base together, matching the

guide pins on the front with the recesses on the back

and snapping the two clips into place (g. A and g. B).

- Turn the appliance upside down and x the base to the

body with the 6 screws supplied (g. C).

Operation and use

1. Plug into the mains socket.

2. Theapplianceemitsabeep.Theindicatorlight(H)comes

on and remains lit while the appliance is powered.

3. The appliance switches to stand-by. A dot ashing on

thedisplaymeansthetipoverdevicehasbeenactivated.

See paragraph:“Safety functions”.

4. Press the ON/STAND-BY (A) to turn the appliance on.

It begins heating the room according to the current

settings.

5. Press the MODE button (C) to select one of the following

operating modes:

Fan

Freeze prevention

Heating 1

Heating 2

Heating 3

5.1 Fan

In this mode, only the fan operates and the appliance does

not heat the room.

5.2 Freeze prevention

In this mode, the appliance keeps the room at a temperature

of 7°C to avoid freezing.

5.3 Heating 1, 2 and Heating 3

In this mode, the desired temperature can be selected by

pressing the adjustment buttons + and – ( B ):

-Heating 1

The appliance operates at low power, reducing noise

levels and energy consumption to a minimum.

-Heating 2

The appliance operates at medium power.

-Heating 3

The appliance operates at high power to heat the room

rapidly.

6. “ECO plus” function

The “ECO plus” function is available in Heating 1, 2 and 3

modes only.

Toactivatethefunction,pressthe“ECOplus”button(D).When

this function is active the appliance automatically sets the

most appropriate power level to guarantee optimum comfort

while reducing energy consumption. While the “ECO plus”

function is active, the appliance may switch automatically to

a lower heating power than the one displayed.

7. To distribute the air ow over a wider surface, press the

swing button (F).The appliance starts swinging to

the right and left. To stop the appliance in the desired

position, simply press the swing button (F) again.

8. Toturntheapplianceo,presstheON/STAND-BY button

(A). The display may visualise a countdown for about 6

seconds.

Please note: Room temperature can be displayed in

either °C or °F. To change the unit of measurement for the

temperature, press and hold the + button for a few seconds,

then release.

Digital 24 h timer

This function can be activated from any operating mode.

Auto-start: with the appliance in STAND-BY, press the timer

button (E) . The symbol is displayed together with

the time remaining before the appliance comes on.To adjust

the timer, use the adjustment buttons + and - (B), then wait

a few seconds for the setting to be memorised. The stand-by

light(H)isdisplayedtogetherwith the symbol,indicating

that the timer has been set. When the programmed time

is reached, the appliance comes on with the settings used

during the previous period of operation.

Auto-o: with the appliance on, press the timer button

(E). The symbol is displayed together with the time

remaining before the appliance goes o.

To set the timer, use the adjustment buttons + and - (B),

then wait a few seconds for the setting to be memorised.

The current settings are displayed again, together with the

symbol indicating that the timer has been set.

When the programmed time is reached, the appliance goes

o automatically. To go back to operation without the timer,

press the timer button (E) twice.

The timer symbol disappears from the display.

Using the remote control

The functions on the remote control are the same as those on

the appliance control panel.

For a description of the functions, see the“Operation and use”

section on the previous page.

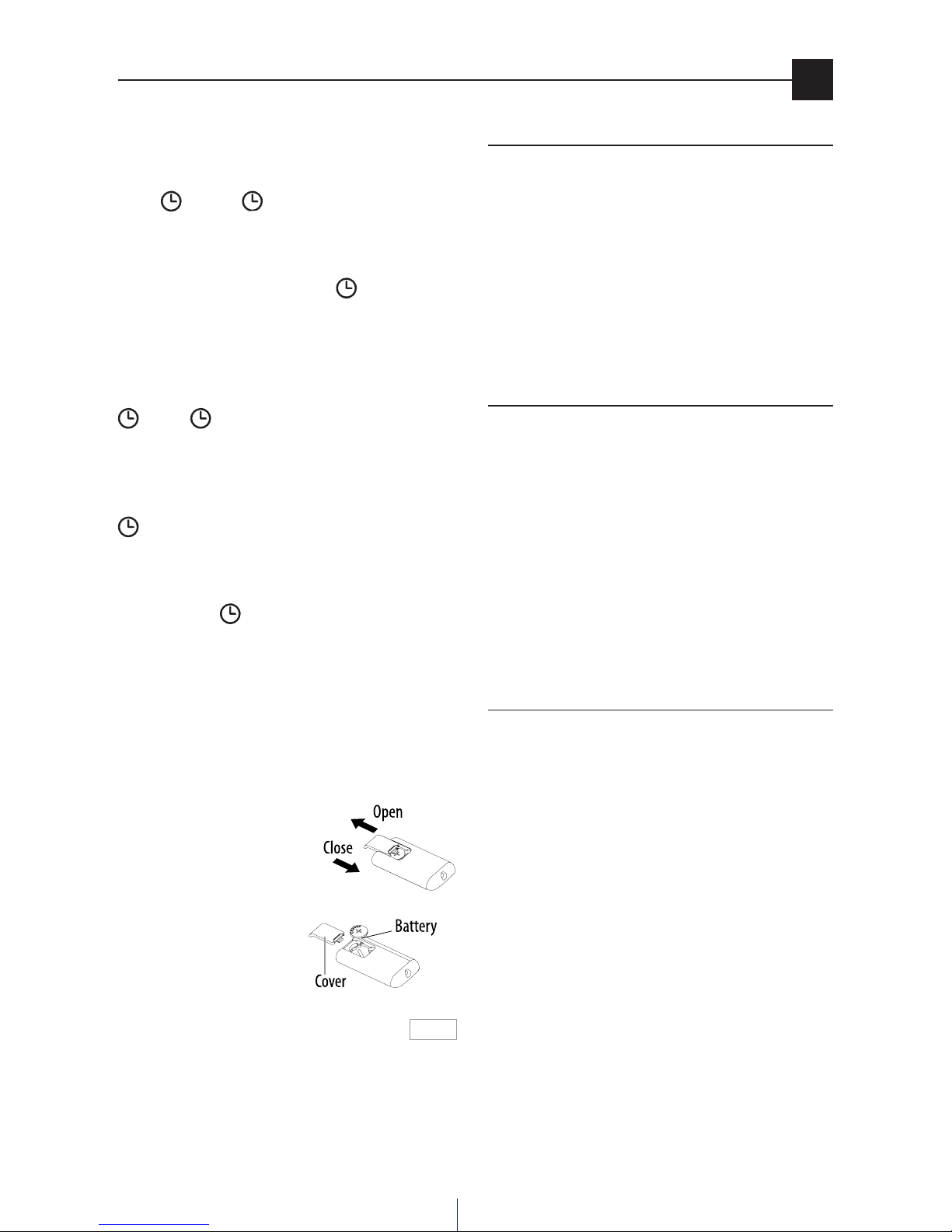

Inserting or replacing the batteries

The remote control is powered

by a CR2032 lithium battery.

To operate the remote control,

pull and remove the plastic

strip under the battery cover.

To replace the batteries,

remove the battery cover

by sliding it as shown in the

gure.

When replacing the batteries,

make sure you respect the

polarity (see gure 2).

Replace the cover as shown in the gure.

Old batteries are harmful to the environment and must

be removed and disposed of in compliance with current

legislation.

MAINTENANCE

- Always unplug from the mains socket before cleaning.

- During the season when the appliance is in use, clean

the air intake and outlet grilles regularly using a vacuum

cleaner.

- To clean the lter, remove the rear grille by pulling it

outwards (g. 1). Remove the dust lter which retains

impurities in the air drawn in from the room, blow on it

lightly then replace in the appliance.

- Never use abrasive powders or solvents to clean the

appliance.

TROUBLESHOOTING

If the appliance displays “PF” and emits a beep, the

temperature sensor is malfunctioning.

If the problem continues, contact customerexperience, see

enclosed guarantee.

If the appliance goes o unexpectedly:

- Make sure it is plugged in correctly to the mains socket.

- Make sure the appliance is standing upright on a at

surface, otherwise the tip over device may be activated.

- Check the temperature and timer settings.

The appliance may have gone o because the set

temperature has been reached or the time set on the

timer has elapsed.

TECHNICAL CHARACTERISTICS

Power supply See rating plate

Absorbed power “

Max Power 2400W

Use

Fig. 2

Autres manuels pour TCH8093ER

Table des matières

Autres manuels DeLonghi Chauffage

DeLonghi

DeLonghi HFX10 Series Manuel utilisateur

DeLonghi

DeLonghi HOR KH590715 Manuel utilisateur

DeLonghi

DeLonghi EW7507EBM Manuel utilisateur

DeLonghi

DeLonghi HVA Series Manuel utilisateur

DeLonghi

DeLonghi TRN0812T Manuel utilisateur

DeLonghi

DeLonghi FAN HEATER Manuel utilisateur

DeLonghi

DeLonghi TCH8093ERBCA Manuel utilisateur

DeLonghi

DeLonghi HMP1500 Manuel utilisateur

DeLonghi

DeLonghi HFX60V20 Manuel utilisateur

DeLonghi

DeLonghi Electric oil filled radiator Manuel utilisateur

DeLonghi

DeLonghi DCH5090EL Manuel utilisateur

DeLonghi

DeLonghi Radia R 030715 Manuel utilisateur

DeLonghi

DeLonghi TCH7915ER Manuel utilisateur

DeLonghi

DeLonghi DCH7993ER.BC Manuel utilisateur

DeLonghi

DeLonghi HWB Series Manuel utilisateur

DeLonghi

DeLonghi DCH6031 Manuel utilisateur

DeLonghi

DeLonghi HCX9115ECA Manuel utilisateur

DeLonghi

DeLonghi TRRS2715EBK Manuel utilisateur

DeLonghi

DeLonghi DRAGON 4 Manuel utilisateur

DeLonghi

DeLonghi HCX Series Manuel utilisateur

DeLonghi

DeLonghi RADIANT HEATER Mise à jour du firmware

DeLonghi

DeLonghi HCX Series Manuel utilisateur

DeLonghi

DeLonghi TCH 8993ER.BC Manuel utilisateur

DeLonghi

DeLonghi FAN HEATER Manuel utilisateur

Manuels Chauffage populaires d'autres marques

oventrop

oventrop Regucor Series Manuel utilisateur

Blaze King

Blaze King CLARITY CL2118.IPI.1 Manuel utilisateur

ELMEKO

ELMEKO ML 150 Manuel utilisateur

BN Thermic

BN Thermic 830T Manuel utilisateur

KING

KING K Series Mode d’emploi

Empire Comfort Systems

Empire Comfort Systems RH-50-5 Guide de démarrage rapide

Well Straler

Well Straler RC-16B Manuel utilisateur

EUROM

EUROM 333299 Manuel utilisateur

Heylo

Heylo K 170 Manuel utilisateur

Eterna

Eterna TR70W Manuel utilisateur

Clarke

Clarke GRH15 Mode d’emploi

IRSAP

IRSAP The Radiator Company Ovali Manuel utilisateur

Empire Heating Systems

Empire Heating Systems WCC65 Manuel utilisateur

Wetekom

Wetekom 92 86 43 Manuel utilisateur

Desa

Desa SPC170-F Manuel utilisateur

Watlow

Watlow Watrod Electric Tubular Heaters Manuel utilisateur

Haverland

Haverland ECO-DRY GPS Series Manuel de la liste des pièces

Stelpro

Stelpro ASILVC2060 Series Manuel utilisateur
