Dell Vostro 1220 Manuel utilisateur

Dell Projector 1220

User’s Guide

Notes, Cautions, and Warnings

NOTE: A NOTE indicates important information that helps you make

better use of your projector.

CAUTION: A CAUTION indicates potential damage to hardware or

loss of data if instructions are not followed.

WARNING: A WARNING indicates a potential for property damage,

personal injury, or death.

____________________

Information in this document is subject to change without notice.

Reproduction of these materials in any manner whatsoever without the written

permission of Dell Inc. is strictly forbidden.

Trademarks used in this text: Dell and the DELL logo are trademarks of Dell Inc.; DLP

and DLP logo and DLP BrilliantColor are trademarks of TEXAS INSTRUMENTS INCORPORATED;

Microsoft and Windows are either trademarks or registered trademarks of Microsoft

Corporation in the United States and/or other countries.

Wi-Fi®is a registered trademark of Wireless Ethernet Compatibility Alliance, Inc.

Other trademarks and trade names may be used in this document to refer to either

the entities claiming the marks and names or their products. Dell Inc. disclaims any

proprietary interest in trademarks and trade names other than its own.

Model: Dell Projector 1220

September 2014 Rev. A00

Contents | 3

Contents

1 Your Dell Projector . . . . . . . . . . . . . . . . . . . . . . . . . 4

About Your Projector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

2 Connecting Your Projector. . . . . . . . . . . . . . . . . . .7

Connecting to a Computer . . . . . . . . . . . . . . . . . . . . . . . . 8

Connecting a DVD Player. . . . . . . . . . . . . . . . . . . . . . . . . 10

3 Using Your Projector . . . . . . . . . . . . . . . . . . . . . . .12

Turning Your Projector On . . . . . . . . . . . . . . . . . . . . . . . . 12

Turning Your Projector Off . . . . . . . . . . . . . . . . . . . . . . . . 12

Adjusting the Projected Image . . . . . . . . . . . . . . . . . . . . 13

Adjusting the Projector Focus . . . . . . . . . . . . . . . . . . . . . 14

Adjusting Projection Image Size . . . . . . . . . . . . . . . . . . . 15

Using the Remote Control . . . . . . . . . . . . . . . . . . . . . . . . 18

Installing the Remote Control Batteries . . . . . . . . . . . . . 21

Operating Range with Optional Remote Control. . . . . 22

Using the On-Screen Display. . . . . . . . . . . . . . . . . . . . . . 23

4 Troubleshooting Your Projector . . . . . . . . . . . . 38

Guiding Signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42

Changing the Lamp. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43

5 Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

6 Contacting Dell . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

7 Appendix: Glossary. . . . . . . . . . . . . . . . . . . . . . . . .51

4Your Dell Projector

Your Dell 1220 Projector ships with the necessary cables and

documentation to get you started! Visit www.dell.com/support to explore

further support options.

1Your Dell Projector

Package Contents

Power cable 1.8 m VGA cable (VGA to VGA)

Remote control CD User’s Guide and

Documentation

AAA Batteries (2)

ZOOMZOOM INFO

VIDEOVGA HDMI

FREEZE

AUTO ADJ.

KEYSTONE

SOURCE VIDEO MODE

ASPECT

POWER

MOUSE

BLANK

ENTER

VOL

MUTE

Informacion Importante

Dell Projector 1220

Contents:

•User's Guide

Documentation

P/N 0F0VC Rev.A00

P/N 36.71901G001

September 2014

Madein China

Dell

Projector 1220

00F0VCA00

Dell

Projectors

oduct Information Guide

AAA

Your Dell Projector 5

About Your Projector

NOTE: Ceiling mount screw hole M3 x 6.5mm depth.

Recommended torque <15 kgf-cm.

CAUTION: Safety Instructions

Do not install near heat sources such as radiators, heaters, stoves or any

other apparatus such as amplifiers that emits heat.

Do not use the projector in a dusty environment. Excess dust can cause

system failures and eventually will shut down your projector.

Ensure that the projector is mounted in a well-ventilated area.

Do not block the ventilation slots and openings on the projector.

1 Status indicators

2IRreceivers

3Speaker

4 Lens

5Focusring

6 Zoom tab

7 Power button

8 Lamp cover

9 Mounting holes for ceiling mount

10 Tilt adjustment wheel

910

82.30

110.00

55.00

Top View Bottom View

6Your Dell Projector

Ensure that the projector operates between ambient temperatures of (5 °C

to 40 °C).

Do not touch the ventilation outlet as it will become heated during

operation or immediately after the projector is turned off.

Do not look into the lens while the projector is on as it may cause injury to

your eyes.

Do not place any objects near or in front of the projector or cover its lens

while the projector is on as the heat may cause the object to melt or burn.

Do not use alcohol to wipe the lens.

NOTE:

•Do not attempt to ceiling mount the projector yourself. It should

be installed by a qualified technician.

•Recommended Projector Ceiling Mount Kit (P/N: C3505). For

more information, see the Dell Support website at

dell.com/support.

•For more information, see the Safety Information that shipped with

your projector.

•The 1220 projector can only be used indoors.

Connecting Your Projector 7

CAUTION: Before you begin any of the procedures in this section,

follow the Safety Instructions as described on page 5.

2Connecting Your Projector

1 VGA output (monitor loop

through) connector

5 HDMI connector

2 VGA input (D-sub) connector 6 Audio input connector

3 Power cord connector 7 Composite Video connector

4 Mini USB (mini type B)

connector for remote mouse

and firmware upgrade

8 Audio output connector

4568

12 3

8Connecting Your Projector

Connecting to a Computer

Connecting a Computer Using a VGA Cable

NOTE:

1The Mini USB cable is not shipped with your projector. You can

purchase the Mini USB (USB-A to Mini USB-B) cable on the Dell

website at www.dell.com.

2The Mini USB cable must be connected if you want to use the

Page Up and Page Down features on the remote control.

1 Power cord

2 VGA to VGA cable

3 USB-A to Mini USB-B cable

MOLEX

Connecting Your Projector 9

Monitor Loop-Through Connection Using VGA Cables

NOTE: Only one VGA cable is shipped with your projector. Any

additional cables can be purchased from www.dell.com.

1 Power cord

2 VGA to VGA cable

10 Connecting Your Projector

Connecting a DVD Player

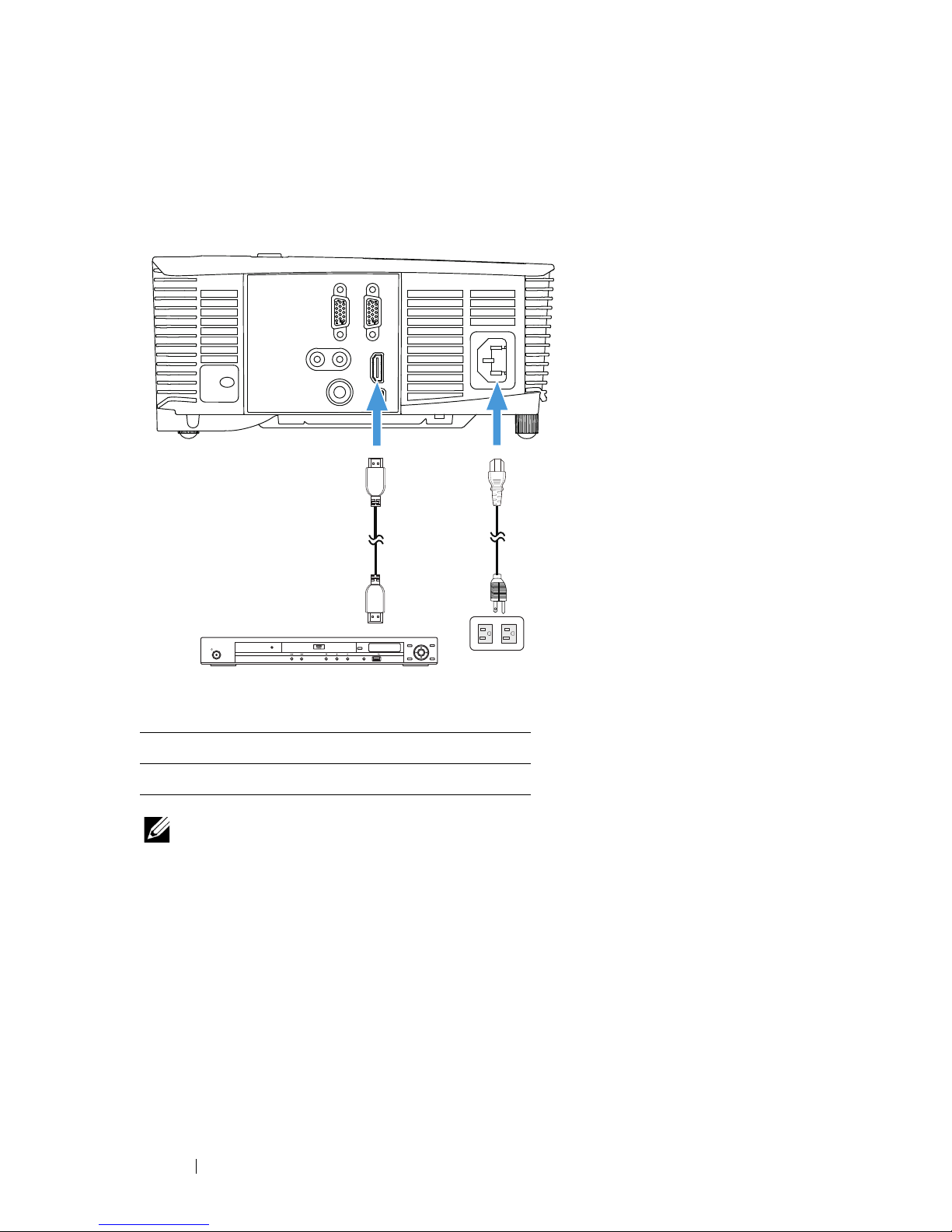

Connecting a DVD Player Using a HDMI Cable

NOTE: The HDMI cable is not shipped with your projector. You can

purchase the HDMI cable on the Dell website at www.dell.com.

1 Power cord

2 HDMI cable

OPEN/CLOSE

HDMI

HOME

MENU RETURN

ENTER

TOPMENU MENU

USBDVD/USB

STANDBY/ON
