Dell™ Vostro™ 420/220/220s

Setup and Quick Reference Guide

This guide provides a features overview, specifications, and quick setup,

software, and troubleshooting information for your computer. For more

information about your operating system, devices, and technologies, see

the Dell Technology Guide at support.dell.com.

Models: DCSCLF, DCSCMF, DCSCSF

Notes, Notices, and Cautions

NOTE: A NOTE indicates important information that helps you make better use of

your computer.

NOTICE: A NOTICE indicates either potential damage to hardware or loss of data

and tells you how to avoid the problem.

CAUTION: A CAUTION indicates a potential for property damage, personal injury,

or death.

If you purchased a Dell™ n Series computer, any references in this document to

Microsoft

Windows

operating systems are not applicable.

Macrovision Product Notice

This product incorporates copyright protection technology that is protected by

method claims of certain U.S. patents and other intellectual property rights

owned by Macrovision Corporation and other rights owners. Use of this

Corporation, and is intended for home and other limited viewing uses only

unless otherwise authorized by Macrovision Corporation. Reverse engineering

or disassembly is prohibited.

____________________

Information in this document is subject to change without notice.

Reproduction of this material in any manner whatsoever without the written permission of Dell Inc.

is strictly forbidden.

Trademarks used in this text: Dell, the DELL logo, Vostro, and DellConnect are trademarks of Dell

Inc.; Bluetooth is a registered trademark owned by Bluetooth SIG, Inc., and is used by Dell under

license; Intel, Celeron, Pentium, Core2 Duo, and Core2 Quad are registered trademarks of Intel

Corporation in the U.S. and other countries; Blu-ray Disc is a trademark of the Blu-ray Disc

Association; Microsoft, Windows,Windows Vista, and the Windows Vista start button logo are either

trademarks or registered trademarks of Microsoft Corporation in the United States and/or other

countries.

Other trademarks and trade names may be used in this document to refer to either the entities claiming

the marks and names or their products. Dell Inc. disclaims any proprietary interest in trademarks and

trade names other than its own.

Models: DCSCLF, DCSCMF, DCSCSF

September 2008 P/N J531H Rev. A00

Contents 3

Contents

1 Finding Information . . . . . . . . . . . . . . . . . . 7

2 Setting Up Your Computer . . . . . . . . . . . . . 9

Quick Setup . . . . . . . . . . . . . . . . . . . . . . . . 9

Installing Your Computer in an Enclosure. . . . . . . . 14

Connecting to the Internet . . . . . . . . . . . . . . . . 16

Setting Up Your Internet Connection . . . . . . . . 16

Transferring Information to a New Computer . . . . . . 17

Microsoft®Windows Vista®Operating

System . . . . . . . . . . . . . . . . . . . . . . . 17

Microsoft Windows®XP . . . . . . . . . . . . . . 18

3 About Your Computer. . . . . . . . . . . . . . . . 21

Vostro 420 Front View . . . . . . . . . . . . . . . . . . 21

Vostro 420 Back View . . . . . . . . . . . . . . . . . . 22

Vostro 420 Back Panel Connectors . . . . . . . . . . . 23

Vostro 220 Front View . . . . . . . . . . . . . . . . . . 24

Vostro 220 Back View . . . . . . . . . . . . . . . . . . 25

Vostro 220 Back Panel Connectors . . . . . . . . . . . 26

Vostro 220s Front View. . . . . . . . . . . . . . . . . . 27

4Contents

Vostro 220s Back View. . . . . . . . . . . . . . . . . . 28

Vostro 220s Back Panel Connectors . . . . . . . . . . . 29

4 Specifications . . . . . . . . . . . . . . . . . . . . 31

5 Troubleshooting . . . . . . . . . . . . . . . . . . . 39

Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Power Lights . . . . . . . . . . . . . . . . . . . . 39

Beep Codes . . . . . . . . . . . . . . . . . . . . . 39

Error Messages . . . . . . . . . . . . . . . . . . . 41

System Messages. . . . . . . . . . . . . . . . . . 46

Troubleshooting Software and Hardware

Problems . . . . . . . . . . . . . . . . . . . . . . 47

Dell Diagnostics. . . . . . . . . . . . . . . . . . . 48

Troubleshooting Tips . . . . . . . . . . . . . . . . . . . 50

Power Problems . . . . . . . . . . . . . . . . . . 50

Memory Problems . . . . . . . . . . . . . . . . . 51

Lockups and Software Problems . . . . . . . . . . 52

Dell Technical Update Service . . . . . . . . . . . 54

Dell Support Utility . . . . . . . . . . . . . . . . . 55

6 Reinstalling Software . . . . . . . . . . . . . . 57

Drivers . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Identifying Drivers . . . . . . . . . . . . . . . . . 57

Reinstalling Drivers and Utilities . . . . . . . . . . 58

Contents 5

Restoring Your Operating System . . . . . . . . . . . . 60

Using Microsoft® Windows® System Restore . . . 60

Using Dell™ Factory Image Restore . . . . . . . . 62

Using the Operating System Media . . . . . . . . 63

7 Getting Help. . . . . . . . . . . . . . . . . . . . . . . 65

Obtaining Assistance . . . . . . . . . . . . . . . . . . 65

Technical Support and Customer Service . . . . . 66

DellConnect™. . . . . . . . . . . . . . . . . . . . 66

Online Services . . . . . . . . . . . . . . . . . . . 66

AutoTech Service. . . . . . . . . . . . . . . . . . 67

Automated Order-Status Service. . . . . . . . . . 68

Problems With Your Order. . . . . . . . . . . . . . . . 68

Product Information . . . . . . . . . . . . . . . . . . . 68

Returning Items for Warranty Repair or Credit . . . . . 68

Before You Call . . . . . . . . . . . . . . . . . . . . . 69

Contacting Dell . . . . . . . . . . . . . . . . . . . . . 71

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

6Contents

Finding Information 7

Finding Information

NOTE: Some features or media may be optional and may not ship with your

computer. Some features or media may not be available in certain countries.

NOTE: Additional information may ship with your computer.

Document/Media/Label Contents

Service Tag/Express Service Code

The Service Tag/Express Service Code is

located on your computer.

• Use the Service Tag to identify your

computer when you use

support.dell.com

or contact support.

• Enter the Express Service Code to direct

your call when contacting support.

Drivers and Utilities Media

The Drivers and Utilities media is a CD,

DVD, or other type of media that may

have shipped with your computer.

• A diagnostic program for your computer

• Drivers for your computer

NOTE: Drivers and documentation updates

can be found at support.dell.com.

• Desktop System Software (DSS)

• Readme files

NOTE: Readme files may be included on

your media to provide last-minute updates

about technical changes to your computer

or advanced technical-reference material

for technicians or experienced users.

Operating System Media

The Operating System media is a CD or

DVD that may have shipped with your

computer.

• Reinstall your operating system

8Finding Information

Safety, Regulatory, Warranty, and

Support Documentation

This type of information may have

shipped with your computer. For

additional regulatory information, see the

Regulatory Compliance Homepage on

www.dell.com at the following location:

www.dell.com/regulatory_compliance.

• Warranty information

• Terms and Conditions (U.S. only)

• Safety instructions

• Regulatory information

• Ergonomics information

• End User License Agreement

Service Manual

The Service Manual for your computer

can be found at support.dell.com.

• How to remove and replace parts

• How to configure system settings

• How to troubleshoot and solve problems

Dell Technology Guide

The Dell Technology Guide is available at

support.dell.com.

• About your operating system

• Using and maintaining devices

• Understanding technologies such as

RAID, Internet, Bluetooth

wireless

technology, e-mail, networking, and

more.

Microsoft®Windows®License Label

Your Microsoft Windows License is

located on your computer.

• Provides your operating system product

key.

Document/Media/Label Contents

Setting Up Your Computer 9

Setting Up Your Computer

Quick Setup

CAUTION: Before you begin any of the procedures in this section, read the safety

information that shipped with your computer. For additional safety best practices

information, see the Regulatory Compliance Homepage at

www.dell.com/regulatory_compliance.

NOTE: Some devices may not be included if you did not order them.

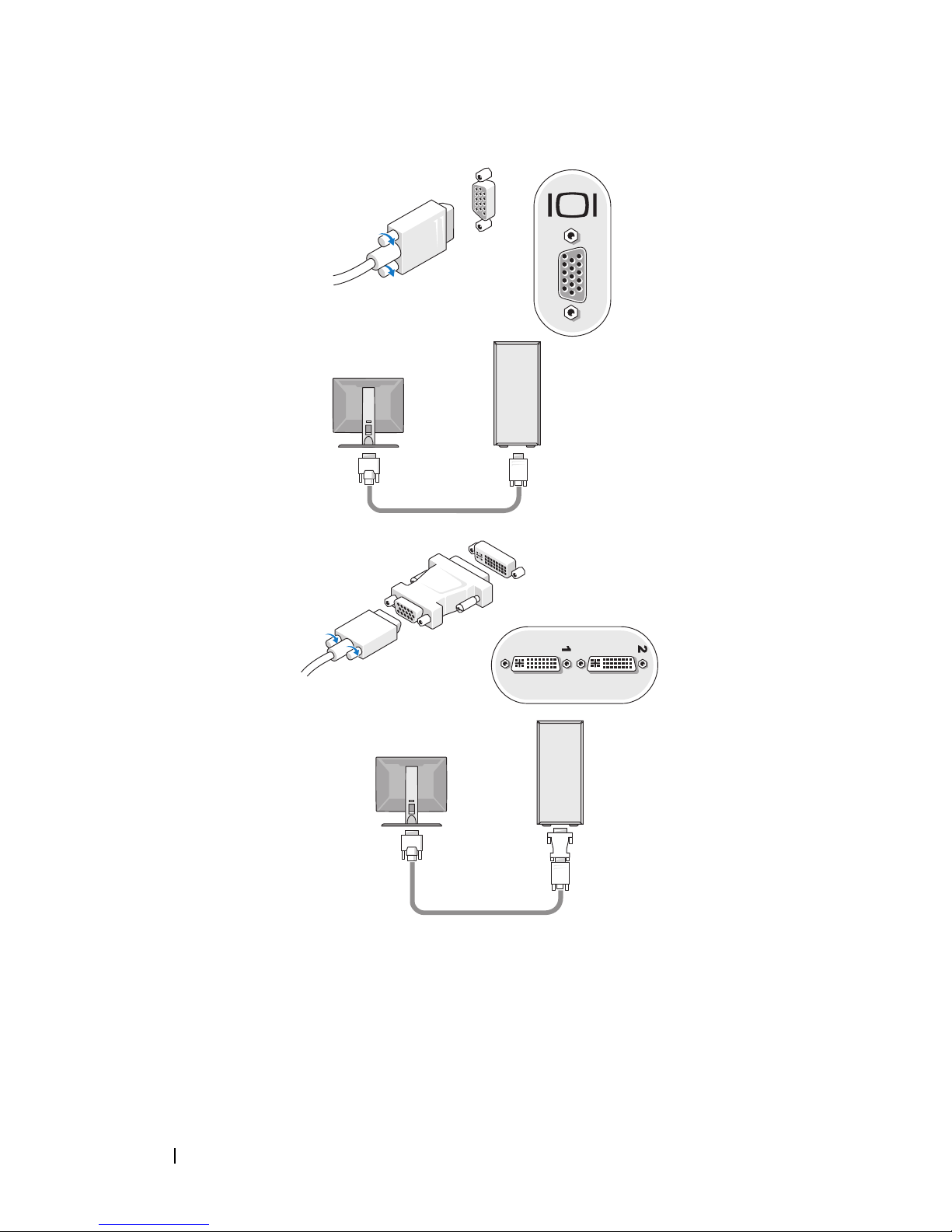

Connect the monitor using only one of the following cables: the white DVI

cable or the blue VGA cable. A VGA cable with a DVI to VGA adapter can

be used on a video port with a DVI connector.

10 Setting Up Your Computer
