Dell OptiPlex 380 Manuel du propriétaire

Setup and Features Information

Mini Tower — Front and Back View

1optical drive

2optical drive eject button

3optical drive panel

4USB 2.0 connectors (2)

5drive activity light

6power button, power light

7diagnostic lights (4)

8headphone connector

9microphone connector

10 link integrity light

11 padlock ring

12 cover-release latch, security cable slot

13 voltage selector switch

14 power cable connector

15 back panel connectors

16 expansion card slots (4)

17 power supply diagnostic button

18 power supply diagnostic light

12 13

NOTE: The voltage selector switch is available only on non-EPA power supplies.

Models: DCSM1F, DCNE1F, and DCCY1F series

Dell™OptiPlex™380

About Warnings

WARNING: A WARNING indicates a potential

for property damage, personal injury, or death.

March 2010

Y705RA01MR.fm Page 1 Tuesday, March 30, 2010 9:06 AM

Desktop — Front and Back View

134

987

1optical drive

2optical drive eject button

3USB 2.0 connectors (2)

4drive activity light

5diagnostic lights (4)

6power button, power light

7link integrity light

8microphone connector

9headphone connector

10 power supply diagnostic button

11 power supply diagnostic light

12 voltage selector switch

13 cover-release latch, security cable slot

14 padlock ring

15 power cable connector

16 back panel connectors

17 expansion card slots (3)

10 12

NOTE: The voltage selector switch is available only on non-EPA power supplies.

Y705RA01MR.fm Page 2 Tuesday, March 30, 2010 9:06 AM

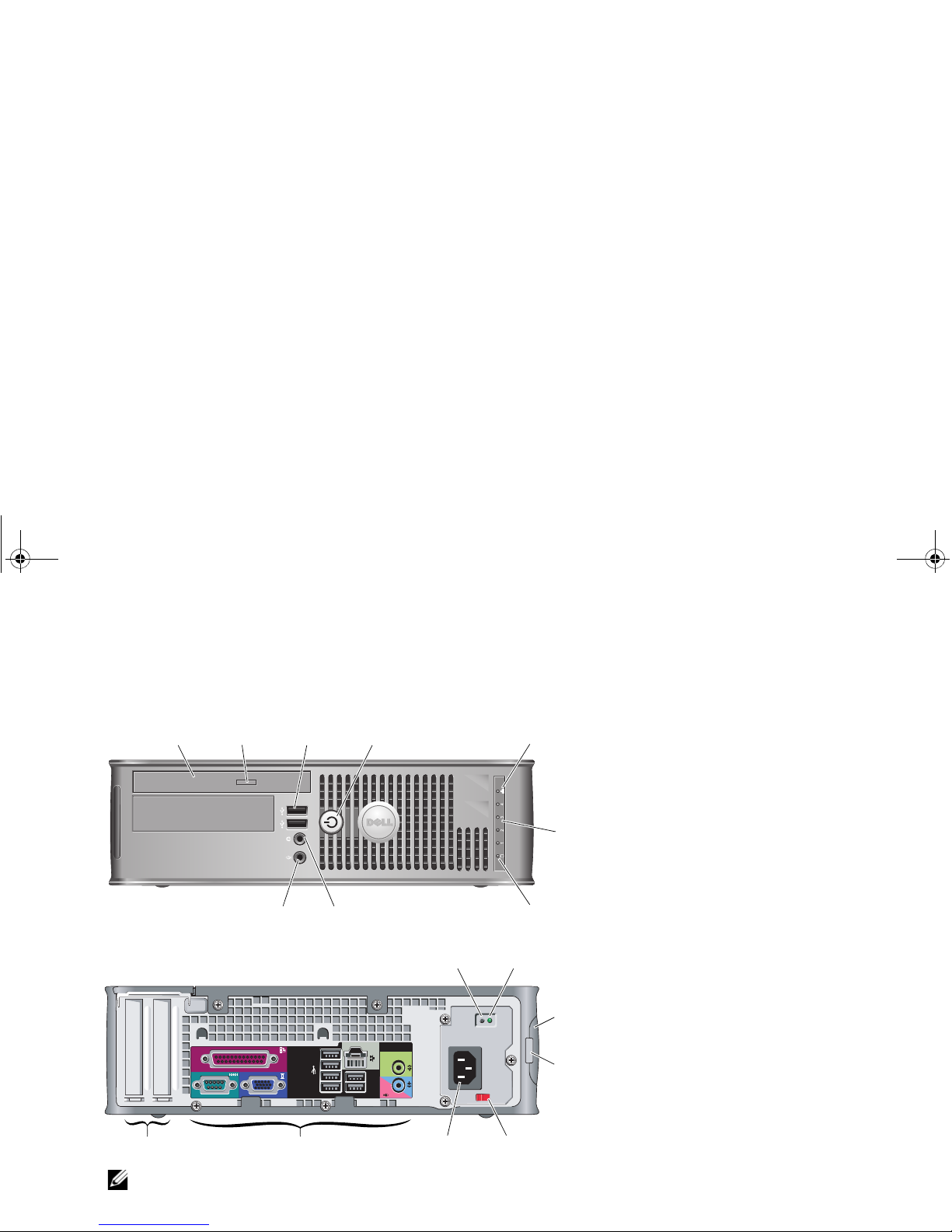

Small Form Factor — Front and Back View

1optical drive

2optical drive eject button

3USB 2.0 connectors (2)

4power button, power light

5link integrity light

6diagnostic lights (4)

7drive activity light

8headphone connector

9microphone connector

10 power supply diagnostic button

11 power supply diagnostic light

12 cover-release latch, security cable slot

13 padlock ring

14 voltage selector switch

15 power cable connector

16 back panel connectors

17 expansion card slots (2)

1234

10 11

NOTE: The voltage selector switch is available only on non-EPA power supplies.

Y705RA01MR.fm Page 3 Tuesday, March 30, 2010 9:06 AM

Mini Tower, Desktop, and Small Form Factor — Back Panel

1parallel connector

2link integrity light

3network adapter connector

4network activity light

5line-out connector

6line-in/microphone connector

7USB 2.0 connectors (6)

8VGA connector

9serial connector

Y705RA01MR.fm Page 4 Tuesday, March 30, 2010 9:06 AM

1Connect the network cable

(optional).

2Connect the modem

(optional).

3Connect the monitor using only one of the following cables:

aThe blue VGA cable. bThe white DVI cable. cThe dual monitor

Y-adapter cable.

dThe VGA cable to

DVI adapter.

4Connect the

USB keyboard or

mouse (optional).

5Connect the

power cable(s).

6Press the power buttons on the monitor and the computer.

Quick Setup

WARNING: Before you begin any of the procedures

in this section, read the safety information that shipped

with your computer. For additional best practices

information, see www.dell.com/regulatory_compliance.

NOTE: Some devices may not be included if you did

not order them.

Y705RA01MR.fm Page 5 Tuesday, March 30, 2010 9:06 AM

Specifications

NOTE: The following specifications are only those required by law

to ship with your computer. For a complete and current listing of the

specifications for your computer, go to support.dell.com.

System Information

Chipset Intel®G41 Express Chipset

Processor

• Intel Core™2 Quad

• Intel Core2 Duo

• Intel Pentium

Dual-Core

• Intel Celeron

Dual-Core

• Intel Celeron

Video

Video type:

Integrated

integrated on system board

Discrete

PCI-E x16 half-length graphics card

with 2 DVI and 1 S-Video out,

or 1 DVI, 1 VGA, and 1 S-Video out

• NVIDIA GeForce 9300 GE

• ATI Radeon HD 3450

Video memory:

Integrated

up to 256 MB shared video memory

(with 1 GB system memory)

up to 352 MB shared video memory

(with 2, 3, or 4 GB system memory)

Discrete

256 MB

Memory

Memory module connector 2 DIMM slots

Memory module capacity 1 GB, 2 GB, or 4 GB

Memory type 1067 MHz DDR3

Minimum memory 1 GB

Maximum memory 8 GB

Drives Mini Tower Desktop Small Form

Factor

Externally accessible:

3.5 inch drive bays

one one one

5.25 inch drive bays

two one one (slimline)

Internally accessible:

3.5 inch SATA

drive bays

two one one

Available devices:

3.5 inch SATA

hard drives

two one one

5.25 inch SATA

DVD-ROM,

DVD/CD-RW Combo,

or DVD+/-RW drives

two one one (slimline)

Y705RA01MR.fm Page 6 Tuesday, March 30, 2010 9:06 AM

Control Lights and Diagnostic Lights

Power button light Green light — Solid green light indicates

power-on state; blinking green light

indicates sleep state of the computer.

Amber light — Solid amber light when the

computer does not start indicates a problem

with the system board or power supply.

Blinking amber light indicates a problem

with the system board.

Drive activity light Displays the SATA hard drive or optical

drive activity.

Green light — Blinking green light

indicates that the computer is reading

data from or writing data to the drive.

Network connectivity light Green light — A good connection exists

between the network and the computer.

Off (no light) — The computer is not

detecting a physical connection to the network.

Diagnostic lights Four lights located on the front/back panel

of the computer. For information on the

diagnostic lights, see the Service Manual

available on the Dell Support website at

support.dell.com/manuals.

Power Wattage Maximum heat

dissipation

Voltage

Mini Tower:

Non-EPA

255 W 1338 (BTU/hr) 115/230 VAC,

50/60 Hz, 6.5/3.5 A

EPA

255 W 1023 (BTU/hr) 100-240 VAC,

50/60 Hz, 1.8/3.6 A

Desktop:

Non-EPA

235 W 1233 (BTU/hr) 115/230 VAC,

50/60 Hz, 6.5/3.5 A

EPA

255 W 1023 (BTU/hr) 100-240 VAC,

50/60 Hz, 2.0/4.0 A

Small Form Factor:

Non-EPA

235 W 1233 (BTU/hr) 115/230 VAC,

50/60 Hz, 6.5/3.5 A

EPA

235 W 943 (BTU/hr) 100-240 VAC,

50/60 Hz, 1.75/3.5 A

NOTE: Heat dissipation is calculated by using the power supply

wattage rating.

NOTE: See the safety information that shipped with your computer for

important voltage–setting information.

Coin-cell battery 3V CR2032 lithium coin cell

Y705RA01MR.fm Page 7 Tuesday, March 30, 2010 9:06 AM

Finding More Information and Resources

________________

Information in this document is subject to change without notice.

Reproduction of these materials in any manner whatsoever without the written

permission of Dell Inc. is strictly forbidden.

Trademarksusedinthistext:Dell,theDELLlogo,andOptiPlexaretrademarks

of Dell Inc.; Intel, Pentium, and Celeron are registered trademarks and Core is

a trademark of Intel Corporation in the U.S. and other countries.

Other trademarks and trade names may be used in this document to refer to

either the entities claiming the marks and names or their products.

Dell Inc. disclaims any proprietary interest in trademarks and trade names

other than its own.

Physical Mini Tower Desktop Small Form

Factor

Height 40.8 cm

(16.1 inches)

11.4 cm

(4.5 inches)

9.3 cm

(3.7 inches)

Width 18.7 cm

(7.4 inches)

39.9 cm

(15.7 inches)

31.4 cm

(12.4 inches)

Depth 43.3 cm

(17.0 inches)

35.3 cm

(13.9 inches)

34.0 cm

(13.4 inches)

Weight (Minimum) 12.0 kg

(26.5 lb)

9.0 kg

(19.8 lb)

7.0 kg

(15.4 lb)

Environmental

Temperature:

Operating

10 °C to 35 °C (50 °C to 95 °F)

Storage

–40 °C to 65 °C (–40 °C to 149 °F)

Relative humidity 20% to 80% (noncondensing)

Altitude:

Operating

–15.2 m to 3048 m (–50 ft to 10,000 ft)

Storage

–15.2 m to 10,668 m (–50 ft to 35,000 ft)

Airborne contaminant

level

G2 or lower as defined by ISA-S71.04-1985

If you need to: See:

Find safety best practices

information for your computer,

review Warranty information,

Terms and Conditions(U.S only),

Safety instructions, Regulatory

information, Ergonomics

information, and End User

License Agreement.

The safety and regulatory documents

that shipped with your computer and

the Regulatory Compliance

Homepage at

www.dell.com/regulatory_compliance.

Y705RA01MR.fm Page 8 Tuesday, March 30, 2010 9:06 AM
