Dell OptiPlex 980 - Desktop Manuel du propriétaire

Setup and Features Information

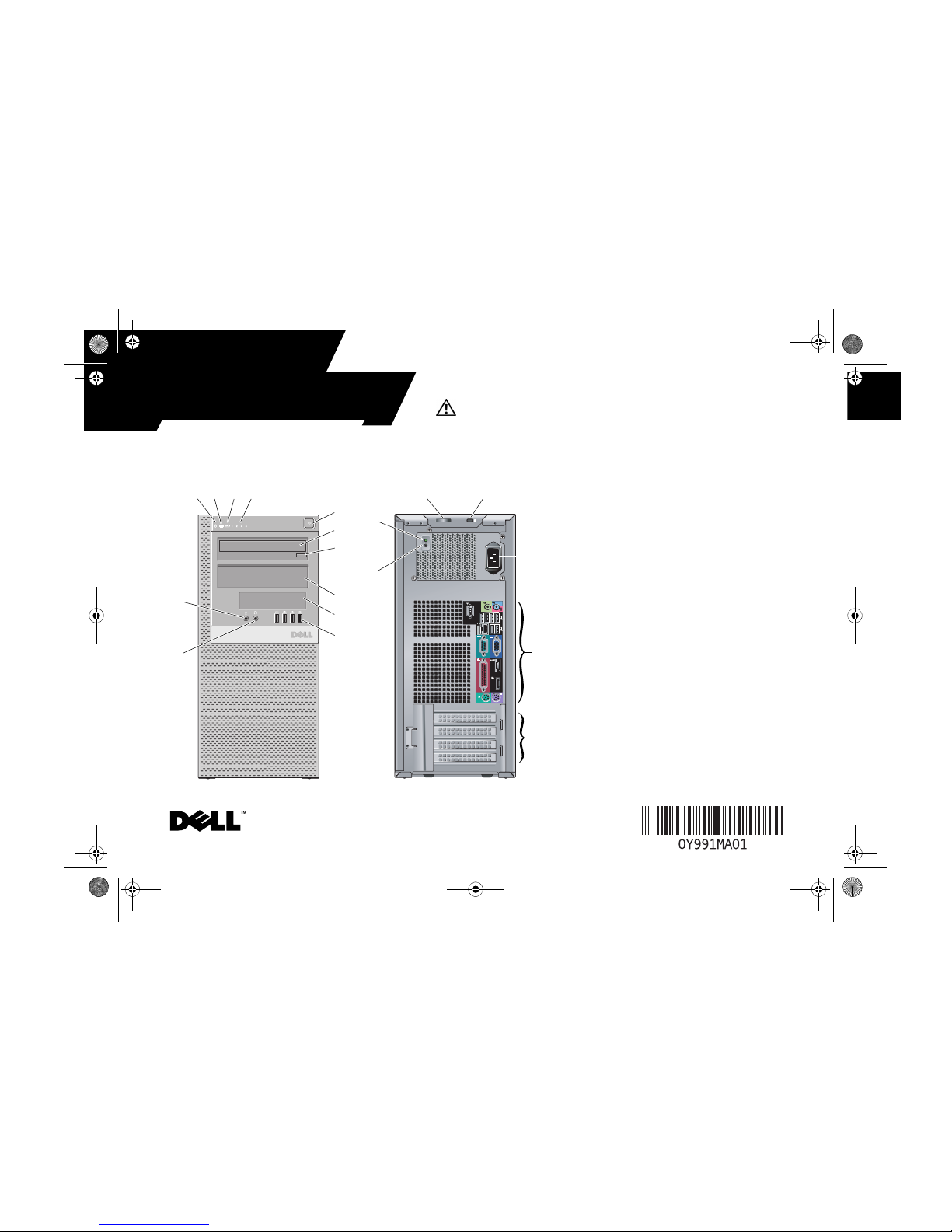

Mini Tower — Front and Back View

1drive activity light

2network activity light

3Wi-Fi®activity light (optional)

4diagnostic lights (4)

5power button, power light

6optical drive

7optical drive eject button

8optical drive filler panel

9flex bay

10 USB 2.0 connectors (4)

11 headphone connector

12 microphone connector

13 padlock ring

14 security cable slot

15 power cable connector

16 back panel connectors

17 expansion card slots (4)

18 power supply diagnostic button

19 power supply diagnostic light

Models: Mini Tower: DCSM1F; Desktop: DCNE1F; and Small Form Factor: DCCY1F series

Dell™OptiPlex™980

About Warnings

WARNING: A WARNING indicates a potential

for property damage, personal injury, or death.

February 2010

Y991Mam1.fm Page 1 Tuesday, January 19, 2010 4:39 PM

Desktop — Front and Back View

654

1power button, power light

2optical drive

3optical drive eject button

4USB 2.0 connectors (2)

5microphone connector

6headphone connector

7flex bay

8drive activity light

9network activity light

10 Wi-Fi activity light (optional)

11 diagnostic lights (4)

12 power supply diagnostic button

13 power supply diagnostic light

14 padlock ring

15 security cable slot

16 power cable connector

17 back panel connectors

18 expansion card slots (4)

Y991Mam1.fm Page 2 Tuesday, January 19, 2010 4:39 PM

Small Form Factor — Front and Back View

1power button, power light

2optical drive

3optical drive eject button

4flex bay

5headphone connector

6microphone connector

7USB 2.0 connectors (2)

8drive activity light

9network activity light

10 Wi-Fi activity light (optional)

11 diagnostic lights (4)

12 power supply diagnostic button

13 power supply diagnostic light

14 padlock ring

15 security cable slot

16 power cable connector

17 back panel connectors

18 expansion card slots (2)

123

12 13

Y991Mam1.fm Page 3 Tuesday, January 19, 2010 4:39 PM

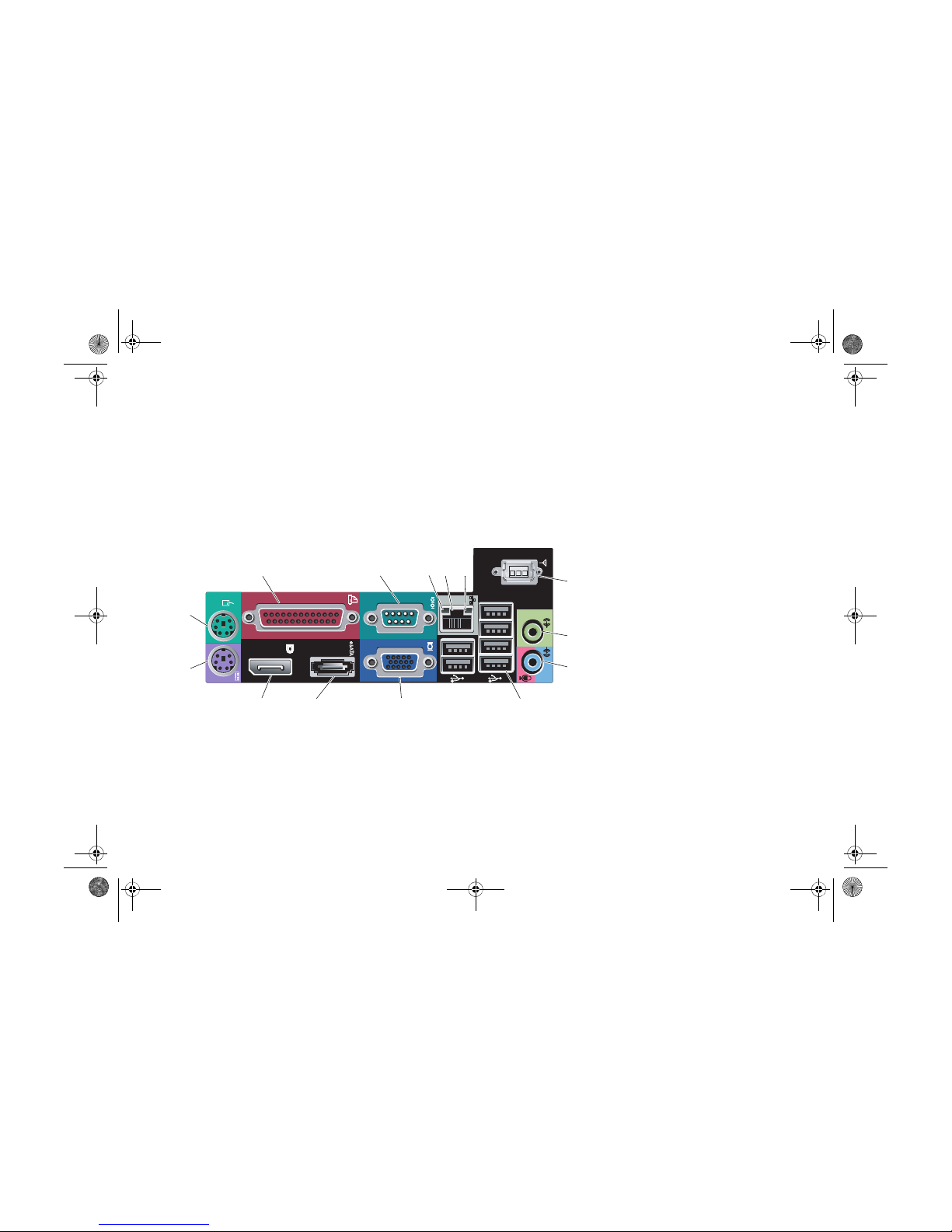

Mini Tower, Desktop, and Small Form Factor — Back Panel

1parallel connector

2serial connector

3link integrity light

4network adapter connector

5network activity light

6Wi-Fi antenna (optional)

7headphone connector

8line-in/microphone connector

9USB 2.0 connectors (6)

10 VGA connector

11 eSATA connector

12 DisplayPort connector

13 keyboard connector

14 mouse connector

Y991Mam1.fm Page 4 Tuesday, January 19, 2010 4:39 PM

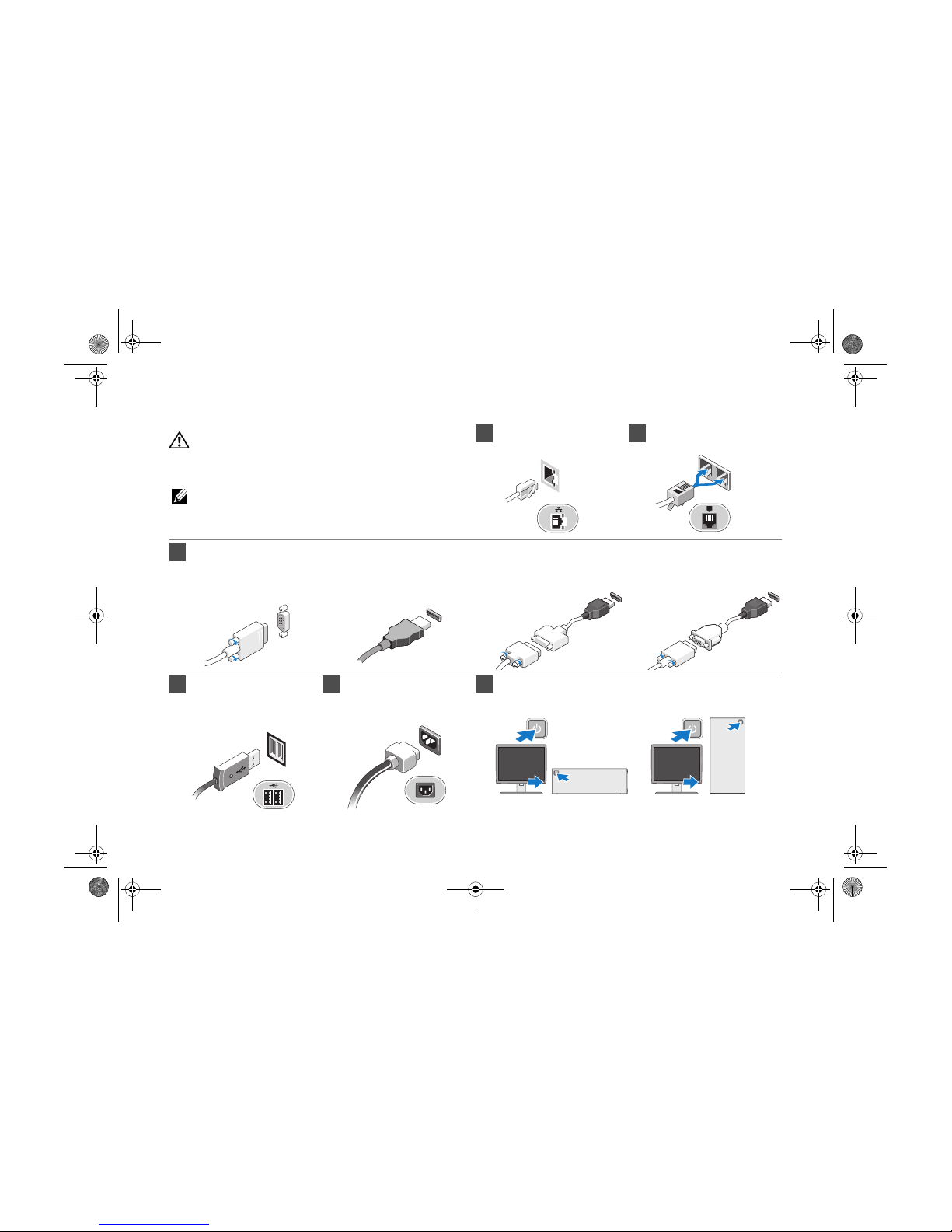

1Connect the network cable

(optional).

2Connect the modem

(optional).

3Connect the monitor using only one of the following cables:

aThe blue VGA cable. bThe black DisplayPort

cable.

cThe DisplayPort-to-DVI

adapter cable.

dThe DisplayPort-to-VGA

adapter cable.

4Connect the

USB keyboard or

mouse (optional).

5Connect the

power cable(s).

6Press the power buttons on the monitor and the computer.

Quick Setup

WARNING: Before you begin any of the procedures in this

section, read the safety information that shipped with your

computer. For additional best practices information, see

www.dell.com/regulatory_compliance.

NOTE: Some devices may not be included if you did

not order them.

Y991Mam1.fm Page 5 Tuesday, January 19, 2010 4:39 PM

Specifications

NOTE: The following specifications are only those required by law

to ship with your computer. For a complete and current listing of the

specifications for your computer, go to support.dell.com.

System Information

Chipset Intel®Q57 chipset

Processor Intel Core™ i3/i5/i7 series

Intel Pentium®dual-core

Video

Video type:

Integrated

Intel Graphics Media Accelerator HD

NOTE: Not supported by computers shipped

with Intel i7 and Intel i5 quad-core

processors.

Discrete

PCI-E x16 graphics card

Video memory:

Integrated

Upto 1759 MB (shared)

NOTE: The memory shared is

dependent upon the operating system

and available memory.

Memory

Memory module connector four DIMM slots

Memory module capacity 1 GB, 2 GB, 4 GB

Memory type 1066 MHz or 1333 MHz DDR3

Minimum memory 1 GB

Maximum memory 16 GB

Drives Mini Tower Desktop Small Form

Factor

Externally accessible:

3.5-inch drive bays

one one one

5.25-inch drive bays

two one one (slimline)

Internally accessible:

3.5-inch SATA

drive bays

two one one

Available devices:

2.5-inch SATA

hard drives

two two two

3.5-inch SATA

hard drives

two one one

5.25-inch SATA

DVD-ROM,

DVD/CD-RW Combo,

or DVD+/-RW drives

two one one (slimline)

Control Lights and Diagnostic Lights

Front of computer

Power button light

Solid blue light — indicates power-on state.

Blinking blue light — indicates sleep state

of the computer.

Solid amber light (when the computer does

not start) — indicates a problem with the

system board or power supply.

Blinking amber light — indicates a problem

with the system board.

Y991Mam1.fm Page 6 Tuesday, January 19, 2010 4:39 PM

Drive activity light

Displays the SATA hard drive or optical

drive activity.

Blue light — Blinking blue light

indicates that the computer is reading

data from or writing data to the drive.

Network activity light

Blue light — A good connection exists

between the network and the computer.

Off (no light) — The computer is not

detecting a physical connection to the network.

Diagnostic lights

Four amber lights located on the front panel

of the computer. For information on the

diagnostic lights, see the Service Manual

available on the Dell Support website at

support.dell.com/manuals.

Back of computer

Link integrity light

on integrated

network adapter

Green light — A good 10 Mbps connection

exists between the network and the

computer.

Orange light — A good 100 Mbps

connection exists between the network and

the computer.

Yellow light — A good 1000 Mbps

connection exists between the network and

the computer.

Off (no light) — The computer is not

detecting a physical connection to the

network.

Network activity light on

integrated network

adapter

Yellow light — A blinking yellow light

indicates that network activity is present.

Control Lights and Diagnostic Lights (continued)

Power supply light

Green light — The power supply is turned

on and is functional. The power cable

must be connected to the power connector

(at the back of the computer) and the

electrical outlet.

NOTE: You can test the health of the

power system by pressing the test button.

When the system’s power supply voltage is

within specification, the self-test LED lights

up. If the LED does not light up, the power

supply may be defective. AC power must be

connected during this test.

Power Wattage Maximum heat

dissipation

Voltage

Mini Tower (DCSM1F)

EPA

255 W 1060 BTU/hr 100-240 VAC

APFC

305 W 1600 BTU/hr 100-240 VAC

Desktop (DCNE1F)

EPA

255 W 1060 BTU/hr 100-240 VAC

APFC

255 W 1337 BTU/hr 100-240 VAC

Small Form Factor (DCCY1F)

EPA

235 W 977 BTU/hr 100-240 VAC

APFC

235 W 1233 BTU/hr 100-240 VAC

NOTE: Heat dissipation is calculated using the power supply

wattage rating.

Coin-cell battery 3V CR2032 lithium coin cell

Control Lights and Diagnostic Lights (continued)

Y991Mam1.fm Page 7 Tuesday, January 19, 2010 4:39 PM

Macrovision Product Notice

This product incorporates copyright protection technology that is

protected by U.S. patents and other intellectual property rights. Use of this

intended for home and other limited viewing uses only unless otherwise

authorized by Macrovision. Reverse engineering or disassembly is

prohibited.

Finding More Information and Resources

See the safety and regulatory documents that shipped with your computer

and the regulatory compliance website at

www.dell.com/regulatory_compliance for more information on:

• Safety best practices

• Warranty

• Terms and Conditions

• Regulatory

• Ergonomics

• End User License Agreement

________________

Information in this document is subject to change without notice.

Reproduction of these materials in any manner whatsoever without the written

permission of Dell Inc. is strictly forbidden.

Trademarks used in this text: Dell, the DELL logo, and OptiPlex are trademarks

of Dell Inc.; Intel and Pentium are registered trademarks and Core is a trademark

of Intel Corporation in the U.S. and other countries.; Wi-Fi is a registered

trademark of Wireless Ethernet Compatibility Alliance, Inc.

Other trademarks and trade names may be used in this document to refer to

either the entities claiming the marks and names or their products. Dell Inc.

disclaims any proprietary interest in trademarks and trade names other than

its own.

Physical Mini Tower Desktop Small Form

Factor

Height 40.80 cm

(16.06 inches)

39.70 cm

(15.62 inches)

29.00 cm

(11.41 inches)

Width 18.70 cm

(7.36 inches)

10.90 cm

(4.29 inches)

8.50 cm

(3.34 inches)

Depth 43.10 cm

(16.96 inches)

34.80 cm

(13.70 inches)

32.40 cm

(12.75 inches)

Weight (Minimum) 11.40 kg

(25.13 lb)

8.30 kg

(18.29 lb)

5.90 kg

(13.00 lb)

Environmental

Temperature:

Operating

10 °C to 35 °C (50 °F to 95 °F)

Storage

–40 °C to 65 °C (–40 °F to 149 °F)

Relative humidity 20% to 80% (noncondensing)

Altitude:

Operating

–15.2 m to 3048 m (–50 ft to 10,000 ft)

Storage

–15.2 m to 10,668 m (–50 ft to 35,000 ft)

Airborne contaminant

level

G2 or lower as defined by ISA-S71.04-1985

Y991Mam1.fm Page 8 Tuesday, January 19, 2010 4:39 PM

Autres manuels pour OptiPlex 980 - Desktop

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Dell Ordinateur de bureau

Dell

Dell Inspiron 620 Manuel utilisateur

Dell

Dell Dimension 0GF017A01 Manuel utilisateur

Dell

Dell OptiPlex SX series Manuel utilisateur

Dell

Dell Inspiron 3662 Manuel utilisateur

Dell

Dell Latitude 7480 Manuel d'exploitation et d'entretien

Dell

Dell XPS Gen 3 Manuel utilisateur

Dell

Dell OptiPlex 7090 Tower Manuel utilisateur

Dell

Dell Precision Workstation 360 Manuel utilisateur

Dell

Dell Dimension XPS D Series Manuel utilisateur

Dell

Dell Dimension 4600 Series Manuel utilisateur

Dell

Dell OptiPlex 5250 Manuel utilisateur

Dell

Dell OptiPlex 3080 Small Form Factor Cable Cover Manuel utilisateur

Dell

Dell Precision T7400 DCDO Manuel utilisateur

Dell

Dell OptiPlex 990 Mini-Tower Manuel utilisateur

Dell

Dell OptiPlex 980 - Desktop Manuel utilisateur

Dell

Dell OptiPlex FX160 Manuel utilisateur

Dell

Dell Precision 3640 Tower Manuel utilisateur

Dell

Dell Inspiron 22 3000 SERIES Manuel d'exploitation et d'entretien

Dell

Dell OPTIPLEX 740 Manuel utilisateur

Dell

Dell OptiPlex 330 Manuel utilisateur

Dell

Dell OPTIPLEX 9010 ALL-IN-ONE Manuel utilisateur

Dell

Dell Vostro 3470 Manuel utilisateur

Dell

Dell OptiPlex XE2 Manuel du propriétaire

Dell

Dell Vostro 5090 D28M Guide de l'utilisateur

Manuels Ordinateur de bureau populaires d'autres marques

HP m9060n - Pavilion - Elite Fiche technique

Asus

Asus E210 Series Manuel utilisateur

TotalFlow

TotalFlow uFLO Manuel utilisateur

HP Presario SV7000 - Desktop PC Manuel utilisateur

HP ProDesk 400 G5 Manuel

Logitech

Logitech MK320 Manuel utilisateur

Sony

Sony Vaio Series Manuel utilisateur

Sony

Sony VGC-LT32E - Vaio All-in-one Desktop Computer Manuel utilisateur

Alto

Alto MD 250 Manuel utilisateur

Lenovo

Lenovo ThinkCentre Edge 72 Manuel

Lenovo

Lenovo ThinkStation D20 Manuel

Arbor Technology

Arbor Technology FPC-7800 Series Manuel utilisateur

Sony

Sony VAIO VGX-TP1 Series Manuel utilisateur

Asus

Asus Eee Box B204 Manuel utilisateur

HP Z1 Manuel utilisateur

Everex

Everex eXplora Manuel utilisateur

Lenovo

Lenovo ThinkCentre M75e Manuel utilisateur

Compaq

Compaq iPAQ Internet Device Manuel utilisateur
