Norris Parts Repair Manual

Dell 2000FP Logic Board

Installation Instructions

Norris Parts Repair Manual

The Dell 2000FP was designed for a wide variety of users ranging from the home, small office, or

corporate environment. It utilizes a 20.1-inch (51.0cm) Active Matrix TFT LCD that displays sharp and

brilliant images of text and graphics with a maximum resolution up to 1600 x 1200 pixels.

Common Problems associated with this model:

1. Black Display (screen goes black).

2. Front Panel Buttons won’t work.

3. Front Panel Lights stay yellow.

4. Picture blurring.

Resolving these issues (Part Replacement):

1. Replace the logic board 48.L3701.A02 Manufactured by BENQ.

This Logic Board works on the following models:

BRAND MODEL REMARK

DELL 2000FP 20.1" LCD MONITOR

Disassembly Instructions:

1. Place monitor face down on flat surface using a soft towel to avoid scratching the LCD screen.

2. Use a cup or other small container to hold the screws as they are removed.

3. It is recommended, not required, that you purchase a static wrist guard or other anti-static

guard. These can be purchased at a nominal cost at a computer hardware store or electronics

repair shop.

4. Make sure the unit is unplugged and the power supply/plug is removed from the unit.

5. Important: Do not apply force onto the LCD screen at anytime, this will cause permanent

damage.

6. This manual is provided as a reference guide. If you do not understand disassembly process

or you do not feel that you are competent to perform the repair, then you should have the

repair completed by a professional repair technician.

Disclaimer:

Norris Parts provides this manual for reference only. Norris Parts is not responsible for any actions

taken by the user of this manual. Norris Parts is not responsible for damage resulting from the repair

or use of any equipment referenced in this manual.

Norris Parts Repair Manual

Disassembly

Step 1:

Remove the four (4) screws from the

top of the base.

Step 2:

Remove the base.

Step 3:

Remove the four (4) screws from the

back cover.

Norris Parts Repair Manual

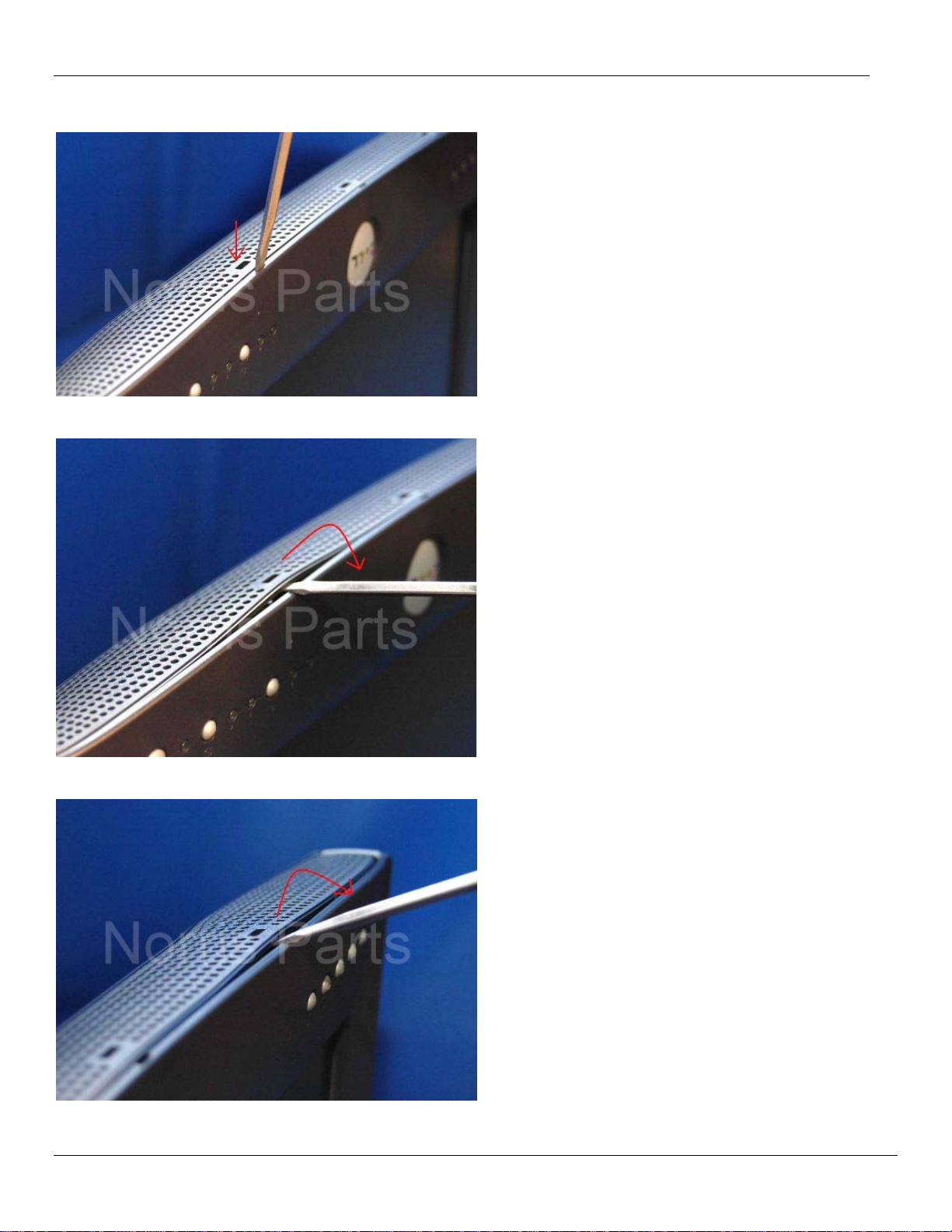

Step 4:

Stick a flat screw driver between the

back cover and the front bezel on

the bottom of the LCD.

Step 5:

Remove the back cover from the

bottom of the LCD.

Step 6:

Remove the back cover from the

bottom of the LCD.

Norris Parts Repair Manual

Step 7:

Rotate the LCD to the side to

continue removing the back cover.

Step 8:

Rotate the LCD to the other side to

continue removing the back cover.

Norris Parts Repair Manual

Step 9:

Remove the back cover.

Step 10:

Remove the two (2) screws from

the inverter board’s metal cover.

Step 11:

Remove the inverter board’s metal

cover.

Norris Parts Repair Manual

Step 12:

Remove the fifteen (15) screws

from the logic board’s metal cover.

Step 13:

Remove the logic board’s metal

cover.

Norris Parts Repair Manual

Step 14:

Unplug connector from the logic

board.

Step 15:

Unplug the two (2) connectors

from the logic board.

Step 16:

Unplug connector from the logic

board.

Norris Parts Repair Manual

Step 17:

Unplug connector from the logic

board.

Step 18:

Remove the seven (7) screws from

the logic board.

Norris Parts Repair Manual

Step 19:

Remove the logic board.

Step 20 – Reassembly

Inspect new part ensuring that any packing materials or tape are removed.

Follow the directions in reverse to complete the installation of the replacement part. Make

sure that all connectors are plugged in. Make sure that you replace all screws into their

assemblies.
