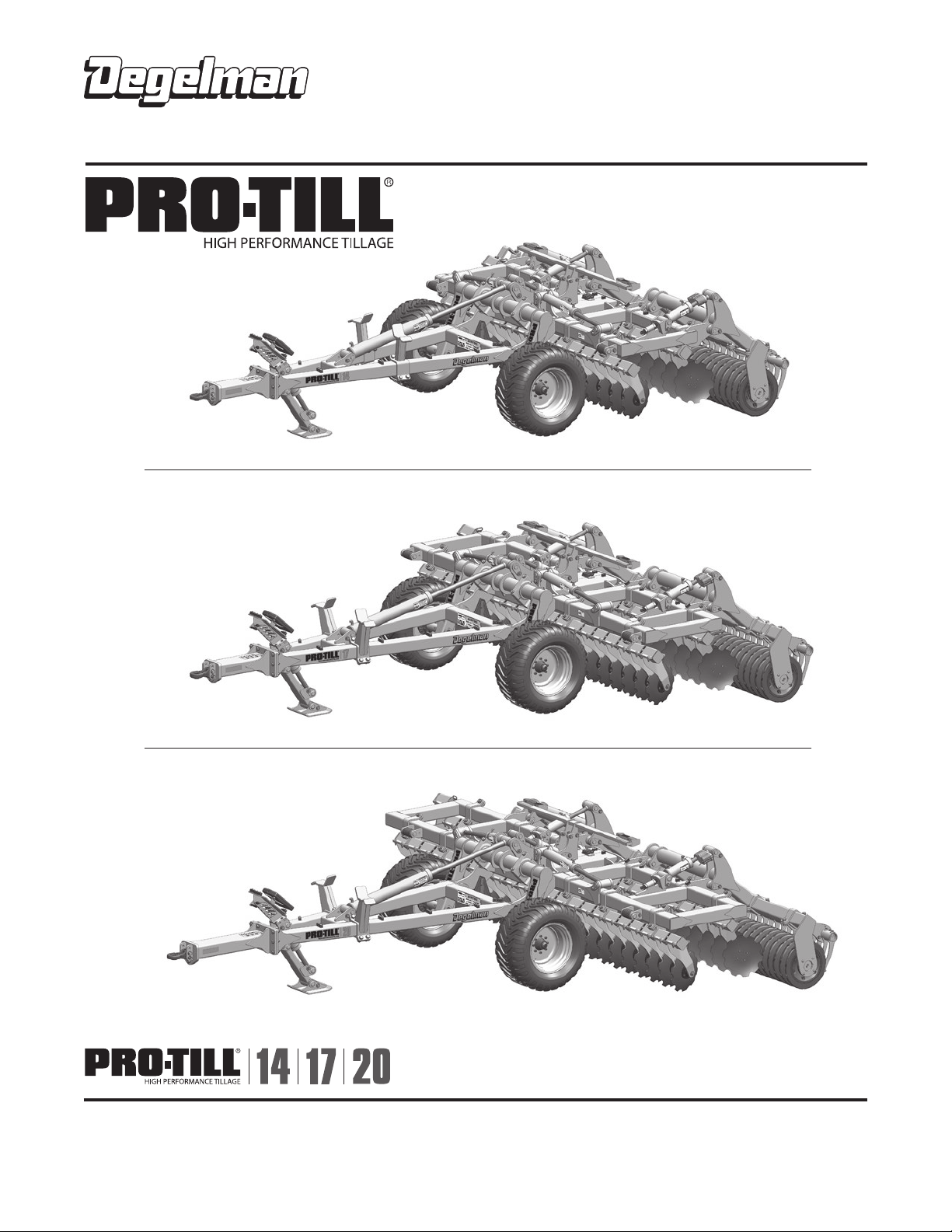

Degelman PRO-TILL 14 Manuel de programmation

P R O - T I L L 14/17/2 0

OPERATOR & PARTS

MANUAL

DEGELMAN INDUSTRIES LTD.

BOX 830-272 INDUSTRIAL DRIVE,

REGINA, SK, CANADA, S4P 3B1

FAX 306.543.2140 PH 306.543.4447

1.800.667.3545 DEGELMAN.COM

143387 v1.2

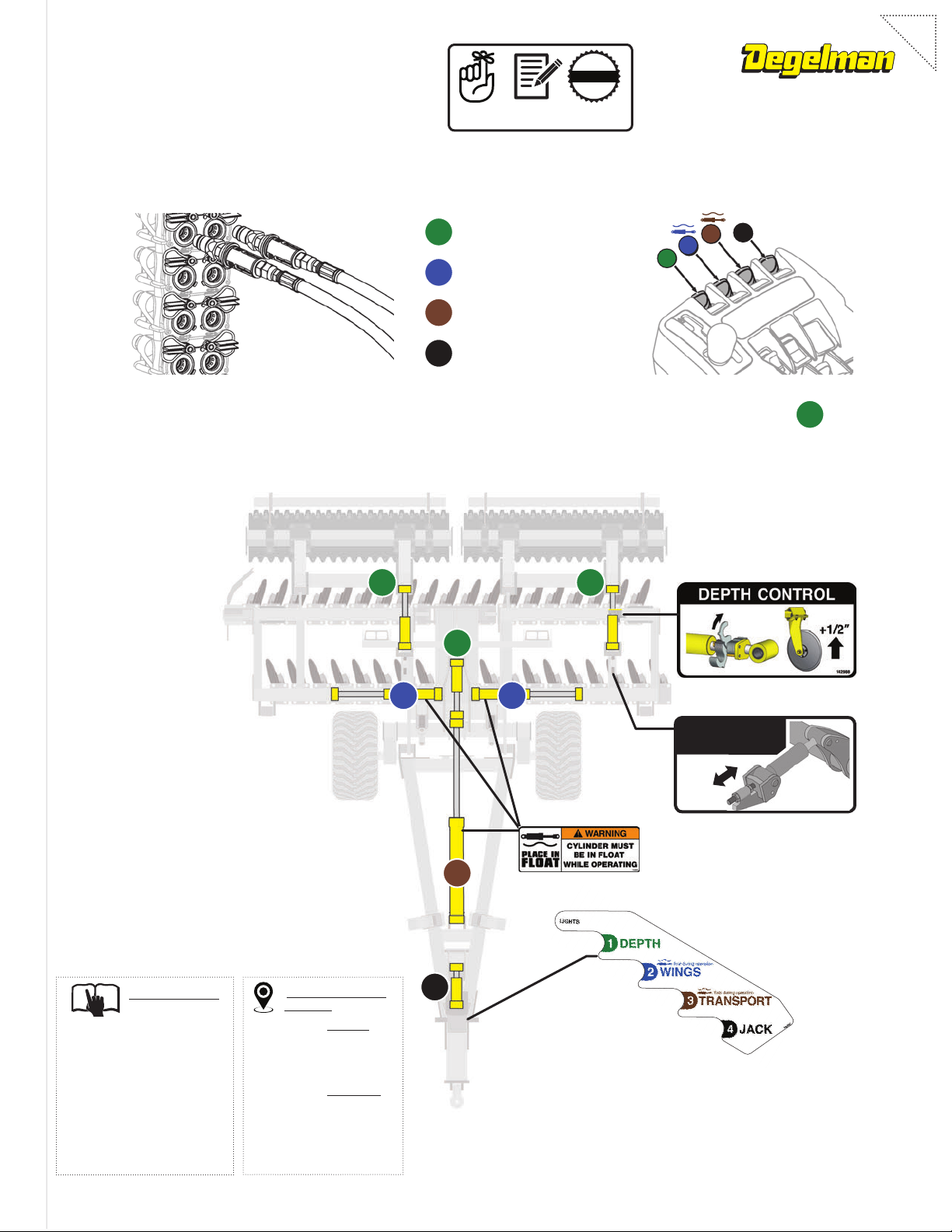

AConnect Hydraulics

DEPTH

WINGS

TRANSPORT

JACK

FLOAT

PITCH

ADJUSTMENT

143386 v1.1

QUICK-START GUIDE*

for PRO-TILL 14/17/2 0

* Refer to operators manual for complete safety and operation info.

WARRANTY

REMEMBER! You must complete Product

Registration to be eligible for Warranty.

IMPORTANT: Re-phase and cycle oil in the Depth Control Cylinders 1

before use (especially after long periods or storage).

• Hydraulic Connections/Hoses

• Working points & pins

• Hubs & Spindles

• Tire Pressure: 41 PSI (283 kPa)

• Check for missing, worn or

damaged parts.

Maintenance

(Check Machine Daily)

GPS Reference

(Set overlap to 6”per side)

(with 20" discs) 2" Depth

Pro-Till 14 150” (3.8m)

Pro-Till 17 190” (4.8m)

Pro-Till 20 230” (5.8m)

(with 20” discs) MAX Depth

Pro-Till 14 154” (3.9m)

Pro-Till 17 193” (4.9m)

Pro-Till 20 233” (5.9m)

(Consider setting the GPS to include

a 6”implement oset to the right)

*Refer to operators manual for

complete safety and operation info.

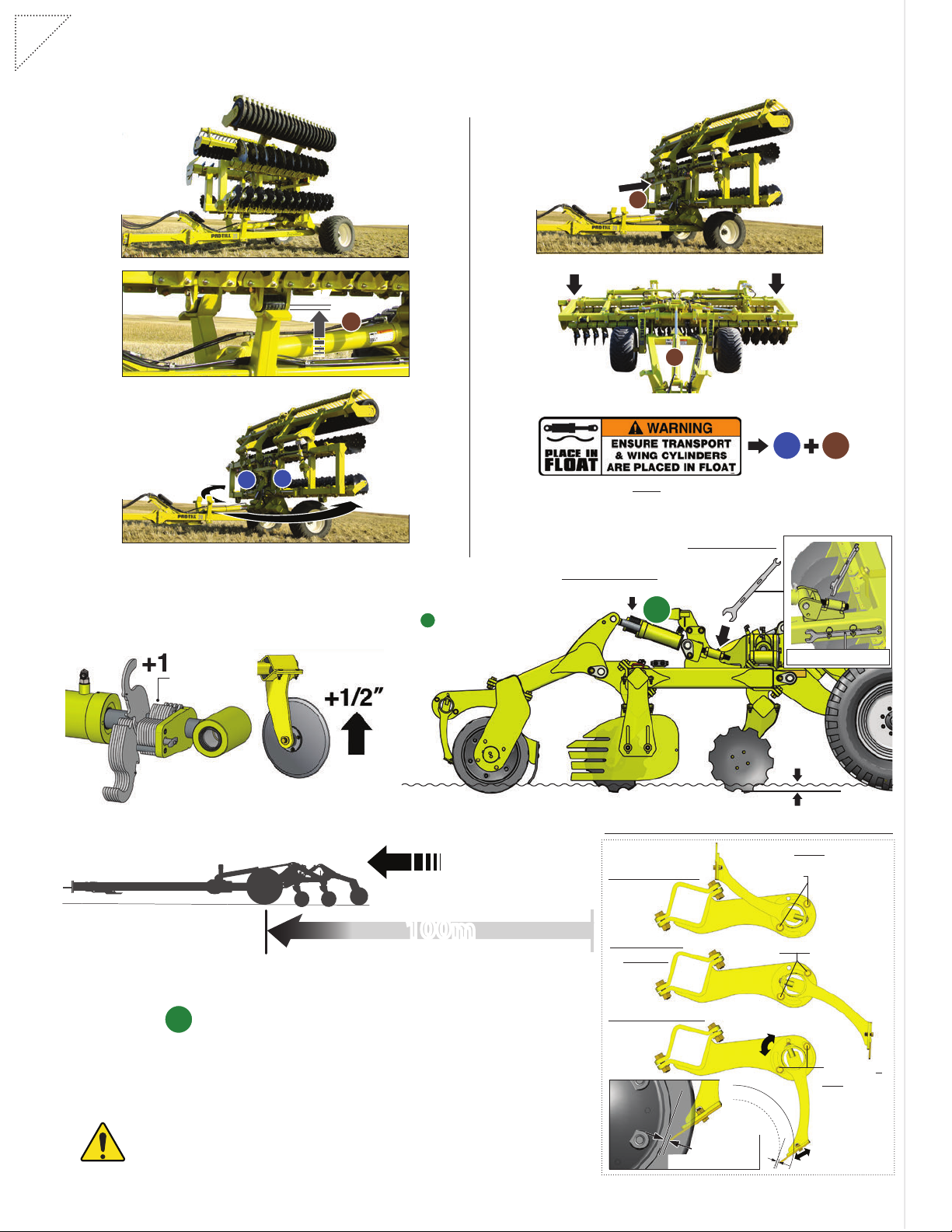

BPut in Field Position

iv)

ii)

iii)

DTest. Check. Adjust.

100m

ERaise for Headland Turns.

CSet Cutting Depth

v) 3

Scraper Position Overview (Rubber Rollers)

Set Gap

distance at

1/4” to 3/8”

from roller surface.

Storage Position

Maintenance

Position

Engaged Position

Remove the 4 bolts to rotate into

or out of “Storage position”,

then re-install.

Loosen the 4 bolts to rotate up into

“Maintenance

Position”

& secure.

Loosen the 4

bolts to rotate

downward.

Set the scraper

clearance

(1/4” to 3/8”).

Properly tighten.

10-12 MPH

(Ideal Operating Speed)

Start with 8stops.

Test depth & adjust.

Pitch Adjustment

(Adjustment Rods

on the 2 Outer

Cylinders)

Depth Adjustment

(Depth Control on

LH Cylinder)

Typically

Set to 2”

Tool Storage Location

1”

FMAX Transport Speed: 40 km/h (25 MPH)

IMPORTANT: Operator must read and understand the tractor manual

in order to place the required hydraulic circuits into oat position.

IMPORTANT: Re-phase and cycle oil in the Depth Control Cylinders

before use. This is especially important after long periods of storage.

IMPORTANT:

READ MANUAL

* Reference Sheet Quick-Start Guide

OPERATORS SECTION - TABLE OF CONTENTS

IMPORTANT Safety Notice

Introduction 1

Safety 2

Hook-Up 4

Transport 5

Transport to Field Position 6

Field to Transport Position 7

Operation 8

Pre-Operation Checklist 8

Operation Guidelines / Suggestions 9

Setting Disc Depth 10

Scraper Settings 12

Troubleshooting 13

Service & Maintenance 15

Maintenance Checklist 15

Repair - Wheel Hub 18

Repair - Hyd Cylinder Repair 19

Repair - Pressed Bushing 20

PARTS SECTION - TABLE OF CONTENTS

Pro-Till Section Overview 23

Hitch Pole Frame Components 24

Wheel & Rockshaft Components 26

Center Frame Components 27

Wing Frame Components 28

Disc Gang Assembly & Components 30

Disc Arm Components & Disc Options 32

Roller Options & Components 33

Hydraulic Routing & Cylinders 36

Light Routing & Components 40

Optional Gauge Wheel & Components 41

Warranty 43

DEGELMAN INDUSTRIES LTD.

BOX 830-272 INDUSTRIAL DRIVE,

REGINA, SK, CANADA, S4P 3B1

FAX 306.543.2140 PH 306.543.4447

1.800.667.3545 DEGELMAN.COM

IMPORTANT: INSTALL DRY

Do NOT use any oil/grease/lubricant on

pin or bushing surfaces when installing the

maintenance free pins into composite bushings.

Maintenance Free Pins & Bushings

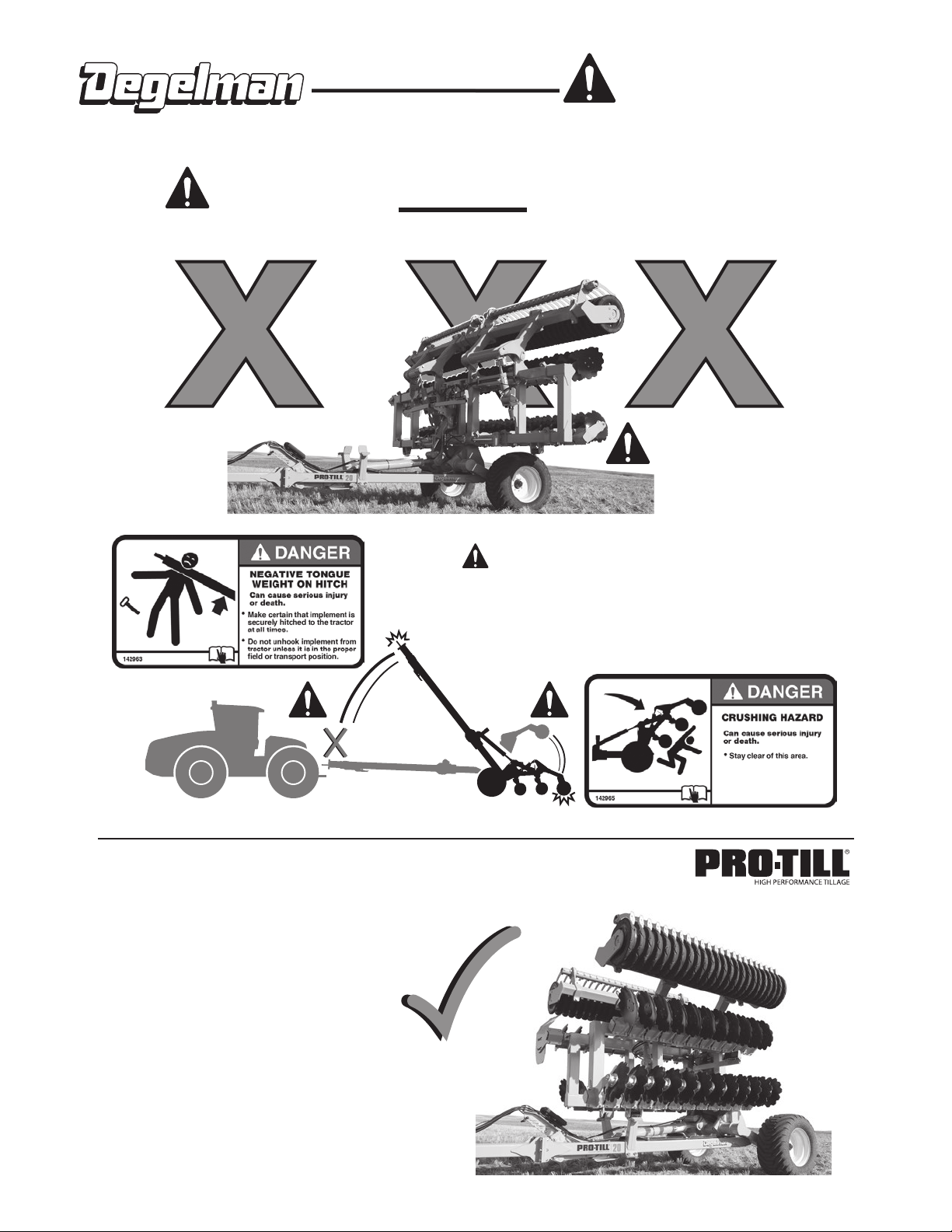

DANGER - NEVER PARK, UNHOOK, or

SERVICE Pro-Till with REAR WINGS RAISED

DANGER

If the front hitch becomes disconnected in this

position the front hitch will raise suddenly and

the back of the machine will drop!

IMPORTANT

SAFETY REMINDER

CHANGING DISCS AND SERVICING

The best position to safely change

or service the discs on the Pro-Till

is when it is secured in the winged

forward transport position.

-1-

143387 - PRO-TILL 14|17|20 (02-April-2019)

Introduction

OPERATOR ORIENTATION - The directions left, right, front and rear, as mentioned throughout the manual,

are as seen from the tractor drivers’ seat and facing in the direction of travel.

CONGRATULATIONS on your choice of a Degelman PRO-TILL to complement your farming operation. It has

been designed and manufactured to meet the needs of a discerning agricultural market. Degelman PRO-TILL

shreds heavy fall residue, opens up spring ﬁelds, levels ruts, destroys clods and produces an absolutely perfect

seed bed. Degelman PRO-TILL is the fastest and most versatile piece of tillage equipment you will ever own.

Use this manual as your ﬁrst source of information about this machine.

TO THE NEW OPERATOR OR OWNER - Safe, efﬁcient and trouble free operation of your Degelman PRO-TILL

requires that you and anyone else who will be operating or maintaining it, read and understand the Safety,

Operation, Maintenance and Troubleshooting information contained within this manual.

By following the operating instructions in conjunction with a good maintenance program your machine will

provide many years of trouble-free service. Keep this manual handy for frequent reference and to pass on to

new operators or owners. Call your Degelman Dealer if you need assistance, information, or additional copies

of the manual.

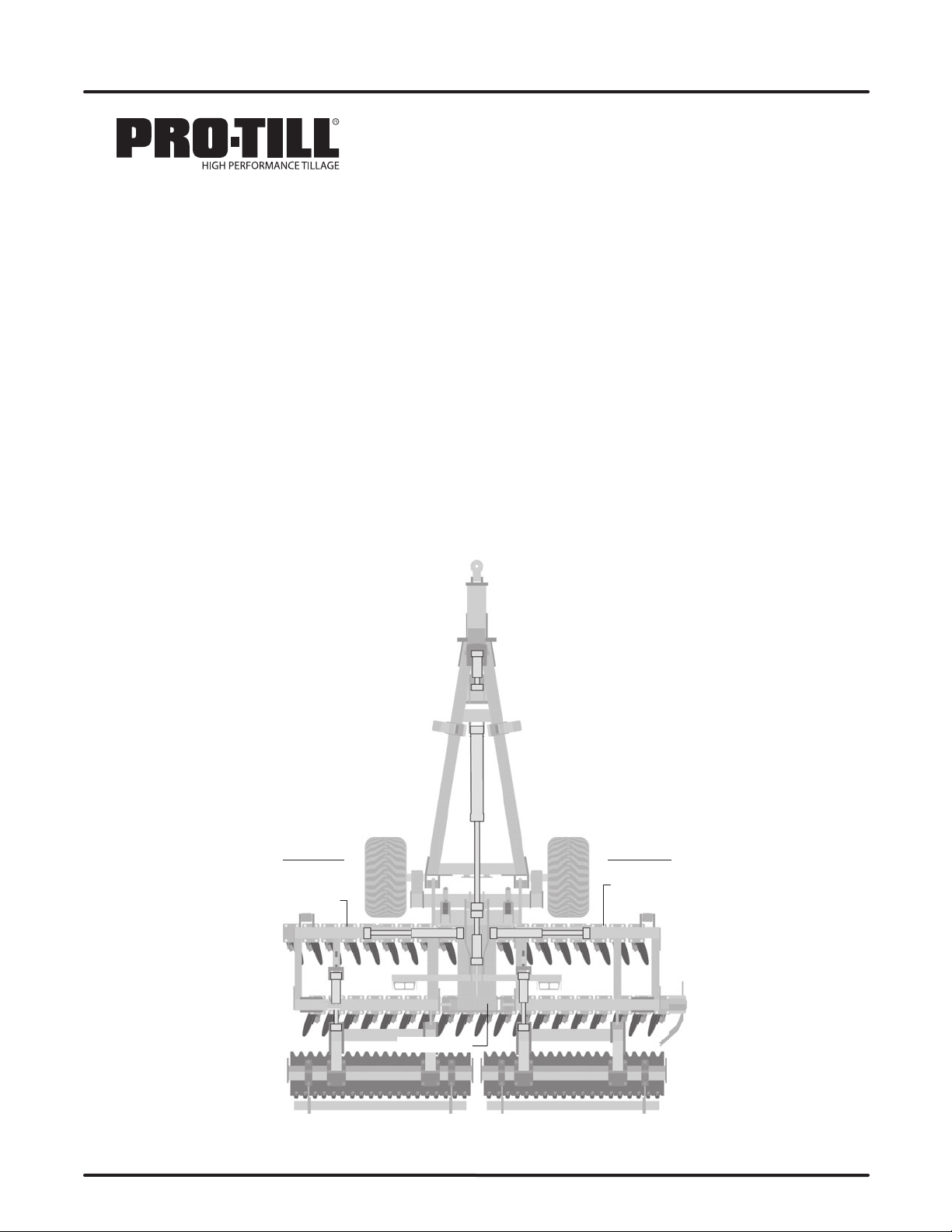

Front Hitch

Hyd.

Jack

Center Frame

Hitch Pole

Frame

RH Wing

Roller Assembly

LH Wing

Roller Assembly

LH Wing

Frame

RH Wing

Frame

LH SIDE RH SIDE

-2-

143387 - PRO-TILL 14|17|20 (02-April-2019)

CAUTION

DANGER

WARNING

The Safety Alert Symbol identiﬁes important

safety messages applied to the PRO-TILL and in this

manual. When you see this symbol, be alert to the

possibility of injury or death. Follow the

instructions provided on the safety messages.

The Safety Alert Symbol means:

ATTENTION!

BECOME ALERT!

YOUR SAFETY IS INVOLVED!

DANGER: Indicates an imminently hazardous situation

that, if not avoided, WILL result in death or serious injury

if proper precautions are not taken.

WARNING: Indicates a potentially hazardous

situation that, if not avoided, COULD result in death or

serious injury if proper precautions are not taken.

CAUTION: Indicates a potentially hazardous situation

that, if not avoided, MAY result in minor or moderate

injury if proper practices are not taken, or, serves as a

reminder to follow appropriate safety practices.

Why is SAFETY important to YOU?

3 BIG Reasons:

•Accidents Can Disable and Kill

•Accidents Are Costly

•Accidents Can Be Avoided

Note the use of the Signal Words: DANGER, WARNING, and CAUTION with the safety messages.

The appropriate Signal Word has been selected using the following guidelines:

SAFETY ALERT SYMBOL

SIGNAL WORDS

Safety

-3-

143387 - PRO-TILL 14|17|20 (02-April-2019)

1. Read and understand the Operator’s

Manual and all safety signs before

operating, maintaining or adjusting.

2. Install and properly secure all shields and

guards before operating. Use hitch pin with a

mechanical locking device.

3. Have a ﬁrst-aid kit available for use

should the need arise and know

how to use it.

4. Have a ﬁre extinguisher available

for use should the need arise and

know how to use it.

5. Wear appropriate protective gear.

This list includes but is not limited to:

• A hard hat

• Protective shoes with slip resistant soles

• Protective glasses or goggles

• Heavy gloves

• Wet weather gear

• Hearing protection

• Respirator or ﬁlter mask

6. Clear the area of people, especially small

children, and remove foreign objects from the

machine before starting and operating.

7. Do not allow riders.

8. Stop tractor engine, set park brake, remove

ignition key and wait for all moving parts to

stop before servicing, adjusting, repairing or

unplugging.

9. Review safety related items with all operators

annually.

YOU are responsible for the safe operation and

maintenance of your Degelman PRO-TILL.

YOU must ensure that you and anyone else who

is going to operate, maintain or work around

the PRO-TILL be familiar with the operating and

maintenance procedures and related SAFETY

information contained in this manual.

This manual will take you step-by-step through

your working day and alerts you to all good safety

practices that should be adhered to while operating

this equipment.

Remember, YOU are the key to safety. Good safety

practices not only protect you but also the people

around you. Make these practices a working

part of your safety program. Be certain that

EVERYONE operating this equipment is familiar

with the recommended operating and maintenance

procedures and follows all the safety precautions.

Most accidents can be prevented. Do not risk injury

or death by ignoring good safety practices.

• PRO-TILL owners must give operating

instructions to operators or employees

before allowing them to operate the

PRO-TILL, and at least annually thereafter

per OSHA regulation 1928.51.

• The most important safety device on this

equipment is a SAFE operator. It is the

operator’s responsibility to read and

understand ALL Safety and Operating

instructions in the manual and to follow

these. All accidents can be avoided.

• A person who has not read and

understood all operating and safety

instructions is not qualiﬁed to operate the

machine. An untrained operator exposes

himself and bystanders to possible serious

injury or death.

• Do not modify the equipment in any way.

Unauthorized modiﬁcation may impair the

function and/or safety and could affect the

life of the equipment.

• Think SAFETY! Work SAFELY!

Safety

SAFETY GENERAL SAFETY

-4-

143387 - PRO-TILL 14|17|20 (02-April-2019)

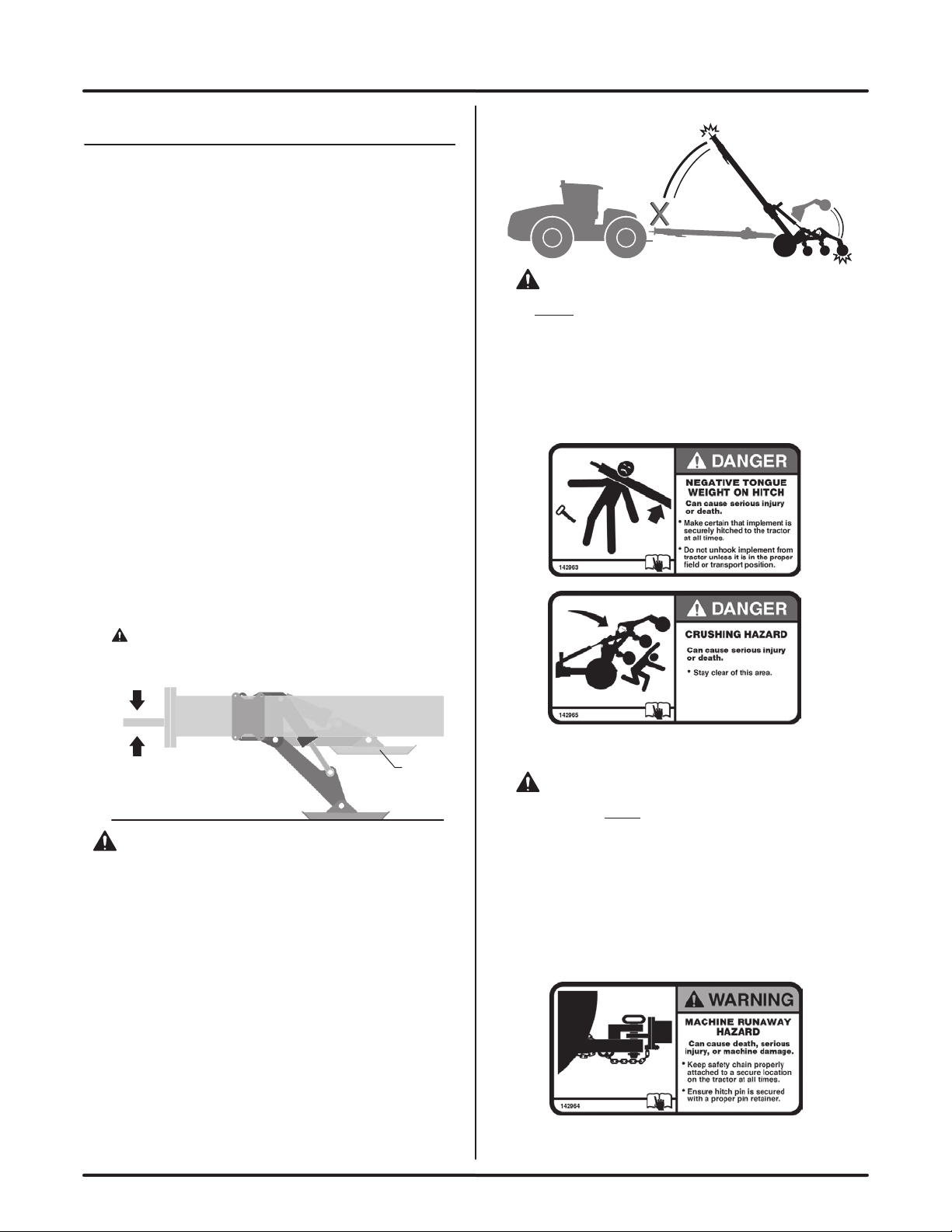

Raised

Position

The PRO-TILL should always be parked on a level, dry

area that is free of debris and foreign objects. Follow this

procedure to hook-up:

1. Clear the area of bystanders and remove foreign

objects from the machine and working area.

2. Make sure there is enough room to back the tractor

up to the trailer hitch.

3. Start the tractor and slowly back it up to the hitch point.

4. Connect the hydraulic.

• Use a clean cloth or paper towel to clean the couplers

on the ends of the hoses. Also clean the area around

the couplers on the tractor. Remove the plastic plugs

from the couplers and insert the male ends.

• Be sure to match the pressure and return line to one

valve bank.

• Hoses have be labelled in a suggested order of

priority from most used to least:

(1) Depth (2) Wings 3) Transport (4) Jack

5. Use the hydraulic jack controls to raise or lower the

hitch to align with the drawbar.

IMPORTANT: Close the ball valve to prevent accidental

operation of this circuit. Ensure ball valve handle remains

in closed position.

WARNING:Tractor MUST be equipped with a clevis

hitch to prevent unit from tipping upward while folding

into and out of transport. A safety chain must also

always be properly installed.

6. Slowly back tractor up to align the hitch.

7. Install a drawbar pin with provisions for a mechanical

retainer such as a KLIK pin. Install the retainer.

8. Install a safety chain between the tractor and the hitch.

9. Connect lights (electrical socket plug) to tractor.

10. Raise the hydraulic hitch jack.

11. When unhooking from the tractor, reverse the above

procedure.

HOOK-UP / UNHOOKING

Hook-Up

WARNING/DANGER:

Never disconnect Pro-Till from tractor if rear

sections of machine are partially raised.

Negative Hitch Weight may result, the hitch pole

may suddenly raise, and the rear section would

come crashing down. Only disconnect when unit

is on level ground in the proper transport or ﬁeld

position.

WARNING/DANGER:

The tractor MUST be properly equipped with a

clevis hitch and safety chain to prevent Negative

Hitch Weight occurring when raising or lowering

the rear sections.

If the unit is not properly attached to the tractor

with a clevis hitch and safety chain, the negative

hitch weight could result in the hitch pole

suddenly raising and the rear section to come

crashing down.

Autres manuels pour PRO-TILL 14

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Degelman Matériel agricole

Degelman

Degelman STRAWMASTER X 70 Manuel de programmation

Degelman

Degelman REV1500 Manuel de programmation

Degelman

Degelman 5900 Series Manuel utilisateur

Degelman

Degelman Landroller LRX Series Manuel utilisateur

Degelman

Degelman LANDROLLER 45 Manuel utilisateur

Degelman

Degelman Rock King 9600 Manuel de programmation

Degelman

Degelman PRO-TILL 30 Manuel utilisateur

Degelman

Degelman Pro-till 26 Manuel utilisateur

Degelman

Degelman STRAWMASTER PRO 80 Manuel de programmation

Degelman

Degelman M28 Manuel de programmation

Degelman

Degelman M28 Manuel utilisateur

Degelman

Degelman Pro-Till 33 Manuel de programmation

Degelman

Degelman PRO-TILL 10/13 Manuel utilisateur

Degelman

Degelman STRAWMASTER 50 Manuel de programmation

Degelman

Degelman R570P Manuel de programmation

Degelman

Degelman Signature 6000 Manuel utilisateur

Degelman

Degelman shuttlekart 1150 Manuel de programmation

Degelman

Degelman STRAWMASTER 7 Series Manuel utilisateur

Degelman

Degelman PRO-TILL 33/40 Manuel utilisateur

Degelman

Degelman Pro-till 20 Manuel utilisateur

Degelman

Degelman PRO-TILL 14 Manuel utilisateur

Degelman

Degelman Tri-Plex Landroller 7634 Manuel de programmation

Degelman

Degelman PRO-TILL SCORPION HITCH Manuel de programmation

Degelman

Degelman STRAWMASTER 7000 Manuel utilisateur

Manuels Matériel agricole populaires d'autres marques

GSi

GSi PNEG-2314 Manuel utilisateur

Checchi & Magli

Checchi & Magli TEXDRIVE Manuel utilisateur

Amazone

Amazone Cenius 4003-2TX Manuel utilisateur

MASSEY FERGUSON

MASSEY FERGUSON MF 9313S Manuel utilisateur

Cima

Cima BLITZ Instructions d'utilisation et d'entretien

Amazone

Amazone CombiDisc 3000 Instructions d'installation

HE-VA

HE-VA Disc-Roller XL Contour Manuel utilisateur

AGT

AGT AGT-SSFM Manuel utilisateur

Milestone

Milestone 72-84 Manuel utilisateur

KUHN

KUHN Hector 3000 Manuel utilisateur

Krone

Krone X-Disc 6200 Manuel utilisateur

Eliet

Eliet DZC450 Manuel utilisateur

Taarup

Taarup BIO+ B4000 Manuel utilisateur

Garland

Garland SHAKER 310 DPG Manuel utilisateur

stable comfort

stable comfort StableWall System Manuel utilisateur

Raven

Raven AccuBoom Manuel utilisateur

International

International 710 Manuel utilisateur

Ashland

Ashland HDW-3217-14 Manuel utilisateur
