Degelman STRAWMASTER PRO 80 Manuel de programmation

OPERATOR & PARTS

MANUAL

DEGELMAN INDUSTRIES LTD.

BOX 830-272 INDUSTRIAL DRIVE,

REGINA, SK, CANADA, S4P 3B1

FAX 306.543.2140 PH 306.543.4447

1.800.667.3545 DEGELMAN.COM

STRAWMASTER PRO

80’, 100’ & 120’

Serial Numbers: SM-7557 and up

142646 v2.2

1) Remove Transport Locks from the 2 Endwheel locations

and all Wing Beam connections (4-80’ or 8-100’/120’).

2) Slowly Back-up Strawmaster Assembly while extending

the Endwheel steering cylinder on only one wing to

spread the wing partially open to a minimum of 45°.

IMPORTANT: To avoid contact of harrow sections

between the wings while unfolding.

3) When the rst wing has been unfolded a minimum of

45° or more (up to 90°), you can start extending the

Endwheel steering cylinder on the second wing.

Note: Ensure there is plenty of room behind and to the

sides of the Strawmaster before backing into eld position.

Important: To avoid contact

or damage, open only one wing a

minimum of 45°(to 90°) before

starting to open the second wing.

Connect Hydraulics

Backing Into Field Position

4) When the autofold swing arms are close to closing you can

activate the endwheel cylinder circuit again to open the

latch clamp.

5) When the swing arms are in position, this circuit can be

activated again (fully extended) to close the clamps.

Note: If Latches have been left in the down position, the Swing

Arms can also be engaged by allowing the Swing Arms to ride

into the Latches and “click” into engagement.

Caution:Lock hydraulic functions for both wing circuits before

working in eld to avoid accidental operation while in use.

6) Lower the Harrow Sections down fully into eld position.

Adjustment Settings - (refer to section “C”)

7) Adjust settings for light or aggressive harrowing.

8) Adjust Tine Angle as needed.

9) Adjust Parallel Angle as needed.

HARROW LIFT CIRCUIT... Harrow Lift Cylinders

LEFT WING CIRCUIT........ Endwheel & Left Latch

RIGHT WING CIRCUIT...... Endwheel & Right Latch

Caution: Before working in eld, lock the function for both the

Left and Right Wing Circuits to avoid accidental operation.

142647 v1.1

HYDRAULIC JACK CIRCUIT...... Jack Cylinder

QUICK-START GUIDE*

for STRAWMASTER PRO

For Models with Serial Numbers 7557 and up.

* Refer to operators manual for complete safety and operation info.

WARRANTY

REMEMBER! You must complete Product

Registration to be eligible for Warranty.

1) Raise the Harrow Sections up fully into transport position.

2) Activate the endwheel cylinder circuit to open the latch clamp on only one wing.

3) Drive forward until wing trails back approximately 45°.

4) Activate the second endwheel cylinder circuit to open the latch clamp on the opposite wing.

5) Drive forward slowly until both wings trail behind the center frame. Ensure end wheel cylinders are fully extended.

IMPORTANT: When positioning wings, do not drive quickly or the wings may collide with each other.

6) Install the Transport Locks on the 2 Endwheel locations and all Wing Beam connections (4-80’ or 8-100’/120’).

7) Ensure lights are working and SMV sign is clean. Follow all local transport laws when transporting.

DMoving Into Transport Position

CSetting Tine Angle, Pressure & Frame

Parallel

Adjustment Tine Angle

Adjustment

Parallel Adjustment

2 - Loosen top Jam nut arm

to allow adjustment.

4 - Re-tighten top Jam nut arm.

3 - Adjust bottom arm as needed.

1 - Lift harrow sections to relieve tension on springs.

(NOTE: A suggested starting distance, from top of

rod to top of lock nut is 5” for Light harrowing or

4” for Agressive harrowing. Increasing this

distance will raise front of the harrow

section, decreasing will lower it.)

For initial setup and each time

after you make adjustments

to the harrow tine angles, you

should check and ensure that

the harrow frame sections are

running parallel to the ground.

(Check that the front rows and back

rows are applying equal pressure)

298”

(NOTE: If end of wing beam appears to

be trailing back, conﬁrm that this

dimension hasn’t moved.)

(NOTE: Suggested starting

setting distance is 27-1/2”

pin to pin) 27-1/2”

Tine Angle Adjustment

There are no standard angles

for running the tines, the

operator may adjust the tine

angles as needed to achieve

desired results.

• Parallel Adjustment

setting should be set

to 4”.

• Fully close harrow

cylinders, then slowly

open until 1-1/2” of

rod is exposed.

Hydraulic Lock

Cylinders

Aggressive Harrowing Setting

• Parallel Adjustment

setting should be set

to 5”.

• The harrow cylinders

should be set to oat

position.

Cylinders in

Float Position

Light Harrowing Setting

Harrow Pressure Adjustment

Harrow Frame

Support Arm Setting

Harrow Pressure

Adjustment

4”or 5”

1-1/2”

5”

4”

• Check for missing, worn or damaged parts.

• Working points & pins

Maintenance

(Check Machine Daily)

• Hydraulic Connections & Hoses

• Hubs & Spindles

• Tire Pressure: 41 PSI (283 kPa)

* Refer to operators manual for complete safety and operation info.

IMPORTANT:

READ MANUAL

DEGELMAN INDUSTRIES LTD.

BOX 830-272 INDUSTRIAL DRIVE,

REGINA, SK, CANADA, S4P 3B1

FAX 306.543.2140 PH 306.543.4447

1.800.667.3545 DEGELMAN.COM

* Reference Sheet Quick-Start Guide

OPERATORS SECTION - TABLE OF CONTENTS

Introduction 1

Safety 2

Operation 4

Pre-Operation Checklist 5

Hook-Up 6

Transport to Field Position 7

Field to Transport Position 8

Adjustments 9

Service & Maintenance

Maintenance Checklist & Speciﬁcations 12

Repair - Hyd Cylinder Repair 15

Repair - Pressed Bushing 16

Repair - Wheel Hub 17

Repair - Tine Replacement 18

Decal Location Overview 19

Troubleshooting 20

PARTS SECTION - TABLE OF CONTENTS

Part Assemblies & Component - Overview 21

Hitch Pole Frame Components 17

Wing Frame Beam Components 24

Link Arm Components 25

End Wheel Components 26

Wing Connection & Harrow Sections 27

Hydraulic Routing

Hydraulic Routing - Latch & Steering 28

Hydraulic Routing - Depth & Lift 29

Hydraulic Routing - Jack 30

Electrical Layout & Light Components 31

Warranty 32

-1-

142646 - Strawmaster PRO (21-June-2018)

Introduction

Front Hitch Hitch Pole

Frame

LH SIDE

RH SIDE

OPERATOR ORIENTATION - The directions left, right, front and rear, as mentioned throughout the manual,

are as seen from the tractor drivers’ seat and facing in the direction of travel.

CONGRATULATIONS on your choice of a Degelman Strawmaster Pro to complement your farming

operation. It has been designed and manufactured to shatter straw, control weeds, rake ﬂax straw, and

incorporate seed and chemicals. Use this manual as your ﬁrst source of information about this machine.

TO THE NEW OPERATOR OR OWNER - Safe, efﬁcient and trouble free operation of your Degelman

Strawmaster Pro requires that you and anyone else who will be operating or maintaining it, read and

understand the Safety, Operation, Maintenance and Troubleshooting information contained within this

manual.

By following the operating instructions in conjunction with a good maintenance program your machine will

provide many years of trouble-free service. Keep this manual handy for frequent reference and to pass on

to new operators or owners. Call your Degelman Dealer if you need assistance, information, or additional

copies of the manual.

-2-

142646 - Strawmaster PRO (21-June-2018)

CAUTION

DANGER

WARNING

The Safety Alert Symbol identiﬁes important safety

messages applied to the equipment and in this

manual. When you see this symbol, be alert to the

possibility of injury or death. Follow the instructions

provided on the safety messages.

The Safety Alert Symbol means:

ATTENTION!

BECOME ALERT!

YOUR SAFETY IS INVOLVED!

DANGER: Indicates an imminently hazardous situation

that, if not avoided, WILL result in death or serious injury

if proper precautions are not taken.

WARNING: Indicates a potentially hazardous situation

that, if not avoided, COULD result in death or serious

injury if proper precautions are not taken.

CAUTION: Indicates a potentially hazardous situation

that, if not avoided, MAY result in minor or moderate

injury if proper practices are not taken, or, serves as a

reminder to follow appropriate safety practices.

Why is SAFETY important to YOU?

3 BIG Reasons:

•Accidents Can Disable and Kill

•Accidents Are Costly

•Accidents Can Be Avoided

Note the use of the Signal Words: DANGER, WARNING, and CAUTION with the safety messages.

The appropriate Signal Word has been selected using the following guidelines:

SAFETY ALERT SYMBOL

SIGNAL WORDS

Safety

-3-

142646 - Strawmaster PRO (21-June-2018)

Safety

YOU are responsible for the safe operation and

maintenance of your equipment.

YOU must ensure that you and anyone else who

is going to operate, maintain or work around

the equipment be familiar with the operating

and maintenance procedures and related safety

information contained in this manual.

Remember, YOU are the key to safety. Good safety

practices not only protect you but also the people

around you. Make these practices a working

part of your safety program. Be certain that

EVERYONE operating this equipment is familiar

with the recommended operating and maintenance

procedures and follows all the safety precautions.

Most accidents can be prevented. Do not risk injury

or death by ignoring good safety practices.

• Equipment owners must give operating

instructions to operators or employees

before allowing them to operate the

equipment, and at least annually thereafter

per OSHA regulation 1928.51.

• The most important safety device on this

equipment is a SAFE operator. It is the

operator’s responsibility to read and

understand ALL Safety and Operating

instructions in the manual and to follow

these. All accidents can be avoided.

• A person who has not read and

understood all operating and safety

instructions is not qualiﬁed to operate the

machine. An untrained operator exposes

himself and bystanders to possible serious

injury or death.

• Do not modify the equipment in any way.

Unauthorized modiﬁcation may impair the

function and/or safety and could affect the

life of the equipment.

• Think Safety! Work Safely!

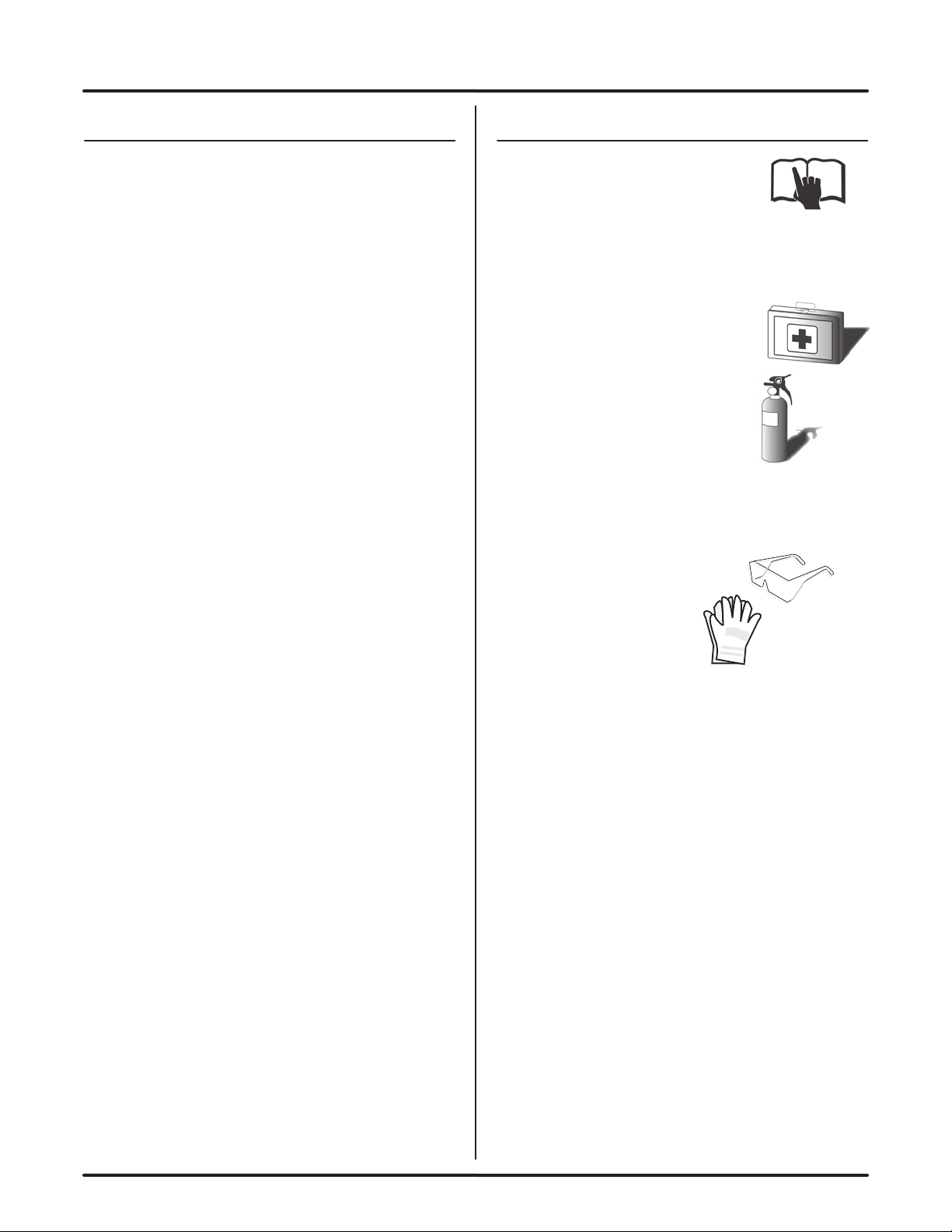

SAFETY

1. Read and understand the Operator’s

Manual and all safety signs before

operating, maintaining or adjusting.

2. Install and properly secure all shields and

guards before operating. Use hitch pin with a

mechanical locking device.

3. Have a ﬁrst-aid kit available for use

should the need arise and know

how to use it.

4. Have a ﬁre extinguisher available

for use should the need arise and

know how to use it.

5. Wear appropriate protective gear.

This list includes but is not limited to:

• A hard hat

• Protective shoes with slip resistant soles

• Protective glasses or goggles

• Heavy gloves

• Wet weather gear

• Hearing protection

• Respirator or ﬁlter mask

6. Clear the area of people, especially small

children, and remove foreign objects from the

machine before starting and operating.

7. Do not allow riders.

8. Stop tractor engine, set park brake, remove

ignition key and wait for all moving parts to

stop before servicing, adjusting, repairing or

unplugging.

9. Review safety related items with all operators

annually.

GENERAL SAFETY

-4-

142646 - Strawmaster PRO (21-June-2018)

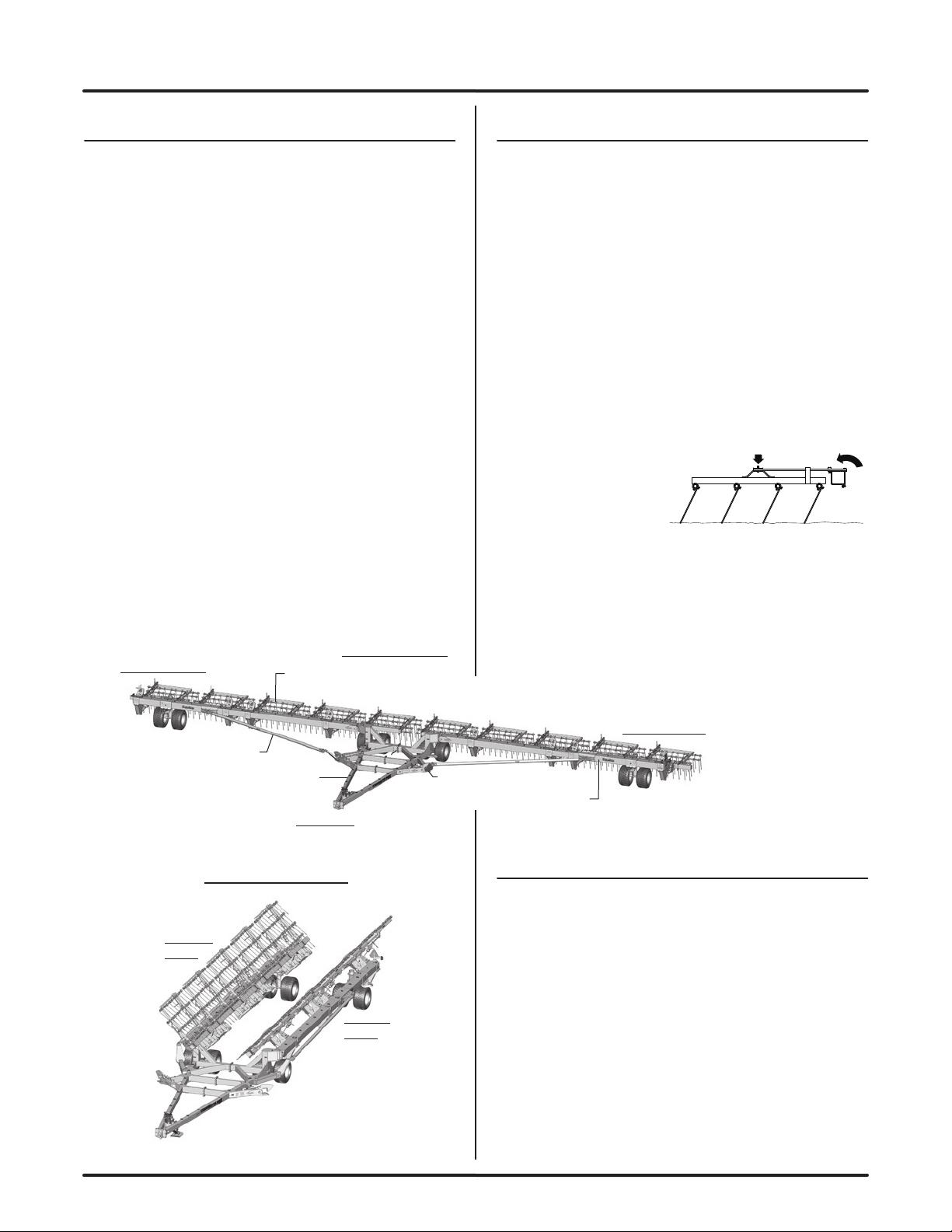

Transport Position

RH Wing

Frame

LH Wing

Frame

Operation

The Degelman Strawmaster Pro is designed

for effective straw management, weed control,

herbicide application, raking ﬂax residue and

following the ground contour.

The Strawmaster Pro is fully adjustable from tine

angle to operating height with the use of gear

driven jacks. The harrow sections can operate

in a ﬂoat position or under a variable amount

of pressure with the use of hydraulics and spring

bars.

It is the responsibility of the owner or operator

to read this manual carefully to learn how to

operate the machine safely, and how to set

it to provide maximum efﬁciency. Safety is

everyone’s business. By following safe operating

practices, a safe environment is provided for the

operator and bystanders.

The manual will take you step-by-step through

your working day. By following the operating

instructions in conjunction with a good

maintenance program your machine will provide

many years of trouble-free service.

TO THE NEW OPERATOR OR OWNER

Harrow

Section

Front Beam

Front Hitch

LH Wing Frame

RH Wing Frame

Field Position

Truss Arm

Trailer Frame Swing Arm

Latch Assembly

BRIEF OVERVIEW OF OPERATION

• Operating speed will depend on tractor

horsepower, environmental conditions and each

particular operation. A speed of 8 to 12 MPH.

(12 to 16 KPH) is suggested to efﬁciently shatter

and spread straw and residue.

• Operating height for the harrow will vary with

the length of the tines, and the angle that the

tines are set at.

• The harrow sections can be set in ﬂoat position,

where the section drags the ground under its

own weight.

• Pressure can be applied using the hydraulics

to rotate the beam further back. The spring

bars will deﬂect to apply pressure to the

harrow section and the ground. The amount of

pressure to apply will depend

on the application,

and the operator’s

preference.

• Some suggested settings can be found in the

“Suggested Tine Angle Settings” section. As

there are only a few standard guidelines, feel

free to experiment with ground clearance, tine

angle and section pressure to obtain desired

results for each operation.

The Strawmaster Pro harrow sections consist of four

rows with ten tines per row which hold the straw.

As the tines drag along the ground, they oscillate to

build up a high frequency vibration and provide a

shattering action which breaks up the straw allowing

the residue to be spread evenly as it is released.

When stood vertically the tines will rake ﬂax residue.

PRINCIPLES OF OPERATION

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Degelman Matériel agricole

Degelman

Degelman Pro-till 20 Manuel de programmation

Degelman

Degelman Landroller LRX Series Manuel utilisateur

Degelman

Degelman PRO-TILL 14 NT Manuel utilisateur

Degelman

Degelman PRO-TILL 41 Manuel utilisateur

Degelman

Degelman ROCK DIGGER RD320 Manuel de programmation

Degelman

Degelman STRAWMASTER 700 Series Manuel utilisateur

Degelman

Degelman PRO-TILL 41 Manuel utilisateur

Degelman

Degelman Tri-Plex Landroller 7634 Manuel de programmation

Degelman

Degelman STRAWMASTER 7000 Manuel utilisateur

Degelman

Degelman PRO-TILL 14 Manuel utilisateur

Degelman

Degelman LANDROLLER 45 Manuel utilisateur

Degelman

Degelman 5900 Series Manuel utilisateur

Degelman

Degelman PRO-TILL 14 Manuel de programmation

Degelman

Degelman R570P Manuel de programmation

Degelman

Degelman Rock King 9600 Manuel de programmation

Degelman

Degelman STRAWMASTER PRO Series Manuel utilisateur

Degelman

Degelman PRO-TILL 33/40 Manuel utilisateur

Degelman

Degelman STRAWMASTER 54NT Manuel de programmation

Degelman

Degelman 5900 Series Manuel utilisateur

Degelman

Degelman PRO-TILL 10/13 Manuel utilisateur

Degelman

Degelman PRO-TILL SCORPION HITCH Manuel de programmation

Degelman

Degelman LANDROLLER FIVE-PLEX 8000 Series Manuel de programmation

Degelman

Degelman STRAWMASTER+ 70 Manuel de programmation

Degelman

Degelman 9075 Manuel de programmation

Manuels Matériel agricole populaires d'autres marques

GSi

GSi PNEG-2314 Manuel utilisateur

Checchi & Magli

Checchi & Magli TEXDRIVE Manuel utilisateur

Amazone

Amazone Cenius 4003-2TX Manuel utilisateur

MASSEY FERGUSON

MASSEY FERGUSON MF 9313S Manuel utilisateur

Cima

Cima BLITZ Instructions d'utilisation et d'entretien

Amazone

Amazone CombiDisc 3000 Instructions d'installation

HE-VA

HE-VA Disc-Roller XL Contour Manuel utilisateur

AGT

AGT AGT-SSFM Manuel utilisateur

Milestone

Milestone 72-84 Manuel utilisateur

KUHN

KUHN Hector 3000 Manuel utilisateur

Krone

Krone X-Disc 6200 Manuel utilisateur

Eliet

Eliet DZC450 Manuel utilisateur

Taarup

Taarup BIO+ B4000 Manuel utilisateur

Garland

Garland SHAKER 310 DPG Manuel utilisateur

stable comfort

stable comfort StableWall System Manuel utilisateur

Raven

Raven AccuBoom Manuel utilisateur

International

International 710 Manuel utilisateur

Ashland

Ashland HDW-3217-14 Manuel utilisateur
