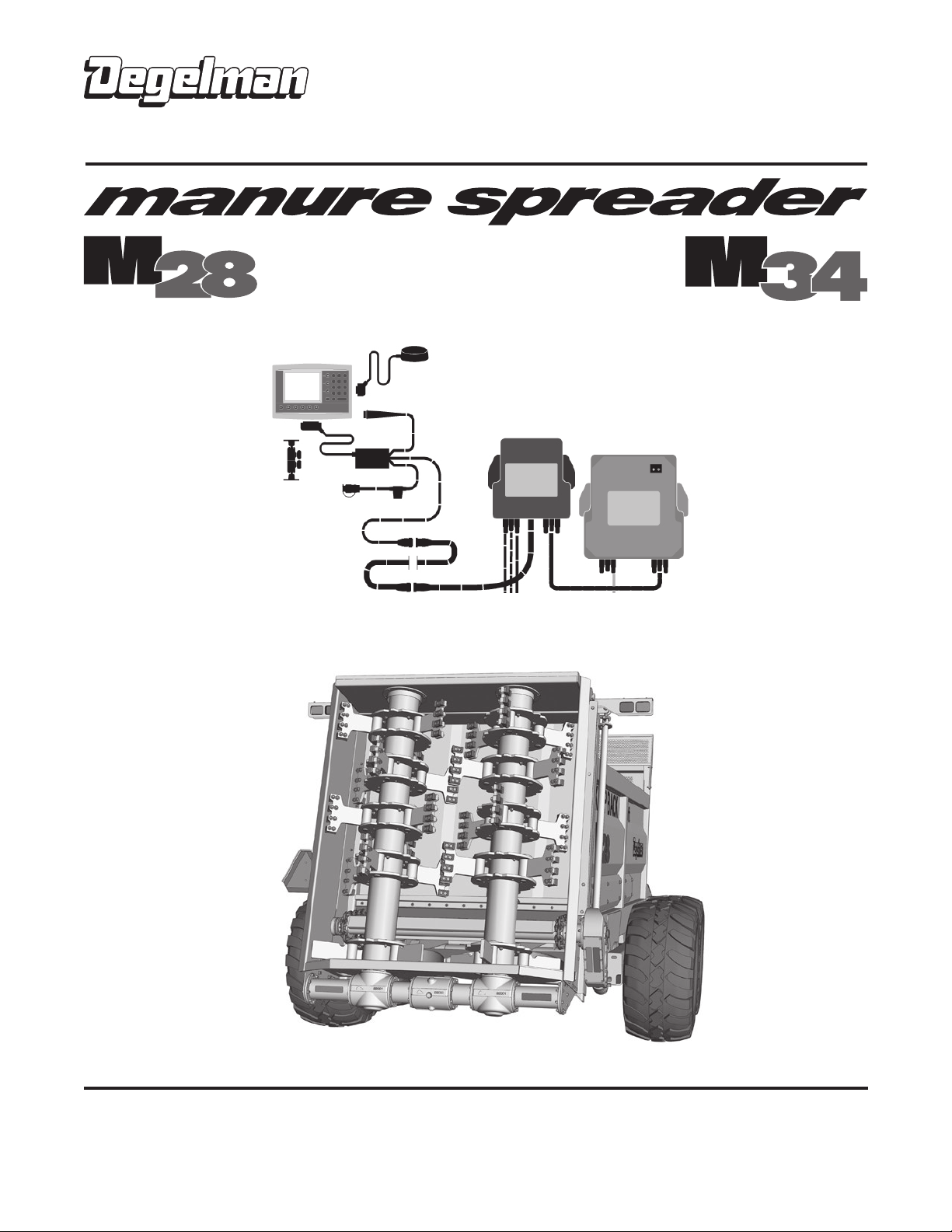

Degelman M28 Manuel utilisateur

RATE CONTOL SYSTEM

REFERENCE MANUAL

142670 v1.1

DEGELMAN INDUSTRIES LP

BOX 830-272 INDUSTRIAL DRIVE,

REGINA, SK, CANADA, S4P 3B1

FAX 306.543.2140 PH 306.543.4447

1.800.667.3545 DEGELMAN.COM

MANURE SPREADER M28/M34

OPTIONAL RATE CONTROL SYSTEM

DEGELMAN INDUSTRIES LP

BOX 830-272 INDUSTRIAL DRIVE,

REGINA, SK, CANADA, S4P 3B1

FAX 306.543.2140 PH 306.543.4447

1.800.667.3545 DEGELMAN.COM

IMPORTANT:

READ MANUAL

TABLE OF CONTENTS

Variable Rate Control Quick-Start

Introduction / Installing GPS 2

Terminator Box Cable Connection 2

Power On / Main Screen 3

INFO Screen / SETUP Screen 3

Tare Load Cells / Load Spreader 4

Select Product / Insert Desired Rate 4

Begin Spreading 5

End of Run / Use of Stop Button 5

Manual Mode / Reverse Floor 6

Setting Alarms 6

Troubleshooting 8-9

Component Routing Overview

Load Cell Components 10

Rate Control Kit Components 11

Connection Detail Reference

Load Cell Junction Box 12

Sensors Junction Box 13

Installation Reference Photos 14-15

Reference Only Section:

NT8000i Control Module Factory Settings

Introduction & Power On 16

Spreader Setup Screen 17

User Options - Units 17

Tech Conﬁg - Load Cell Correction 18

Factory Conﬁgurations 18-20

General PF Setup 21

Set Up Products 21

Alarms Setup 22

-2-

142670 - Rate Control System (29-April-2019)

Variable Rate Control Quick-Start

The Degelman variable rate control package comes

with the following components:

A. NT8000i Head Unit Control Module

B. Tractor Terminator Box Cable

C. 6M extension Cable

D. GPS KIT

E. RAM Mount for Control Module

F. Digi-Star Manuals & Reference Material

INTRODUCTION

1. First, remove the GPS module from its package.

The bottom of the GPS Module is magnetized to

easily install on a metal roof. If the tractor roof is not

magnetic, a metal plate with adhesive is included.

2. Mount the GPS Receiver on the roof of the tractor.

Try to mount as high as possible with clear view of

sky.

Note: Install as far away from tractor GPS receiver

as possible.

3. Plug the GPS into the TOP PORT of the Control

Module.

INSTALLING GPS

1. Take the Tractor Terminator Box Cable & plug the

“Indicator Connector” into the “Main Connector”

port of the Control Module.

2. Plug the “Power Connector” into the tractor’s power

supply.

3. Connect the “Machine Connector” end of the cable

to the cable coming from the spreader.

Note: If the spreader cable does not reach, use the

6M extension cable provided.

TERMINATOR BOX CABLE CONNECTION

B C

DMetal Plate

Main Connector

GPS

Connects to

Top Port

Bottom

Port

Rear View of Control Module

Indicator

Connector

Machine

Connector

Power Connector

In/Out of

Work Button

Tractor Terminator

Box Cable

-3-

142670 - Rate Control System (29-April-2019)

Variable Rate Control Quick-Start

1. Additional work measurement functions are

displayed on the INFO screen. The picture on the

right explains the INFO screen icons.

INFO SCREEN

1. Push the button to enter the setup menu.

This menu allows you to customize your “USER

OPTIONS” (i.e. Time/Date, Units, Language, &

Brightness) & select you “PRODUCT” (i.e. Light,

Medium & Heavy)

Note: You can add & edit different product names

depending on what you’re spreading.

SETUP SCREEN

1. Push the power button on the Control Module to turn

it on. The screen will power on & display the main

screen.

Note: Refer to the DIGI-STAR operation manual

provided to walk you through the display screens

more in depth.

2. The picture on the right explains the main screen

icons.

Note: Make sure the “Rate Control” & Dynamic

Weighing Calibration are both set to “AUTO” so

the unit can constantly adjust to different density

materials.

3. The “Min/Max Motor speed indicator” shows the

ﬂoor conveyor motor speed. The faster you drive,

the faster the ﬂoor conveyor will move. For optimal

performance try to keep the gauge in the middle.

POWER ON / MAIN SCREEN

INFO SCREEN

SETUP SCREEN

POWER ON / MAIN SCREEN

-4-

142670 - Rate Control System (29-April-2019)

Variable Rate Control Quick-Start

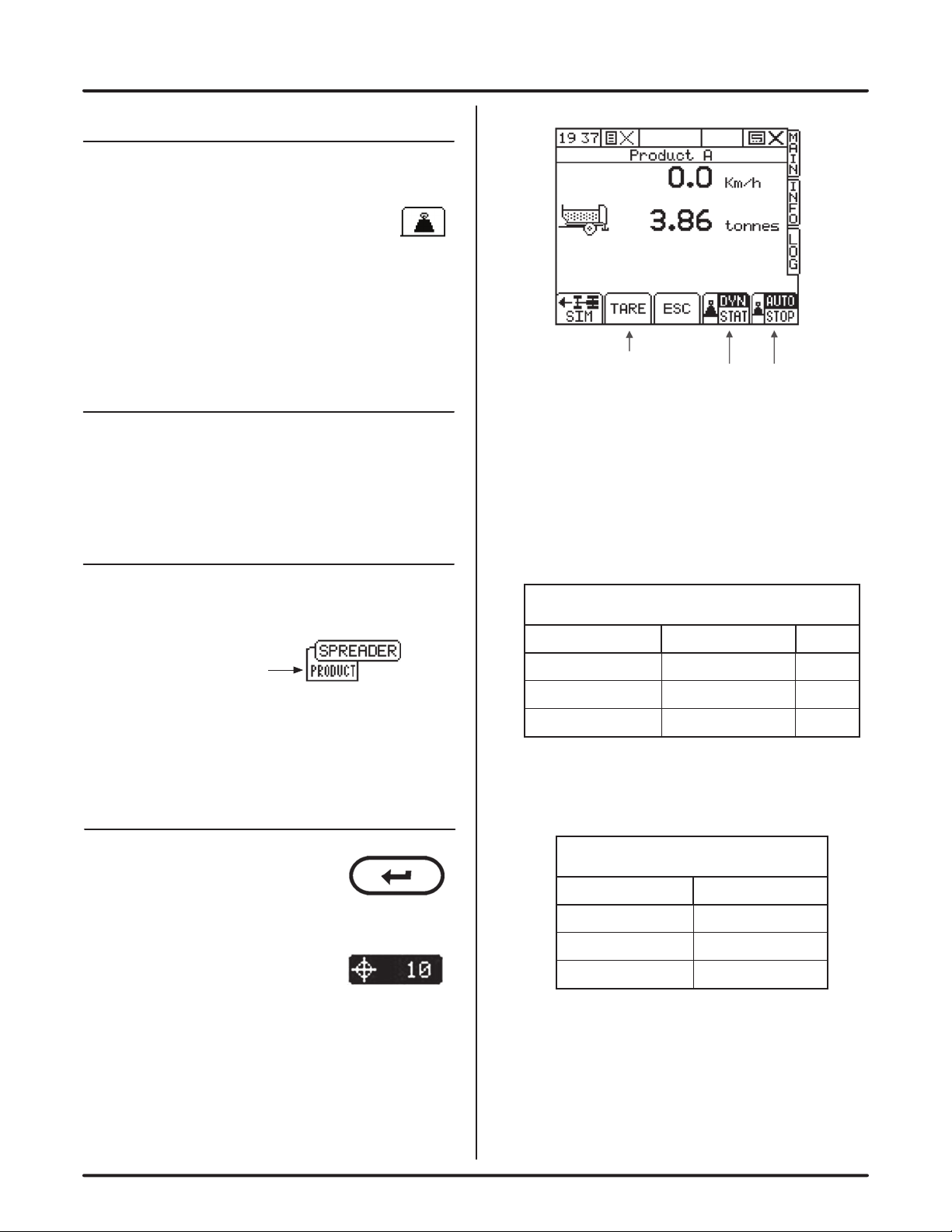

1. Load the spreader with as much manure as possible.

This is necessary to determine what type of manure

it is (light, medium, or heavy).

LOAD SPREADER

1. Once the spreader is hooked up & the unit is

powered on the load cells must be set to 0. To do

this ﬁrst go to the INFO screen.

2. Next, click the “Load Cells Option” button.

3. Ensure that the Spreader is EMPTY & HORIZONTAL.

Push the “TARE” key. This will set the hopper weight

back to 0 lbs.

Note: Ensure that both DYN & AUTO are selected.

TARE LOAD CELLS

Recommended Product Type & K Values for Full

Spreader Loads (M34)

Digi-Star Product Type Fully Loader Spreader T Factor

Light < 10 Tons ≈0.6

Medium 10 - 20 Tons ≈1.3

Heavy 20+ Tons ≈2.0

Typical Application Rate for Different

Types of Manure

Animal Rate (Tons/Acre)

Cow 15 - 20

Pig 15 - 20

Chicken 2 - 5

1. Once the spreader is fully loaded, the proper

product must be selected. To do this, ﬁrst go to the

SETUP screen (Refer to Setup Screen Step).

2. Next, select the Product key

on the bottom left.

3. Using the arrow keys, select the appropriate product

(light, medium or heavy). Use the table shown to

determine the product type.

SELECT PRODUCT

1. Next, return to the “MAIN” screen,

punch in your desired application

rate, & hit the “Enter” key.

2. The picture on the right shows typical application

rates for different types of manure.

3. The new value will be displayed

in the target window.

INSERT DESIRED RATE

-5-

142670 - Rate Control System (29-April-2019)

1. When the spreader is empty turn off the PTO, Close

the gate, & turn off the ﬂoor conveyor.

2. The spreader should now be “Out of Work”.

3. The INFO screen will display the amount of Manure

spread & the Area covered during the run.

4. Reﬁll the Spreader & repeat the “Begin Spreading”

Step & “End of Run” Step until complete.

END OF RUN

1. If you want to stop the ﬂoor conveyor while

still driving you can use the stop button on the

terminator box cable. This gives you more control

of where you spread. For example, when you reach

the end of your ﬁeld & still have product left in the

hopper. You can stop the ﬂoor conveyor, take the

turn, and then start the ﬂoor conveyor again. This

helps eliminate overlap & unintentional manure

coverage.

Note: When the stop button is engaged, the unit

does not count acres.

USE OF STOP BUTTON

Variable Rate Control Quick-Start

1. Now the spreader is ready to spread. Pull the

spreader to its desired location & stop.

2. Start the PTO.

3. Raise the Gate.

IMPORTANT: Before starting the table, the

operator should get the beaters up to speed and

fully open the rear gate. This prevents the spreader

from overworking itself from material being pulled

up against the rear gate. Failure to do so may cause

costly damage or equipment failure.

4. Switch the ﬂoor conveyor hydraulics on.

5. Push the Pre Start button

(ﬂow will begin moving)

6. Begin driving.

BEGIN SPREADING

Note: If the ﬂoor conveyor does not begin moving

the red stop button on the terminator junction cable

may have been pushed. If so, push the red button to

put the spreader back into work.

In work = on the main screen.

Note: Make sure the “Rate Control” & Dynamic

Weighing Calibration are both set to “AUTO” so

the unit can constantly adjust to different density

materials.

In/Out of

Work Button

-6-

142670 - Rate Control System (29-April-2019)

Variable Rate Control Quick-Start

MANUAL MODE / REVERSE FLOOR

To set a “Beater RPM” Alarm to inform you of Beater/

Driveline issues or a ‘Min Hopper Weight’ Alarm to

inform you that you’ve reached the end of your load.

1. Press to select the ‘Setup’ Menu.

2. Select the “ALARMS SETUP” button

at the base of the screen.

3. Select the appropriate alarm threshold using the

arrow keys, and enter the value via the numeric

keypad.

Note: Ensure BEATER 2 RPM Alarm is always set

to 0 RPM. The spreader will not switch into “work

position” if these values are not set to 0.

SETTING ALARMS

Under normal operating conditions you will not need to

select this mode, however, in the event you experience

a problem with automatic control (if for example the

beaters plug or a sensor has stopped working), you

can control the ﬂoor chain manually.

1. Select “MAN” from the ‘MAIN’ screen.

Ensure the hydraulics are switched ‘ON’.

2. Press to adjust ﬂoor speed.

To maintain the required application rate,

you must maintain a constant forward speed.

Note: To reverse the ﬂoor push the “UP” arrow until

the speed indicator is in the optimal range then

reverse the hydraulic ﬂow.

Note

-7-

142670 - Rate Control System (29-April-2019)

-8-

142670 - Rate Control System (29-April-2019)

Troubleshooting

TROUBLESHOOTING

In the following section, we have listed some of the problems, causes and solutions that you may encounter. If you

encounter a problem that is difﬁcult to solve, even after having read through this troubleshooting section, please call

your local dealer or distributor. Before you call, have this manual and the serial number from your unit ready.

PROBLEM

Speed displayed on

Rate Control Unit

different from

Tractor Speed

PTO Speed displayed

different from tractor’s

display

Display telling me

to drive abnormally

slow/fast.

Spreader won’t switch

to “In Work”

Floor won’t Start / Stop

(Hydraulic Valve Check)

“Low RPM Alarm”

when beaters are

working properly

CAUSE

Check to see if GPS

wires are damaged.

GPS mounted incorrectly.

GPS Baudrate or GPS

Port are set incorrectly.

PTO sensor wire could

be damaged.

Sensor is blocked.

Sensor distance is off.

Your product ‘T’ factors

may be uncalibrated.

Check to see if GPS

wires are damaged.

GPS mounted incorrectly.

GPS Baudrate or GPS

Port are set incorrectly.

In/Out of work button

off.

Sensor wire damage.

Forgot to push the

“Pre Start” button on

module.

Valve wire damage.

Valve settings incorrect.

Possible coil damage.

Issue with PTO sensor

wire.

Alarm for BEATER 2 is

set at a value, not “0”.

SOLUTION

Inspect wiring to GPS unit and repair/replace if necessary.

Ensure the GPS is mounted properly (Refer to GPS Installation).

Ensure GPS Baudrate and GPS Port set properly (Refer to

“General PF Setup” under NT8000i Control Module Settings).

Check to see if PTO sensor wires are damaged. Fix as needed.

Remove any debris around sensor/magnet.

Ensure magnet is positioned between ¼” to ½” from sensor.

Review “Set Up Products” under the NT8000i Control Module

Settings section of the manual (or reference on next page).

Inspect wiring to GPS unit and repair/replace if necessary.

Ensure the GPS is mounted properly.

Ensure GPS Baudrate and GPS Port set properly (Refer to

“General PF Setup” under NT8000i Control Module Settings).

Decompress the In/Out of work button.

Check to see if any Sensor wires are damaged. Fix as needed.

Ensure you push the “Pre Start” button before you start

spreading.

Check to see if the valve wires are damaged.

Ensure proper settings for Valve. (Refer to “Channels” next page).

If setup correctly, then electronically open/close the valve to see if

the coil is damaged. (Refer to procedeure on next page)

See PTO speed problem above.

Follow procedure under “Setting Alarms” to reset BEATER 2 RPM

values to “0”. (Refer to “Setting Alarms” section)

Autres manuels pour M28

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Degelman Matériel agricole

Degelman

Degelman STRAWMASTER+ 70 Manuel de programmation

Degelman

Degelman STRAWMASTER PRO 80 Manuel de programmation

Degelman

Degelman PRO-TILL 41 Manuel utilisateur

Degelman

Degelman PRO-TILL 33/40 Manuel utilisateur

Degelman

Degelman STRAWMASTER Plus Manuel utilisateur

Degelman

Degelman M28 Manuel de programmation

Degelman

Degelman Pro-Till 33 Manuel de programmation

Degelman

Degelman 7900 Series Manuel utilisateur

Degelman

Degelman PRO-TILL 41 Manuel utilisateur

Degelman

Degelman PRO-TILL 14 NT Manuel utilisateur

Degelman

Degelman Signature Series Manuel de programmation

Degelman

Degelman STRAWMASTER 54NT Manuel de programmation

Degelman

Degelman LANDROLLER FIVE-PLEX 8000 Series Manuel de programmation

Degelman

Degelman R570P Manuel de programmation

Degelman

Degelman STRAWMASTER 50 Manuel de programmation

Degelman

Degelman Landroller LRX Series Manuel utilisateur

Degelman

Degelman 5900 Series Manuel utilisateur

Degelman

Degelman 5900 Series Manuel utilisateur

Degelman

Degelman Tri-Plex Landroller 7634 Manuel de programmation

Degelman

Degelman STRAWMASTER 7000 Manuel utilisateur

Degelman

Degelman ROCK DIGGER RD320 Manuel de programmation

Degelman

Degelman STRAWMASTER X 70 Manuel de programmation

Degelman

Degelman LANDROLLER 45 Manuel utilisateur

Degelman

Degelman STRAWMASTER PRO Series Manuel utilisateur

Manuels Matériel agricole populaires d'autres marques

GSi

GSi PNEG-2314 Manuel utilisateur

Checchi & Magli

Checchi & Magli TEXDRIVE Manuel utilisateur

Amazone

Amazone Cenius 4003-2TX Manuel utilisateur

MASSEY FERGUSON

MASSEY FERGUSON MF 9313S Manuel utilisateur

Cima

Cima BLITZ Instructions d'utilisation et d'entretien

Amazone

Amazone CombiDisc 3000 Instructions d'installation

HE-VA

HE-VA Disc-Roller XL Contour Manuel utilisateur

AGT

AGT AGT-SSFM Manuel utilisateur

Milestone

Milestone 72-84 Manuel utilisateur

KUHN

KUHN Hector 3000 Manuel utilisateur

Krone

Krone X-Disc 6200 Manuel utilisateur

Eliet

Eliet DZC450 Manuel utilisateur

Taarup

Taarup BIO+ B4000 Manuel utilisateur

Garland

Garland SHAKER 310 DPG Manuel utilisateur

stable comfort

stable comfort StableWall System Manuel utilisateur

Raven

Raven AccuBoom Manuel utilisateur

International

International 710 Manuel utilisateur

Ashland

Ashland HDW-3217-14 Manuel utilisateur
