DediProg NuProg-E2 Manuel utilisateur
NuProg-E2
Engineering Universal Programmer
User Manual
Version 1.0
© DediProg Technology Co., Ltd 2021 All rights reserved.
DediProg User Manual 03/2021
NuProg-E2 User Manual
www.dediprog.com 1
Table of contents
I. Introduction ............................................................................................ 2
II. Product Information................................................................................ 2
III. System Requirement ............................................................................... 2
IV. Product Descriptions ............................................................................... 3
V. Dediware Quick Installation..................................................................... 5
5.1 Software Installation (DediWare version 3.16.8.3 above)................................................. 5
5.3 Dediware (For MCU/Flash/EEPROM)................................................................................. 6
5.4 Dediware (For UFS/eMMC).............................................................................................. 10
VI. Socket Adaptor Installation ................................................................... 13
VII. Revision................................................................................................. 14
Important notice:
This document is provided as a guide line and must not be disclosed without consent of
DediProg. However, no responsibility is assumed for errors that might appear.
DediProg reserves the right to make any changes to the product and/or the specification at
any time without notice. No part of this document may be copied or reproduced in any
form or by any means without prior written consent of DediProg.
NuProg-E2 User Manual
www.dediprog.com 2
I. Introduction
This manual will be focusing on the hardware specification and the software quick
guide for NuProg-E2. NuProg-E2 is an universal engineering programmer. Widely supports most IC
types on the market, and also support different types of IC packages. Designed FPGA kernel
architecture supplies ultra-high speed programming performance. The Programming project and
sockets are compatible with NuProgPlus. Together with built-in SuperSpeed® USB 3.0 for high-speed
communication, it is an efficient tool for you to focus on application analysis and product
development. If you would like to know more about the Dediware software, please download it from
DediProg website.
https://www.dediprog.com/download
II.Product Information
Support Various Storage IC
UFS, eMMC, MCU, SPI NOR, SPI NAND, Parallel NOR, Parallel NAND, EEPROM, CPLD,
FPGA
Support All IC Package
CSP, BGA, QFN, QFP, SOP, TSOP, SSOP, PLCC, DIP, etc.
Support various file format:
Binary (bin/rom), Intel Hex (h16/h20/hex), Motorola S19 (mhx/mot/s19/srec)
and specific of MCU IC.
Dimension：135 x 91 x 30 mm
Weight：150 g
III.System Requirement
CPU:
i5 or above
OS:
Windows XP/Vista /7/8/8.1/10
USB Port:
USB 3.0
Free Disk Space:
At least twice of the programming memory
*Since UFS and eMMC have mass volumes, please reserve enough space for buffering.
*Computer performances will affect the read and write speed of UFS, please choose a computer that has higher
CPU and better performance.
NuProg-E2 User Manual
www.dediprog.com 3

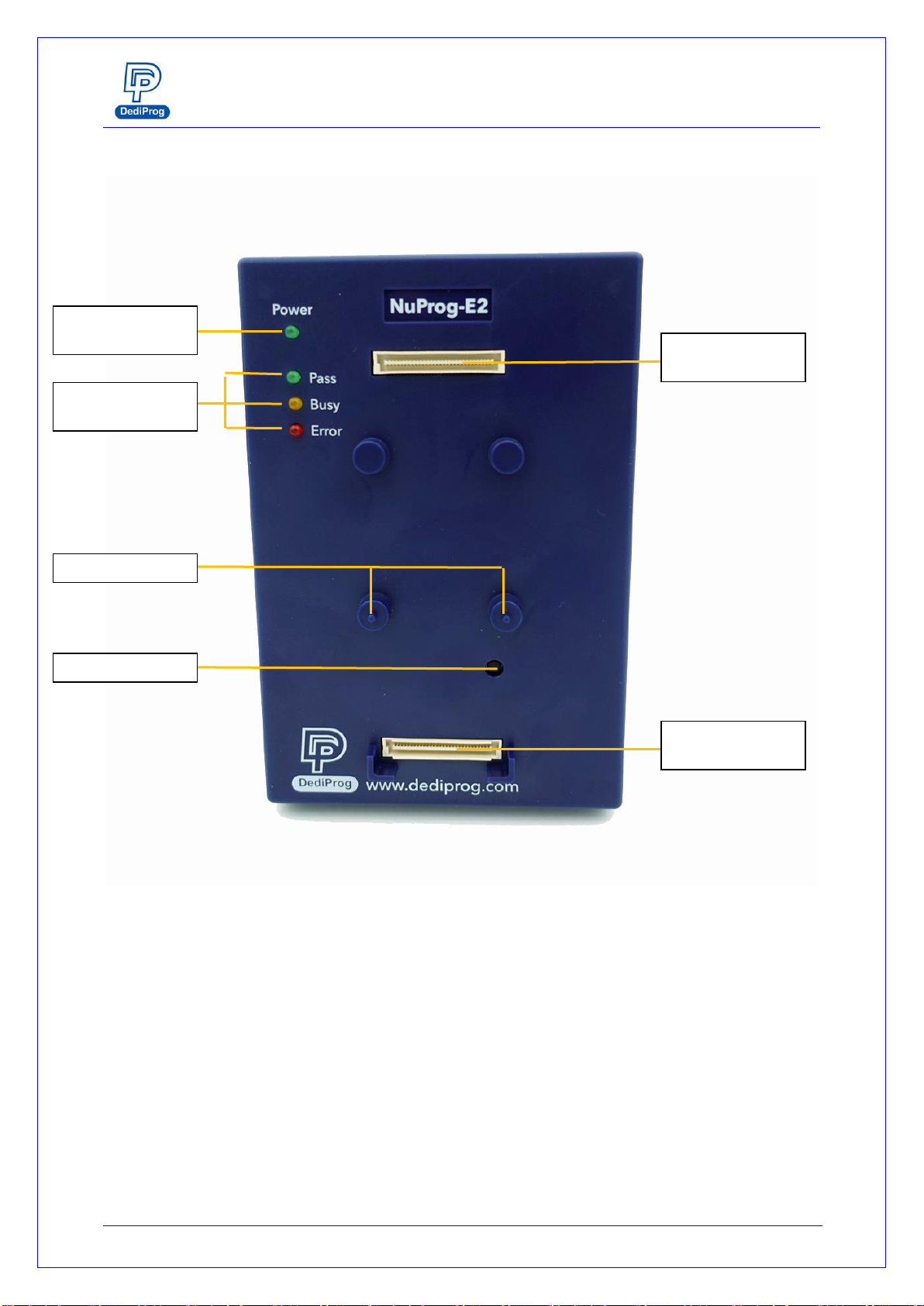

IV. Product Descriptions
A. Power Signal
Light
B. Operation
Lights
C. Alignment Pin
D. Reset Button
E. Programming
Socket Sites
E. Programming
Socket Sites
NuProg-E2 User Manual
www.dediprog.com 4
A. Power Signal Light
The light indicates the programmer is powered on.
B. Operation Lights
Red LED (Error): Error; programming has failed.
Yellow LED (Busy): The programmer is operating.
Green LED (Pass): Passed; the programming has completed successfully.
C. Alignment Pin
For socket adaptor installation
D. Reset Button
Only for repair use
E. Programming Socket Sites
Built-in high speed connector, which is for installing socket adaptor.

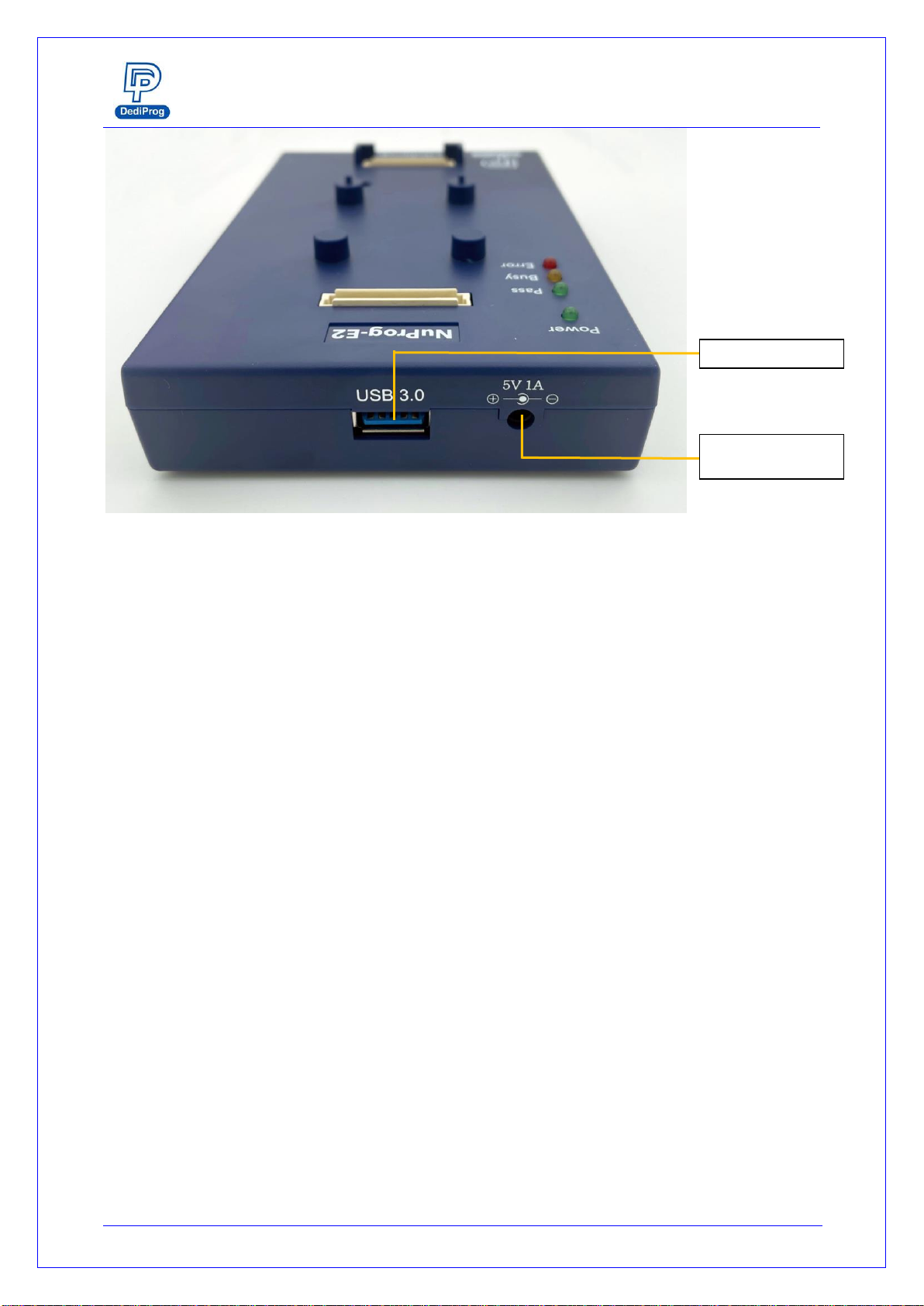

F. USB 3.0 Port
For connecting programmer with the computer.
G. Power Connector
External power inputs (In order to make it more stable, please make sure the power adapter is
connected, and it is recommended to connect the power first, and then plug in USB cable.)
F. USB 3.0 Port
G. Power
Connector
NuProg-E2 User Manual
www.dediprog.com 5
V. Dediware Quick Installation
The software is provided with the purchase of NuProg-E2. The latest version is available on our
website. http://www.dediprog.com/download
5.1 Software Installation (DediWare version 3.16.8.3 above)
1. Install Dediware and driver
2. After installation, three Dediware icons will appear on the desktop.
Run the software for MCU/Flash/EEPROM programming
Run the software for eMMC and UFS programming and duplicating.
Supporting the Command line of the StarProg Series Programmers (Please refer
to the Dediware Command Line User Manual)
NuProg-E2 User Manual
www.dediprog.com 6
5.2 Install NuProg-E2 Programmer
1. Connect the power cable to the NuProgPlus-U8 programmer
2. Connect the USB cable to the NuProgPlus-U8 programmer
3. Install the socket adaptor, please refer to VI. Socket Adaptor Installation
4. Turn on the power of the programmer
5. Place IC into the socket adaptor
6. Open the software and start programming
5.3 Dediware (For MCU/Flash/EEPROM)
Note
It is able to create programming project file without connecting to NuProg-E2. The user can
create project file on any computer that has installed Dediware. After creating the file, the
user can save the file on computer for programming.
1. Double click the software icon to open it

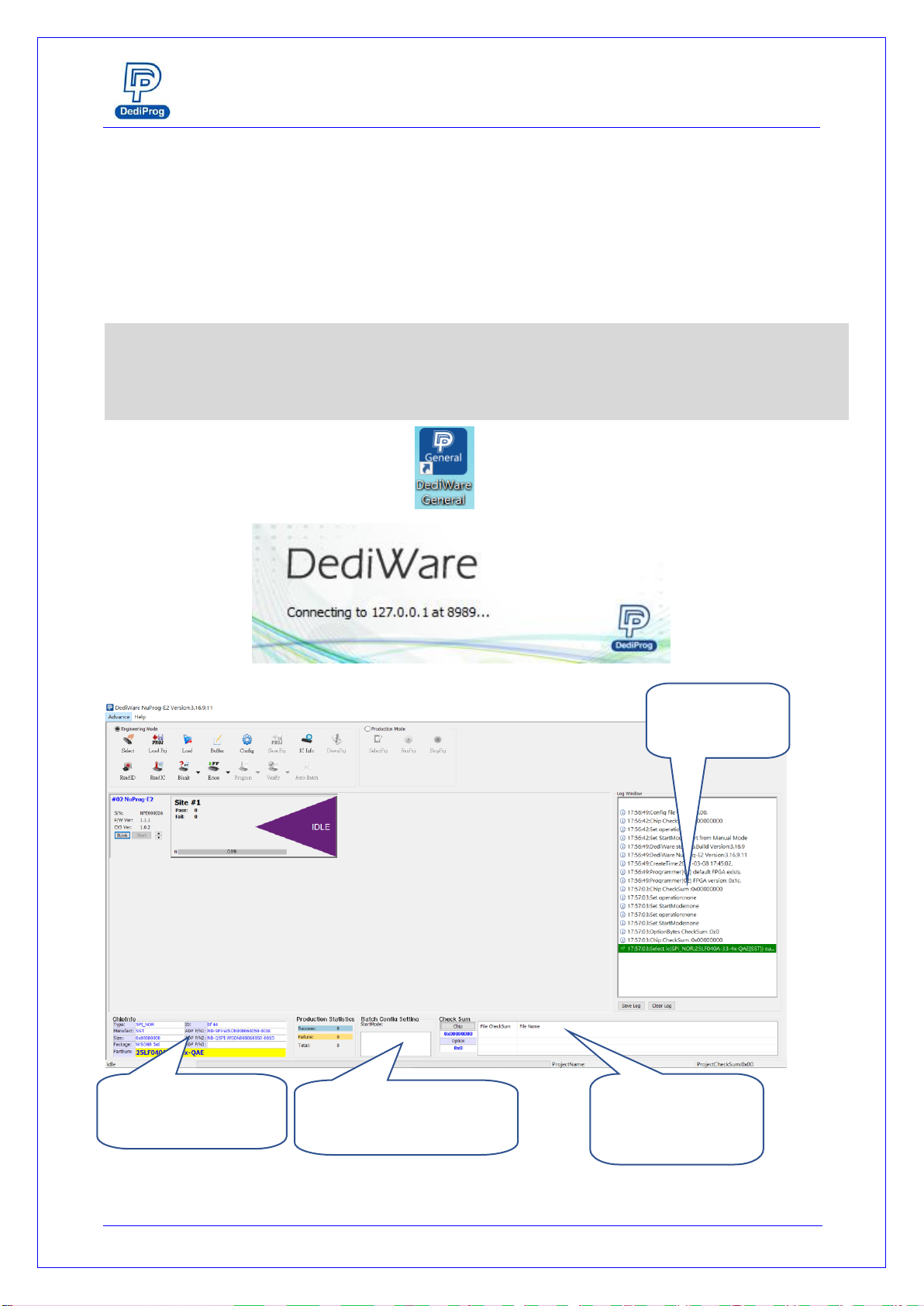

2. Dediware GUI
IC & Socket
Information
Checksum and
Programming File
Information
Production Quantity and
Batch Information
Log History
NuProg-E2 User Manual
www.dediprog.com 7
3. Select IC brand and IC Part Number (or use search to find the model name)
4. Load the image file
It is faster to find it
by entering the IC
model here
NuProg-E2 User Manual
www.dediprog.com 8
5. Set up the programming procedure and mode
Other than set up Batch according to the programming need, user can also set up the Start Mode
and other functions according to different kinds of IC.
Click Auto Batch to start programming.
NuProg-E2 User Manual
www.dediprog.com 9
6. Save/Load Programming Project File
SavePrj can save the setting of Select/Load/Config，and pack to a project file(*.dprj) ; LoadPrj can
load previously saved project files.
Name the project file (*.npprj), once the user click ok, a window will appear for the user to set up
the password for production management. If the user has set the password, then it will be
requested when loading the project in the production mode. If not, then it will load the file
directly.
