Datamax M-Class Mark II Manuel utilisateur

Internal Rewinder Option

92-2477-01 Rev.C

Contents of the Internal Rewinder Kit

This kit contains the following items:

Arc Plate,

Internal Rewinder Assembly

Media Clip

Media Retainer

Screws (3)

Follow the steps listed below to install this option.

Tools Required

To install this option you will need a #2 Phillips head screwdriver.

Step 1: Preparing the Printer

Turn ‘Off’ the power switch and unplug the

printer.

Open the cover. Remove any installed media

from the printer.

Remove the Fascia by gently pulling it forward.

Loosen and remove the Thumbscrew, then

remove the Tear Plate.

Fascia Tear Plate

Thumbscrew

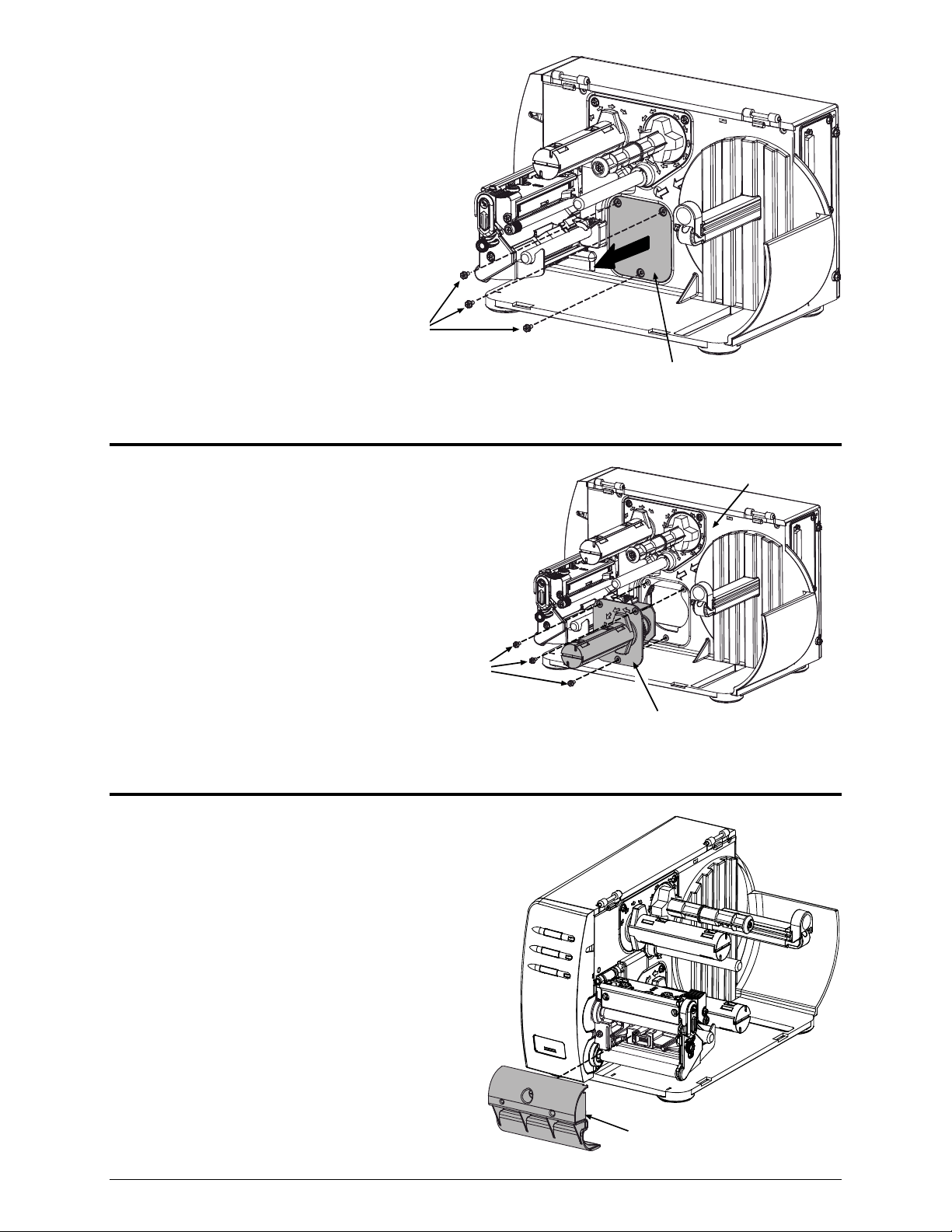

Remove the three Screws that

secure the Cover Plate to the

printer.

Remove the Cover Plate.

Cover Plate

Screws

Step 2: Installing the Internal Rewinder

Carefully position the Internal

Rewinder into the Centerplate of

the printer, as shown.

Secure the Internal Rewinder

using the three Screws supplied

in this kit.

Internal Rewinder

Screws

Centerplate

Step 3: Installing the Arc Plate

Position the Arc Plate onto the front

of the printer, as shown.

Using a #2 Phillips head screwdriver,

secure the Arc Plate to the printer.

This completes the installation process.

Proceed to Media Loading.

Arc Plate

Media Loading

Load media into the printer as you normally would for tear-off operation (see the Operator’s Manual

for details), however, extend an additional 12 inches (30 cm) of media out the front of the printer.

Route the Media over the Arc Plate and around the Internal Rewinder, as shown below.

Media

Internal Rewinder

Media

Retainer

Slots

Thumbscrew

Media Clip

Arc Plate

Note: The Media Retainer can be used in place of the Media Clip for a more consistent rewound roll. The Media

Clip and Media Retainer cannot be used together.

Put the leading edge of the Media into a Slot on the Internal Rewinder and insert the Media Clip. Be

sure the leading edge of the Media is cut square and that is inserted evenly into the slot.

Manually rotate the Internal Rewinder to remove slack from the Media.

Plug in and turn ‘On” the printer. After initialization, press the FEED Button to align the next label to

the top of form position. The printer is now ready to rewind printed labels.

Unloading the Internal Rewinder

When the Internal Rewinder becomes full, remove the Media Clip. Grasp the used media and carefully

pull it from the Internal Rewinder.

Note: Never allow the outer diameter of backing material to exceed 4 inches (102 mm) on the Internal Rewinder.
