DS1100 QUICK GUIDE

DS1100

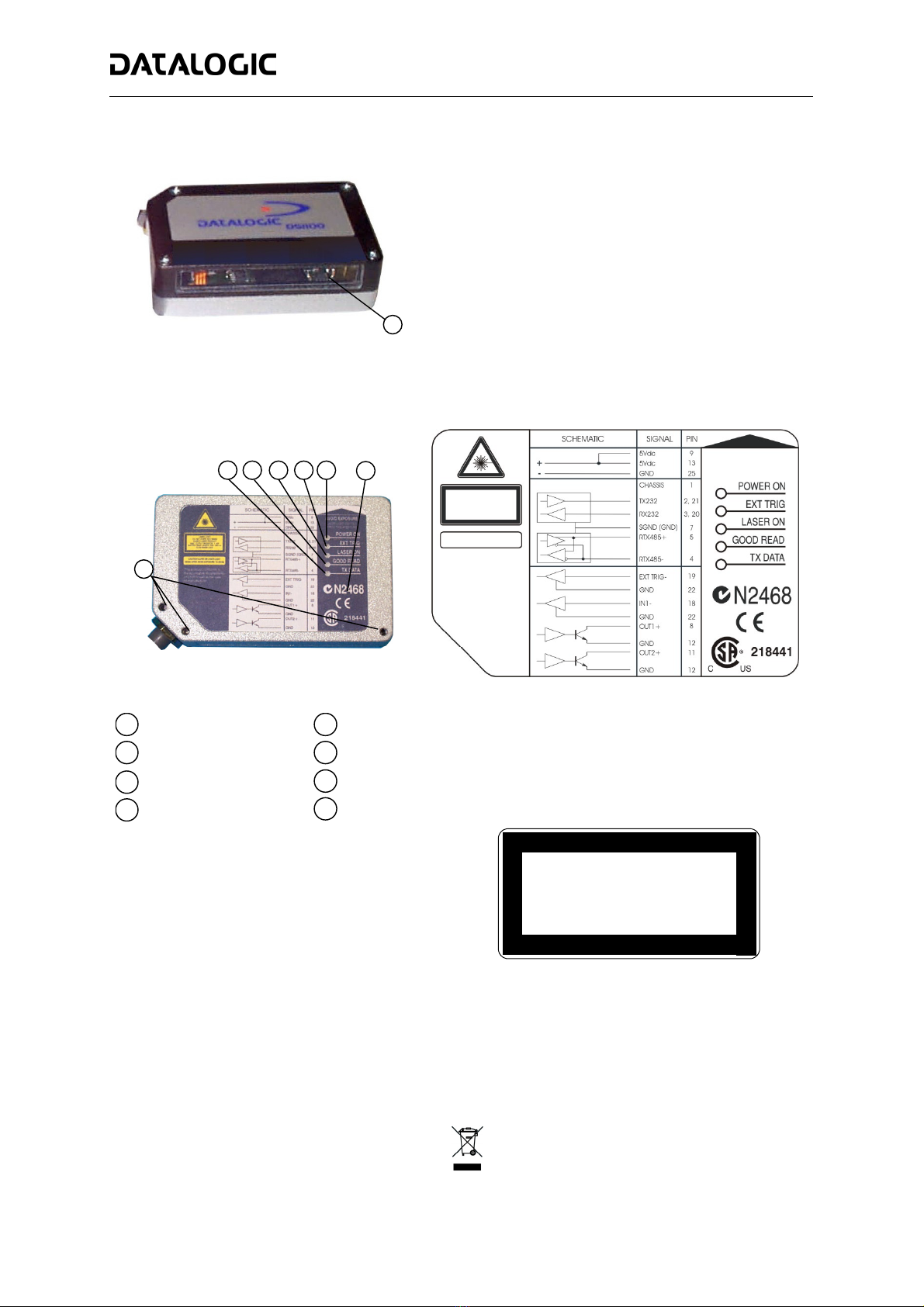

General View: Laser Safety:

The scanner is classified as a Class 2 laser product according

to EN 60825-1 regulations and as a Class II laser product

according to CDRH regulations.

For installation, use and maintenance it is not necessary to

open the scanner.

There is a safety device which allows the laser to be switched

on only if the motor is rotating above the threshold for its correct

scanning speed.

The motor and the laser beam can be switched off through a

software command (see also the WinHost Help On Line).

LASER LIGHT

DO NOTSTARE INTO BEAM

CLASS 2 LASER PRODUCT

MAX. OUTPUT RADIATION 1mW

EMITTED WAVE LENGTH 630-680 nm

TO EN 60825-1:2001

CAUTION-CLASS 3B LASER LIGHTWHEN

OPEN AVOID EXPOSURE TO BEAM

This product conforms to the

applicable requirements of

21CFR1040 at the date of

manufacture.

AVOID EXPOSURE

LASER LIGHT EMITTED

FROM THIS APERTURE

Figure A Warning and Device Class Label

4 8

Laser Beam Output Window

Laser Warning and

Device Class Label

Power On LED

Ext Trig LED

Laser On LED

Good Read LED

TX Data LED

Mounting Holes

The laser diode used in this device is classified as a class

3B laser product according to EN 60825-1 regulations

and as a Class IIIb laser product according to CDRH

regulations. As it is not possible to apply a classification

label on the laser diode used in this device, the following

label is reproduced below.

For further details on product installation,

see the complete Installation Manual.

DS1100 can be configured through the

WinHost Windows-based software program

available on the installation CD-ROM.

For configuration it is necessary to create a

cable connecting the scanner to the PC as

indicated in the “How To Build A Simple

Interface Test Cable” section of this guide.

Power Supply:

- This product is intended to be installed by

Qualified Personnel only.

- This accessory device is intended to be

supplied by a UL Listed or CSA Certified

Power Unit with «Class 2» or LPS power

source which supplies power directly to the

scanner via the 25-pin connector.

LASER LIGHT

AVOID EXPOSURE TO BEAM

CLASS 3B LASER PRODUCT

MAX. OUTPUT RADIATION 7 mW

EMITTED WAVE LENGTH 630~680 nm

TO EN 60825-1 (2001)

Laser Diode Class Label

Any violation of the optic parts in particular can cause

radiation up to the maximum level of the laser diode

(7 mW at 630 to 680 nm).

WEEE Compliance:

345

7 6 2

DS1100 QUICK GUIDE

Model Description:

DS1100 - X X X X

Optical Resolution

1 = Standard resolution

2 = High resolution

Communication Interface

1 = RS232 + RS485

Optic Version

0 = Linear

1 = Raster

Reading Window Position

0 = Direct

1 = 90°

Reading Performance:

Version Reading Distance Max Code Resolution

mm (mils)

Speed

scans/s

1XXX 30 mm (1.2 in) - 220 mm (8.7 in) on 0.50 mm (20 mils) codes 0.20 (8) 500

2XXX 10 mm (0.4 in) - 110 mm (4.3 in) on 0.30 mm (12 mils) codes 0.12 (5) 500

Technical Features:

ELECTRICAL FEATURES SOFTWARE FEATURES

Power Supply 5 Vdc ± 5% Readable Codes EAN/UPC

Power Consumption 1.5 W maximum

Main Serial Interface RS485 Half-Duplex

(including Add-on 2and Add-on 5)

Code 39

Auxiliary Interface RS232

Baud Rates 150 to 115200

Inputs External Trigger; IN1

Outputs OUT1, OUT2

2/5 Interleaved

Code 128

EAN 128

Code 93

User-defined Codabar

CE max. 50 Vdc Pharmacode

Collector Current 50 mA continuous max. Headers and Up to four header and four

CE Saturation 0.3 V at 10 mA max. Terminators terminator characters

Power Dissipation 200 mW at 40 °C Operating Modes On-Line, Automatic,

max. (Ambient temp.) Serial-On-Line, Test

OPTICAL FEATURES Special Functions Motor On/Off sw commands

Light Source Semiconductor laser diode Laser On/Off sw commands

Wavelength In the range 630 to 680 nm Configuration Modes Through menus using

Safety Class Class 2 - EN 60825-1;CDRH

ENVIRONMENTAL FEATURES

WinHost utility

Host Mode (commands from

Operating 0° to +45 °C (+32° to +113 °F) one of the serial ports)

Temperature Decoding Safety Can enable multiple good

Storage -20° to +70 °C (-4° to +158 °F) reads of the same code

Temperature Code Selection Up to six different codes

Humidity max 90% non condensing during one reading phase

Vibration Resistance 14 mm @ 2-10 Hz Parameter Storage Non-volatile internal

EEPROMIEC 68-2-6 test FC 1.5 mm @ 13-55 Hz

2 g @ 70-200 Hz

2 hours on each axis

Shock Resistance 30g; 11 ms; PHYSICAL FEATURES

IEC 68-2-27 test EA 3 shocks on each axis Dimensions 80x50x24 mm (3.15x1.9x1 in)

Protection Class IP65 <100 g.

(3.53 oz)

USER INTERFACE

Weight without

Cable

LED Indicators Power ON, Good Read,

External Trigger,

Data TX; Laser ON

Accessories:

Name Description Part Number

DC5-2200 DC converter 4-30 Vdc to 5 Vdc 93ACC1040

DS1100 QUICK GUIDE

Electrical Connections:

DS1100 is equipped with a cable terminated by a 25-pin female D-sub connector for connection with the power

supply and input/output signals.

CAUTION

Do not connect GND and SGND to different (external) ground references. GND and SGND

are internally connected through filtering circuitry which can be permanently damaged if

subjected to voltage drops over 0.8 Vdc.

The details of the connector pins are indicated in the following table:

25-pin D-sub female connector pinout

Pin Name Function

9, 13 VS Power supply input voltage +

25* GND Power supply input voltage -

1* CHASSIS Chassis ground

2, 21 TXAUX TX RS232 Aux. Interface

3, 20 RXAUX RX RS232 Aux. Interface

4 RTX485-

RTX- RS485 Main Interface

5 RTX485+ RTX+ RS485 Main Interface

7 SGND

Signal Ground

8 OUT 1+

Output 1+

11 OUT 2+ Output 2+

18 IN 1- Input 1-

19 EXT TRIG - External Trigger -

12, 22 GND Input/Output reference

23, 24 N.U. Not Used

6, 10, 14, 15, 16, 17 N.C. Not Connected

25-pin female connector

* Pins 1 and 25 are connected together internally.

Mechanical Installation:

inch

M3 n°3

3.15

64.3

2.53

0.16

7.7

0.3

2.4

1.97

DS1100-XXX1

23.8

0.93

15.4*

0.6

0.28

6.9*

0.27

0.29

2.4

4.2

7.8

20°

2.5

R40

4.2

90°

13.8

17.5

2.5

4.2n°2

1 x 45° n° 2

* The quote refers to the scan line

DS1100 QUICK GUIDE

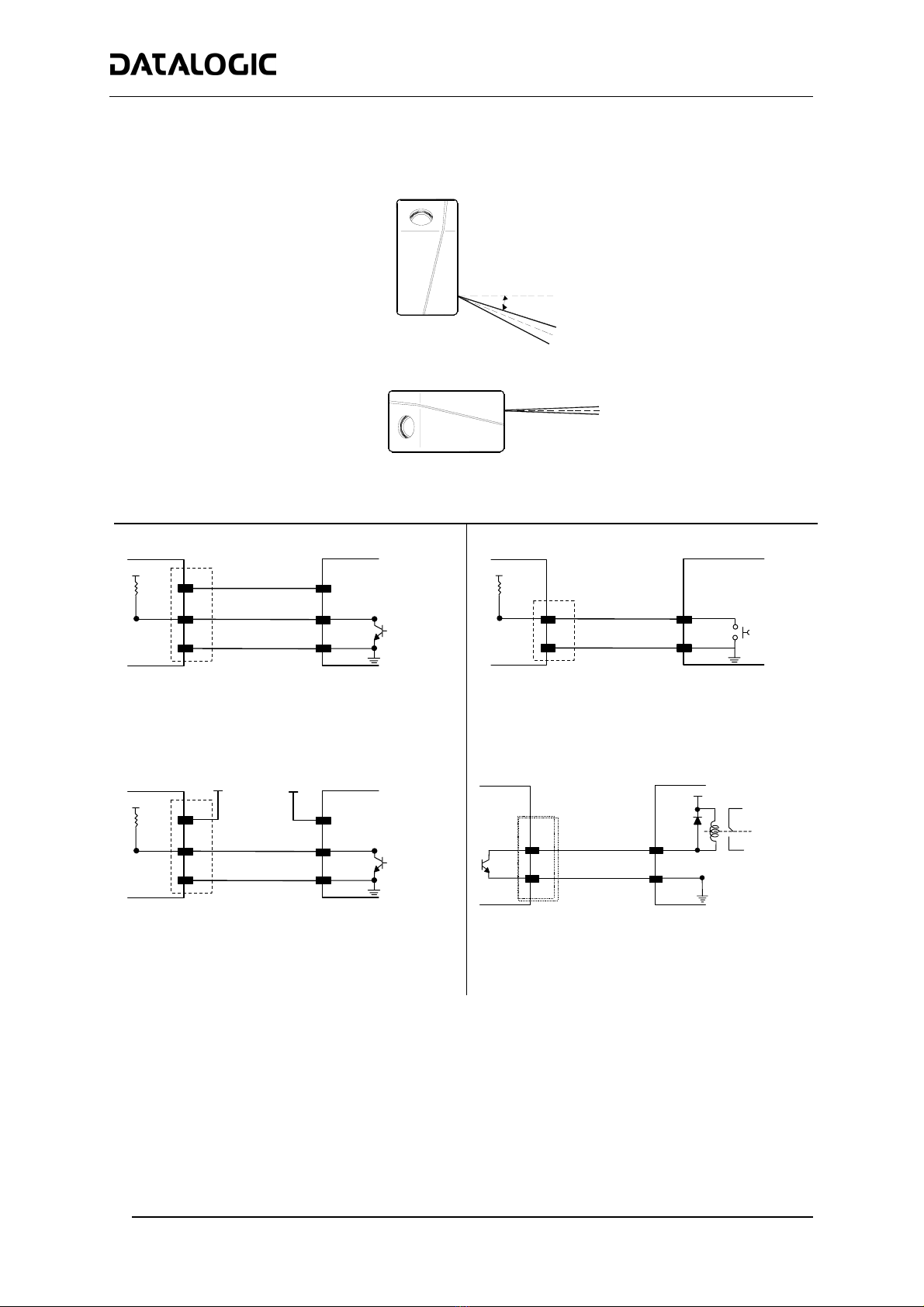

Reading Position:

In DS1100-XXX1 models the laser beam is emitted from the output window with a 12° (± 2) skew angle.

± 2°

Laser

Beam

DS1100-XXX1

90° Reading Window

Position

DS1100-XXX0

Direct Reading

Window Position

Laser

Beam

12° ± 2

Input/Output Connections:

Input Input

13/9

VS 5 Vdc

EXT TRIG -

12/22 GND

EXTERNAL TRIGGER

Ground

DS1100

Signal

+ 5 V

47 K

NPN Ext. Trigger Input Command (5 Vdc Photocell)

18 IN1 -

12/22 GND Ground

DS1100

+ 5 V

47 K

User Interface

IN1 Input Command

Input Output

13/9

VS 5 Vdc

EXT TRIG -

12/22 GND

EXTERNAL TRIGGER

Ground

DS1100

Signal

+ 5 V

47 K

Vma

30 Vdc max

NPN Ext. Trigger Input Command (Photocell max 30 Vdc)

USER INTERFACE

Vext 50 Vdc max., 50 mA max.

DS1100

8/11

12/22

OUT1+ / OUT 2+

GND Ground

Output Open Collector Connections

CE max = 50 Vdc

I max = 50 mA continuous

DS1100 QUICK GUIDE

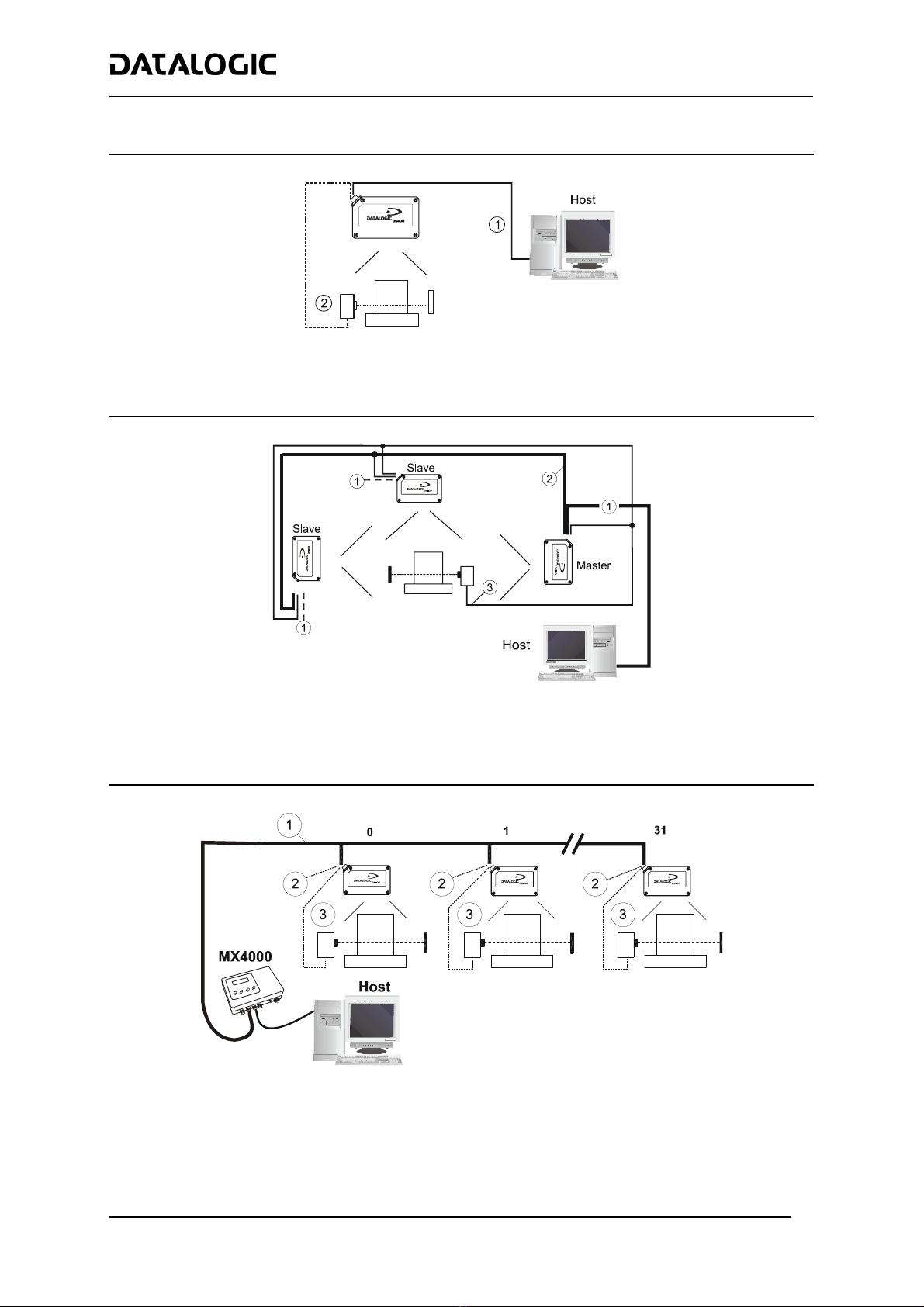

Connectivity:

RS232 Point-to-point layout

cRS232 Auxiliary Serial Interface

dExternal Trigger (for On-Line mode)

RS485 Master/Slave layout

cRS232 Auxiliary Serial Interface

dRS485 HD Main Serial Interface

eExternal Trigger

Multiplexer layout

cRS485 HD Main Interface

dRS232 Auxiliary Interface (Local Echo)

eExternal Trigger (for On-Line mode)

DS1100 QUICK GUIDE

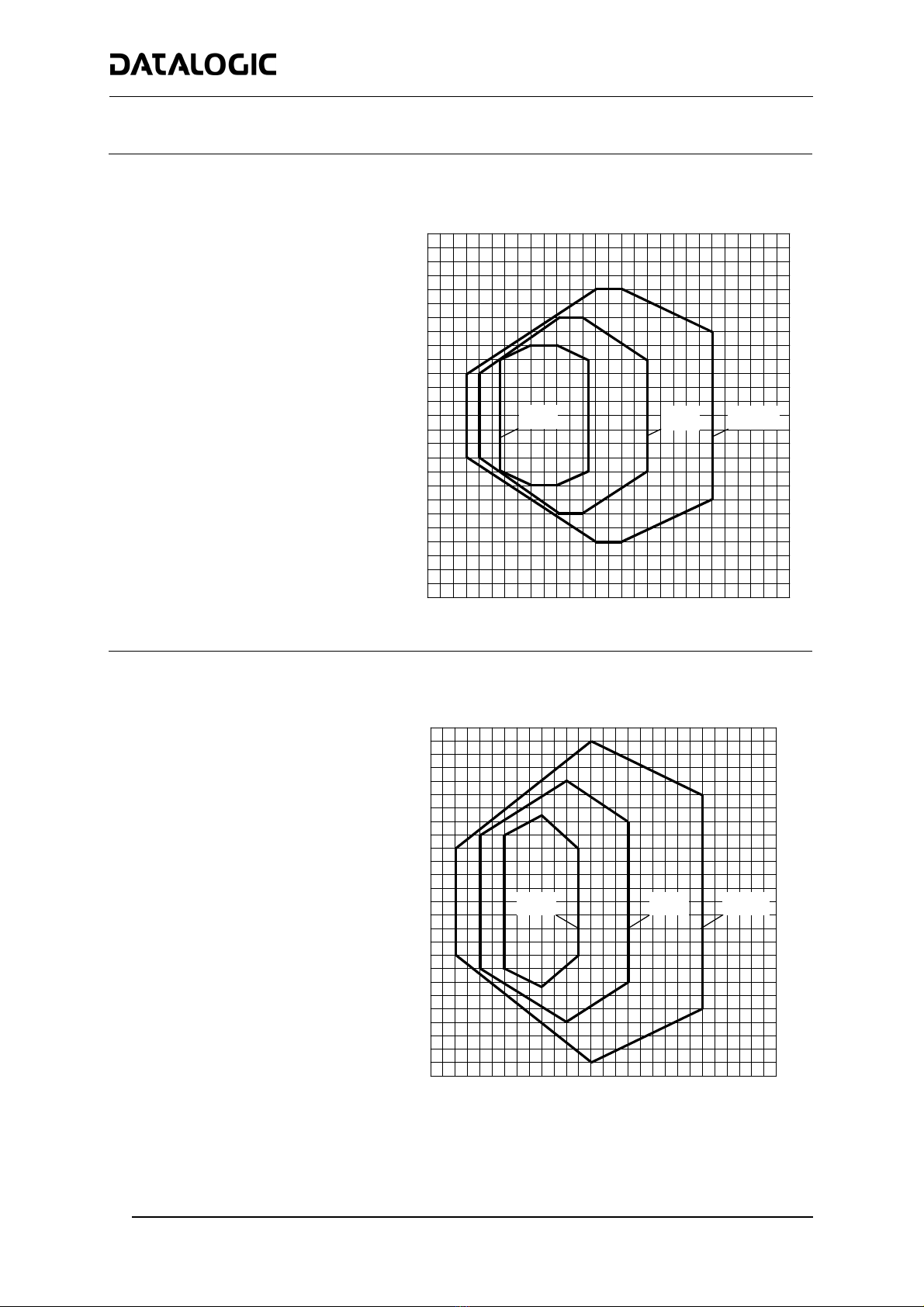

Reading Diagrams:

DS1100-1XXX (Standard Resolution)

CONDITIONS

Code = Interleaved 2/5 or Code 39

PCS = 0.90

Pitch angle = 0°

Skew angle = 15°

Tilt angle = 0°

(in)

01 32106(in)

45 7 89

0 20 40 60 80 100 120 140 160 180 200 220 240 260 (mm)

120

100

120

(mm)

0.20 mm

(8 mils) 0.30 mm

(12 mils)

≥0.50 mm

(20 mils)

DS1100-2XXX (High Resolution)

CONDITIONS

Code = Interleaved 2/5 or Code 39

PCS = 0.90

Pitch angle = 0°

Skew angle = 15°

Tilt angle = 0°

(in)

01 53(in)

0 10 20 30 40 50 60 70 80 90 100 110 120 130 (mm)

(mm)

0.12 mm

(5 mils)

0.20 mm

(8 mils)

≥0.30 mm

(12 mils)

DS1100 QUICK GUIDE

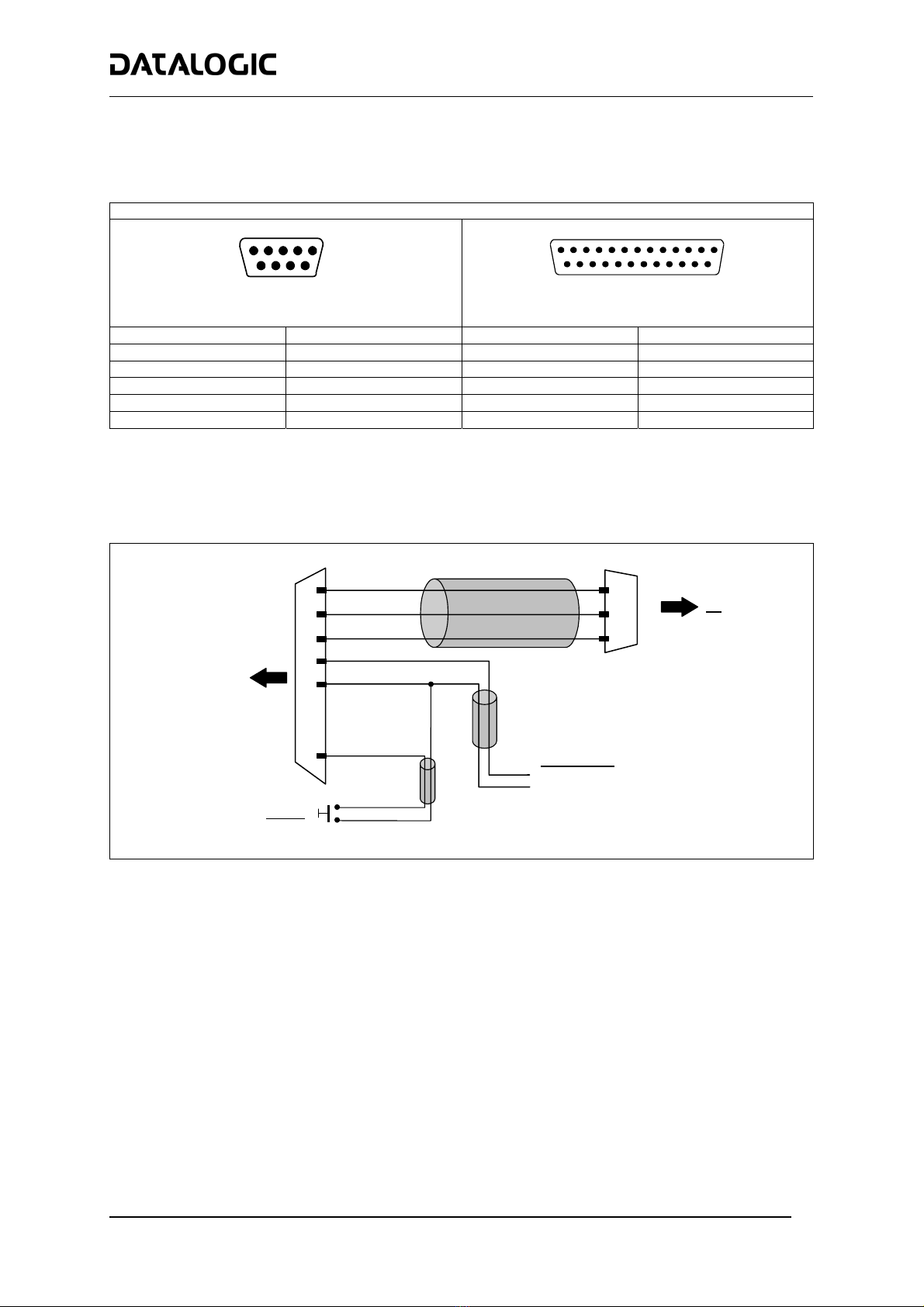

User Interface:

The following table contains the pinout for standard RS232 PC Host interface. For other user interface types

please refer to their own manual.

RS232 PC-side connections

1 5

9-pin male connector

2514

25-pin male connector

Pin Name Pin Name

2 RX 3 RX

3 TX 2 TX

5 GND 7 GND

7 RTS 4 RTS

8 CTS 5 CTS

How To Build A Simple Interface Test Cable:

The following wiring diagram shows a simple test cable including power, external (push-button) trigger and PC

RS232 COM port connections.

25-pin D-sub male

SGND

RXAUX

TXAUX

DS1100 25

GND

9-pin D-sub female

GND

Power Supply

VS (5 Vdc ±5%)

Power GND

Trigger

EXT TRIG-

Test Cable for DS1100

DATALOGIC S.p.A.,

Via Candini, 2

40012 - Lippo di Calderara

Bologna - Italy 05

dichiara che

declares that the

déclare que le

bescheinigt, daß das Gerät

declare que el

DS1100-XXXX Laser Scanner e tutti i suoi modelli

and all its models

et tous ses modèles

und seine modelle

y todos sus modelos

sono conformi alle Direttive del Consiglio Europeo sottoelencate:

are in conformity with the requirements of the European Council Directives listed below:

sont conformes aux spécifications des Directives de l'Union Européenne ci-dessous:

der nachstehend angeführten Direktiven des Europäischen Rats:

cumple con los requisitos de las Directivas del Consejo Europeo, según la lista siguiente:

89/336/EEC EMC Directive e 92/31/EEC, 93/68/EEC emendamenti successivi

and further amendments

et ses successifs amendements

und späteren Abänderungen

y succesivas enmiendas

Basate sulle legislazioni degli Stati membri in relazione alla compatibilità elettromagnetica ed alla sicurezza dei prodotti.

On the approximation of the laws of Member States relating to electromagnetic compatibility and product safety.

Basée sur la législation des Etats membres relative à la compatibilité électromagnétique et à la sécurité des produits.

Über die Annäherung der Gesetze der Mitgliedsstaaten in bezug auf elektromagnetische Verträglichkeit und Produktsicherheit

entsprechen.

Basado en la aproximación de las leyes de los Países Miembros respecto a la compatibilidad electromagnética y las Medidas

de seguridad relativas al producto.

Questa dichiarazione è basata sulla conformità dei prodotti alle norme seguenti:

This declaration is based upon compliance of the products to the following standards:

Cette déclaration repose sur la conformité des produits aux normes suivantes:

Diese Erklärung basiert darauf, daß das Produkt den folgenden Normen entspricht:

Esta declaración se basa en el cumplimiento de los productos con las siguientes normas:

EN 55022 (Class A ITE), August 1994:

Amendment A1 (Class A ITE), October 2000:

LIMITS AND METHODS OF MEASUREMENTS OF RADIO DISTURBANCE

CHARACTERISTICS OF INFORMATION TECHNOLOGY EQUIPMENT

EN 61000-6-2, October 2001: ELECTROMAGNETIC COMPATIBILITY (EMC)

PART 6-2: GENERIC STANDARDS - IMMUNITY FOR INDUSTRIAL

ENVIRONMENTS

Lippo di Calderara, 13/09/2005

Ruggero Cacioppo

Quality Assurance Supervisor

821000813 (Rev. D1)

Autres manuels pour DS1100 SH2347

Table des matières

Autres manuels Datalogic Scanner

Datalogic

Datalogic DLL2020-WO Manuel utilisateur

Datalogic

Datalogic Matrix 120 Manuel d'installation et d'exploitation

Datalogic

Datalogic DS41-X0 Manuel utilisateur

Datalogic

Datalogic MAGELLAN 3410VSi Manuel utilisateur

Datalogic

Datalogic DS6400 Manuel utilisateur

Datalogic

Datalogic Matrix 320 Manuel utilisateur

Datalogic

Datalogic Magellan 3300HSi Manuel d'installation et d'exploitation

Datalogic

Datalogic DS2200 SH2348 Manuel utilisateur

Datalogic

Datalogic MAGELLAN 3410VSi Guide de configuration rapide

Datalogic

Datalogic DS4800 Manuel utilisateur

Datalogic

Datalogic DS1100 SH2347 Manuel utilisateur

Datalogic

Datalogic DS2100N Manuel utilisateur

Datalogic

Datalogic Magellan 9300i Manuel d'installation et d'exploitation

Datalogic

Datalogic Magellan 9800i Manuel d'installation et d'exploitation

Datalogic

Datalogic Heron HD3130 Manuel utilisateur

Datalogic

Datalogic Jade X7 Manuel utilisateur

Datalogic

Datalogic EtherNet/IP DS6 00 Series Manuel utilisateur

Datalogic

Datalogic Matrix 450 Manuel utilisateur

Datalogic

Datalogic Matrix 300N Manuel d'installation et d'exploitation

Datalogic

Datalogic Magellan 1500i Manuel d'installation et d'exploitation

Datalogic

Datalogic DS8100 Manuel utilisateur

Datalogic

Datalogic HS7500 Manuel utilisateur

Datalogic

Datalogic PWR-480W Manuel utilisateur

Datalogic

Datalogic Magellan 9800i Manuel utilisateur

Manuels Scanner populaires d'autres marques

Plustek

Plustek Scanner Manuel utilisateur

Z/I Imaging

Z/I Imaging PhotoScan 2001 Manuel utilisateur

Renkforce

Renkforce DS100-5M Manuel utilisateur

Image Access

Image Access WideTEK A2 Manuel utilisateur

Canon

Canon imageFORMULA CR-120N Manuel utilisateur

Fujitsu

Fujitsu FI-4860C2 Manuel utilisateur

GeoSlam

GeoSlam ZEB Horizon Instructions d'installation

Kodak

Kodak i5800 Scanner Manuel utilisateur

Kodak

Kodak i7300 Manuel utilisateur

Revopoint

Revopoint POP Manuel utilisateur

Fujitsu

Fujitsu fi-4860C Manuel utilisateur

Eddyfi Technologies

Eddyfi Technologies Floormap X Manuel utilisateur

Faselase

Faselase F6 Manuel utilisateur

Fujitsu

Fujitsu CardMinder Manuel utilisateur

Uniden

Uniden BC340CRS Manuel utilisateur

Infinite Peripherals

Infinite Peripherals INFINEA TAB M Manuel utilisateur

Mustek

Mustek PageExpress 4800 Pro Manuel utilisateur

Optex

Optex 750830 Manuel utilisateur
